1. Before Deploying Congratulations on the purchase of your Sophos XG device. This Quick Start Guide describes in short steps how to connect your device and explains how to open the web-based Admin Console from your administration PC. The Admin Console allows you to configure every aspect of the device.
Page 3

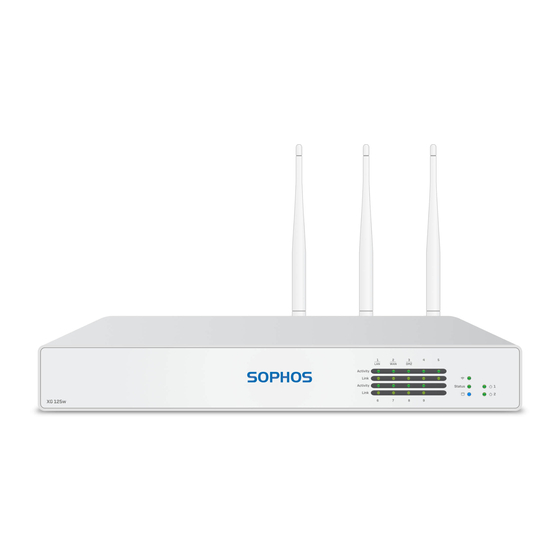

Device Images: Front and Back XG 105(w)/115(w) 2 x external antenna (XG 105w and XG 115w only) Connector for optional 2 redundant power supply Status LEDs 1 x COM 1 x GbE SFP 4 x GbE (w-model has additional Wi-Fi LED)
Page 4
2. Mount & connect the device Mount the antennas (for wireless models only) Connect the provided antennas to the connectors on the back of your appliance and align them in a vertical position. Internet Connect the ports to the internal and external networks 1.
Page 5
3. Power Up the Device Connect the power adapter(s) and turn on the device Connect the provided power adapter to connector 1 on the back of the device. In order to increase redundancy you can connect an optionally available second power adapter of the same type to power connector 2.
Page 6
Sophos ID, enter your login credentials under “Sign in with your Sophos ID”. Register Device If you are a new user, sign up for a Sophos ID by entering the details under “Create Sophos ID”. Network Configuration Wizard Secure your enterprise with Click “Continue”...
Power adapter 2 in normal operation Constantly Power adapter 2 failed or disconnected 6. Support and Documentation For more information and technical support, please visit www.sophos.com/en-us/ support or contact your local Sophos reseller. Quick Start Guide XG 105(w)/115(w)/125(w)/135(w) Rev. 3...
Page 8
1. Vorbereitung Herzlichen Glückwunsch zum Kauf dieser Sophos XG Appliance. Diese Kurzanleitung beschreibt schrittweise, wie Sie die Appliance verbinden, und erläutert, wie Sie über Ihren Administrations-PC die webbasierte Admin Console öffnen. Über die Admin Console können Sie jeden Aspekt der Appliance konfigurieren.
Page 9
Abbildungen der Appliance: Vorder- und Rückseite XG 105(w)/115(w) Rev. 3 2 x externe Antenne (nur XG 105w und XG 115w) Anschluss für optionale zweite redundante Stromversorgung 1 x GbE Status-LEDs 1 x COM Kupferport (w-Modell hat zusätzliche WiFi-LED) HDMI (RJ45) (geteilt) Stromversorgung 1 x Micro- USB 2.0 XG 125(w)/135(w) Rev.
Page 10
2. Appliance montieren und verbinden Antennen montieren (nur bei Wireless-Modellen) Stecken Sie die mitgelieferten Antennen in die entsprechenden Anschlüsse auf der Rückseite Ihrer Appliance ein und bringen Sie sie in eine vertikale Position. Internet Ports mit den internen und externen Netzwerken verbinden 1.
Page 11
3. Appliance einschalten Netzadapter anschließen und Appliance einschalten Verbinden Sie den mitgelieferten Netzadapter mit dem Anschluss 1 auf der Rückseite der Appliance. Um die Redundanz zu erhöhen, können Sie einen optional erhältlichen zweiten Netzadapter desselben Typs mit Netzanschluss 2 verbinden. Schalten Sie die Appliance ein.
Page 12
Device Management a) Das Gerät registrieren Welcome Falls Sie Ihre Appliance noch nicht unter Ihrer Sophos ID registriert haben, wird To your Sophos Device ein Bildschirm zur Registrierung angezeigt. Für die Registrierung unter Ihrer To get started register your device below. Until you register you may only access and edit settings in “Basic Setup”...
Page 13
Leuchtet Netzadapter 2 funktioniert nicht oder ist nicht verbunden 6. Support und Dokumentation Für weitere Informationen und technischen Support gehen Sie auf die Website www.sophos.com/de-de/support oder wenden Sie sich an Ihren Sophos Vertriebspartner vor Ort. Kurzanleitung XG 105(w)/115(w)/125(w)/135(w) Rev. 3...
Page 24
To get started register your device below. Until you register you may only access 置, 使设备可以连接到Internet。 and edit settings in “Basic Setup” and your device will remain unactivated. 单击 “注册设备” 后, 将跳转到 Sophos.com。 如果您已经有 Sophos ID, 请在 “使用您的 Serial Number XXXXXXXXXXXXXXX Sophos ID 登录”...
Page 32
Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
