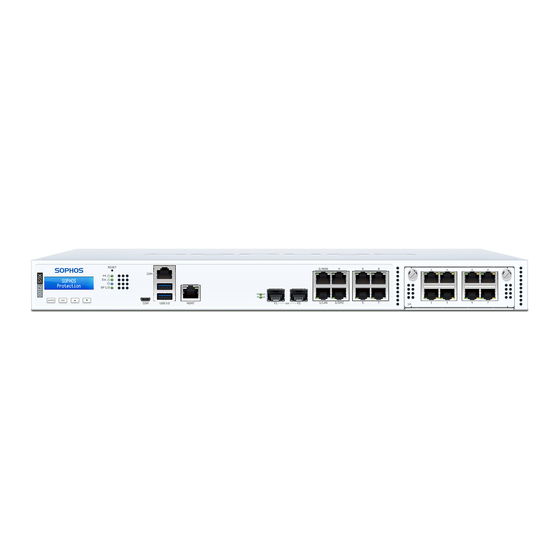

- Page 1 Operating Instructions XGS 2100/2300/3100/3300...
-
Page 2: Security Symbols
Operating Instructions Foreword We are pleased to welcome you as a new customer of our Sophos XGX appliances. To install and configure the hardware appliance you can use the following documents: Hardware Quick Start Guide: Connection to the system peripherals in a few steps... -
Page 3: Operating Elements And Connections
Operating Instructions CE Labeling, FCC and Approvals The XGS 2100/2300/3100/3300 appliances comply with CB, CE, UL, FCC, ISED, VCCI, CCC, KC, BSMI, RCM, NOM, Anatel. Important Note: For computer systems to remain CE and FCC compliant, only CE and FCC compliant parts may be used. - Page 4 LAN Ports Type Speed Comment 1–8 RJ45 10/100/1000 Mbps Ports 1/2 can be configured as a bypass pair. F1–F2 1 Gbps (XGS 2100/2300 only) F1–F2 SFP+ 1/10 Gbps (XGS 3100/3300 only) F3–F4 1 Gbps (XGS 3100/3300 only) Other Ports Type...
-
Page 5: Technical Specifications
Operating Instructions Technical Specifications XGS 2100 XGS 2300 XGS 3100 XGS 3300 Physical Specification #Fixed Ethernet Ports #Fixed ByPass Port Pairs max. #Flexi Ports #Cores Main CPU Main Memory 8 GB DDR4 2400 8 GB DDR4 2400 12 GB DDR4 2666... -
Page 6: Led Status
Either the LED is not working or the SFP+ connector is operating at a speed below 1,000 Mbps. LCD and Control Keys The XGS 2100/2300/3100/3300 have an LCD and an operating unit with four membrane keys. In the LCD, 16 characters per line can be displayed. SOPHOS... - Page 7 1. v to Cont. Factory Reset 2. Confirm Network Menu Shutdown 3. Shutdown 1. v to Cont. Shutdown 1. Confirm Network Menu Reboot 4. Reboot 1. v to Cont. Reboot 1. Confirm Main Menu Not Configured 4. HA Info XGS 2100/2300/3100/3300...
-
Page 8: Control Key Functions
Shows Firmware Menu Second item 2. Factory Reset Factory Reset Press down key to continue ENTER 1. v to Cont. Factory Reset Asks for Confirmation 2. Confirm? Factory Reset under progress ENTER Firmware Version Factory Reset Complete SFOS xx.xx.xx XGS 2100/2300/3100/3300... - Page 9 Firmware Menu Shows Firmware Menu Fourth item 4. Reboot Factory Reset Press down key to continue ENTER 1. v to Cont. Factory Reset Asks for Confirmation 1. Confirm? Reboot under progress ENTER Firmware Version Reboot Complete SFOS xx.xx.xx XGS 2100/2300/3100/3300...
-
Page 10: Putting Into Operation
The supplied parts are indicated in the Hardware Quick Start Guide. Mounting Instructions The XGS 2100/2300/3100/3300 appliances are designed for use in racks. Please consider the following security tips: Important note: Functional reliability outside of a rack cannot be guaranteed. -
Page 11: Rack Mounting Considerations
Sophos partner. Use the long mounting brackets if you don’t want to use additional sliding rails or any other fixation for the appliance. -
Page 12: Connection And Configuration
Library). SFP/SFP+ Ports The XGS 2100/2300/3100/3300 models offer a variety of SFP/SFP+ ports allowing you to plugin various GBICs (transceivers) to connect to fiber or copper networks. The abbreviation SFP GBIC stands for small form-factore plugable GigaBit interface converter, a flexible interface which changes electronic signals into optical signals. -
Page 13: Serial Console
If you want to connect to the RJ45 COM port please use a RJ45 to DB9 Adapter cable (not provided with the unit). The Pin-out for this cable is shown in the table below. Sophos RJ45 Pinout This pinout is compatible with Cisco Straight (X2) pinout serial cables. - Page 14 Registered in England and Wales No. 2096520, The Pentagon, Abingdon Science Park, Abingdon, OX14 3YP, UK Sophos is the registered trademark of Sophos Ltd. All other product and company names mentioned are trademarks or registered trademarks of their respective owners.
