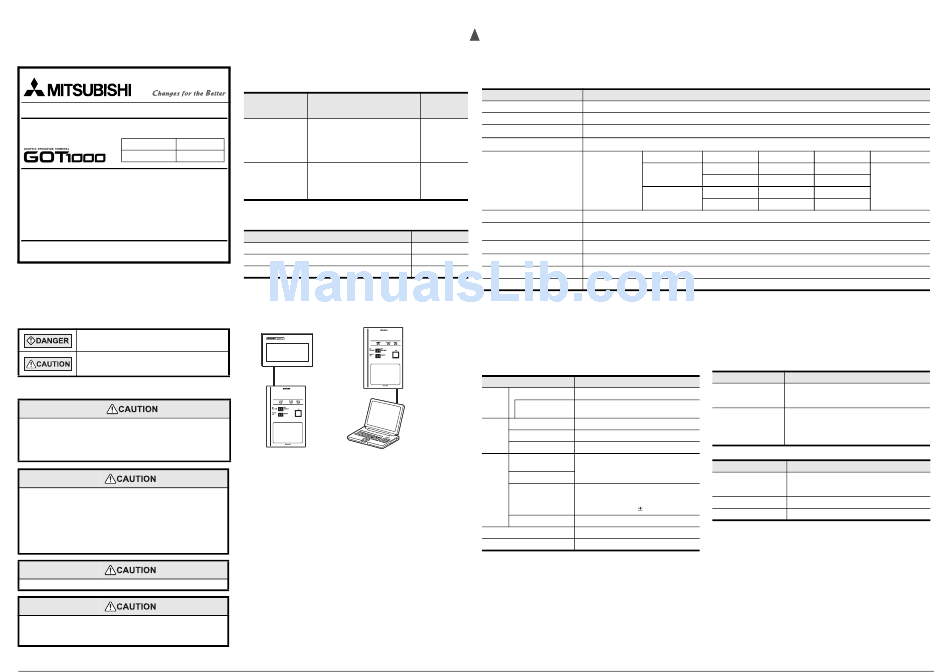

Mitsubishi GT 10-LDR User Manual

JY997D29501B
GT10-LDR Memory loader
USER'S MANUAL
Manual Number JY997D29501B
Date Sep 2008
This manual describes the part names, dimensions, mounting, and
specifications of the product. Before use, read this manual and manuals of
relevant products fully to acquire proficiency in handling and operating the
product. Make sure to learn all the product information, safety information, and
precautions.
And, store this manual in a safe place so that you can take it out and read it
whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this manual are
the registered trademarks or trademarks of each company.
Effective Sep 2008
Specifications are subject to change without notice.
Safety Precaution
(Read these precautions before using.)
Before using this product, please read this manual and the relevant manuals
introduced in this manual carefully and pay full attention to safety to handle the
product correctly.
The precautions given in this manual are concerned with this product.
In this manual, the safety precautions are ranked as "DANGER" and "CAUTION".
Indicates that incorrect handling may cause hazardous
conditions, resulting in death or severe injury.
Indicates that incorrect handling may cause hazardous
conditions, resulting in medium or slight personal injury
or physical damage.
Depending on circumstances, procedures indicated by "CAUTION" may also be
linked to serious results.
In any case, it is important to follow the directions for usage.
MOUNTING PRECAUTIONS
• Use the memory loader in the environment that satisfies the general
specifications described in GT10 User's manual. Never use the product in
areas with excessive dust, oily smoke, conductive dusts, corrosive gas (salt
air, Cl , H S, SO or NO ), flammable gas, vibration or impacts, or exposed
2 2 2 2
to high temperature, condensation, or rain and wind. Not doing so can cause
an electric shock, fire, malfunction or product damage or deterioration.
STARTUP/MAINTENANCE
PRECAUTIONS
• Do not disassemble or modify the memory loader.
Doing so can cause a failure, malfunction, injury or fire.
• Do not touch the conductive and electronic parts of the memory loader
directly. Doing so can cause a memory loader malfunction or failure.
• When unplugging the cable connected to the GOT, do not hold and pull the
cable portion. Doing so can cause the memory loader or cable to be
damaged or can cause a malfunction due to a cable connection fault.
• Do not bent at a sharp angle or tie the memory loader cables.
Doing so can cause the breaking of the cables.
DISPOSAL PRECAUTIONS
• When disposing of the product, handle it as industrial waste.
TRANSPORTATION
PRECAUTIONS
• Make sure to transport the memory loader and/or relevant unit(s) in the
manner they will not be exposed to the impact exceeding the impact
resistance described in the general specifications of this manual, as they are
precision devices. Failure to do so may cause the unit to fail.
Associated Manuals
The following manuals are relevant to this product. When these loose manuals are
required, please consult with our local distributor.
Manual name Contents
Describes the GT10 hardware-relevant
content such as part names, external
dimensions, mounting, power supply
GT10 User's Manual
wiring, specifications, and introduction to
option devices.
(sold separately)
GT Designer2 Describes methods of the GT Designer2
Version2 Basic installation operation, basic operation for
Operation/Data drawing and transmitting data to
Transfer Manual GOT1000 series
(For GOT1000 Series) (sold separately)
Bundled Items
Bundled item
GT10-LDR memory loader
USB cable (1m)
GT10-LDR Memory loader USER'S MANUAL (This manual)
1. Overview
GT10-LDR memory loader is the memory transfer module that reads/writes the data to
GT10 or between a PC (GT Designer2) and GT10-LDR.
GT1020, GT1030
USB connecting
cable (supplied)
*1
PC
(GT Designer2)
*1 When GT10-LDR is connected to a PC via the USB hub, the power supply of the
USB hub must be supplied by the AC adopter of the USB hub.
GT10-LDR connected to the USB hub may not work properly depending on the
PC environment. In the case, connect the GT10-LDR directly to the USB port on
the PC.
2. Specifications
2.1 General Specifications
Item
Manual
Number
Operating ambient temperature 0 to 40°C
(Model Code)
Storage ambient temperature -20 to 60°C
*1 10 to 90% RH, non-condensing
Operating ambient humidity
JY997D24701
(09R819) *1
10 to 90% RH, non-condensing
Storage ambient humidity
Conforms to JIS
SH-080529ENG
Vibration resistance B3502 and
(1D7M24)
IEC61131-2
Shock resistance Conforms to JIS B3502, IEC 61131-2 (147 m/s
Must be free of lamp black, corrosive gas, flammable gas, or excessive amount of electroconductive dust particles and must be no
Operating atmosphere
direct sunlight. (Same as for saving)
Quantity
*2
Operating altitude 2000 m (6562 ft) max.
1
1 *3 II or less
Overvoltage category
1
Pollution degree *4 2 or less
Cooling method Self-cooling
*1 The wet bulb temperature is 39°C or less.
*2 Do not use or store the GOT under pressure higher than the atmospheric pressure of altitude 0m (0ft.). Failure to observe this instruction may cause a malfunction.
*3 This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the
machinery within the premises.
Category II applies to equipment for which electrical power is supplied from fixed facilities.
The surge voltage withstand level for up to the raged voltage of 300 V is 2500 V.
*4 This index indicates the degree to which conductive material is generated in the environment where the equipment is used.
In pollution degree 2, only non-conductive pollution occurs but temporary conductivity may be produced due to condensation.
2.2 Performance Specifications
Item
User memory *1 Flash ROM 7.5Mbyte
Memory
Life (Number of write
100,000 times
times)
POWER green
LED SET/RUN green/red/orange
ERROR green/red/orange
RD/WR selection
switch
Paddle switch
Data selection switch
Tactile switch
Switch
The use of 100 thousand times is due for
ENT key
replacement.
(operating force 2.55N
Write protection switch Slide switch
External dimensions W70(2.75)×H110(4.33)×D21(0.82)[mm](inch)
Weight 0.2kg
*1 ROM in which new data can be written without deleting the written data.
Specifications
Frequency Acceleration
5 to 9Hz --
Under intermittent
vibration
9 to 150Hz 9.8m/s 2
5 to 9Hz --
Under continuous
vibration
2
9 to 150Hz 4.9m/s
2 , 3 times each in X, Y and Z directions)
2.3 Communication Specifications
Item
Specifications
Conforming to RS232
GOT communication Transmission speed :115,200bps
Connector shape
Conforms to USB2.0 (Full speed is supported.)
(Performs the conversion between USB and serial in
PC communication GT10-LDR. After serial conversion, transmission
speed is 115.200bps.)
Connector shape
2.4 Power Supply Specifications
Item
DC5V (DC4.75 to 5.25V)
Input power supply voltage Supplied from the GOT or PC (Supplied from bus
power)
Fuse
0.69N)
Power consumption 0.7W (140mA/DC5V) or less
Half-amplitude Sweep Count
3.5mm
--
10 times each in X, Y
and Z directions
1.75mm
--
Specifications
: MINI DIN 6Pins (Male)
:USB MINI-B 5Pins (Receptacle)
Specifications
-
