Summary of Contents for Datavideo DAC-8PA
- Page 1 DAC-8PA...
-
Page 2: Table Of Contents
Table of Contents FCC COMPLIANCE STATEMENT ..........4 WARNINGS AND PRECAUTIONS ..........4 WARRANTY ................5 ............5 TANDARD ARRANTY ............6 HREE ARRANTY DISPOSAL ................6 1. INTRODUCTION ..............8 2. CONNECTION AND CONTROLS ........... 9 2.1 F ..............9 RONT ANEL 2.2 R... - Page 3 Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.
-
Page 4: Fcc Compliance Statement
AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed. -
Page 5: Warranty
Warranty Standard Warranty Datavideo equipment is guaranteed against any manufacturing defects for one year from the date of purchase. The original purchase invoice or other documentary evidence should be supplied at the time of any request for repair under warranty. -
Page 6: Three Year Warranty
All Datavideo products purchased after July 1st, 2017 qualify for a free two years extension to the standard warranty, providing the product is registered with Datavideo within 30 days of purchase. Certain parts with limited lifetime expectancy such as LCD panels, DVD... - Page 7 CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européene" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking"...
-
Page 8: Introduction

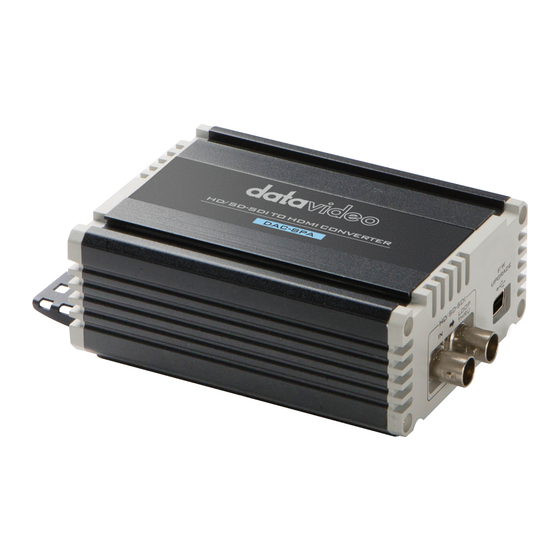

1. Introduction The DAC-8PA SDI to HDMI Converter allows users to convert the SDI signal up to 1080p50/60 to the HDMI signal for easy connecting to the devices with HDMI signal and the professional SDI video devices. The DAC-8PA provides one SDI input, one SDI output and one HDMI output. -
Page 9: Connection And Controls
2. Connection and Controls 2.1 Front Panel HD/SD - SDI Input and Output (bypass) The SDI technology is suitable for long-distance video signal transmission in professional applications. The BNC connector on the left side: HD/SD-SDI Input. The BNC connector on the right side: Loop Through Output. -
Page 10: Rear Panel
2.2 Rear Panel DC Power Connector This connector allows users to connect a 12V/500mA power adapter to the DC power interface. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. HDMI OUT HDMI Output Interface... - Page 11 RCA Output Unbalanced left and right channel audio outputs. The audio signal can be de-embedded from the SDI input signal and then can be output from this AUDIO OUT interface.
-
Page 12: How To Set The Smpte/Ebu Standard For The Audio Level
3. How to set the SMPTE/EBU Standard for the Audio Level The DAC-8PA allows users to set the SMPTE/EUB standard of the audio output signal from Audio OUT. Please follow following steps for further setting. 1. Please install the software “DAC-8PA FW TOOL.exe” in your PC. After the installation is finished, please open the software. -
Page 13: Dimensions
4. Dimensions All measurements in millimeters (mm) -
Page 14: Specifications
5. Specifications Input 3G/HD/SD-SDI x 1 HDMI 1.3 x 1, 3G/HD/SD-SDI x 1 (Loop-Thru) Output RCA x 2 (Unbalanced Audio L/R) 1080p: 60/59.94/50/30/29.97/25/24/23.98 Supported HDMI 1080i: 60/59.94/50 Output Formats 720p: 60/59.94/50 525i59.94 NTSC, 625i50 PAL SDI : YUV4:2:2 Video Processing HDMI : YUV4:4:4 [SDI][2.97Gpbs &... - Page 15 Audio Extracting Supports 2 channel only. Supported SDI Re-clock Supported Operating Temp. 0°C to 40°C (32°F to 104°F) Range Storage Humidity 10% to 80% (Non-condensing) Dimensions(mm) 111.8 x 85 x 45.2 Weight 0.35kg Power DC 7 ~ 17V...
-
Page 16: Service & Support
Datavideo Technologies Co., Ltd. All rights reserved 2020 Sept.-16.2019 Ver:E1...
