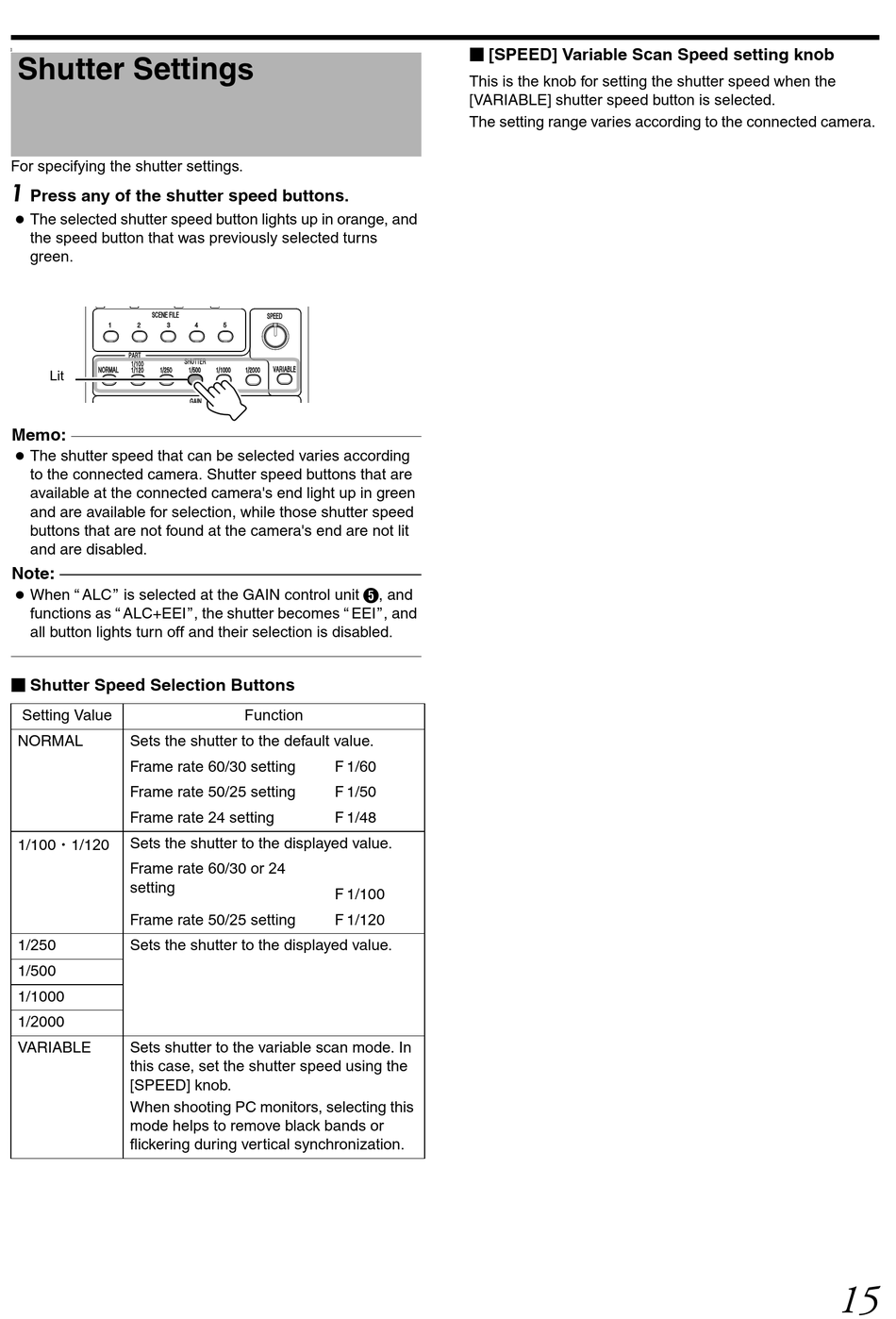

Shutter Settings

For specifying the shutter settings.
1
Press any of the shutter speed buttons.
● The selected shutter speed button lights up in orange, and
the speed button that was previously selected turns
green.
S S C C E E N N E E F F I I L L E E
1 1 2 2 3 3
PART PART
1/100
NO O R R M M A A L L 1 1 / / 1 1 2 2 0 0 1 1 / / 2 2 5 5 0 0
Lit
Memo:
● The shutter speed that can be selected varies according
to the connected camera. Shutter speed buttons that are
available at the connected camera's end light up in green
and are available for selection, while those shutter speed
buttons that are not found at the camera's end are not lit
and are disabled.
Note:
● When ALC is selected at the GAIN control unit E, and
functions as ALC+EEI , the shutter becomes EEI , and
all button lights turn off and their selection is disabled.
Shutter Speed Selection Buttons
Setting Value
NORMAL Sets the shutter to the default value.
Frame rate 60/30 setting
Frame rate 50/25 setting
Frame rate 24 setting
Sets the shutter to the displayed value.
1/100・1/120
Frame rate 60/30 or 24
setting
Frame rate 50/25 setting
1/250 Sets the shutter to the displayed value.
1/500
1/1000
1/2000
VARIABLE Sets shutter to the variable scan mode. In
this case, set the shutter speed using the
[SPEED] knob.
When shooting PC monitors, selecting this
mode helps to remove black bands or
flickering during vertical synchronization.
OFF FULL
S S P P E E E E D D
4 4 5 5
SHUTTER SHUTTER
1 1 / / 5 5 0 0 0 0 1 1 / / 1 1 0 0 0 0 0 0 1 1 / / 2 2 0 0 0 0 0 0 V V A A R R I I A A B B L L E
G G A A I I N N
Function
F 1/60
F 1/50
F 1/48
F 1/100
F 1/120
[SPEED] Variable Scan Speed setting knob
This is the knob for setting the shutter speed when the
[VARIABLE] shutter speed button is selected.
The setting range varies according to the connected camera.
