Getting Started

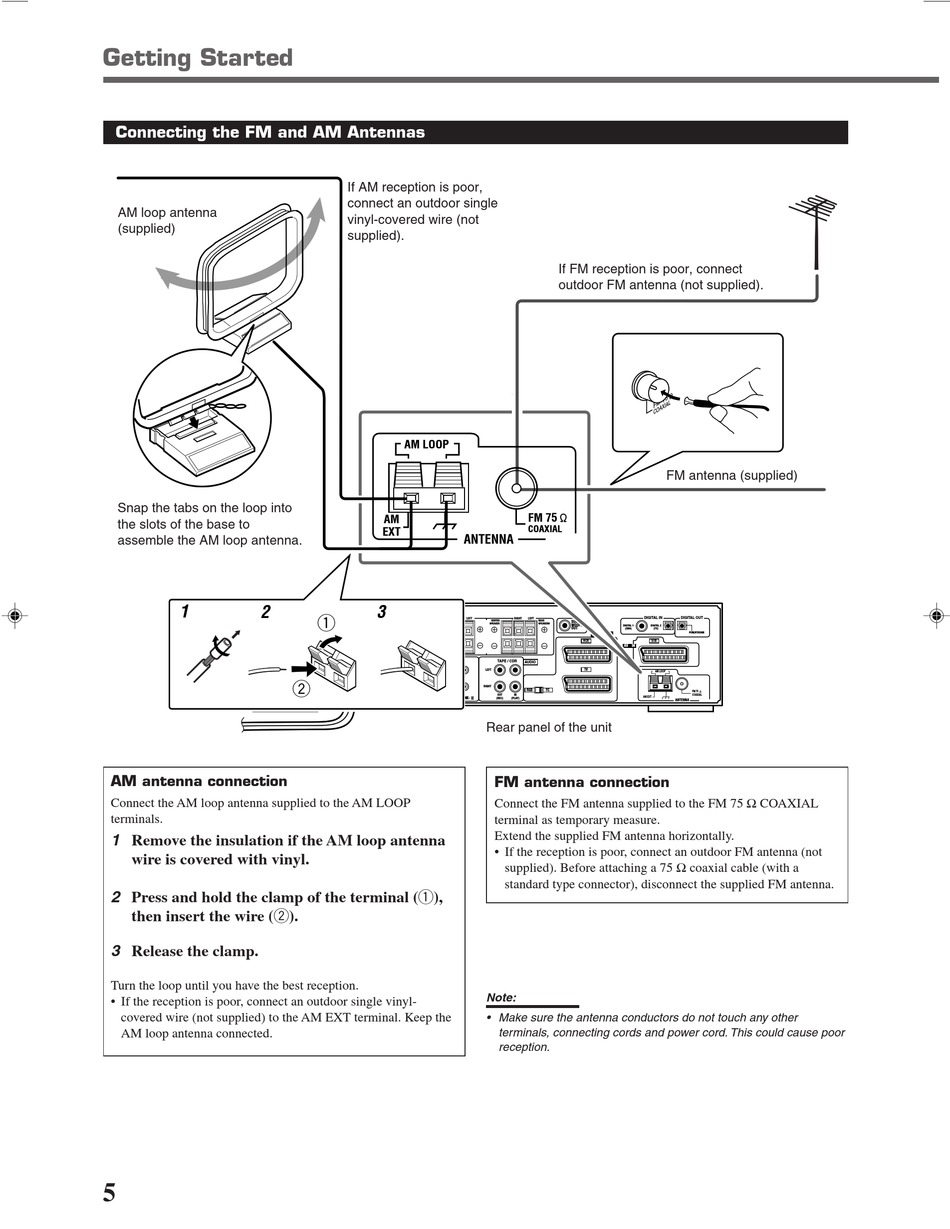

Connecting the FM and AM Antennas

AM loop antenna
(supplied)
Snap the tabs on the loop into
the slots of the base to
assemble the AM loop antenna.
1
2
AM antenna connection
Connect the AM loop antenna supplied to the AM LOOP
terminals.
1 Remove the insulation if the AM loop antenna
wire is covered with vinyl.
2 Press and hold the clamp of the terminal (1),
then insert the wire (2).
3 Release the clamp.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. Keep the
AM loop antenna connected.
5
If AM reception is poor,
connect an outdoor single
vinyl-covered wire (not
supplied).
B
AM LOOP
AM
EXT
3
1
RIGHT
FRONT
SPEAKERS
CAUTION:
SPEAKER
IMPEDANCE
8 16
2
AV COMPU LINK-
If FM reception is poor, connect
outdoor FM antenna (not supplied).
FM 75
COAXIAL
ANTENNA
LEFT RIGHT LEFT
CENTER REAR
SUB-
SPEAKER SPEAKERS
WOOFER
DIGITAL 1
OUT
(DBS)
AV IN/OUT
VCR
AV IN
TAPE / CDR
AUDIO
LEFT TV
RIGHT
RGB YC
OUT IN
(REC) (PLAY)
Rear panel of the unit
FM antenna connection
Connect the FM antenna supplied to the FM 75 Ω COAXIAL
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 Ω coaxial cable (with a
standard type connector), disconnect the supplied FM antenna.
Note:
• Make sure the antenna conductors do not touch any other
terminals, connecting cords and power cord. This could cause poor
reception.
FM antenna (supplied)
DIGITAL IN DIGITAL OUT
DIGITAL 2
(TV)
PCM/STREAM
STB
AM LOOP
FM 75
COAXIAL
AM EXT
ANTENNA
