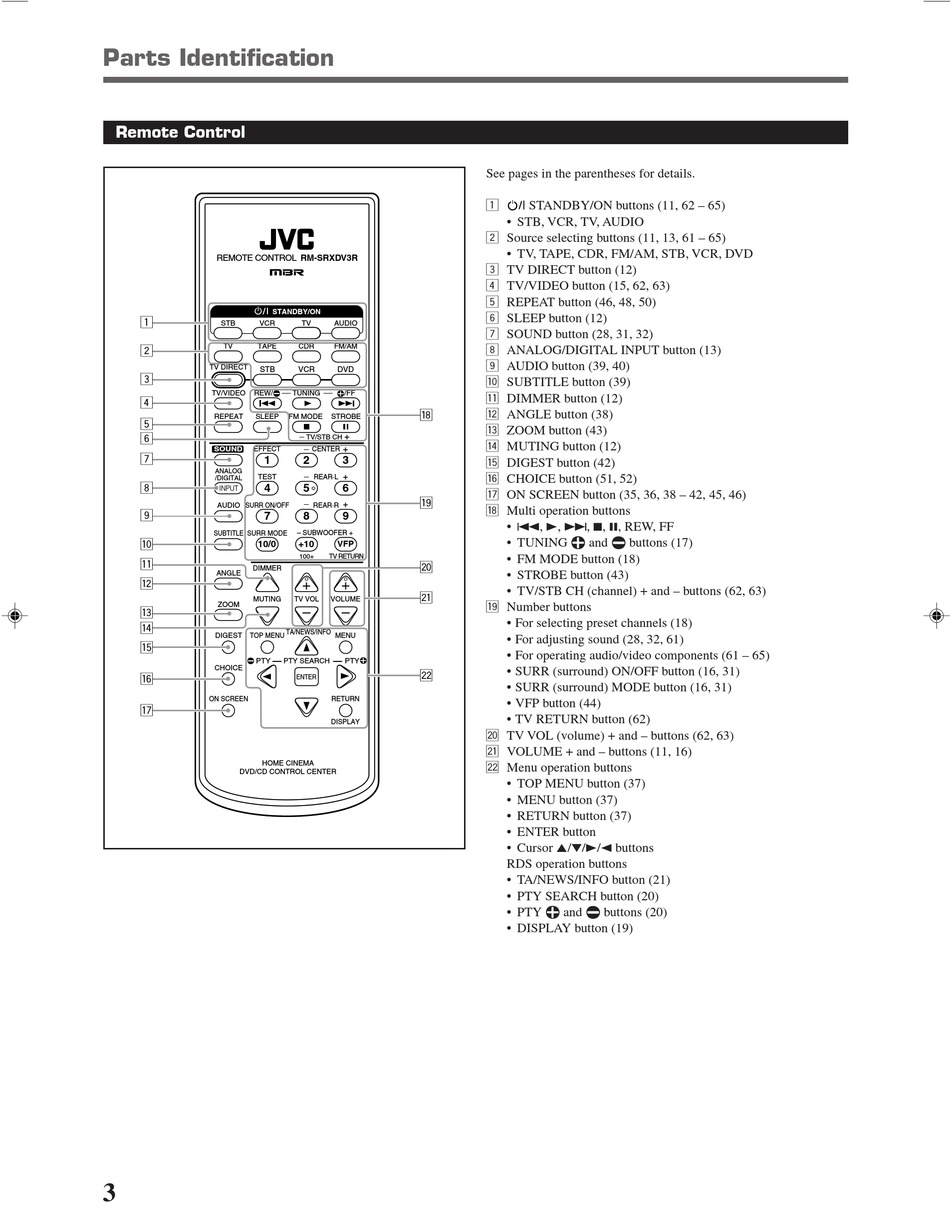

Parts Identification

Remote Control

REMOTE CONTROL RM-SRXDV3R
1
STB
TV
2
TV DIRECT
3
TV/VIDEO REW/
4
REPEAT SLEEP
5
6
EFFECT
SOUND
7
ANALOG
/DIGITAL
8
INPUT
AUDIO SURR ON/OFF
9
SUBTITLE SURR MODE
p
q
DIMMER
ANGLE
w
MUTING
ZOOM
e
r
DIGEST TOP MENU
t
(
PTY
CHOICE
y
ON SCREEN
u
DVD/CD CONTROL CENTER
3
STANDBY/ON
VCR TV AUDIO
TAPE CDR FM/AM
STB VCR DVD
( 9
TUNING /FF
FM MODE STROBE
TV/STB CH
CENTER
1 2 3
TEST REAR·L
4 5 6
REAR·R
7 8 9
– SUBWOOFER +
10/0 +10 VFP
100+ TV RETURN
PROGRESSIVE
+ +
TV VOL VOLUME
– –
TA/NEWS/INFO
MENU
9
PTY SEARCH PTY
ENTER
RETURN
DISPLAY
HOME CINEMA
See pages in the parentheses for details.
1
STANDBY/ON buttons (11, 62 – 65)
• STB, VCR, TV, AUDIO
2 Source selecting buttons (11, 13, 61 – 65)
• TV, TAPE, CDR, FM/AM, STB, VCR, DVD
3 TV DIRECT button (12)
4 TV/VIDEO button (15, 62, 63)
5 REPEAT button (46, 48, 50)
6 SLEEP button (12)
7 SOUND button (28, 31, 32)
8 ANALOG/DIGITAL INPUT button (13)
9 AUDIO button (39, 40)
p SUBTITLE button (39)
q DIMMER button (12)
w ANGLE button (38)
i
e ZOOM button (43)
r MUTING button (12)
t DIGEST button (42)
y CHOICE button (51, 52)
u ON SCREEN button (35, 36, 38 – 42, 45, 46)
o
i Multi operation buttons
• 4, 3, ¢, 7, 8, REW, FF
• TUNING 9 and ( buttons (17)
• FM MODE button (18)
;
• STROBE button (43)
• TV/STB CH (channel) + and – buttons (62, 63)
a
o Number buttons
• For selecting preset channels (18)
• For adjusting sound (28, 32, 61)
• For operating audio/video components (61 – 65)
• SURR (surround) ON/OFF button (16, 31)
s
• SURR (surround) MODE button (16, 31)
• VFP button (44)
• TV RETURN button (62)
; TV VOL (volume) + and – buttons (62, 63)
a VOLUME + and – buttons (11, 16)
s Menu operation buttons
• TOP MENU button (37)
• MENU button (37)
• RETURN button (37)
• ENTER button
• Cursor 5/∞/3/2 buttons
RDS operation buttons
• TA/NEWS/INFO button (21)
• PTY SEARCH button (20)
• PTY 9 and ( buttons (20)
• DISPLAY button (19)
