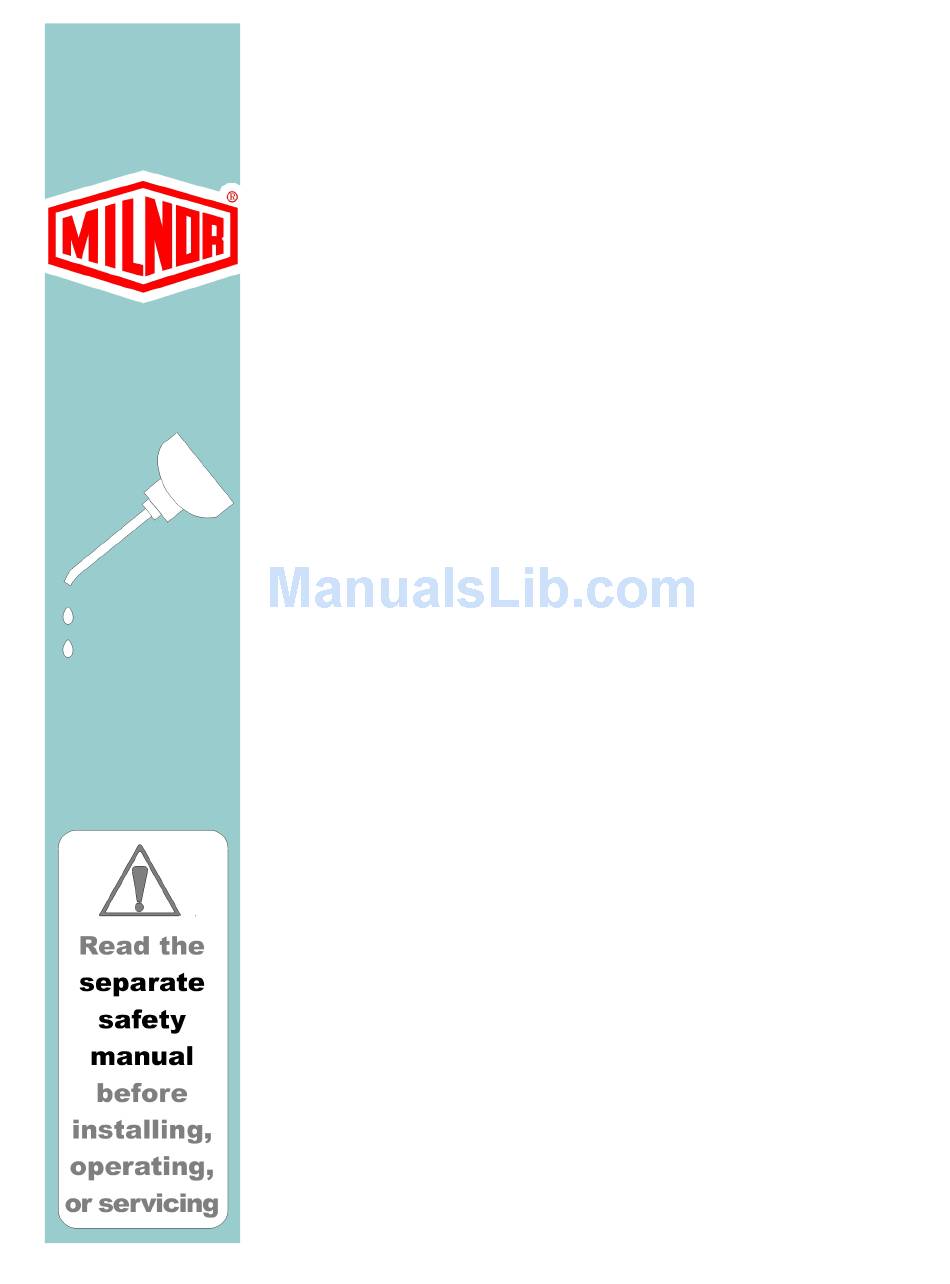

Page 1 Published Manual Number/ECN: MPP72WE2AE/2006153A • Publishing System: TPAS • Access date: 4/11/2006 • Document ECN's: Latest Available Service— 72044 WP2/WP3 Washer- Extractors PELLERIN MILNOR CORPORATION POST OFFICE BOX 400, KENNER, LOUISIANA 70063-0400, U.S.A.
Page 2 “Troubleshooting” chapter or section. See the table of contents. Trademarks of Pellerin Milnor Corporation The following, some of which may be used in this manual, are trademarks of Pellerin Milnor Corporation: ®...
Page 3 MHPHYDROAE/9541AV Warranty BMP720097/92732A How to Order Parts BMP720097R/72332A Safety—Divided Cylinder and Staph-Guard™ Washer-Extractors BIUUUS27/20051111 About the Forces Transmitted by Milnor Washer-Extractors BIWUUI02/20001108 Glossary of Tag Illustrations - Suspended Washer- Extractors MSIUPUTGAE/2003026V Avoiding Damage from Allied Remote Chemical Delivery Systems BIWUUI03/20030306...
Page 4 Table of Contents, cont. Page Description Document/ECN Parts List - Drive Assembly, 7244 WE1/WE2/WE3 BMP840022R/97107V Brake Assembly - 60044 & 72044 WP2/WP3 BMP710022/99512V Reducer Air Seal BMP700392/2002496V Autospot Drive Assembly BMP701411/2000133V Air Operated Autospot Assembly - 60044WP2/WP3 and 72044WP2/WP3 BMP710043/96216V Sensing Unit = Airop Autospot BMP710042/76143D Parts List - Sensing Unit, Airop Autospot...
Page 5 Table of Contents, cont. Page Description Document/ECN Supply Injector Assembly - 7244 BMP701401/71192D Parts List - 72" Supply Injector Assembly BMP701401R/83173A Section 8: Water and Steam Piping and Assemblies Water Inlet Assembly - 7244 Rapid Load & Staph-Guard BMP701634/89112E Parts List - Water Inlet Assembly BMP701634R/71521A Universal Actuators &...
Page 7 Fax: (504) 467-9777 P. O. Box 400 Kenner, LA 70063-0400 Ë T rademarks of Pellerin Milnor Corporation —The following, some of which may be used in this pub- lication, are trademarks of Pellerin Milnor Corporation: ® ® ® ® ®...
Page 9: Warranty
(including purchased components) without obligation to change any equipment previously supplied. ANY SALE OR FURNISHING OF ANY EQUIPMENT BY MILNOR IS MADE ONLY UPON THE EXPRESS UNDERSTANDING THAT MILNOR MAKES NO EXPRESSED OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR USE OR PURPOSE.
Page 10 How to order repair parts Repair parts may be ordered either from the authorized dealer who sold you this machine, or directly from the MILNOR factory. In most cases, your dealer will have these parts in stock. When ordering parts, please be sure to give us the following information: 1.
Page 11 The owner/user must familiarize himself with the contents of all machine instruction manuals. The owner/user should direct any questions about these instructions to a Milnor® dealer or the Milnor® Service department.
Page 12 The Safety Guide and other machine manuals must be available at all times to the appropriate personnel. See the machine service manual for safety placard part numbers. Contact the Milnor Parts department for replacement placards or manuals. Maintenance —Ensure the machine is inspected and serviced in accordance with the norms of 1.5.
Page 13 Processing can cause solvent-containing goods to give off flammable vapors. • Do not use flammable solvents in processing. • Do not process goods containing flammable substances. Consult with your local fire department/public safety office and all insurance providers. PELLERIN MILNOR CORPORATION...
Page 14 This will over-speed the motor and pulleys and can cause them to rip apart, discharging metal fragments at high speed. • Stop the machine immediately if any of these conditions occur: • abnormal whining sound during extract • skidding sound as extract ends • clutches remain engaged or re-engage during extract PELLERIN MILNOR CORPORATION...
Page 15 Hazards include but are not limited to panic, burns, poisoning, suffocation, heat prostration, biological contamination, electrocution, and crushing. • Do not enter the cylinder until it has been thoroughly purged, flushed, drained, cooled, and immobilized. — End of BIUUUS27 — PELLERIN MILNOR CORPORATION...
Page 16: How Strong And Rigid
• the liquor level and chemical conditions in the bath preceding extraction, and • other miscellaneous factors. ® Estimates of the maximum force normally encountered are available for each Milnor model ® and size upon request. Floor or foundation sizes shown on any Milnor...
Page 17 All data is subject to change without notice and may have changed since last printed. It is the sole responsibility of every potential owner to obtain ® written confirmation that any data furnished by Milnor applies for the model(s) and serial number(s) of the specific machines.
Page 18 7\_ccQbi_VDQW9\\ecdbQdY_^c± <B8D?DC604!"!%E Cec`U^TUTGQcXUb5hdbQSd_bc Illustration Explanation Stop! Read the manual first for complete instructions before continuing. Do not jack the machine here. Do not lift the machine here. Use three point or four point lifting as determined by the lifting eyes furnished. Rig the load using lifting cables of sufficient size and length to ensure cables are not over-stressed.
Page 19 Illustration Explanation Do not start this machine until the packing materials, lifting brackets, etc. with this tag attached or behind this panel are removed. These materials are painted red. Safety stands or brackets (also painted red) may be provided with this machine. Do not discard safety stands or brackets Do not step or stand on this machine part.
Page 20 7\_ccQbi _V DQW 9\\ecdbQdY_^c± Cec`U^TUT GQcXUb5hdbQSd_bc Do not start this machine until the part with this tag is installed on the machine. Do not remove this component from the machine. Install the appropriate part here before operating the machine. Do not strap or chain over box...
Page 21 =C9E@ED715" # "&F " # Do not pump grease here. During drain and extract, the cylinder must rotate counterclockwise when viewed from here (rear of machine). During drain and extract, the cylinder must rotate clockwise when viewed from here (front of machine).
Page 22 7\_ccQbi _V DQW 9\\ecdbQdY_^c± Cec`U^TUT GQcXUb5hdbQSd_bc Set main bearing air pad gauge at 10 psi (.70 kg/cm ), 64" and 72" ExN and JxN models only. Set disc brake air gauge at 10 psi (.70 kg/cm ), 64" and 72" ExN and JxN models only.
Page 23 =C9E@ED715" # "&F # # Hold the connection side of the valve with a wrench when connecting plumbing.
Page 24 ® of such systems by the chemical supply company. Milnor washer-extractors and CBW batch washers (tunnels) are available with convenient inlets for such systems (see Figure 1). Most common of the types of systems currently used in commercial laundering operations are pumped chemical systems.
Page 25 CAUTION 1 : Equipment and Textile Damage Hazards—Chemicals leaked into the machine, particularly when it is idle can destroy machine components and textiles left in the machine. Pellerin Milnor Corporation accepts absolutely no responsibility for damage to its equipment or to textiles therein from abnormal contact with chemicals.
Page 26 Hence, any concentrated chemical that remains in the injection line between the pump and the machine is free to flow into the machine. Some examples of this are shown in Figure 3. PELLERIN MILNOR CORPORATION...
Page 27 PELLERIN MILNOR CORPORATION...
Page 28 CAUTION 2 : Injury and Damage Hazards—Chemicals leaking from a chemical system may be corrosive or toxic. Such chemicals can injure personnel and damage equipment. • Use care when connecting chemical lines. • Inspect regularly for leaks. — End of BIWUUI03 — PELLERIN MILNOR CORPORATION...
Page 29 Section Service and Maintenance...
Page 30 Ê G eneral Requirements Maintenance procedures require: • A hand operated grease gun. • The correct lubricants (see “LUBRICANTS FOR MILNOR MACHINES,” in the Table of Contents). Ê L ubricant Requirements ® To achieve the optimum performance and service life from the Milnor machine and as a warranty require- ment, the machine must be lubricated in strict accordance with the instructions in this section.
Page 31 CRUSH/SEVER HAZARD—Tilting machines with tilt wheels/cradles may lunge forward or rearward and even fall over if the tilt wheels at the non-tilted end are raised out of their cradles—killing/injuring personnel and/or damaging prop- erty. NEVER manually tilt (lift) both ends of the machine at the same time. One end must always be seated in its cradle.
Page 41 <BB<!&#04(&" 0E Most of the information in this document is taken from the Baldor Electric Company Instruction, Operation, and Maintenance Manual, and provides a means of more accurately determining motor lubrication requirements based on local conditions. Inspect, clean, and test motors at regular intervals— approximately every 500 operating hours or every three months, whichever comes first.
Page 42 21<4?B =?D?B =19>D5>1>35 =CC= "'$15)'#!1F"$ —The useful life of antifriction bearing grease can be estimated, based on service conditions, frame type, and motor rpm. An example of determining the correct lubrication interval is provided below. Ex: A fan motor, operating at an ambient temperature of 109 F (43 C) in a moderately corrosive atmosphere.
Page 43 21<4?B =?D?B =19>D5>1>35 =CC= "'$15)'#!1F#$ Table 3 — Recommended Lubrication Intervals at Standard Service Conditions NEMA (IEC) Rated Speed - RPM Frame Size 3600 1800 1200 Up to 215 (132) 5500 Hrs. 12000 Hrs. 18000 Hrs. 22000 Hrs. 254 to 286 (160 - 180) 3600 Hrs.
Page 44 21<4?B =?D?B =19>D5>1>35 =CC= "'$15)'#!1F$$ —Use Shell Dolium R (factory installed) or Chevron SRI greases for standard service conditions. The extreme and low temperature conditions are not normally encountered in the laundry. However, for extreme conditions, use Darmex 707 and for low temperature conditions, use Arrowshell 7.
Page 46 General Assembly - WED BMP701387R/71152A (Sheet 1 of 1) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—General Assembly - WED Part List Description Item 6036 6044 7244 ---------------------------------------------------------------------ASSEMBLIES------------------------------------------------------------------ Level Indicator Gasket, Outer 2 -18940...
Page 50 The specifications in this section apply to 1/4 inch and larger Unified National fine and coarse fasteners used on ® Milnor machines. This information is to be used only when torque specifications are not stated in the installation or service instructions.
Page 51 MSSM0101CE/9906AV (2 of 19) Ê A pplying Threadlocker NOTE: The following threadlocker information and ® illustrations are excerpts from the Loctite User’s Guide and are used with permission. For maximum strength, threadlocker must fill the thread voids completely, as shown in FIGURE 2. Organic or petro- leum solvent will remove excess uncured adhesive from joints.
Page 52: Fastener Torque Requirements
FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (3 of 19) Ë R emoving Fasteners ® High strength threadlockers like Loctite 271 (or equivalent) may be weakened by heating to at least 500 F (260 C) as follows. 1. Apply localized heat to fastener as shown in FIGURE 5. 2.
Page 53 MSSM0101CE/9906AV (4 of 19) Ï A ll values in foot pounds and (Newton meters) Nomi- Grade Designation Zinc or If instructions call for : nal bolt and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare size Plated 222 or 1/4 - 28 SAE Grade 1 ASTM A307 (3.80)
Page 54 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (5 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc If instructions call for : bolt size and Standard orCadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 5/16 - 24 SAE Grade 1 10.4 ASTM A307...
Page 55 MSSM0101CE/9906AV (6 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc or If instructions call for : bolt size and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 3/8 - 24 SAE Grade 1 10.2 12.2...
Page 56 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (7 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Zinc or If instructions call for : bolt size Designation and Cadmium Loctite Loctite Loctite Loctite Loctite Bare Standard Plated 222 or 7/16 - 20 SAE Grade 1 16.0 19.2...
Page 57 MSSM0101CE/9906AV (8 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Standard and Zinc or If instructions call for : bolt size Grade Designation Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 1/2 - 20 SAE Grade 1 24.8 29.8...
Page 58 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (9 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc or If instructions call for: bolt size and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 9/16 - 18 SAE Grade 1 35.3 42.4...
Page 59 MSSM0101CE/9906AV (10 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc or If instructions call for: bolt size and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 5/8 - 18 SAE Grade 1 49.5 59.4...
Page 60 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (11 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc or If instructions call for: bolt size and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 3/4 - 16 SAE Grade 1 86.5...
Page 61 MSSM0101CE/9906AV (12 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc or If instructions call for: bolt size and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 7/8 - 14 SAE Grade 1 137.8 165.4...
Page 62 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (13 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Zinc or If instructions call for : bolt size Designation and Cadmium Loctite Loctite Loctite Loctite Loctite Bare Standard Plated 222 or 1 - 12 SAE Grade 1 205.3...
Page 63 MSSM0101CE/9906AV (14 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc or If instructions call for : bolt size and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 1-1/8 • 7 SAE Grade 1 265.8 318.9 354.4...
Page 64 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (15 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Zinc or If instructions call for : bolt size Designation and Cadmium Loctite Loctite Loctite Loctite Loctite Bare Standard Plated 222 or 1-1/4 •...
Page 65 MSSM0101CE/9906AV (16 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Designation Zinc or If instructions call for : bolt size and Standard Cadmium Loctite Loctite Loctite Loctite Loctite Bare Plated 222 or 1-3/8 • 6 SAE Grade 1 491.1 589.4 654.8...
Page 66 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (17 of 19) Ï A ll values in foot pounds and (Newton meters) Nominal Grade Zinc or If instructions call for : bolt size Designation and Cadmium Loctite Loctite Loctite Loctite Loctite Bare Standard Plated 222 or 1-1/2 •...
Page 67 MSSM0101CE/9906AV (18 of 19) Ï O ther Fastener Torque Specifications Ï A ll values in foot-pounds and (Newton-meters) Nominal bolt size 18 - 8 Brass Aluminum Stainless Steel Stainless Steel 2024 - T4 1/4 - 20 6.3 (8.54) 6.6 (8.95) 5.1 (6.91) 3.8 (5.15) 1/4 - 28...
Page 68 FASTENER TORQUE REQUIREMENTS MSSM0101CE/9906AV (19 of 19) Ï O ther Fastener Torque Specifications Ï A ll values in foot-pounds and (Newton-meters) Nominal bolt size 18 - 8 Brass Aluminum Stainless Steel Stainless Steel 2024 - T4 7/8 - 9 194.0 (263.03) 202.5 (274.55) 158.8 (215.30) 124.6 (168.93)
Page 69 Section Shell and Door Assemblies...
Page 70 MSSMA413AE/8530BV È D OOR SEAL REPLACEMENT ON RAPID LOAD MODELS Ê D oor Seal Replacement The seal components referred to herein are contained in kits K28 0005R (for 60" machines) or K36 0003R (for 72" machines). 1. Remove old seal from the door cavity and carefully pull air tubing out of inner door so as not to cut tubing. 2.
Page 71 Location A—Seals must contact each other and shell front. Location B—Seals must contact each other and shell front. Location C—Seals must Location D—Seal must not drag against shell contact shell front. when door opens. Î F IGURE 1 Ê (MSSMA413AE) Î...
Page 72 Ë C heck Condition of Door Seal Channel —Be certain the sides of the channel in which the door seal fits are straight and that mainly the inner edge is not bent. See FIGURE 3 below. Because outer edge is double thickness it is not likely to be bent out of shape.
Page 73 Kit K28 0011, which contains a fixed at 25 to 28 PSI regulator, ® plus a pressure gauge is available from the Milnor factory. If yours is inoperative, it should be replaced.
Page 75: Door Assembly
Door Assembly BMP790020R/98301V 7244WE3,SG (Sheet 1 of 1) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Door Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 77: Shell Door Assembly
Shell Door Assembly BMP780109R/81433A 60 & 70 WEH (Sheet 1 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Shell Door Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 78 BMP780109R/81433A (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—SHELL DOOR ASSEMBLY Description Item Part Number Comments Used In 02 175037 92452C HANDLE=SHELDOR=WED-SS 53A500 1/4" SLEEVE-DELRIN 53A059A NUT 1/4"COMP.HOLYOKE ANDERSON#61A-4...
Page 79: Air Operated Vacuum Pump For Door Seals
BMP810002/81073A AIR OPERATED VACUUM PUMP FOR DOOR SEALS MILNOR Rapid load door seals are now deflated with an air operated vacuum pump. The air operated vacuum pump quickly deflates the door seals when the stop button is pressed. Once the stop button is pressed a timer in the door circuit prevents the doors from being opened for 7-1/2 seconds.
Page 81 Door Interlock - WED BMP701654R/70481 (Sheet 1 of 1) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Door Interlock - WED Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 83 Section Drive Assemblies...
Page 84 A dvance Preparations for Drive Assembly Maintenance ® The drive train on your Milnor machine has been designed to give long, trouble-free service under continu- ous use. Strict adherence to the lubrication schedule, proper belt tensioning, and the normal good practice of inspect-...
Page 85 Wash motor Drain motor E1 motor is optional on 42" and 48" machines and standard on larger Gear re- models ducer E-1 mo- E-2 mo- Centrifugal switch Jackshaft pulley Clutch drum (clutch tire in- side) A jackshaft (not shown) is Brake (42"...
Page 86 Part numbers for belts, pulleys, and related components may be found on the Drive Chart and/or Drive Assem- ® bly drawings for your machine. When ordering motors and motor parts from the Milnor factory, provide the machine model and serial number and the motor function (i.e., wash, drain, E1 (low extract), E2 (high extract) or ®...
Page 87 Ë T o Replace Pulleys and Belt(s) 1. Clean the tapered bore of the sheave, mating surface of the bushing, bore of the bushing, and the shaft until free of any foreign substance (including paint). NOTE: Do not use lubricants, “Locktite,” or other adhesives on these mating surfaces. 2.
Page 88 the motor position with the motor mount (or other component) jack screws until all slack is taken up. Do not force belts onto the sheaves by using a pry bar or rolling the sheaves. 6. Check for sheave alignment as shown in FIGURES 3. The sheaves must be aligned within 1/64" per foot be- tween shaft centerlines and in no case greater than 1/8".
Page 89: Reducer Air Seal
“short circuit” exhaust connection near the clutch. The quick release valve is necessary for the clutch used on ® Milnor washer-extractors, and is furnished as original equipment. The air supplied to the clutch must be free of oil and moisture.
Page 90 It is essential when removing the gear reducer, to record the positions of these shims so that they may be replaced in the exact same position later. Bearing this in mind, carefully remove the gear reducer mount- ing bracket (with the reducer attached) from the drive base. Note that the clutch tire, attached to the reducer output shaft, must be allowed to slip out of the clutch drum as the reducer is removed.
Page 91 3. Temporarily disconnect the internal air line to the gear reducer and connect an external, valve-controlled air line to the reducer, but do not inflate the tire yet. 4. Loosen but do not remove the bolts that attach the gear reducer mounting brackets to the drive base. (On 64" machine models, check to be sure the jacking bolts under the input shaft side of the reducer are resting on the drive base then loosen the bolts and remove the dowel pins if they were reinstalled.) 5.
Page 92 To replace the jackshaft, reassemble all components in reverse order of their removal. Make certain that the jackshaft is properly oriented with the clutch end of the shaft to the front of the machine and that all shims are returned to their original positions. Install all jackshaft mounting bolts hand tight. Lift each end of the jackshaft with a pry bar (one end at a time) then tighten the bolts on that end, so that the jackshaft will sit as high as possible in the housing.
Page 93 Ê C entrifugal Switch Ë C oncept of Operation —After an extraction, the centrifugal switch will signal the Miltrol as soon as the washer cylinder has slowed sufficiently to permit the wash speed clutch to re-engage. Also, until this low speed has been attained, the Miltrol circuits prevent the opening of the shell door, thus providing safety interlocking.
Page 95 Jackshaft Bearing Assembly BMP820109R/89253A 52, 60, 64, 72 (Sheet 1 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Jackshaft Bearing Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 96 BMP820109R/89253A (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—Jackshaft Bearing Assembly Description Item Part Number Comments Used In X2 19381 94182D BEARHOUSE=LG BRG REAR TIMKEN...
Page 102: Autospot Drive Assembly
BMP701411/2000133V (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Autospot Drive Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 109 42044WE2 42044SG2 42044WE3 42044SG3 ® A belt tension testing device (Milnor part number 30T001) and a straight edge are required when using these instructions. Ê T ension Settings Set the o-rings on the tension testing device (FIGURE 1) as follows: 1.
Page 110 Ê B elt Tension Measurements 1. Place a straight edge along the top edge of the belt to be tested so that it spans both pulleys. Place the tension tester in the center of the belt and press down on the cap until the lower o-ring is in line with the straight edge, as shown.
Page 111 72044SG3 72044WE2 72044WE3 72044WTB 72044WTG 72044WTH ® A belt tension testing device (Milnor part number 30T001) and a straight edge are required when tensioning unbanded belts. Ê T ension Settings—Unbanded Belts Set the o-rings on the tension testing device (see FIGURE 1) as follows: 1.
Page 112 Ê B elt Tension Measurements Ë U nbanded Belts 1. Place a straight edge along the top edge of the belt to be tested so that it spans both pulleys. Place the tension tester in the center of the belt and press down on the cap until the lower o-ring is in line with the straight edge, as shown.
Page 113 Ë T ensioning Banded Belts Ï 4 8032BHE, BTG, BTH 48036QHE, QTG, QT Belt Initial Initial Belt Initial Initial Deflect. Tension Tension Deflect Tension Tension (inches) (lbs.) (ref.) (lbs.) (ref.) (in.) (lbs.) (ref.) (lbs.) (ref.) WASH/ 2 SPEED 9/32 6.6 - 9.2 5.1 - 7.1 5/16 5.7 - 7.6...
Page 114 Ï Ï 4 8032BHE, BTG, BTH 48036QHE, QTG, QT Belt Initial Initial Belt Initial Initial Deflect. Tension Tension Deflect Tension Tension (inches) (lbs.) (ref.) (lbs.) (ref.) (in.) (lbs.) (ref.) (lbs.) (ref.) WASH/ 2 SPEED 5.7 - 7.6 4.4 - 5.9 17/64 5.7 - 7.6 4.4 - 5.9...
Page 115 Section Bearing Assemblies...
Page 116 MSSM0303AE/8451BV È M AIN BEARING AND SEAL REPLACEMENT FOR DIVIDED CYLINDER MACHINES This section applies to the front and rear cylinder shaft bearings of all divided cylinder machines (Rapid Load, ® Staph-guard , dye machines, etc.). It does not apply to jackshaft bearings, idler shaft bearings or bearings on open pocket machines.
Page 117 These tools are ® available for rental or purchase from the Milnor factory and are pictured elsewhere in this section. Contact the factory two weeks in advance of repairs, when ordering these tools.
Page 118 Carrier), Seal Sleeve, and Seals (Front or Rear) ® These procedures require the use of a pulling fixture and guide rods available from the Milnor factory. With the bearing cover (or shaft seal holder) and the bearing removed, proceed as follows: 1.
Page 119 NOTE: Step 2a or 2b below will cause the bearing housing to slide away from the shell. Shims were placed under one or more of the three bearing housing pads during factory assembly to align the housing and insure its being exactly parallel with the shaft. When removing the bearing housing, be sure to keep these shims separate and identified so that they may be returned to their proper location, otherwise the bearing and seal will be out of line and may be damaged after a short operating period.
Page 120 Ê R eplacing the Bearing Housing, Seal Sleeve, and Seals (Front or Rear) 1. With the seal sleeve removed, press all old seals out of the bearing housing. Remove the large o-ring from the outside of the housing. Thoroughly clean the bearing housing and flush out all grease passages to make cer- tain they are unblocked.
Page 121 6. With two of the three temporary guide rods in position on the shell, place the bearing housing onto the guide rods and install the seal sleeve setting fixture on to the bearing housing as shown in FIGURE 7. The seal sleeve setting fixture prevents the seal sleeve from being pushed out of the housing as the housing is in- serted into the shell.
Page 122 If you have any questions on performing the measurements or adjustments described ® below, your local bearing supplier or the Milnor factory can assist you. Although these procedures require precision over and above that normally required for laundry room maintenance, they are standard in bearing instal-...
Page 123 NOTE 1: The clearances listed in the chart are industry standards and therefore apply to all brands of ® bearings supplied by Milnor . If other sources of bearings are used, refer to the manufacturer’s instructions for proper clearances. NOTE 2: To locate your bearing on the chart, match the first five characters of the manufacturer’s part ®...
Page 124 Ê T ightening Bearing(s) (Front and/or Rear) 1. Once both bearings are seated, or if only one bearing was replaced, install the bearing lockwasher(s) and lock- nut(s). Use a hammer and a metal drift as shown in FIGURE 11, to tighten the locknut. It is imperative to only tap lightly and to assure that metal chips from the drift or locknut do not fall off and con- taminate the bearing.
Page 125 5. With the grease gun, fill the space between the bearing and the front of the housing 1/3 full of grease. 6. Install the bearing cover plate or shaft seal holder, as appropriate. When installing the shaft seal holder, take care not to damage the seal as it is gently pushed over the shaft.
Page 128 BMP840039R/96142V (Sheet 2 of 2) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—60036, 60044 AND 72044 WE2, WE3, SG2, SG3, AND DA3 Description Item Part Number Comments Used In 15B243 HEXCAPSCR 1-8X2+1/2 GR5 ZINC...
Page 129 Section Frame, Pivots, and Suspension...
Page 131 Hold Down Adjustments BMP701672R/71051 (Sheet 1 of 1) 60" & 72" Rapid Load and Staph-Guard Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Hold Down Adjustments Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 132 S USPENSION ADJUSTMENTS FOR DIVIDED CYLINDER MACHINES ® ® The suspension system on Milnor Hydro-cushion machines is adjusted and thoroughly tested at the factory. It should not require subsequent adjustment unless the machine is distorted during shipment or installation or unless ®...
Page 133 ® ® All Milnor Hydro-cushion machines contain the following suspension system components (as shown on the typical system on the previous page): ® 1. Hydro-cushion cylinder—which suspend the shell and cylinder within the frame and provide vibration damping during extraction.
Page 134 Ê S hell Hanging Dimensions and Adjustment Procedures To adjust the shell of a divided cylinder machine, proceed as follows: 1. Locate the shell hanging dimension for your machine in the table below and adjust your machine accordingly. Take measurements on the left and right sides of the shell, to assure that the shell is horizontal, left to right. 2.
Page 135 Ê P ush-Down Travel Dimensions and Adjustment Procedures Some of the following procedures require power to the machine. Take the necessary precautions to assure that no one operates the machine controls while personnel are ad- justing the push-down components. Ë 4 2"...
Page 136 5. With the shell pushed down, attempt to pull each test shim out from between the bracket and rubber pad. The test shims should all be tight. If any shim(s) are not pinched tightly between the bracket and pad, take note of which one(s) are not.
Page 137 3. Stack shims on top of the ring weldment as required to make each gap exactly 2 inches as shown in FIGURE 5. If the gap at any location is less than 2 inches without shims, the shell must then be raised in the frame, using the procedures previously described.
Page 139 Suspension Cylinder Assembly BMP701629R/73261A (Sheet 1 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Suspension Cylinder Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 140 BMP701629R/73261A (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—Suspension Cylinder Assembly Description Item Part Number Comments Used In 03-06138A Spring-Inner 03-06338 71330B Spring Inner-Gold 14" Long...
Page 141: Suspension Cylinder Locations
Suspension Cylinder Locations BMP701235/2000133V Use with BMP701408 (Sheet 1 of 1) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Note: A letter is stamped CYLINDER #4 on the end of the upper bolt to designate the cylinder assembly.
Page 143: Push Down Assembly
Push Down Assembly BMP701671R/70526 (Sheet 1 of 1) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Push Down Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 145 Cylinder Assembly BMP790019R/86387A 7244 WE3 (Sheet 1 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Cylinder Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 146 BMP790019R/86387A (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—Cylinder Assembly Description Item Part Number Comments Used In 15N173 FLATMACSCR 1/4-20NCX5/8SS18-8 (FOR-SA-28-116) 15G170 HEXNUT 1/4-20UNC2 SS18-8...
Page 148 P/L CYLINDER ASSEMBLY BMP780043R/86387A 60 & 70 WE2 (Sheet 1 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—P/L CYLINDER ASSEMBLY Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 149 BMP780043R/86387A (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—P/L CYLINDER ASSEMBLY Description Item Part Number Comments Used In SA 36 001 93397Y* CYLDOR LORT 72WE2+ MAX-REIF...
Page 151 Section Control and Sensing Devices...
Page 152 Ê A djustments ® When the machine leaves Milnor , the actuator arm is tie-wrapped to prevent damage (except on 30015, 30020, and 30022 models). This tie wrap must be removed after the machine is set into position but before the machine is op- erated.
Page 153 that it has reset. In the released position the arm should rest lightly but definitely against the stop on the micro-switch case that prevents any further arm movement to the left. For machines with rigid mounted shells, where the machine is bolted to a very substantial foundation, very little machine movement will occur for a given degree of out-of-balance.
Page 155: Vibration Switch Assembly
Vibration Switch Assembly BMP700613R/83211A (Sheet 1 of 1) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Vibration Switch Assy. Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 156: Maintenance - Vib Safety Switch
BMP750047/81307A MAINTENANCE - VIB SAFETY SWITCH The vibration safety switch will shut off the machine if properly adjusted. The unit consists of a sensitive micro switch having a long extended actuating arm on which is mounted on eccentric weight. The weight may be adjusted both by moving it up and down on the arm, and also by rotating it on the arm.
Page 157 Section Chemical Supply Devices...
Page 158 APPLICABILITY: All Washer-Extractor Models Ê G ENERAL Pellerin Milnor Corporation does not guarantee machines against damage from corrosion caused by improper installation and/or operation of pumped-type liquid supply systems. The following precautions must be observed when pumps are used: Always install the pumping unit lower than the dis-...
Page 159: Rules For The Field Installation Of Pumped-Type
RULES FOR THE FIELD INSTALLATION OF PUMPED-TYPE LIQUID SUPPLY SYSTEMS MSSM0213AE/89457V (2 of 2) of the tube after the pump stops will be diluted by the water remaining in the cup. Never inject any concentrated chemical directly onto any metal, rubber, or plastic surface of the machine other than the plastic cups provided.
Page 161 72" Supply Injector Assembly BMP701401R/83173A (Sheet 1 of 1) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—72" Supply Injector Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 163 Section Water and Steam Piping and Assemblies...
Page 165 Water Inlet Assembly BMP701634R/71521A (Sheet 1 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Water Inlet Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 168 BMP920005/96067V (Sheet 3 of 3) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—Universal Actuators & Mounting Hardware for Watts Ball Valves Description Item Part Number Comments Used In 15G126...
Page 172: Pressure Regulators
BMP900031/96081V (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Pressure Regulators Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 175: Water Level Float Chamber
WATER LEVEL FLOAT CHAMBER BMP810111R/89256A ASSEMBLY (Sheet 1 of 2) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—WATER LEVEL FLOAT CHAMBER Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 176 BMP810111R/89256A (Sheet 2 of 2) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—WATER LEVEL FLOAT CHAMBER Description Item Part Number Comments Used In 5N0K04AG42 NPT NIPPLE 1/2X4 TBE GALSTL SK40 COOLDOWN OPT.
Page 179 Stainless Steel Dump Valve Assembly BMP701370R/72431A (Sheet 1 of 1) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—S/S Dump Valve Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 183 Section Pneumatic Piping and Assemblies...
Page 190 P/L UNIVERSAL AIRVALVE BOX BMP780088R/93046N (Sheet 1 of 2) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—P/L UNIVERSAL AIRVALVE BOX Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 191 BMP780088R/93046N (Sheet 2 of 2) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—P/L UNIVERSAL AIRVALVE BOX Description Item Part Number Comments Used In 96J019E 1/4"PRESSREG2-50PSI #R07-200-RNEA 30N095 03Z PRESSGAUGE 1/8"BACKCONN 0-15PS1 5N0E03KBE2 NPT NIPPLE 1/4X3.5 TBE BRASS 125#...
Page 193 Air Valves & Mounting Hardware BMP780087R/83457A (Sheet 1 of 2) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Air Valves & Mounting Hardware Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 194 BMP780087R/83457A (Sheet 2 of 2) Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—Air Valves & Mounting Hardware Description Item Part Number Comments Used In 96V350 1/4" VALVEBODY ASCO #UFTX8320A89 03 01523 85096C BRKT=LOCK AIR VALVE...
Page 195 S ERVICING AIR CYLINDERS ® This is the general procedure for rebuilding an air cylinder using a Milnor furnished repair kit, once the air cylinder has been removed from the machine. See the specific air cylinder and major assembly parts drawing(s) for component identification and removal/replacement information.
Page 196 4. Loosen nuts on threaded rods evenly, permitting cylinder heads to separate. Use only a few turns on one nut before moving to the other one. Continue until springs have no tension. Î F IGURE 2 Î F IGURE 3 (MSSM0130AE) (MSSM0130AE) Î...
Page 200 Long Air Cylinder Assembly BMP701660R/89111A (Sheet 1 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Long Air Cylinder Assembly Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 201 BMP701660R/89111A (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—Long Air Cylinder Assembly Description Item Part Number Comments Used In 5SB0E0CBEO HEXPIPBUSH 1/4 X 1/8 BRASS 125# 20L601T ID TAG NAT'L #1614 ALUM EMB LET "T"...
Page 203: Quick Exhaust Valves
BMP701406/2002382V (Sheet 2 of 2) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List—Quick Exhaust Valves Find the correct assembly first, then find the needed components. The item letters (A, B, C, etc.) assigned to assemblies are referred to in the "Used In"...
Page 206: Air Cylinder Assemblies
BMP830078/2005525B (Sheet 3 of 3) Pellerin Milnor Corporation Pellerin Milnor Corporation Litho in U.S.A. P. O. Box 400, Kenner, LA 70063-0400 Parts List, cont.—Air Cylinder Assemblies Description Item Part Number Comments Used In 20L601C ID TAG NAT'L #1614 ALUM EMB LET "C"...
