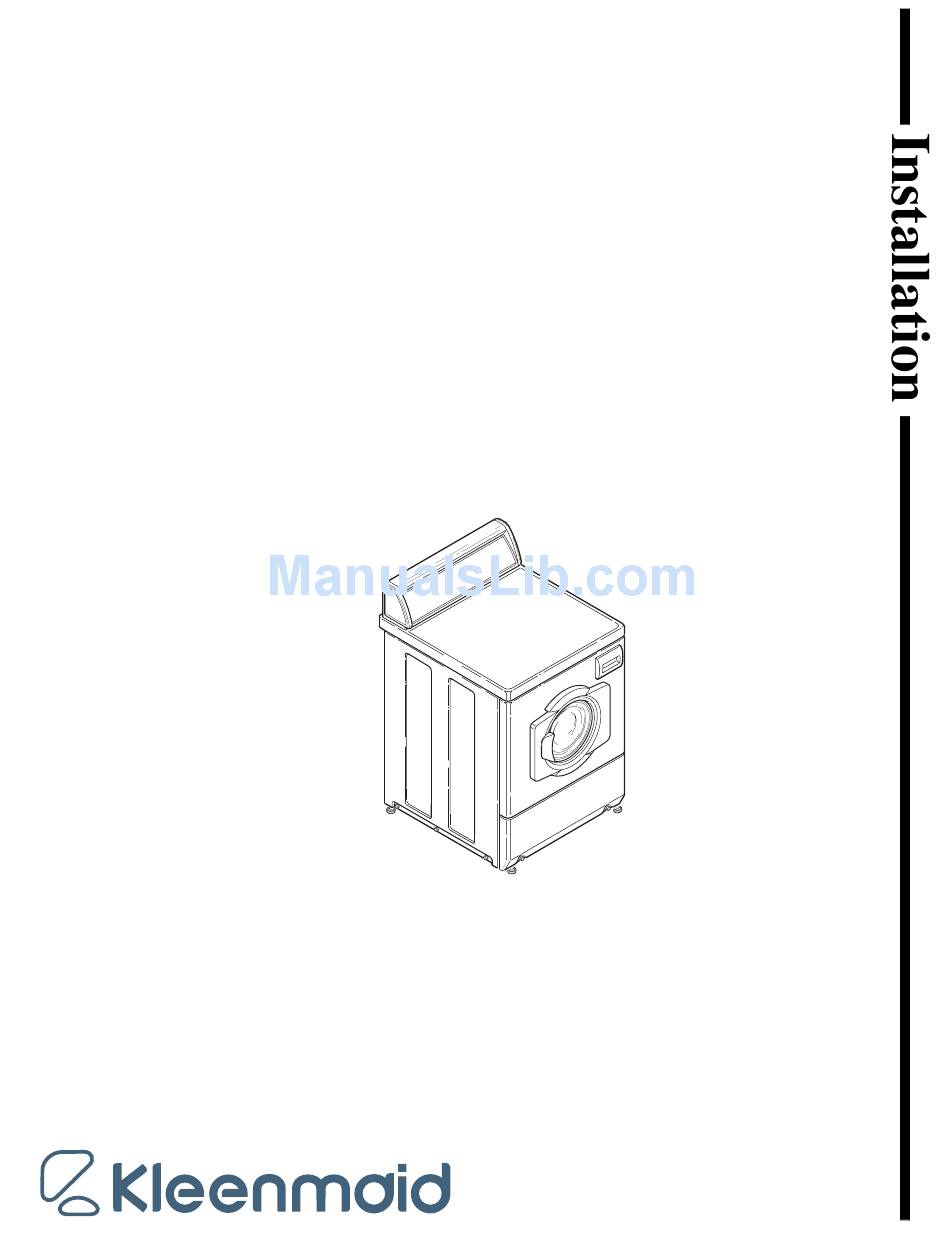

  • Page 1 Frontload Washers Model LTK95A*N3050 FLW1518C FLW1518C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 802116R1 May 2005...

  • Page 3: Table Of Contents

    Table of Replacement Parts ................Installation................... Contents Dimensions and Specifications............. Before You Start ................... Tools ....................Electrical ..................Water....................Accessories Bag ................Installing the Washer ................Step 1: Position Washer Near Installation Area ......Step 2: Connect Fill Hoses............... Step 3: Connect Drain Hose to Drain Receptacle ......Step 4: Position and Level the Washer ..........
  • Page 4 Notes © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 802116...

  • Page 5: Replacement Parts

    Replacement Parts If replacement parts are required, contact the source from which you purchased your washer. 802116 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
  • Page 6 Notes 802116 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 7: Installation

    Installation Dimensions and Specifications 47,5 cm (18,7 in.) 36,3 cm (14,3 in.) 71,1 cm 68,3 cm (28 in.) (26,9 in.) 5,1 cm (2 in.) FLW2050N FLW2050N 802116 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 8: Before You Start

    Installation Before You Start Water Washer needs two standard 19,1 mm (3/4 in.) water Tools supply faucets with a pressure between 138 and For most installations, the basic tools you will need 827 kPa (20 to 120 pounds per square inch). For more are: detailed information, refer to section on Water Supply Requirements.

  • Page 9: Installing The Washer

    Installation Installing the Washer Step 2: Connect Fill Hoses NOTE: Refer to section on Water Supply NOTE: If the washer is delivered on a cold day Requirements before connecting fill hoses. (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to The appliance is to be connected to the water mains operate it until the washer has had a chance to...

  • Page 10: Step 3: Connect Drain Hose To Drain Receptacle

    Installation Step 3: Connect Drain Hose to Drain Receptacle Remove the drain hose from its shipping position on the rear of the washer by unhooking the hose from the retainer clamp and by removing shipping tape. Find the instructions, on the following pages, that are appropriate for your type of drain receptacle (standpipe, sink, wall, or laundry tub).

  • Page 11: Standpipe Installation

    Installation Standpipe Installation Sink Installation Place the drain hose into the standpipe. For this type of installation, use the beaded tie-down strap (supplied in accessories bag) or use a large wire Remove the beaded tie-down strap from accessories tie (available from your local hardware store), and bag and place around standpipe and drain hose and secure the drain hose to the cabinet top hinge (refer to tighten strap to hold hose to standpipe.

  • Page 12: Laundry Tub Installation

    Installation In-the-Wall Installation Laundry Tub Installation For installations of this type, the drain hose MUST be For this type of installation, the drain hose MUST be secured to one of the fill hoses using the beaded tie- secured to the stationary tub to prevent hose from down strap from accessories bag.

  • Page 13: Step 4: Position And Level The Washer

    Installation Step 4: Position and Level the Washer NOTE: DO NOT slide washer across floor if the leveling legs have been extended, as legs and base could become damaged. WARNING NOTE: Use of the dispenser drawer or washer door Washers elevated above floor level must be as a handle in the transportation of the washer may anchored to that elevated surface, base or cause damage to the dispenser or door.

  • Page 14: Step 5: Remove The Shock Sleeves And Shipping Brace

    Installation Step 5: Remove the Shock Sleeves and Step 6: Wipe Out Inside of Washer Drum Shipping Brace Before using the washer for the first time, use an all- purpose cleaner, or a detergent and water solution, and IMPORTANT: The shock sleeves and shipping brace a damp cloth to remove shipping dust from inside the MUST be removed from the washer before operation.

  • Page 15: Moving Unit To A New Location

    Installation Moving Unit to a New Location Electrical Requirements To prevent damage while moving the unit, the (240 Volt, 50 Hertz with 3-Prong Earthing Plug) shipping materials MUST BE reinstalled. NOTE: The wiring diagram is located in the Reinstallation of Shipping Materials control hood.

  • Page 16: Earthing Instructions

    Installation WARNING 240 VOLT 50 HERTZ To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electric power source. W082 240 VOLT 0 VOLT 50 HERTZ Earthing Instructions The washer must be earthed.

  • Page 17: Water Supply Requirements

    Installation Water Supply Requirements WARNING WATER MIXING Under certain conditions, hydrogen gas may VALVE be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period and before using the washer, turn on all hot water faucets and let the water flow from each for several minutes.

  • Page 18: Risers

    Installation Risers Risers (or air cushions) may have to be installed if the pipes knock or pound when flow of water stops. The risers are more efficient when installed as close as possible to the water supply faucets (refer to Figure 18).

  • Page 19: Information For Handy Reference

    Installation Information for Handy Reference Date Purchased Model Number Serial Number Store Name Store Address Phone Number Service Agency Service Agency Address Phone Number NOTE: Record the above information and keep your sales slip. Model and serial numbers are located on the nameplate.
  • Page 20 Notes 802116 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 22: Installer Checklist

    Installer Checklist Fast Track for Installing the Washer (Refer to the manual for more detailed information) • Position Washer • Remove the Near Shock Sleeves Installation and Shipping Area. Brace. D772I D772I H336I CHECK CHECK • Connect Fill • Wipe Out Hoses.
