Kleenmaid KFL806 Use & Care Manual

Front loading washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

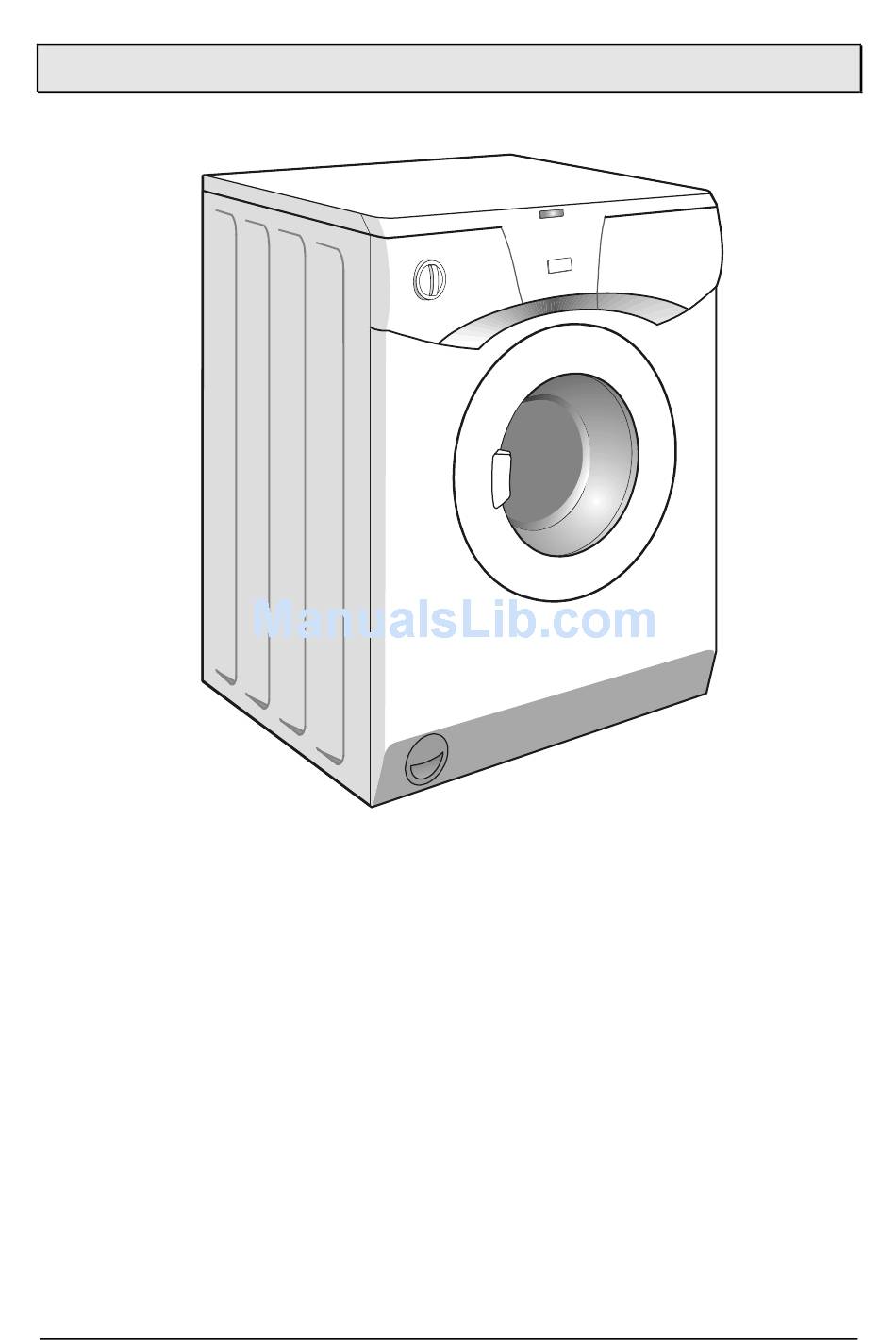

Front Loading Washing Machine KFL806
1. Before Use ................................................................................... 4-5
2. Removing the Transport Rods .......................................................... 6
4. The door ......................................................................................... 9
5. Preparing the Clothes ................................................................... 10
7. Washing Machine Control Panel..................................................... 13
8. Table of Washing Programmes ................................................. 14-15
9. Preparing Your Machine For Washing ............................................ 16
10. Stain Removal Guide ................................................................ 17-19
11. Cleaning & Maintenance ........................................................... 20-21
Trouble Shooting Guide ................................................................ 22
3

Advertisement

Table of Contents
loading

Related Manuals for Kleenmaid KFL806

Summary of Contents for Kleenmaid KFL806

  • Page 1: Table Of Contents

    Front Loading Washing Machine KFL806 1. Before Use ................... 4-5 2. Removing the Transport Rods ............6 3. Placing and Installation -connection to the water supply .... 7-8 -connection to hot/cold -water outlet -connection to power supply 4. The door ..................9 5.

  • Page 2: Before Use

    1. Before Use Please read the manual carefully and • The appliance should stand firmly get to know your washing machine so and horizontally on a solid base; that you will know how to use it safely this will avoid any excessive and correctly.
  • Page 3 be produced. There is also a risk of ignition or explosion. • When washing is completed, remember to turn the taps off. • Your washing machine can only be transported with transport rods. It is usually enough to use only one of the rods, that is the upper one.

  • Page 4: Washing Machine

    2. Removing the Transport Rods The washing assembly is secured with two metal rods which protect the machine during transport (fig.1). • Disengaged parts may remain at the bottom since they do not obstruct the operation of the machine (4 rubber hoses and 4 paper spools).

  • Page 5: Placing And Installation -Connection To The Water Supply

    3. Placing and Installation If the floor is uneven, use the IMPORTANT! adjustable feet to level the machine. The machine must be steady and level • Undo the locking nuts (fig. 1). on the legs, and must not rock. The •...

  • Page 6: Water Outlet

    The attachment and the inlet hose for hot water are marked with red colour. Insert the enclosed washers with the filter into the loose ends of the hoses and connect the red marked hose to hot water tap and the other hose to cold water tap.

  • Page 7: The Door

    4. The Door The door can only be opened two IMPORTANT minutes after the washing programme • When closing the door, be careful has finished. This is a safety feature to not to trap fabric between the door ensure that the wash bowl has finished glass and the rubber gasket.

  • Page 8: Preparing The Clothes

    5.Preparing the clothes Sort the clothes before washing Remove keys, coins, hair-pins and according to type, quality, colour and similar objects that may block the water the level of soiling of the laundry. outlet hose or drain pump. Zip the zippers and remove metal pins that may damage the laundry or even Types of Fabrics the wash bowl.

  • Page 9: Washing Agents And How Much To Use

    6. Washing Agents and how much to use Use only washing detergents designed With programmes without a pre-wash for machine washing. Do not use soap cycle, the washing powder can be put flakes. directly in the drum. This is convenient Use special washing detergents for delicate and woollen fabrics.

  • Page 10: Liquid Detergents

    marked on the dispenser. The excess Liquid Detergents is immediately poured out before If the washing machine is equipped washing and is therefore pure waste. with a partition plate, the middle section When using high density liquid may also be used for liquid detergents. conditioners we recommend mixing it Lift the partition plate when using a with water before filling, otherwise the...

  • Page 11: Washing Machine Control Panel

    7.Washing Machine Control Panel Before washing, load the clothes, detergent and conditioner, then select the washing programme. Programmes for delicates (G-L) The control panel incorporates various Programmes with gentle tumbling and switches and pushbuttons for selecting are finished with short spin cycle washing programmes, a control light, (2 minutes).

  • Page 12: Table Of Washing Programmes

    KFL 806...
  • Page 13 Washing No. of Spin: time Rinses Max. (min)

  • Page 14: Preparing Your Machine For Washing

    9.Prepare your machine for washing • Separate clothes and load a suitable • There is a safety switch on the door. amount -refer - Tables of Washing This means that you have to wait two Programmes (pages 14-15). minutes before you can open the •...

  • Page 15: Stain Removal Guide

    10. Stain Removal Guide It is easier to treat stains if you treat them promptly: • Try simple methods first. • Avoid the use of the water. • Use light strokes - DO NOT rub stain remover into the stain. •...
  • Page 16 White Cotton and Linens Washable Coloured Fabrics 1. CANDLE WAX 1. Same method - use oxygen type bleach. Scrape off excess, place stain between clean white blotter or several layers of facial tissue. Sponge with dry cleaning fluid, if spot remains, bleach. 2.
  • Page 17 White Cotton Washable and Linens Coloured Fabrics 10. CHEWING GUM 10. Same method. Rub with ice to harden. Scrape off excess with dull knile. Sponge with dry cleaning fluid. 11.FOUNTAIN PEN INK 11. Sponge with methylated spirit then Sponge with Hypo, (Sodium Hyposulphite) lemon juice.

  • Page 18: Cleaning And Maintenance

    11. Cleaning and Maintenance If necessary clean the interior of the Cabinet, Cabinet control detergent dispenser casing, in case you and Top Panel detect the remainings of washing powder inside. Clean the outside of your washing machine with a soft cloth and mild Wire Net in the Inlet Hose detergent.
  • Page 19 Pump guard - Place a shallow pan underneath to allow the excess water to pour out. The pump guard is located under the Remove the guard, by turning it anti- cap at the bottom of the machine. clockwise (35-40°). If you use the machine correctly, there is no need to clean the guard.

  • Page 20: Trouble Shooting Guide

    12. Trouble-Shooting Guide For more serious defects please phone During operation, malfunctions may occur your nearest service centre. that can be easily eliminated. 1. The machine doesn't operate (the Check the power supply and fuses. control lamp is off). Is the plug correctly placed in the socket. Is the machine switched on? 2.
  • Page 21 In addition to all statutory rights which you, the Consumer, have under the relevant laws in respect of this appliance, during the first five years of ownership as the original purchaser of this Kleenmaid appliance, we guarantee that any fault caused by faulty material or workmanship becoming apparent will be rectified free of charge for parts and labour, provided that all service is performed during normal working hours by Kleenmaid or their designated Agents.
  • Page 22 PS PG EC 4460 660416/en (07-04)
