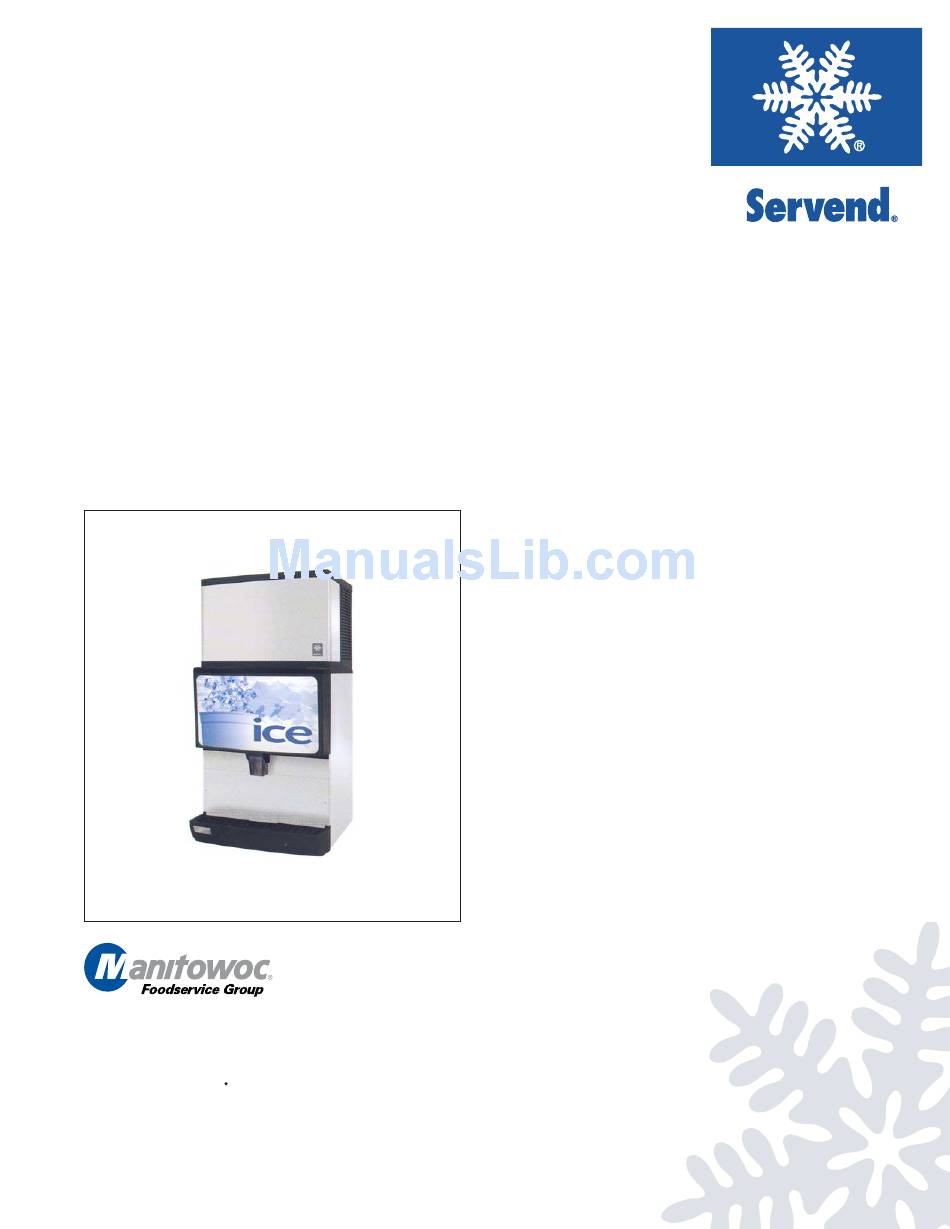

Page 1: Part Number

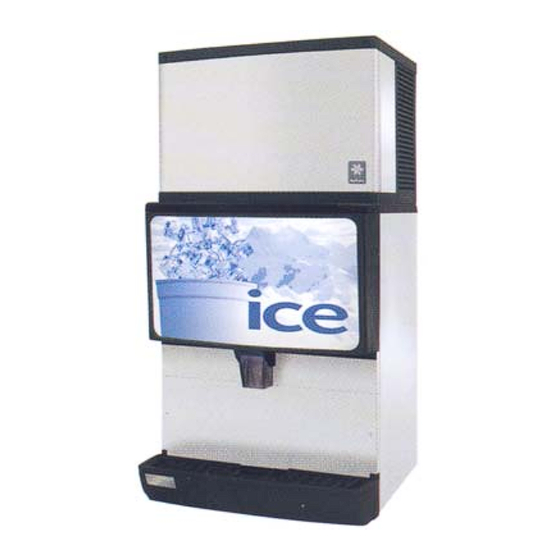

MII SERIES 150/200/250/302 & 402 Ice Dispensers INSTALLATION & SERVICE GUIDE Part Number 5028935 Manitowoc Beverage Equipment 2100 Future Drive w Sellersburg, IN 47172-1868 Tel: 812.246.7000, 800.367.4233 Fax: 812.246.9922 www.manitowocbeverage.com In accordance with our policy of continuous product development and improvement, this information is subject to change at any time without notice. -
Page 3: Foreword
Your warranty card must be returned to Manitowoc Beverage Equipment to activate the warranty on this equipment. If a warranty card is not returned, the warranty period can begin when the equipment leaves the MBE factory. -
Page 4: Table Of Contents
TOP MOUNTED ICEMAKER REQUIREMENTS ....................9 ICE FLOW RESTRICTOR ..........................9 ROCKING CHUTE ICE DELIVERY SWITCH ADJUSTMENT ................10 BAFFLE FOR MANITOWOC™ CUBERS ....................... 11 BAFFLE FOR "Q" SERIES ICE MACHINES ....................11 MANUAL FILL LID FOR DISPENSERS WITH A CUBER ................11 GENERAL INSTRUCTIONS FOR REMOVAL OF GEAR MOTOR .............. - Page 5 TABLE OF CONTENTS USER MAINTENANCE ......................20 SANITIZING AND CLEANING ........................20 DAILY CLEANING ............................20 CLEANING AND SANITIZING THE DISPENSER ................... 20 RE-ASSEMBLING THE DISPENSER PARTS ....................20 PREVENTATIVE MAINTENANCE ........................21 HOW TO DISASSEMBLE FOR CLEANING OR MAINTENANCE ..............21 DAILY CLEANING ............................
-
Page 6: Safety
Installation and Service Manual SAFETY IMPORTANT SAFETY INSTRUCTIONS Carefully read all safety messages in this manual. Learn how to operate the MII unit properly. Do not allow anyone to operate the unit without proper training and keep it in proper working condition. Unauthorized modifications to the MII may impair function and/or safety and affect the life of the unit. -
Page 7: Grounding In Structions
Installation and Service Manual SAFETY GROUNDING IN STRUCTIONS WARNING: Risk of electrical shock. Connect to a properly grounded outlet only. This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. -
Page 8: Installation
Installation and Service Manual INSTALLATION PRE-INSTALLATION CHECK LIST 1 Do you have enough space to install the dispenser 3 Is the countertop level? or a dispenser and top mounted cuber? 4 Can the countertop support the weight of the dis- 2 Does the top mounted cuber (if utilized) have a mini- penser, or the dispenser/cuber combination plus the mum of 6 inches (15.3) cm) clearance on all sides? -
Page 9: Top Mounted Icemaker Requirements
Installation and Service Manual INSTALLATION TOP MOUNTED ICEMAKER REQUIREMENTS Location - Avoid placing the dispenser and/or ice front of the dispenser, some icemakers may over- machine near heat sources such as radiators, ov- hang at the back of the dispenser. ens, refrigeration equipment and direct sunlight. -
Page 10: Rocking Chute Ice Delivery Switch Adjustment
Installation and Service Manual INSTALLATION ROCKING CHUTE ICE DELIVERY SWITCH ADJUSTMENT 1 To properly adjust the switch, first unplug the power cord to the unit then remove the merchandiser. This will give you access to the ice delivery switch lo- cated on the left side of the rocking chute. -
Page 11: Baffle For Manitowoc™ Cubers
22" wide “S” series ice machine. These two Kits are available through your local Manitowoc Distributor. List prices may be subject to change without notification. Please call your local parts distributor for current pricing before ordering. -
Page 12: General Instructions For Removal Of Gear Motor
Installation and Service Manual INSTALLATION GENERAL INSTRUCTIONS FOR REMOVAL OF GEAR MOTOR These instructions are provided as a guide for the removal of the gear motor. Depending on the model number of your dispenser, these instructions may vary slightly. 1. Disconnect power from the electric receptacle. 6. -
Page 13: Operation
Installation and Service Manual OPERATION UNIT INSPECTION Thoroughly inspect the unit upon delivery. Immediately report any damage that occurred during transportation to the delivery carrier. Request a written inspection report from a claims inspector to document any necessary claim. ICE RECOMENDED FOR DISPENSING MII dispensers are designed to dispense hard, cube ice up to one-inch square. -
Page 14: Mii Measurements & Specifications
Installation and Service Manual OPERATION MII MEASUREMENTS & SPECIFICATIONS M II-150 MII -175 M II -200 M II-250 Lighted Merchandiser, "ice" graphics, key switch, stainless steel legs, drain kit, Standard Features and timed agitation is standard on MII-200 and MII-250. 22"... -
Page 15: Mii-302 Measurements & Specifications
Installation and Service Manual OPERATION MII-302 MEASUREMENTS & SPECIFICATIONS Unit MII -302 33.25" 12.50" 42.75" 1.38" 5.59" 9.10" 12.16" 31.00" 15.78" 28.78" 22.50" .82" 26.97" 30.47" 33.75" 37.16" MII-302 Standard Features Key Switch, Drain Kits, 12" high lighted merchandiser and timed agitation Dimensions 42.75"... -
Page 16: Mii-402 Measurements & Specifications
Installation and Service Manual OPERATION MII-402 MEASUREMENTS & SPECIFICATIONS Front view 60" (152.4) 32 1/4" (81.9) 11" 9 3/4" (27.9) (24.8) 4 5/8" 22 1/2" 27" 30 1/2" (57.2) (11.7) (77.5) (68.6) Back view 19 1/8" (48.5) 19 1/8" (48.5) 15 7/8"... - Page 17 Installation and Service Manual OPERATION MII-402 MEASUREMENTS & SPECIFICATIONS Standard Features for the MII-402: Graphic Area Dimensions: Timed agitation, lighted merchandiser (MM), graphics, Physical trim area on merchandisers: key switches (DS) and drain kits (DRK). Leg kits not avail- 1 2 T: 60"W x 12"H x 6 3/8"D able for this unit.
-
Page 18: Mii-250 Footprint
Installation and Service Manual OPERATION MII-250 FOOTPRINT CAUTION: Cutting the countertop may decrease its strength. Counter should be braced to support the dispenser countertop weight plus ice storage ca- pacity and weight of icemaker, if applicable. -
Page 19: Mii-302 Footprint
Installation and Service Manual OPERATION MII-302 FOOTPRINT CAUTION: Cutting the countertop may decrease its strength. Counter should be braced to support the dispenser countertop weight plus ice storage ca- pacity and weight of icemaker, if applicable. -
Page 20: User Maintenance
Installation and Service Manual USER MAINTENANCE SANITIZING AND CLEANING 2. Using the mild detergent solution, a soft bristle brush or clean cloth, clean the following dispenser parts: • Entire bin • Paddle wheel • Paddle wheel area • Agitator • Paddle wheel pin •... -
Page 21: Preventative Maintenance
Disassembling the Dispenser Parts for Bin Cleaning: 1. Remove the front panel of the Manitowoc ice maker. 2. If the Manitowoc ice maker is operating, wait for the sheet of ice to fall into the dispenser bin. When the ice sheet falls into the dispenser bin, immedi- ately place toggle switch of the ice machine to the “OFF”... - Page 22 Installation and Service Manual USER MAINTENANCE HOW TO DISASSEMBLE FOR CLEANING OR MAINTENANCE Agitatior arm and paddlewheel pin: 8. Rotate the agitator arm so the paddle wheel pin handle is pointing up, toward the ceiling. For the MD-302 dispenser only, reach inside the bin through the area where the strip lid has been removed.
- Page 23 Installation and Service Manual USER MAINTENANCE HOW TO DISASSEMBLE FOR CLEANING OR MAINTENANCE Disassemble the rocking chute: 1. Loosen the two knurled fasteners that hold the mer- chandiser in place. 2. Remove the merchandiser. 3. Remove outer bracket. 4. Remove door lock. 5.
-
Page 24: Daily Cleaning
Installation and Service Manual USER MAINTENANCE DAILY CLEANING All cleaning must meet your local health department regulations. The following cleaning instructions are provided as a guide. CAUTION: Use only warm soapy water to clean the exterior of the tower. Do not use solvents or other cleaning agents. -
Page 25: Monthly Cleaning
Installation and Service Manual USER MAINTENANCE MONTHLY CLEANING Clean and sanitize the ice bin: 1. Unplug unit and remove all ice from the ice bin. solution for at least 10 seconds. 2. Mix a solution of mild detergent to clean the dispenser 8. -
Page 26: Exploded Views, Parts & Diagrams
Installation and Service Manual EXPLODED VIEWS, PARTS & DIAGRAMS MII-150, 175, 200, & 250... -
Page 27: Mii-150 Parts List
Installation and Service Manual EXPLODED VIEWS, PARTS & DIAGRAMS MII-150 PARTS LIST 5030667 5031384 5028118 5010609 5010269 5029024 MII-175 PARTS LIST 5030667 5031384 5011746 5029024... -
Page 28: Mii-200/250 Parts List
Installation and Service Manual EXPLODED VIEWS, PARTS & DIAGRAMS MII-200/250 PARTS LIST 5030665 5031384 5011745 5028107 5029024... -
Page 29: Mii - 302
Installation and Service Manual EXPLODED VIEWS, PARTS & DIAGRAMS MII - 302... -
Page 30: Mii-302 Parts List
Installation and Service Manual EXPLODED VIEWS, PARTS & DIAGRAMS MII-302 PARTS LIST 5031384 5030666 5011953 5029024... -
Page 31: Mii-150/175/200/250 115V Wiring
Installation and Service Manual EXPLODED VIEWS, PARTS & DIAGRAMS MII-150/175/200/250 115V WIRING... -
Page 32: Mii-302 115V Wiring
Installation and Service Manual EXPLODED VIEWS, PARTS & DIAGRAMS MII-302 115V WIRING... - Page 33 Installation and Service Manual...
-
Page 34: Troubleshooting
Installation and Service Manual TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION No power. Check electrical connection. Loose wire in electrical Thoroughly check all wire Dispenser will not system. connections. dispense ice (and NO SOUNDS are Remove ice from dispenser until heard when Dispenser overloaded with ice. - Page 35 Installation and Service Manual TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Water spillage from ice Adjust ice maker. machine into dispenser bin. Agitation timer Test agitation timer. Bridge of ice sheet is too Dispensing crushed Adjust ice maker. thick. ice or reduced dispensing speed.
- Page 36 Installation and Service Manual...
-
Page 39: Index
INDEX brixing 3 exterior 24 MBE 3 SAFETY 6, 7 Model Number 3 sanitizing 7 modifications 6 Serial Number 3 Monthly Cleaning 25 Service Agent 3 Carbon Dioxide 6 FOREWORD 3 service assistance 3 CAUTION 18, 19, 25 Service Personnel 6 claims 13 Shipping 6 Cleaning 3... - Page 40 Manitowoc Beverage Equipment 2100 Future Drive w Sellersburg, IN 47172-1868 Tel: 812.246.7000, 800.367.4233 Fax: 812.246.9922 www.manitowocbeverage.com In accordance with our policy of continuous product development and improvement, this information is subject to change at any time without notice. 5028935 October 19, 2006 REV3...
