MICRO COMPONENT SYSTEM
UX-H9
TIMER
TIMER SET
ON/OFF
STANDBY/ON
INTRO
/RDS SEARCH
RANDOM
SLEEP
REMAIN
REPEAT
/RDS MODE
PROGRAM
ST/MONO
TUNER
TAPE
CD
/BAND
CD
BEAT CUT
DISPLAY
/CLOCK SET
SOUND
VOLUME
MUTING
/BASS
RM-SUXH9R REMOTE CONTROL
—Consists of CA-UXH9 and SP-UXH9
STANDBY/ON
STANDBY
MICRO COMPONENT SYSTEM
CD SYNCHRO RECORDING
INSTRUCTIONS
VOLUME
UX-H9
OPEN
LVT1115-003A
[B]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro Component System SP-UXH9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JVC Micro Component System SP-UXH9

Summary of Contents for JVC Micro Component System SP-UXH9

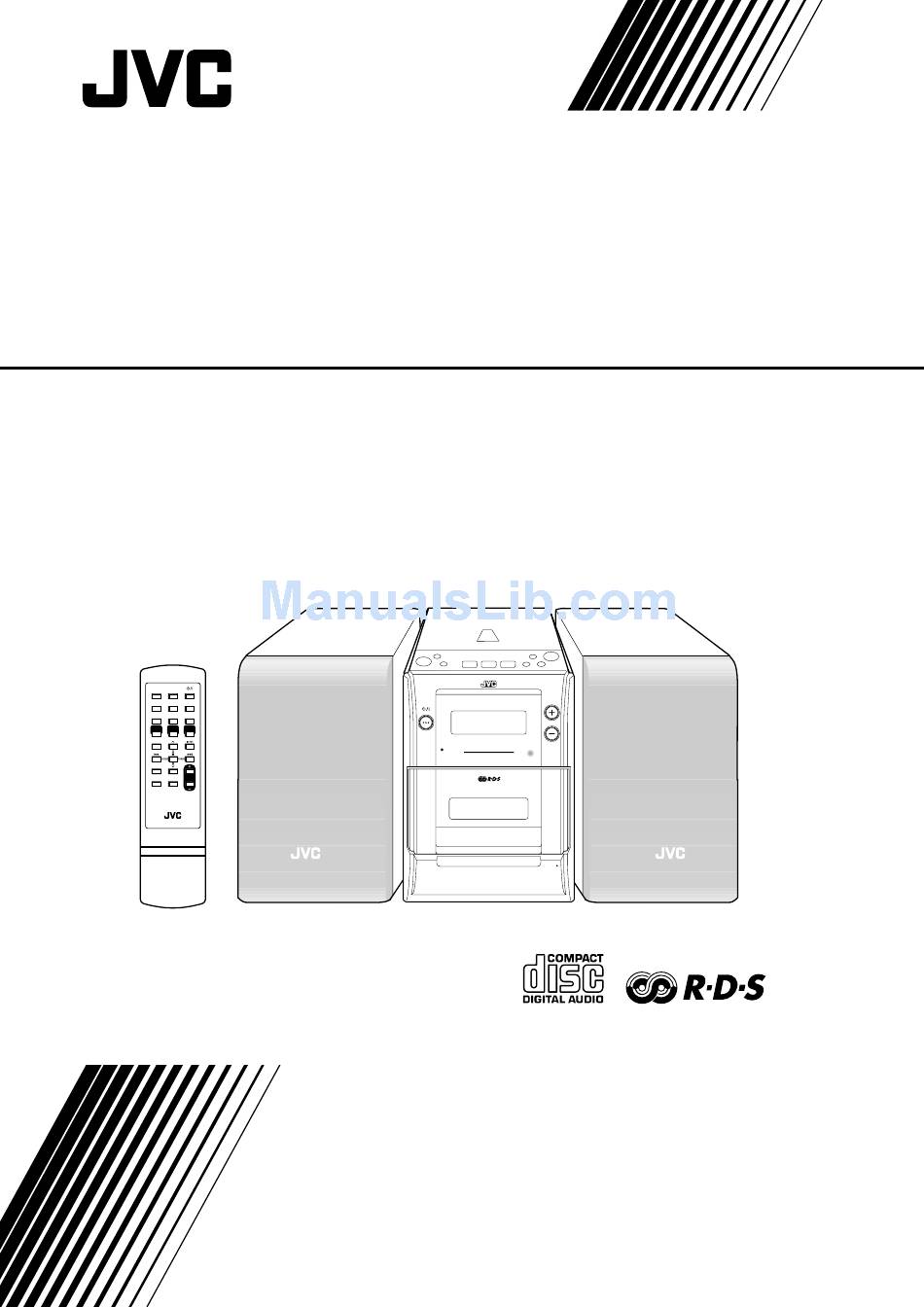

  • Page 1 MICRO COMPONENT SYSTEM UX-H9 —Consists of CA-UXH9 and SP-UXH9 TIMER TIMER SET ON/OFF STANDBY/ON INTRO /RDS SEARCH RANDOM SLEEP REMAIN REPEAT /RDS MODE PROGRAM ST/MONO TUNER TAPE /BAND BEAT CUT DISPLAY /CLOCK SET SOUND VOLUME MUTING /BASS RM-SUXH9R REMOTE CONTROL INSTRUCTIONS STANDBY/ON VOLUME...

  • Page 2: Important For Laser Products

    IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appro- priate safety approved extension lead or consult your dealer.

  • Page 3: Safety Instructions

    “SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT” This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. ✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮✮...
  • Page 4 Introduction We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual About This Manual This manual is organized as follows: •...

  • Page 5: Table Of Contents

    Contents Location of the Buttons and Controls ... 3 Main unit ... 3 Remote Control ... 5 Getting Started ... 6 Unpacking ... 6 Putting the Batteries into the Remote Control ... 6 Connections ... 6 Basic and Common Operations ... 8 Setting the Clock ...

  • Page 6: Location Of The Buttons And Controls

    Location of the Buttons and Controls Become familiar with the buttons and controls on your unit. Main Unit Top view Front view Inside the front cover OPEN TIMER ON/OFF BAND MULTI SOUND CONTROL /BASS TAPE TUNER PHONES CONTROL STANDBY/ON VOLUME STANDBY MICRO COMPONENT SYSTEM CD SYNCHRO RECORDING...
  • Page 7 Display window on the front panel ON OFF 1ALL PROG RANDOM INTRO TOTAL REMAIN See pages in parentheses for details. Main unit 1 Disc cover (13) 2 PHONES jack (9) 3 TIMER ON/OFF button (20) 4 SOUND/BASS button (9) 5 0 OPEN (disc cover open) (13, 14) 6 Source buttons •...

  • Page 8: Remote Control

    Remote Control See pages in parentheses for details. TIMER TIMER SET STANDBY/ON ON/OFF INTRO /RDS SEARCH RANDOM REMAIN /RDS MODE PROGRAM TUNER TAPE /BAND BEAT CUT DISPLAY /CLOCK SET SOUND MUTING /BASS RM-SUXH9R REMOTE CONTROL 1 TIMER SET button (19, 20) 2 INTRO/RDS SEARCH button (12, 15) 3 RANDOM button (15) 4 REMAIN/RDS MODE button (12, 15)

  • Page 9: Getting Started

    Getting Started Unpacking After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied. • AM (MW) loop antenna (1) • Remote control (1) • Batteries (2) If any item is missing, consult your dealer immediately.
  • Page 10 To connect AM (MW) and FM antennas FM antenna A N T E N N L O O AM (MW) loop antenna (supplied) 1 Connect the supplied AM (MW) loop antenna to the AM LOOP terminal. Place the antenna away from the unit and adjust its position for the best reception.

  • Page 11: Basic And Common Operations

    Basic and Common Operations Setting the Clock Before operating the unit any further, first set the unit’s clock. When you plug in the power cord, “0:00” starts flashing on the display. You can set the clock when the unit is either turned on or in standby mode.

  • Page 12: Adjusting The Volume

    Adjusting the Volume You can adjust the volume level only while the unit is turned on. The volume level can be adjusted between “VOL MIN,” “VOL 1” – “VOL 39,” and “VOL MAX.” • The volume level has no effect on recording. To increase the volume, press VOLUME +.

  • Page 13: Listening To Fm And Am (Mw) Broadcasts

    Listening to FM and AM (MW) Broadcasts Tuning in to a Station Press TUNER/BAND to select either “FM” or “AM.” The unit automatically turns on and tunes in to the previously received station—either FM or AM (MW). • Each time you press the button, the band alternates between FM and AM (MW).

  • Page 14: Presetting Stations

    Presetting Stations You can preset 20 FM and 20 AM (MW) stations manually. In some cases, test frequencies have been already stored for the tuner since the factory examined the tuner preset function before shipment. This is not a malfunction. You can preset the stations you want into memory by following the presetting method.

  • Page 15: Receiving Fm Stations With Rds

    Receiving FM Stations with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc.

  • Page 16: Playing Back Discs

    Playing Back Discs This unit has been designed to play back the following discs—CD, CD-R, and CD-RW. When playing a CD-R or CD-RW User-edited CD-Rs (CD-Recordable) and CD-RWs (CD- ReWritable) can be played only if they are already “finalized.” • Usually you can play back your original CD-Rs or CD- RWs recorded in music CD format.

  • Page 17: Basic Disc Operations

    Basic Disc Operations While playing a disc, you can do the following operations. To stop playing for a moment During play, press CD 3/8. While pausing, the elapsed playing time flashes on the display. To resume playing, press CD 3/8 again. To go to another track Before or during play, press ¢...

  • Page 18: Playing At Random-Random Play

    Playing at Random—Random Play You can play the tracks at random. On the remote control ONLY: Press RANDOM before or during playing. The RANDOM indicator lights up on the display. To exit from Random Play, press RANDOM again. The RANDOM indicator goes off. •...

  • Page 19: Playing Back Tapes

    Playing Back Tapes For Tape operations, use buttons inside the front cover on the unit. Playing Back a Tape You can play back type I tapes only. On the unit ONLY: Open the front cover. Press &/) (stop/cassette holder open). The cassette holder opens.

  • Page 20: Recording

    Recording IMPORTANT: • It should be noted that it may be unlawful to re-record pre-recorded tapes, records, or discs without the consent of the owner of copyright in the sound or video recording, broadcast or cable program and in any literary, dramatic, musical, or artistic embodied therein.

  • Page 21: Recording Discs-Disc Synchronized Recording

    Recording Discs —Disc Synchronized Recording You can start disc play and recording at the same time. On the unit ONLY: Put a recordable cassette in with the exposed part of the tape down. • See also page 16. Close the cassette holder gently. Press CD select the CD player as the source.

  • Page 22: Using The Timers

    Using the Timers Daily Timer and Sleep Timer are available. • Before using these timers, make sure the built-in clock is set correctly (see page 8). Using the Daily Timer You can set the Daily Timer when the unit is either turned on or in standby mode.

  • Page 23: Using The Sleep Timer

    Press TIMER SET. The display changes normal indication and exit the timer setting mode. Press TIMER ON/OFF to activate the daily timer mode. Each time you press the button, the Daily Timer alternates on and off. While activating the Daily Timer, the lights up on the display.

  • Page 24: Maintenance

    Maintenance To get the best performance of the unit, keep your discs, tapes and mechanism clean. General Notes In general, you will have the best performance by keeping your discs, tapes and the mechanism clean. • Store discs and tapes in their cases, and keep them in cabinets or on shelves.

  • Page 25: Troubleshooting

    Troubleshooting If you are having a problem with your unit, check this list for a possible solution before calling for service. If you cannot solve the problem from the hints given here, or the unit has been physically damaged, call a qualified person, such as your dealer, for service.
  • Page 26 VICTOR COMPANY OF JAPAN, LIMITED 0603MWMMDWORI © 2003 VICTOR COMPANY OF JAPAN, LIMITED...
