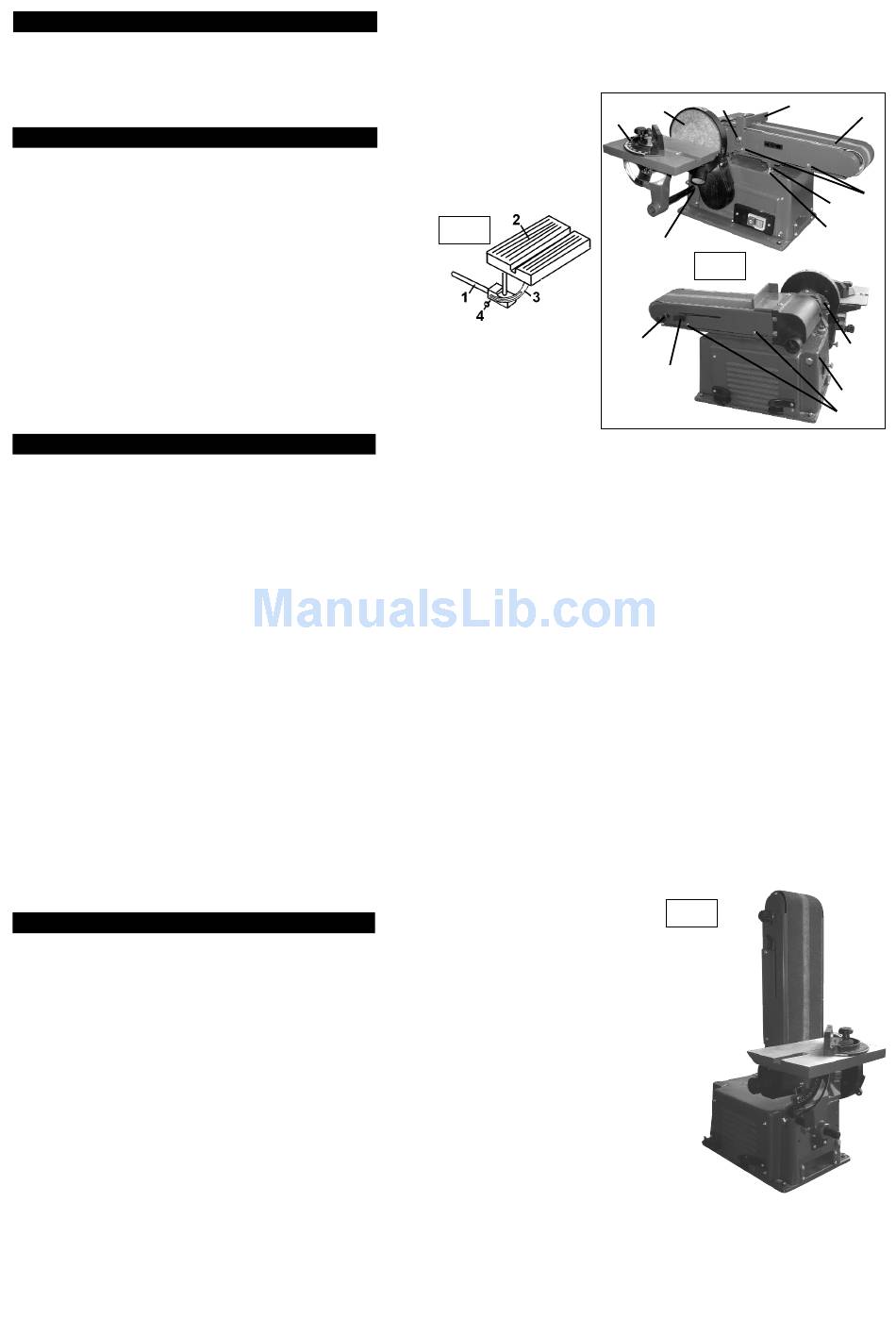

2. TECHNICAL SPECIFICATION
Belt . . . . . . . . . . . . . . .915 x 100mm
Belt Speed . . . . . . . . . . . .460mtr/min
Disc Diameter . . . . . . . . . . . .150mm
3. ASSEMBLY & ADJUSTMENT
3.1.
Unpack the sander and check contents. Should there be any damaged or missing
parts contact your supplier immediately.
3.2.
Attach a sanding disc (fig 2.1) to the back plate by removing the self adhesive
backing and carefully applying the disc to the plate.
Note: Your model may arrive with a disc already applied.
3.3.
Insert table support rod (fig 1.1) into boss below and to left
of disc (fig 2.2) and lock in place with bolt.
3.4.
The angle of the table may be adjusted by loosening locking
nut (fig 1.4) and positioning the angle gauge (3) accordingly.
3.5.
The mitre gauge (fig 2.3) base bar locates in the groove in the table top (fig 1.2).
3.6.
Bolt sander to a stable, fireproof bench or table which is strong enough to take the
weight of the sander and the workpiece.
4. OPERATING INSTRUCTIONS
WARNING! Before each use rotate the sanding disc by hand to check it is undamaged and secure. Remove adjusting keys and
"
wrenches before turning the sander on. Ensure you wear approved safety goggles, gloves, ear defenders and respiratory protection.
WARNING! DO NOT switch the sander on whilst the workpiece is in contact with the disc or belt. Keep all guards and holding
"
screws in place, tight and in good working order. A guard or other part that is damaged must be repaired or replaced before the
sander is next used, if damaged replace parts. The safety guards are
mandatory when the sander is used in premises covered by the Health & Safety at Work Act.
4.1.
SANDING BELT (fig 2.G).
4.1.1.
If the belt does not run centrally on the drums the tracking should be adjusted by turning knob (fig 2.4).
4.1.2.
To stabilise the sanding bed, unscrew support bolt (fig 2.5) until it 'butts' up to the underside of the sanding belt bed and lock with nut.
4.1.3.
The sanding belt bed (fig 2.7) may be rotated through 90
4.1.4.
To alter the bed angle, remove the end guard by removing bolt (fig 2.8) and two screws on topside of guard, withdraw guard (fig 2.9).
4.1.5
Loosen the clamp nut (fig 2.10) located adjacent to upper pulley (behind sanding disc at rear). Pull the sanding belt upright and tighten
the lock nut. Fit the sanding table to mount (fig 2.11) and adjust to the desired angle. When returning to horizontal position ensure you
replace the guard.
4.2.
SANDING TABLE.
4.2.1.
The table may be tilted through 45
4.2.2.
When operating sanding bed in the vertical position (fig 3), mount sanding table at the foot of the belt by:
a.
Remove table assembly and support rod (fig 1.1) from the sanding disc position.
b.
Insert table support rod (fig 1.1) into rear mounting boss (fig 2.11) and fix with locking bolt.
c.
Align table as required and tighten all bolts.
5. MAINTENANCE
WARNING! Disconnect sander from the electrical supply before performing any service or
" "
maintenance.
5.1.
Keep the sander clean and replace a worn or damaged sanding belt or disc.
5.2.
To change sanding belt remove the guard (fig 2.9), remove bottom tray by removing four
screws (fig 2.12).
5.3.
Push belt tension lever (fig 2.13) fully to the right. Remove old belt. Place new belt over the two
drums (note direction arrows on the inside of the belt). Move the tension lever back to the left.
Replace guard and bottom tray and then adjust belt tracking if necessary.
5.4.
Replace sanding disc pad. Remove table and disc guard. Peal off of pad, and stick new pad in place.
5.5.
Periodically lubricate the drive bearings. DO NOT lubricate motor bearing. The motor is a sealed unit.
Replacement Sanding Belts:
SM14/B060G
60Grit
SM14/B100G
100Grit
Disc Speed . . . . . . . . . . . . .2950rpm
Table . . . . . . . . . . . . . .225 x 160mm
Table Tilt . . . . . . . . . . . . . . . . . . .45
from the horizontal and locked for operating in a vertical position (fig 3).
O
by loosening thumb screw (fig 1.4).
O
Replacement Sanding Disc:
SM14/D080G
O
3
fig 1
80Grit
Dust Extraction Port . . . . . . . . .35mm
Motor . . . . . . . . . . . . . . .500W 230V
Weight . . . . . . . . . . . . . . . . . . . .22kg
8
1
2
fig 2
4
13
fig 3
SM14.V5 - 2- 180907
9
7
12
5
6
10
11
12
