Chapter 7 Disassembling And Reassembling Your Mpv5; Removing And Replacing Your Controller - Hoveround MPV5 Owner's Manual

Hoveround-MPV5ManualRevM
Controller Removal/Replacement
Removal
1. Check that vehicle power is OFF.
2. Lift the arm and loosen the socket head cap screw closest to
the controller. Use the 1/4 inch hex wrench supplied with your
chair (See Figure 7A, below).
3. Slide the controller bracket forward until it hits the key slot.
(See Figure 7B, below). Remove bracket from arm and place
on footrest or other safe location. Unlock cable from seat.
(See Figures 7C, Page 44).
Replacement
1. Loosen forward socket head cap screw.
2. Position key hole portion of bracket over screw and slide into
place.
3. Position controller in a comfortable position and secure screw.
4. Fasten the controller cable on to the catch on the lower seat
(See Figure 7D, page 44).
D82008753M 10/13
1/17/14 10:37 AM Page 47
Disassembling and Reassembling Your MPV5

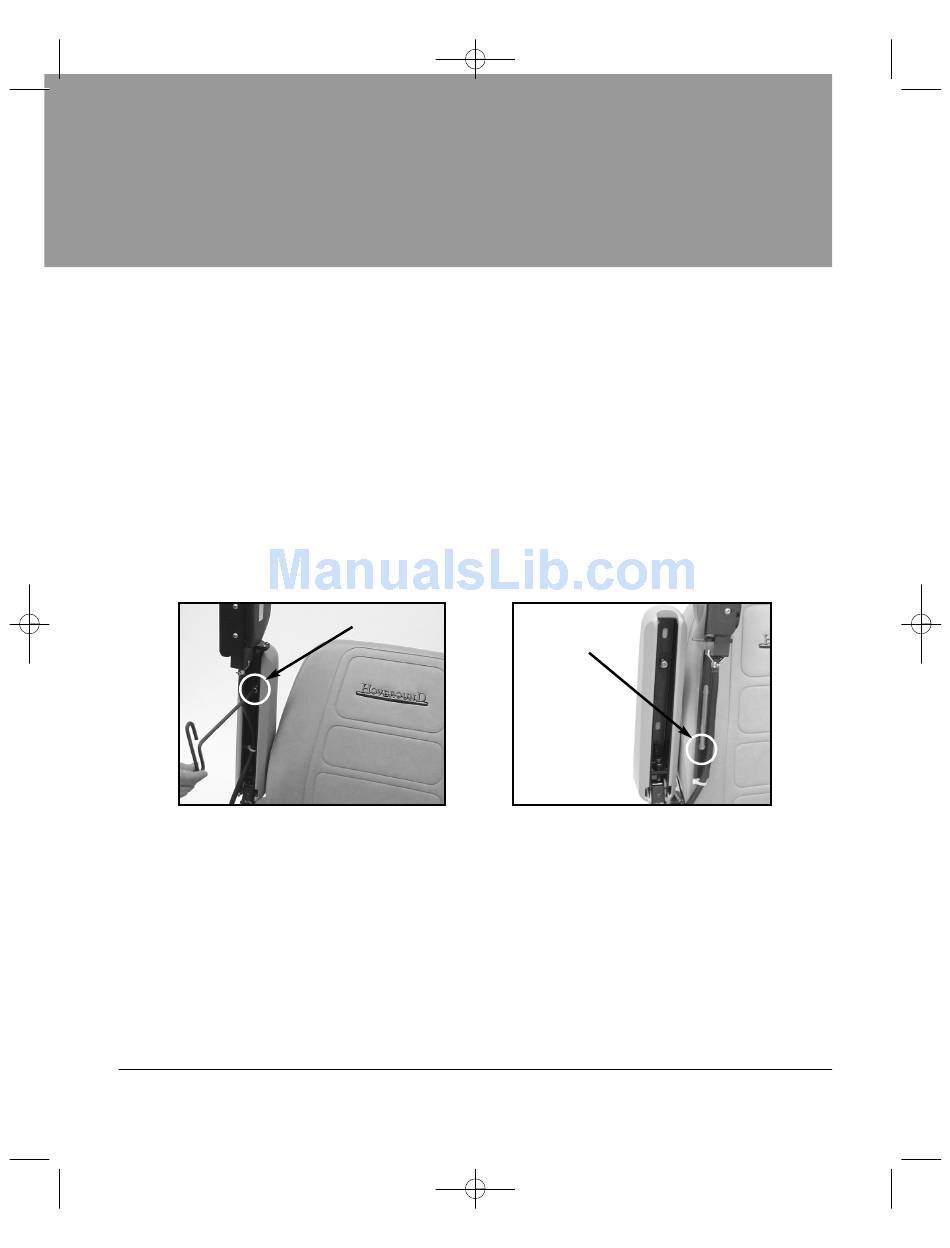

Cap Screw
Figure 7A
Chapter 7
Keyhole
Figure 7B
Chapter 7 47
