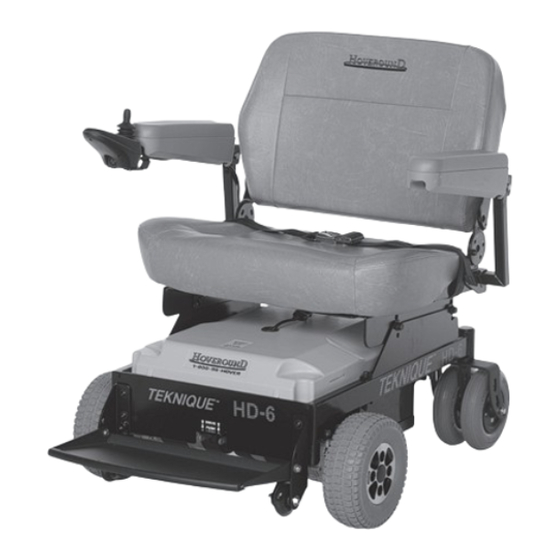

Summary of Contents for Hoveround HD6

  • Page 2 D82014014B 10/15...

  • Page 3: Special Notes

    HOVEROUND CORPORATION. Neither HOVEROUND CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product.
  • Page 4 Teknique HD6 to fulfill your personal mobility needs. The Teknique HD6 has the same innovation of design that is the hallmark of our company. It is compact yet very stable; attractive yet rugged; simple yet functional; gentle yet powerful; and above all, the Teknique HD6 provides an outstanding level of maneuverability.

  • Page 5: Table Of Contents

    Entering Your Teknique HD6 ..... .16 Driving Your Teknique HD6 ......17 Joystick Controller .
  • Page 6 Teknique HD6 ........43 Controller Removal/Replacement ....43 Removal and Installation of Seats With Side Rails .

  • Page 7: Introduction

    Service Service is our commitment to our clients, and their continued mobility is our priority. In the event that you need assistance with your Hoveround, our Service Representatives are just a phone call away. Just call Hoveround Technical Support and Repair, toll free at 1-800-96-HOVER (1-800-964-6837).

  • Page 8: General Warnings And Intended Use

    Never modify your wheelchair, and do not use accessories other than those developed for use specifically with your Hoveround Teknique HD6 power wheelchair. Information about the design of ramps appropriate for wheelchair access for your home are contained in guidance from the Americans with Disabilities Act, which can be located at http://www.access-board.gov/adaag/html/adaag.htm.
  • Page 9 • Your weight exceeds 600 pounds, the maximum weight capacity of your Hoveround ® Teknique HD6 power wheelchair. To avoid serious injury or fatality from sudden unexpected movement of the chair or contact with moving parts and other objects: •...
  • Page 10 To reduce the chance of serious injury or death from tip-over, collision with obstacles and other people, loss of control, or falling from the power wheelchair, drive in proper environments such as typical indoor areas with level, dry floors with adequate structural support, and outdoor concrete, asphalt, compacted soil, gravel and surfaces that are level and dry: •...
  • Page 11 To avoid serious injury or death from being struck by a motor vehicle, when driving your power wheelchair near traffic: • Obey all local pedestrian traffic rules. • Cross roads at locations where you are most visible to motor traffic, if possible at a light-controlled pedestrian crossing with handicapped cutouts.
  • Page 12 • DO NOT tip or push the wheelchair without assistance, unless you are physically able to do so. • DO NOT stand on the frame of the wheelchair. • ALWAYS use caution when transferring into or out of the wheelchair. Every precaution should be taken to reduce the transfer distance.

  • Page 13: Hoveround Teknique Hd6 / Diagram

    Hoveround ® Teknique ® HD6 - Diagram D82014014B 10/15 Hoveround Teknique HD6 - Diagram...

  • Page 14: Hoveround Teknique Hd6 Warning Labels

    Hoveround ® Teknique ® HD6 Warning Labels Hoveround Teknique HD6 - Warning Labels D82014014B 10/15...
  • Page 15 D = Apr E = May F = June G = July H = Aug J = Sept K = Oct L = Nov M = Dec Serial Number Label Placement D82014014B 10/15 Hoveround ® Teknique ® HD6 - Warning Labels...

  • Page 16: Operating Instructions

    Entering Your Teknique ® 1. Be sure the power is turned “OFF” before entering or exiting your Hoveround ® . To locate the “ON/OFF” button on your joystick controller, see the section on your joystick Controller (page 19).

  • Page 17: Driving Your Teknique Hd6

    4. Fasten the seat belt. 5. Move the footplate down and position your feet on the footplate. Driving Your Teknique HD6 Power Wheelchair ® • Sudden change in motion, loss of control, or tip-over may cause a collision or fall from the seat and result in serious injury or death.
  • Page 18 To avoid serious injury or death from a fall or collision, set speed/response control for the environment and your skill level. Set control to minimum if you are a less experienced driver or are in a confined space. 5. Gently move the joystick forward. A “click” will be heard as the controller releases the motor brakes and your power wheelchair will move slowly forward.

  • Page 19: Joystick Controller

    Joystick Controller All the controls and indicators necessary to drive your Teknique ® HD6 are located on the joystick controller. See Figure 1A. Figure 1A 1. ON/OFF - Press to turn the system on and off.
  • Page 20 5. Speed/Response Indicator – Indicates the currently selected speed by the number of lighted segments. If all lights are lit, you are at top speed. 6. Speed Up – Pressing the button increases speed. 7. Speed Down – Pressing the button decreases speed. 8.

  • Page 21: Chapter 2 Batteries And Charging

    Chapter 2 Batteries And Charging Caring For Your Batteries • Completely read and follow all warnings about the batteries in this user instruction manual and any labels applied to the product. Failure to do so could result in fire, explosion, injury and/or death.

  • Page 22: Battery Replacement

    • Do not let your batteries run down. Battery Replacement When it becomes necessary to replace batteries, consult with Hoveround Technical Support 1-800-96-HOVER (1-800-964-6837). We will provide the correct replacement battery to ensure the proper operation of your power wheelchair.

  • Page 23: Charging Your Batteries

    It may take up to 8 hours for a full recharge. We recommend an overnight charge after the day’s use of your power wheelchair. • ALWAYS use the charger and connectors supplied with your Hoveround ® power wheelchair. • DO NOT use the charger outdoors or in areas unsheltered from the weather.
  • Page 24 • ONLY USE to charge AGM sealed lead acid batteries. Do not attempt to charge any other type of battery or any non-rechargeable type of battery. • DO NOT attempt to use the charger as a DC power source for any electrical or other equipment. •...
  • Page 25 4. Plug the AC power cord into the back of the charger. 5. Plug the other end of the AC power cord into a 120-volt grounded household power outlet. 6. Switch the power on. A light will illuminate on the output side of the charger indicating power is available.

  • Page 26: Chapter 3 Manual Brake Release Levers

    Chapter 3 Manual Brake Release Levers On occasion it may be necessary to push your Hoveround ® power wheelchair. Each motor has a manual brake release lever. Refer to Figure 3 below to locate the manual brake release levers on your power wheelchair.

  • Page 27: Chapter 4 Seating And Pressure Relief

    Chapter 4 Seating and Pressure Relief • Unintentional or unexpected motion increases the chances of a collision or fall from the seat and can result in serious injury or death. Press the power button to OFF before making any adjustments to your power wheelchair. •...

  • Page 28: Seat Belt Adjustment

    Seat Belt Adjustment • Always fasten seat belt to maintain proper positioning in the seat and avoid injury. • Replace seat belt immediately at first signs of wear or improper latching. To fasten the seat belt, push the metal tab into the buckle until it clicks. To release the seat belt, push the release button in the center of the buckle.

  • Page 29: Arm Angle Adjustment

    Arm Angle Adjustments The seat arms have angle adjustments to suit your driving and comfort requirements. To adjust the arm angle on the seat arms, lift the arm and locate the adjustment bolt near the pivot point. Refer to Figure 4D below. Use the supplied 1/4 inch hex wrench to make the adjustment.

  • Page 30: Arm Width Adjustment

    Arm Width Adjustment The standard seat has arm width adjustment (Figure 4F and 4G). To adjust the arm width: 1. Locate the two knobs and two set screws on the square tube at the rear of the seat. 2. Loosen the knobs and set screws. 3.

  • Page 31: Seat Back Angle Adjustment

    Seat Back Angle Adjustment The seat back has fixed positions to select from (Figure 4I). To change the back angle position: 1. Locate the screw and nut on the left hinge and right hinge. 2. Remove the screw and nut and place the back in the desired angle position.

  • Page 32: Adjusting The Seat Position

    Adjusting The Seat Position Seats with side mounting brackets can be adjusted forward and rearward and up and down. To raise or lower the seat 1. Locate the hex head or socket head bolts on the side brackets below the seat. Loosen the rear bolts and remove the front bolts (See Figure 4J, below).

  • Page 33: Locking The Seat Back

    (Figure 4K). If you prefer to have the seat back locked into place and stationary; screws and a hex key have been provided with your Hoveround to lock the seat back. Figure 4K 1. Locate the holes on each side of the seat back frame above the angle adjustment hinge.

  • Page 34: Reclining Back Seat And Adjustment

    Reclining Back Seat (May require medical necessity) Driving with the seatback reclined makes it difficult to see where you are going and increases the chance of serious injury or death from collision and tip-over. Do not attempt to drive this vehicle with seatback reclined. The optional reclining seat will permit the seatback to recline approximately 45 degrees.

  • Page 35: Anti-Tip Wheels

    Chapter 5 Anti-Tip Wheels Mounted to the front of the frame, anti-tip wheels protect against the unit tipping in the unlikely event of an abrupt stop or start (See Figure 5 below). Do not remove Anti-Tip wheels. Figure 5 Anti-Tip Wheels D82014014B 10/15 Chapter 5...

  • Page 36: Footrests And Legrests

    Chapter 6 Footrests and Legrests When your thighs rest on the seat cushion, your feet should comfortably rest on the plate(s) of the footrest/legrests. You can make several adjustments to maximize safety and comfort. In addition, a bracket mounted to the underside front of the seat accommodates swing-away legrests.

  • Page 37: Legrests

    Legrests 1. Install each legrest onto the appropriate hanger bracket and swing into the forward facing position. If your chair has elevating legrests, set the angle to the lowest position. 2. Fold down the footplates. Your feet should comfortably rest on the plates without a tendency to lift your thighs from the seat cushion.

  • Page 38: Options And Accessories

    Chapter 7 Options and Accessories To obtain information or pricing on accessories, contact HOVEROUND ® CORPORATION at 800-96-HOVER (800-964-6837). Optional Reclining Seat Driving with the seatback reclined makes it difficult to see where you are going and increases the chance of serious injury or death from collision and tip-over.
  • Page 39 Accessories Cane Holder Crutch Holder Cup Holder and Bag Elevating Leg Rests Power Chair Lift Round O2 Holder Square O2 Holder Seat with Pan and Cushion Step & Threshold Ramps D82014014B 10/15 Chapter 7...

  • Page 40: Routine Maintenance

    Routine Maintenance Service and maintenance are very important to ensure the performance and the safe operation of your power wheelchair. Service Please contact Hoveround ® Technical Support at 1-800-96-HOVER (1-800-964-6837) for any service or maintenance needs. Stop using your power wheelchair immediately, and call for assistance if: •...
  • Page 41 Owner Maintenance Daily • Check drive tires. • Charge batteries (or as required). • Check that the seat belt latches and does not show signs of wear. Weekly • Check tire treads and pressure. (Should be 45-50 psi.). • Check that casters are free to pivot. •...
  • Page 42 Cleaning your Teknique ® The Teknique HD6 is designed to operate both inside and outside the home. To keep the vehicle clean: Seat – Wipe with a damp cloth or towel, using a mild detergent or window cleaner. Tires –...

  • Page 43: Disassembling And Reassembling Your Teknique Hd6

    Chapter 9 Disassembling and Reassembling Your Teknique ® Controller Removal/Replacement Removal 1. Check that vehicle power is OFF. 2. Lift the arm and loosen the sockethead cap screw closest to the controller. Use the 1/4 inch hex wrench supplied with your chair (See Figure 9A below).

  • Page 44: With Side Rails

    Removal and Installation of Seats With Side Rails The seat assembly is heavy. To avoid injury, do not attempt to lift beyond your capability. Front Bolt Rear Bolt Figure 9C Removal 1. Remove the controller (See page 43). 2. Remove the controller cable from seat if so attached. 3.

  • Page 45: Electromagnetic Interference (Emi)

    Chapter 10 Electromagnetic Interference (EMI) Our environment is saturated with radio (electromagnetic) waves that originate from transmitters of television, radio and communication signals. The waves are invisible and their strength at any location is unknown but in general, the strength of a given e.m. wave increases as you move toward the transmitting source.
  • Page 46 The sources of radiated EMI can be broadly classified into three types. 1. Hand-held portable transceivers (transmitters-receivers) with the antennas mounted directly to the transmitting unit. Examples include: Citizen band (CB) radios, “walkie-talkie”, security, fire, and police transceivers, cellular telephones and other personal communication devices.

  • Page 47: Important Information

    1. 20 volts per meter (V/m) is a generally achievable and useful immunity level against interference from radio wave sources (as of May 1994, the higher the level, the greater the protection). 2. The Teknique HD6 wheelchair has an immunity level of at least 20 V/m. ® D82014014B 10/15 Chapter 10...

  • Page 48: Appendices

    The following chart indicates the standard program values of the factory settings. Any subsequent change of the programmed values should be recorded and saved for future reference. Program Settings TEK HD6 Program Settings Forward Speed Max Forward Speed Min Forward Acceleration...

  • Page 49: Appendix B Fault Codes

    C. Switch on the control system again and try to drive the chair. If the fault occurs again, switch off and do not try to use the wheelchair. Contact Hoveround ® Support 1-800-96-HOVER (1-800-964-6837)
  • Page 50 7 bars: Joystick fault. Check for joystick in neutral, centered position before turning control on. 8 bars: Controller fault. 9 bars: Problem with brake circuit. Check that manual brake release levers are in the drive position. 10 bars: An excessive voltage to the control system. This is usually caused by a poor battery connection.

  • Page 51: Appendix C Specifications

    Appendix C: Teknique HD6 Specifications ® Performance Maximum Speed 3.3 mph* Range (per battery charge) 15 miles* Capacity 600 lbs Turning Radius 28" Ground Clearance 3" Maximum step climb 1.5" Maximum grade climb 6° (5° ADA ramp recommended) Dimensions and weight (with 25" seat in lowest position with foot plate) Length 44"...

  • Page 52: Appendix D Record Of Service

    Appendix D: Record of Service Date Technician Service Performed Chapter 11 D82014014B 10/15...
  • Page 53 Record of Service Date Technician Service Performed D82014014B 10/15 Chapter 11...
  • Page 54 RWD and GT to be free from defects in materials and workmanship for a period of five (5) years and the Teknique XHD and HD-6 for a period of one (1) year from the date of purchase. Hoveround Corporation warrants all remaining components (excluding all upholstery, tires, tubes, foot mats, body plastic and batteries) to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase.
  • Page 55 D82014014B 10/15...
