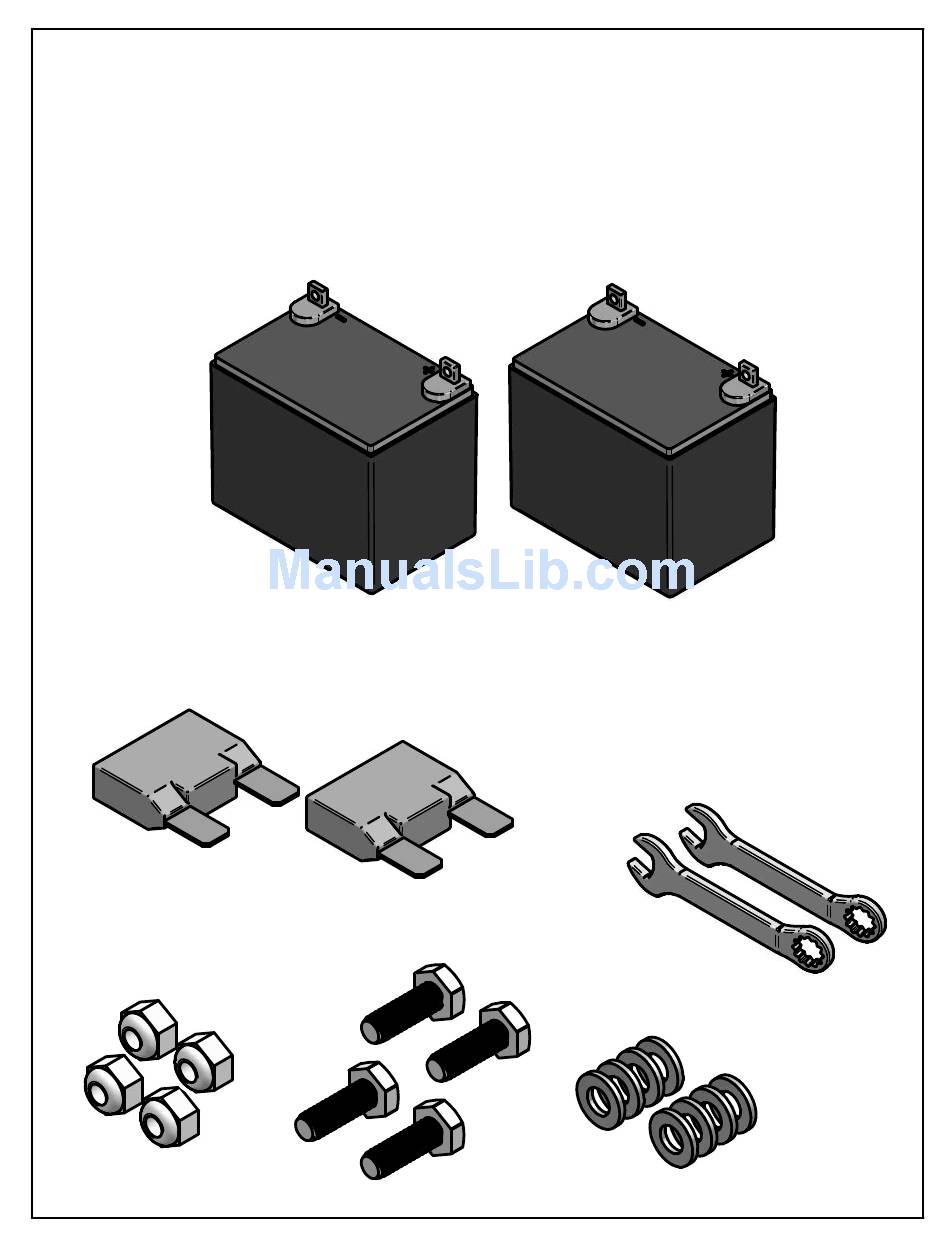

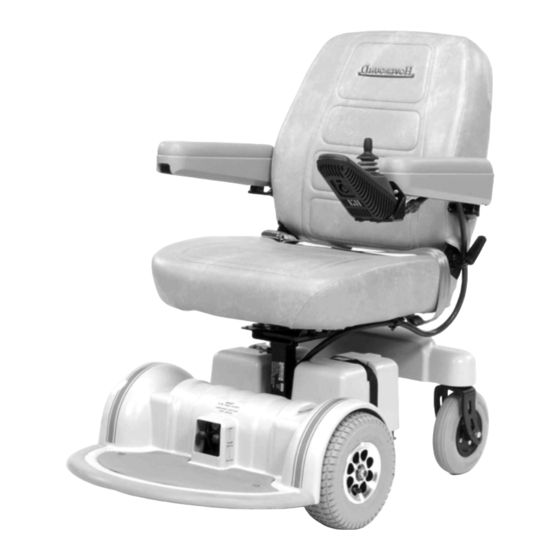

- Page 1 HOVEROUND BATTERY REPLACEMENT MPV4/MPV5 ITEM 1 - BATTERY ITEM 2 - FUSE ITEM 6 - WRENCH ITEM 3 - LOCK NUT ITEM 5 - WASHER ITEM 4 - BOLT D84011513 REV A 01/27/14 1 OF 4...
- Page 2 CASE STRAP POWER OFF BATTERY CONNECTOR COVER BLACK (+) POSITIVE POST (-) NEGATIVE POST 40 AMP FUSE BATTERY 1 FIG. C D84011513 REV A 01/27/14 2 OF 4...
- Page 3 NEVER use a battery that has been frozen or might have been frozen. • Do not connect any devices, medical or otherwise, to the batteries or electrical system except those supplied by Hoveround. • ALWAYS use batteries of the same type and capacity for this power wheelchair.
- Page 4 BATTERY REMOVAL AND INSTALLATION INSTRUCTION STEP 1 – CHECK PARTS CONTENT OF REPAIR KIT TO MAKE SURE ALL PARTS ARE PRESENT. STEP 2 – TURN POWER OFF ON THE JOYSTICK CONTROLLER (FIG. A) STEP 3 – UNPLUG THE BATTERY CONNECTORS FROM THE JUNCTION BOX AND REMOVE THE BATTERY ASSEMBLY FROM THE BASE (FIG.
