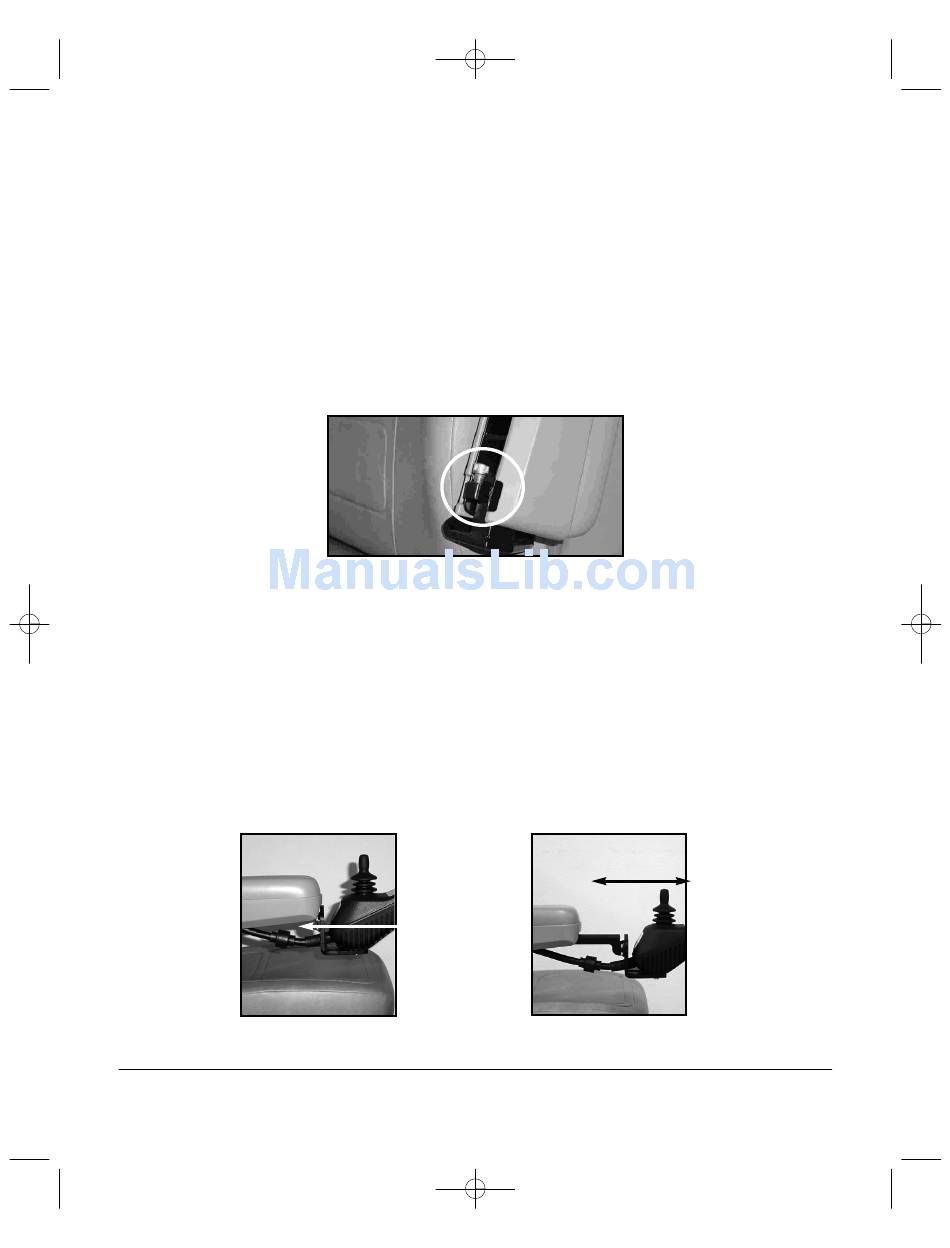

Arm Angle Adjustments
The seat arms have angle adjustments to suit your driving and
comfort requirements.
To adjust the arm angle on the seat arms, lift the arm and locate
the adjustment bolt near the pivot point. Refer to Figure 4D below.
Use the supplied 1/4 inch hex wrench to make the adjustment.
Turn the screw clockwise to lower the arm and counterclockwise
to raise the arm.
Figure 4D

Controller Position Adjustment

You can adjust the position of the controller by lifting the arm and
loosening the socket head cap screw closest to the controller.
Slide the controller bracket to a comfortable position and secure
the screw. Make sure the screw is clear of the removal key opening
(see Figure 7B, page 43) in the bracket before tightening.
3" Max
T-Wrench
Figure 4E
