English

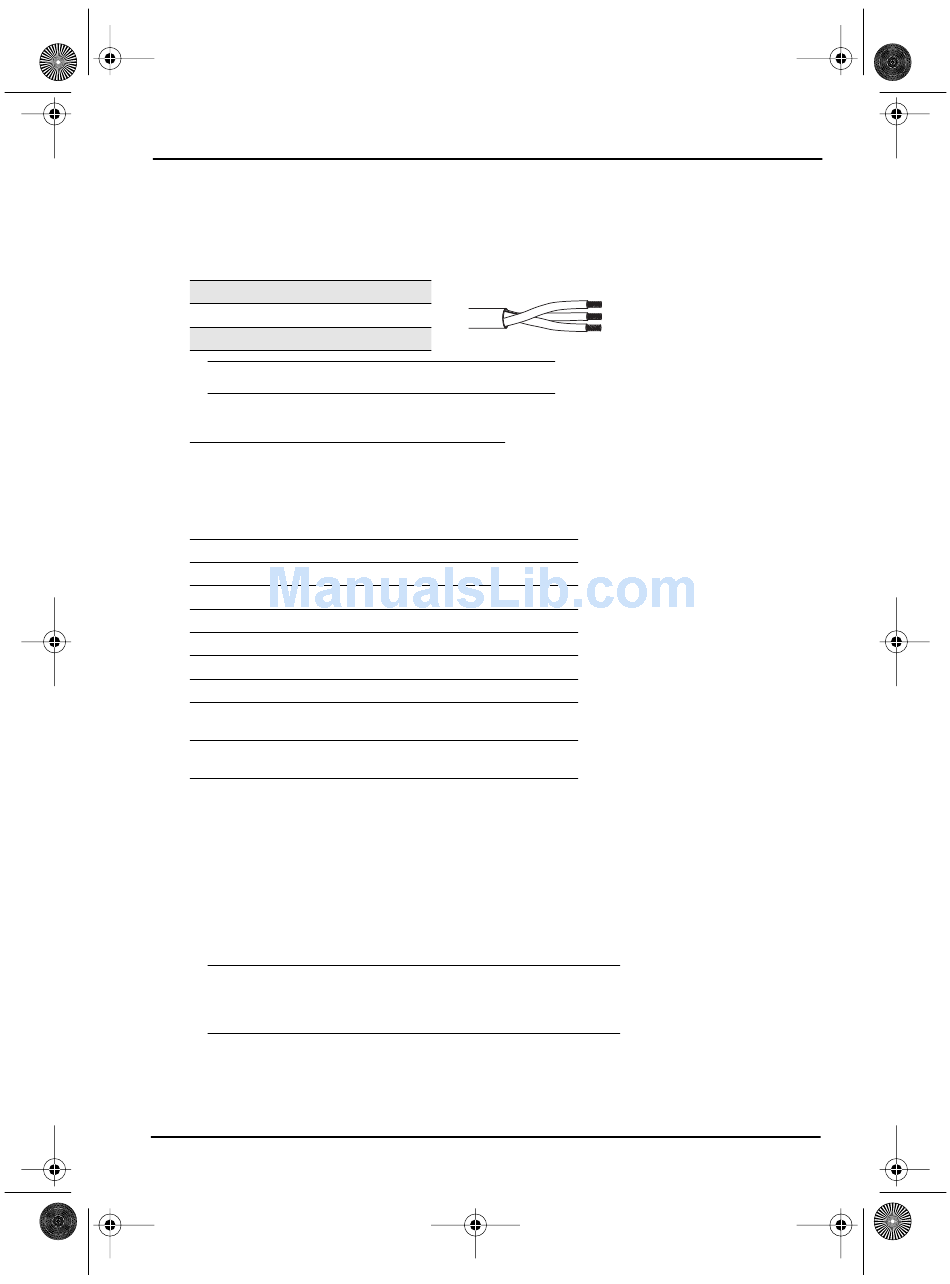

Wiring information

A plug of at least 2.5 amp (220/240V) rating should be attached to
the luminaire's mains lead. The wires in the mains lead are
2
1.5mm each and coloured in accordance with the following code:
Green and Yellow:
Blue:
Brown:
WARNING! This luminaire must be earthed.
Current rating:
Operating frequency:

Accessories

Colour frame (190mm sq/170mm inside diameter)
Safety cable (80cm)
C-clamp
Very Narrow Spot lens
Narrow Spot lens
Medium Flood lens
Wide Flood lens
Set of four CE Source FourPAR lenses
(VNSP , NSP , MFL, WFL)
Set of five CE Source FourPAR lenses
Clear Flat, VNSP , NSP , MFL, WFL)

HPL lamps

HPL lamps are tungsten halogen lamps.
Important: Verify that the HPL lamp you use is suitable for the
voltage at your facility. 115V, 120V, 230V, and 240V HPL lamps
are available. Operating lamps above their rated voltage
reduces lamp life and can cause premature lamp failure.
WARNING! Do not use lamps other than HPL in CE Source
FourPAR luminaires. Use of lamps other than HPL will void
CE safety conformity and warranty.
6 • CE Source FourPAR
Earth
Neutral
t 180°c
Live
120V/5 amp maximum
240V/2.5 amp maximum
50/60Hz
407CF
400SC
400CC
400-VNSP
400-NSP
400-MFL
400-WFL
400LS4
400LS5
