Draytek Vigor 2600 VGST Self-Installation Manual page 5

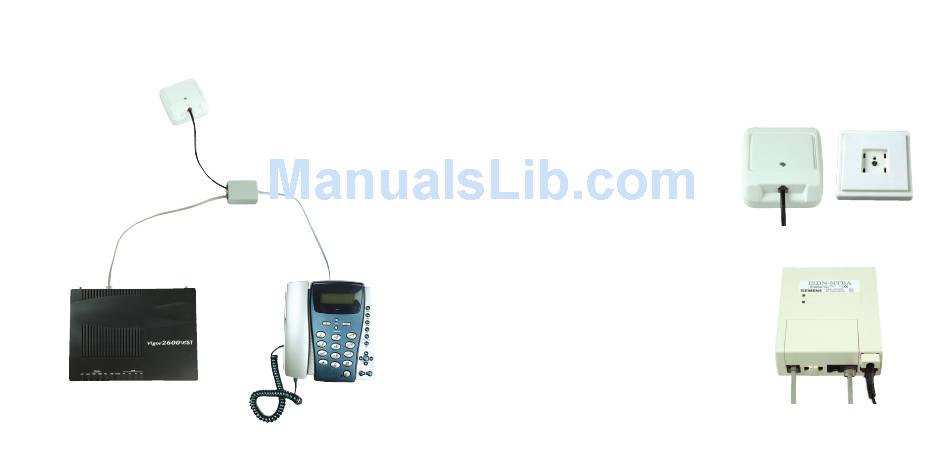

Diagram of the Overall DSL Connection in the case
of a Standard Telephone Line
Telephone socket
DSL cable
– accessories to
the DSL router
DSL router
DrayTek Vigor 2600 VGST
8 > Self-Installation Guide
Enclosed separate
cable to splitter
Splitter
Your telephone cable
Your telephone set
Installing the DSL Connection on an ISDN Line
Your ISDN line is terminated with a telephone
socket with an RJ 11 connector (see figure on
page 5). The telephone socket is connected to
the ISDN – NT end point (euro NTBA).
Legend to a suitable NT:
1. manufacturer label (Siemens, Alcatel, Aethra)
2. line-in jack with a line cable (not fixed)
3. two ISDN-out jacks (side by side)
4. 230 V connector
There are normally 2 types of sockets
used:
Suitable Unsuitable
telephone socket telephone socket
Suitable NT
1.
2. 3. 4.
> DSL router DrayTek Vigor 2600 VGST 9
