Installation Package Contents

Self-Installation Guide Installation CD
The package of DSL router DrayTek Vigor 2600 VGST contains:
installation guide and installation CD
■
DSL router DrayTek Vigor 2600 VGST
■
adapter
■
two external antennas to router
■
interconnection LAN UTP cable with RJ 45 connectors for
■
connecting of the router to a PC
interconnection cable with different connectors for connecting
■
of the router with a splitter
You can install your DSL Connection and DSL router DrayTek Vigor 2600 VGST using the
enclosed manual or the installation CD Internet. If you chose the latter, insert the enclosed CD
to your computer's drive. If the content does not open automatically, launch the START.EXE
programme from the CD's main directory. On the title page, select "Inštalácia DSL internetu"
from the main menu and then "Inštalácia DSL pripojenia".
4 > Self-Installation Guide
Cable with RJ 11 connectors
DSL splitter
(designed for connecting
the telephone socket with
the DSL splitter)
Installing the DSL Connection on a Standard Telephone Line
Check the socket of your standard telephone
line.
1. Your standard telephone line must be
terminated with a separate socket with
a single RJ 11 connector (see figure on the
right). If there are several sockets (parallel
sockets), find out, which one is the main
socket (primary).
2. If your telephone socket is unsuitable (it has
a different connector) or if there are other
sockets connected to it (parallel sockets)
which cannot be disconnected, contact the
Fault Reporting Centre at 12129.
3. There should not be an alarm (security
device) connected to your telephone line.
Switch the alarm off before the installation;
otherwise the alarm may become
dysfunctional. Connect the alarm back after
you have successfully installed the DSL
connection.

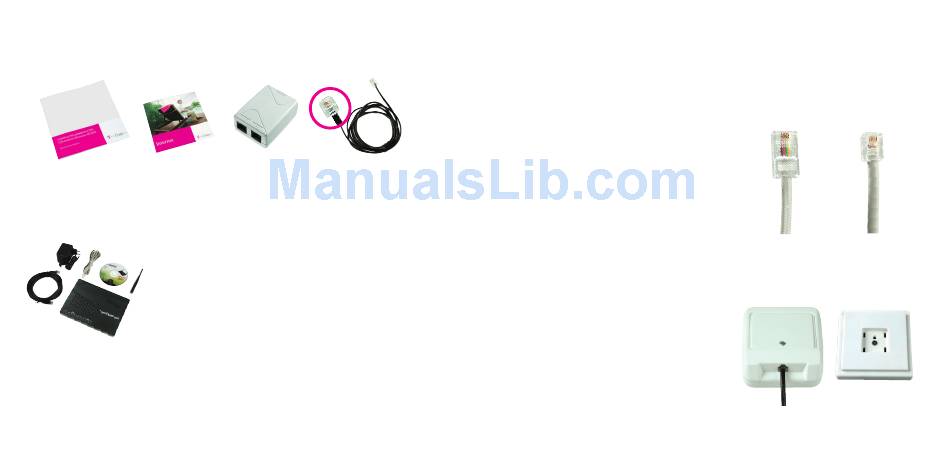

There are normally 2 types of
connectors used:
RJ 45 connector RJ 11 connector
(bigger and wider) (smaller)
There are normally 2 types of sockets
used:
Suitable Unsuitable
telephone socket telephone socket
