Connect Controller and Expansion Trays

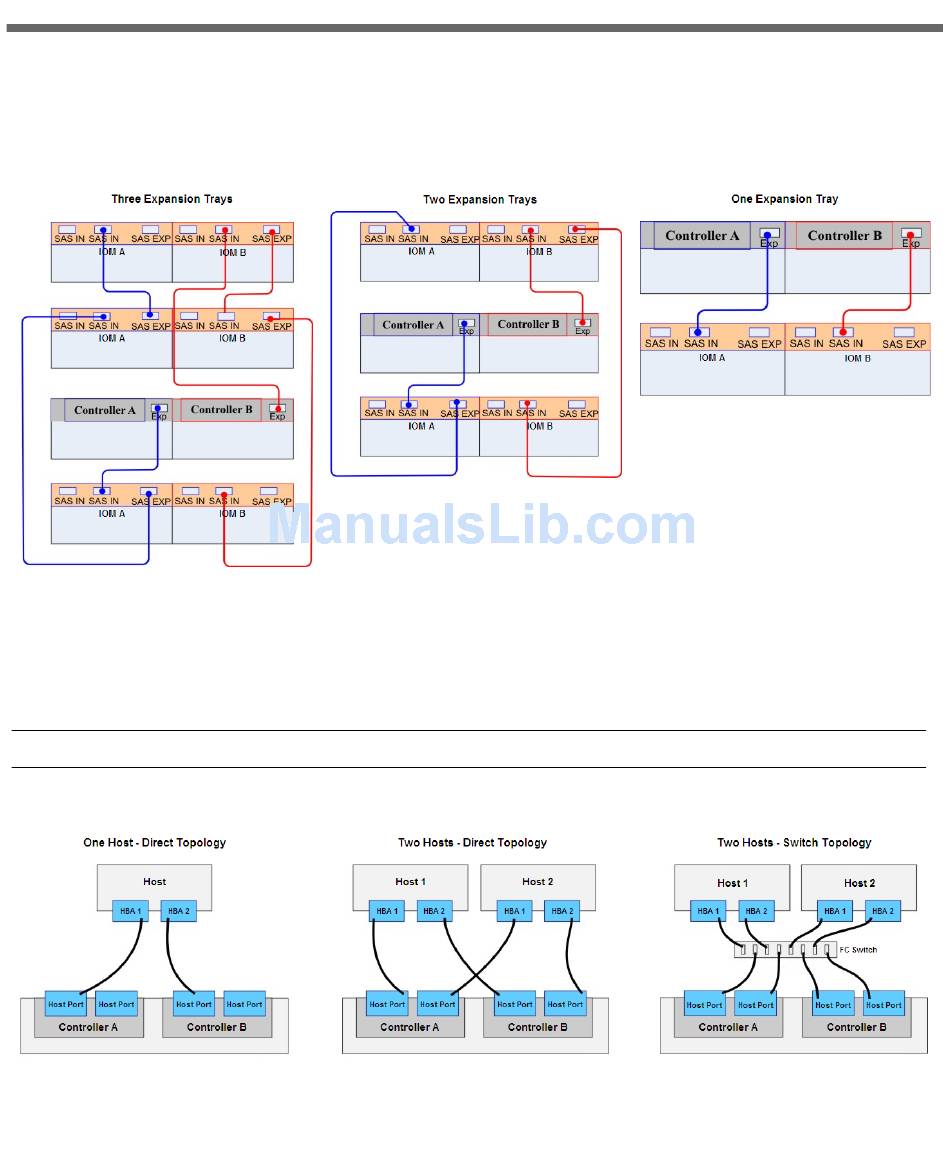

shows recommended expansion cabling for one, two, and three expansion trays. See the Hardware
FIGURE 6
Installation Guide for more information.
Expansion Tray Cabling Configurations
FIGURE 6
Connect Data Hosts
shows sample host connection configurations for one host in a direct topology, two hosts in a direct
FIGURE 7
topology, and two hosts in a Fibre Channel switch topology. For Fibre Channel connections (Sun Storage 2540-
M2 only), plug an SFP into a controller host port before cabling. For more information, see the Hardware
Installation Guide.
Note –
The SAS host interface does not support a switch topology.
Sample Controller-to-Data Host Connections
FIGURE 7
5
