Review Rear Panel

Note: AC power connectors and switches shown. DC configuration is available. See Hardware Installation
Guide for more information.

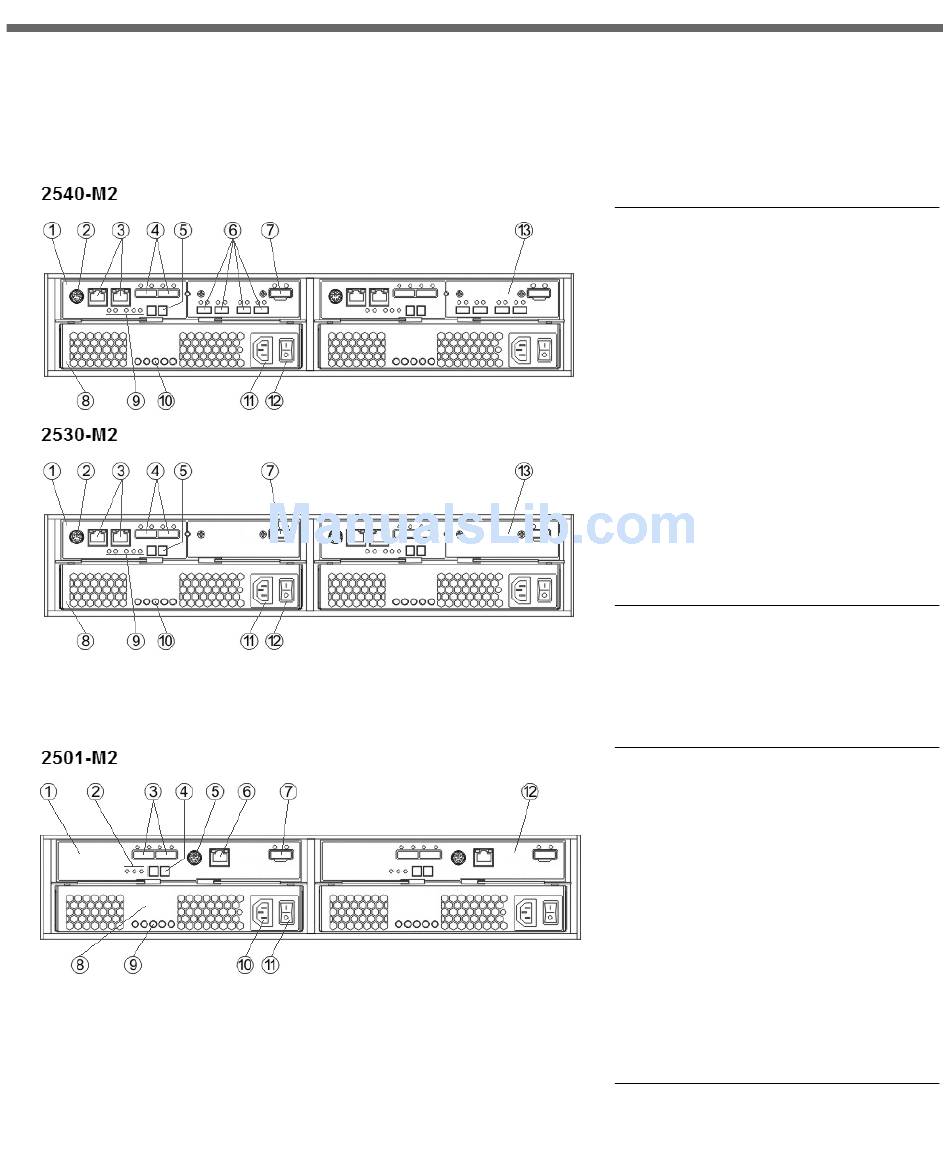

Controller Tray Rear View
FIGURE 4
Expansion Tray Rear View
FIGURE 5
Callout Description: 2540-M2 and 2530-M2
1 Controller module A
2 Serial port
3 Ethernet ports
4 SAS host ports
(Not used on 2540-M2)
5 Seven-segment display
6 Fibre Channel host ports
(2540-M2 only)
7 Expansion port
8 Power-fan module
9 Controller module LEDs
10 Power-fan module LEDs
11 Power connector
12 Power switch
13 Controller module B
Callout Description: 2501-M2
1 Input/output module (IOM) A
2 IOM LEDs
3 SAS host ports
4 Seven-segment display
5 Serial port
6 Ethernet port
7 Expansion port
8 Power-fan module
9 Power-fan module LEDs
10 Power connector
11 Power switch
12 IOM B
