Page 1: Table Of Contents
SERVICE MANUAL ® DLP PROJECTOR EIP-5000 EIP-5000L MODELS In the interests of user-safety (Required by safety regulations in some countries) the set should be re- stored to its original condition and only parts identical to those specified should be used.
Page 2: Important Service Safety Notes
EIP-5000/5000L EIP-5000/5000L U/D SAFETY PRECAUTION Service Manual IMPORTANT SERVICE SAFETY NOTES IMPORTANT SERVICE SAFETY NOTES (for USA) Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and servicing guidelines as follows: Use an AC voltmeter with sensitivity of 5000 ohm per WARNING volt., or higher, sensitivity to measure the AC voltage...
Page 3 EIP-5000/5000L PRECAUTIONS A PRENDRE LORS DE LA REPARATION Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants. AVERTISSEMENT Utiliser un voltmètre CA d'une sensibilité d'au moins 1. N'entreprendre aucune modification de tout circuit. 5000Ω/V pour mesurer la chute de tension en travers C'est dangereux.
Page 4: Note To Service Personnel
EIP-5000/5000L NOTE TO SERVICE NOTE POUR LE PERSONNEL PERSONNEL D'ENTRETIEN ////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////// PRECAUTION POUR LES RADIATIONS UV UV-RADIATION PRECAUTION ////////////////////////////////////////////////////////////// ////////////////////////////////////////////////////////////// La source de lumière, la lampe, dans le projecteur émet The light source, lamp, in the projector emits small de petites quantités de radiation UV.
Page 5: Lamp Replacement
EIP-5000/5000L //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// UV-RADIATION PRECAUTION (Continued) PRECAUTION POUR LES RADIA TIONS UV (Suite) //////////////////////////////////////////////////////////////// //////////////////////////////////////////////////////////////// Lamp Replacement Remplacement de la lampe Note: Remarque: Since the lamp reaches a very high temperature during Comme la lampe devient très chaude pendant le units operation replacement of the lamp should be fonctionnement de l’unité, son remplacement ne doit done at least one hour after the power has been turned...
Page 6: Filter Unit
EIP-5000/5000L WARNING: High brightness light source, do not stare into the beam of light, or view directly. Be especially careful that children do not stare directly in to the beam of light. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO MOISTURE OR WET LOCATIONS.
Page 7: Precautions For Using Lead-Free Solder
EIP-5000/5000L Precautions for using lead-free solder Employing lead-free solder • "PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder. Example: Indicates lead-free solder of tin, silver and copper.
Page 8: Chapter 1. Operation Manual
RGB cable, Remote mouse receiver, Cap for the standard zoom lens, Technical reference CD-ROM, QUICK GUIDE, Owner’s manual As a part of policy of continuous improvement, EIKI reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units.
Page 9: Operation Manual
EIP-5000/5000L [2] Operation Manual Part Names and Functions Projector Top View Power indicator Lamp indicator 1 STANDBY-ON button Lamp indicator 2 For turning the power on or putting the projector Temperature warning into standby mode. indicator Volume buttons For adjusting the speaker ZOOM button sound level.
Page 10: About The Indicators On The Projector
EIP-5000/5000L Part Names and Functions About the Indicators on the Projector Power indicator Green on ... Normal (Standby) Red on ... Normal (Power on) Green blinks ... The intake vent cover is open. Lamp indicators 1, 2 Green on ... Normal Green blinks ...
Page 11 EIP-5000/5000L Projector (Side View) Terminals Refer to “INPUT/OUTPUT Terminals and Connectable Main Equipment”. INPUT 1 terminal INPUT 3 terminal Terminal for computer RGB Terminal for DVI digital RGB and component signals. and digital component signals. AUDIO input (1) terminal OUTPUT (FOR INPUT 1, 2) Audio input terminal for terminal INPUT 1.
Page 12: Remote Control
EIP-5000/5000L Remote Control FOCUS buttons ADJ./MOUSE switch For bringing the projected image For switching the remote control into focus. modes. STANDBY-ON button H & V LENS SHIFT button For turning the power on or putting For shifting the lens horizontally the projector into standby mode.
Page 13: Usable Range
EIP-5000/5000L Front View Remote control sensor Usable Range 30° The remote control can be used to control the projector within the ranges shown in the 30° illustration. Remote control signal transmitters 30° 23' (7 m) Note • The signal from the remote control can be re- Remote control flected off a screen for easy operation.
Page 14: Connecting Pin Assignments
EIP-5000/5000L Connecting Pin Assignments RGB Signal Terminal (INPUT 1 and OUTPUT (FOR INPUT 1, 2)): 15-pin mini D-sub female connector RGB Input Component Input 1. Video input (red) 1. P 2. Video input (green/sync on green) 2. Y 3. Video input (blue) 3.
Page 15 EIP-5000/5000L DVI digital Terminal (INPUT 3) Pin No. Signal Pin No. Signal T.M.D.S. Data 0- T.M.D.S. Data 2- T.M.D.S. Data 0+ T.M.D.S. Data 2+ T.M.D.S. Data 0 Shield T.M.D.S. Data 2 Shield Not connected Not connected Not connected Not connected T.M.D.S.
Page 16: Dimensions
EIP-5000/5000L [3] DIMENSIONS Units: inches (mm) Rear View (19.1) Top View Side View Side View (410) (110.1) Front View (94.9) (179) (179) (145.5) (17.5) Bottom View (77.27) 1 – 9...
Page 17: Maintenance Indicators
EIP-5000/5000L [4] Maintenance Indicators Maintenance Indicators The warning lights on the projector indicate problems inside the projector. If a problem occurs, either the temperature warning indicator or the lamp indicator will illuminate red, and the projector will enter the standby mode. After the projector has entered the standby mode, follow the procedures given below.
Page 18 The internal • Cooling fan break- • Take the projector to your nearest Red on warning temperature is down EIKI Authorized Dealer or Service (Standby) indicator abnormally high. • Internal circuit failure Center for repair. • Clogged air intake • Clean the air vents and the intake •...
Page 19: Regarding The Lamp
Carefully change the lamp by following the instructions described in this section. *If you wish, you may have the lamp replaced at your nearest EIKI Authorized Dealer or Service Center. * If the new lamp does not illuminate after replacement, take your projector to the nearest EIKI Authorized Dealer or Service Center for repair.
Page 20: Removing And Installing The Lamp Unit
EIP-5000/5000L Removing and Installing Lamp unit 1 the Lamp Unit AH-50001 Optional Info accessories • Make sure that you remove the lamp unit Lamp unit 2 by the handle. Do not touch the glass sur- AH-50002 face of the lamp unit or the inside of the projector.
Page 21 EIP-5000/5000L Handle Regarding the Lamp Remove the lamp unit. • Loosen the securing screws (two for each lamp) from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.
Page 22: Resetting The Lamp Timer
EIP-5000/5000L Resetting the Lamp Timer Reset the lamp timer after replacing the lamp. Info • Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.
Page 23: Chapter 2. Removing Of Major Parts
EIP-5000/5000L CHAPTER 2. EIP-5000/5000L U/D REMOVING OF MAJOR PARTS Service Manual [1] Removing the Lamp Unit 1. Remove the screw from the lamp cover and detach the lamp cover. 2. Remove the four screws from the lamp units and take out the lamp units. Lamp Unit 2 Lamp Unit 1 Lamp Cover...
Page 24: Removing The Top Cover
EIP-5000/5000L [2] Removing the Top Cover 1. Remove the two screws from the top cover. 2. Slowly lift the back of the top cover and disconnect the KEYPAD Unit connectors (KY1 and KY2). Pull up and off the top cover. Top Cover KEYPAD Unit Top Cover...
Page 25: Removing The Lens Hood
[3] Removing the Lens Hood * For EIP-5000L, the lens removal operations (sections 3 - 6) are unnecessary. 1. Slowly lift the lens hood up until it can be moved forward and then move it forward and detach the lens hood.
Page 26: Removing The Lens Trim
EIP-5000/5000L [5] Removing the Lens Trim 1. Rotate the lens trim counterclockwise and then detach the lens trim. Lens Trim [6] Removing the Standard Lens 1. Disconnect the standard lens connector (SL). 2. Remove the three screws from the standard lens and take out the standard lens. Standard Lens 2 –...
Page 27: Removing The Top Cabinet
EIP-5000/5000L [7] Removing the Top Cabinet 1. Remove the screw from IR (Front) unit, take out the IR (Front) unit and then disconnect the IR (Front) unit connector (RC). 2. Remove the sixteen screws from the top cabinet and then pull up and off the top cabinet. Top Cabinet IR (Front) Unit Top Cabinet...
Page 28: Removing The Handle Bracket 3
EIP-5000/5000L [8] Removing the Handle Bracket 3 1. Remove the Eleven screws from the handle bracket 3 and detach the handle bracket 3. Handle Bracket 3 2 – 6...
Page 29: Removing The Pwb Units
EIP-5000/5000L [9] Removing the PWB Units 1. Disconnect all the connector from the Main Unit. 2. Remove the five screws from the Main Unit. Detach the Main Unit from the PC I/F Unit. 3. Remove the two spacers from the PC I/F Unit. 4.
Page 30: Removing The Optical Engine And Lens Shift
EIP-5000/5000L [10] Removing the Optical Engine and Lens Shift 1. Remove the screw from the rod duct and then detach the rod duct. 2. Remove the screw from the lamp channel top. 3. Unhook the front of the lamp channel top and take it out. 4.
Page 31 EIP-5000/5000L 7. Remove the three screws from the optical mecha and then lift the optical engine out of position. 10-6 Optical Mecha 2 – 9...
Page 32: Removing The Terminal Unit
EIP-5000/5000L [11] Removing the Terminal Unit 1. Remove the four screws from the IO bracket, lift the IO bracket and then disconnect the AC socket. 2. Remove the six spacers from the terminal unit. 3. Remove the six screws from the terminal unit and take out the terminal unit. 11-1 11-3 Insulator...
Page 33: Removing The Filter Unit
EIP-5000/5000L [12] Removing the Filter Unit 1. Disconnect all the connectors from the filter unit. Remove the four screws from the filter unit and then take it out. 12-1 Filter Unit Chassis [13] Removing the IR (Back) Unit 1. Disconnect all the connectors from the power channel. Remove the six screws from the Handle Bracket 2 and then take out the Handle Bracket 2. 2.
Page 34: Removing The Power Unit And Audio Unit
EIP-5000/5000L [14] Removing the Power Unit and Audio Unit 1. Remove the four screws from the power channel. 2. Detach the power Unit air guide from the power channel. 3. Remove the four screws from the power Unit channel down and then disconnect the two power connector PR. 4.
Page 35: Chapter 3. Electrical Adjustment
EIP-5000/5000L CHAPTER 3. EIP-5000/5000L U/D ELECTRICAL ADJUSTMENT Service Manual [1] ELECTRICAL ADJUSTMENT – Turn on the power (lamp on state) and wait for 15 minutes for aging. – Enter the adjustment process mode with S3602 (tact switch) on the main board. In case that top cabinet covered S3602, you can enter by pushing key continuously in sequence.
Page 36 EIP-5000/5000L Adjusting point Adjusting conditions Adjusting procedure Adjustment of 1. Feed the color difference signal 1. After signal input, select COMPO-AUTO for automatic adjustment. component Cr/ (480i) to INPUT1 Cb offset (1) : Y 0% brightness, Cb and Cr 0% white patterns.
Page 37: Pc I/F Adjustment Method
EIP-5000/5000L Adjusting point Adjusting conditions Adjusting procedure Lens shift posi- 1. Move lens shift position tion Vertical : Top position Horizontal: Center Turn off the power [2] PC I/F adjustment method NOTE: Since the PC I/F unit is initialized with S1, do not carry out S1. The PC I/F unit is already adjusted. When the PC I/F unit must be adjusted, in such case as S1 is carried out by mistake, adjust it according to the followings Adjusting point Adjusting conditions...
Page 38: Special 232C Command For Factory
EIP-5000/5000L [3] Special 232c command for factory How to write MAC address (Write) Send the following 232c commands in sequence +"enter" key *1 the first byte wait "OK" *2 the second byte + "enter" key *3 the third byte wait "OK" *4 the fourth byte + "enter"...
Page 39: Service Mode
EIP-5000/5000L [4] SERVICE MODE 1. How to enter Service Mode Select the group “Option2” by user menu and then select “service Mode”. Enter the password “2538” 2. How to adjust in service mode – Select the group to adjust with the DOWN key or the UP key, and enter the adjustment item with the ENTER key on the remote control or key pad.
Page 40 EIP-5000/5000L 4. Adjustment of video 1. Feed a video signal 2. Select the group "VIDEO" EIP-5000 will change to input4 mode automatically group Subject initial value effective range adjustment source/mode ±60 adjustment of VIDEO VIDEO PICTURE contrast INPUT4 / video ±60 picture BRIGHT...
Page 41: Failure Mode When The Lamp Does Not Light Up Even When Powered On
EIP-5000/5000L 9. Network setting group Subject address NETWORK IP ADDRESS 192.168.150.002 MAC ADDRESS **:**:**:**:**:** 10. Exit from service mode group EXIT - Select this item and push ENTER key. [5] Failure mode when the lamp does not light up even when powered on 1.
Page 42 EIP-5000/5000L 4. Disabling of the sensors CAUTION: When the unit is returned to a user with the sensors disabled, the cabinet may be deformed by heat because the protection function does not work. After completion of inspection, be sure to restore the sensors to their original state. •...
Page 43: Troubleshooting Table
EIP-5000/5000L CHAPTER 4. EIP-5000/5000L U/D TROUBLESHOOTING TABLE Service Manual [1] TROUBLESHOOTING TABLE Checking the PWB Performance DVI input in trouble Video & S-video input in RGB input in trouble trouble Feed the test pattern sig- Page 4-2, 4-3 Go to Feed the test pattern sig- nal from PC.
Page 44 EIP-5000/5000L Checking the PWB Performance Audio output in trouble RGB + HV input in trouble RS232 channel input in trouble Page 4-4 Check the audio output circuit Feed the pattern signal from source. Check the RS232 channel input signal from and its parts.
Page 45 EIP-5000/5000L Check Video signal input. Go to "Checking the Video circuit". Are there signal at C411 output? Check C411 and its peripheral circuits. Are there signal at emitter of Q412 output? Check Q412 and its peripheral circuits. Are there signal at pin (5) of IC406? Check IC406 and its peripheral circuits.
Page 46 EIP-5000/5000L Check Audio signal input of PC2. Go to "Checking the Audio circuit" Are there signal at C414 output? Check C414, C417 and their peripheral circuits. Are there signal at C417 output? Are there signal at pin (7) of IC402 and IC404? Check IC402, IC404 and their peripheral circuits.
Page 47 EIP-5000/5000L Checking the Main unit. Check output sync signal of input 1 and 2. Check input sync signal circuits. Are there any sync signal at pin (2) to "V-sync" and pin (5) to Check IC3001 and its peripheral circuits. "H-sync" of IC3001 input? Are there any sync signal at pin (6) to "V-sync"...
Page 48 EIP-5000/5000L Checking the Terminal unit. Check input sync signal circuits. Check RGB input sync signal circuits. Are there any sync signal at pin (3) to "V-sync" and pin (1) to Check IC3005 and its peripheral circuits. "H-sync" of IC3005? Are there any sync signal at pin (5) to "V-sync" & pin (2) to "H- IC3005 are breakdown.
Page 49 EIP-5000/5000L Checking the Terminal unit. Check input signal of INPUT1. Check RGB input signal circuits. Are there signal at C3031(B), C3038(G) and C3041(R) output? Check C3031(B), C3038(G), C3041(R) and its peripheral circuits. Are there any sync signal at pin (16) to "B", pin (18) to "G", pin Check IC3007 and its peripheral circuits.
Page 50 EIP-5000/5000L OSD check Is the user menu normally displayed with the MENU OSD is normal. key? Enter the process menu to select PATTERN. Select the COLOR pattern. Is the OSD display color normal? Adjust the DLP system with the process adjustment. Select the STEP signal.
Page 51 EIP-5000/5000L Checking the RGB input Feed the sync separation analog RGB signal to INPUT1. Select INPUT1 by using the panel key or remote control. Is a picture displayed? Go to "Video input check". Is a picture distorted? Go to "Checking of sync signal". Are three colors (R, G and B) displayed? Go to "RGB signal check".
Page 52 EIP-5000/5000L Input signal setting check Is the input menu selected properly? Select the proper menu. Are the connectors connected properly? Connect the connectors properly. Checking of Sync signal Is the vertical sync signal applied to Go to “Input signal setting check”. The periphery of SC8001 is defective.
Page 53 EIP-5000/5000L RGB signal check Is the Signal Type set to RGB? Set the Signal Type to RGB. Enter the process mode. Select R, G and B separately in the pattern menu. Go to "Checking the periphery of GA5". Set the signal generator to the gra- dation signal to check the input sig- nal.
Page 54 EIP-5000/5000L Checking the periphery of GA5 Select R, G and B separately in the pat- tern menu of the process mode. Are R, G and B of a picture sent prop- End of checking the periphery of erly? GA5. Measure pins 31, 21 and 11of SC8004 with an oscilloscope.
Page 55 EIP-5000/5000L Component input (except 408i) check Feed the component signal to INPUT1. Select INPUT1 by using the panel key or remote control. Is a picture sent? Go to "SOG circuit check". Are colors normal? Is the contour displayed properly? IC8017 or IC8025 is defective. Component is normal.
Page 56 EIP-5000/5000L Checking of Video input Feed the composite VIDEO signal to INPUT4. Use keys on the main unit or remote control to select INPUT4. Is a picture displayed? Go to "VIDEO sync signal check". Execute the process adjustment. Is a picture displayed? Go to "VIDEO sync signal check".
Page 57 EIP-5000/5000L VIDEO sync signal check Measure TL8016 with an oscilloscope (vertical sync signal check). Is the vertical sync signal normal? Go to "Input signal setting check". Measure TL8015 with an oscilloscope (horizontal sync signal check). Is the horizontal sync signal normal? Go to "Input signal setting check".
Page 58 EIP-5000/5000L DVI digital input check Feed the DVI digital signal to INPUT3. Select INPUT3. Is a picture displayed? Is a picture distorted? Are colors normal? The periphery of IC8020 is defective. The DVI digital input is normal. Measure the vertical sync signal at the pin 13 of IC8012 and the horizontal sync signal at the pin 3 of IC8012, respectively.
Page 59 EIP-5000/5000L — MEMO — 4 – 17...
Page 60: Chapter 5. Block Diagram/Overall Wiring Diagram Block Diagram
EIP-5000/5000L CHAPTER 5. EIP-5000/5000L U/D BLOCK DIAGRAM/OVERALL WIRING DIAGRAM Service Manual [1] BLOCK DIAGRAM BLOCK DIAGRAM DSub15 BNCx5 DSub15 DSub9 3.5jack T9401 IC3003 IC3007 Video IC3001 IC3002/ IC3005 IC3004 VIDEO IC406 IC2901 COMPUTER AUDIO 1 IC402/IC404 COMPUTER AUDIO 2 AUDIO OUT V18CVIC IC30 IC401/...
Page 61 EIP-5000/5000L IC7202/7203 /7204 IC7207/ IC7208 IC7205/ IC7206 IC1501 I2C bus I2C bus IC3610 IC3603 IC2804 IC2807 IC3501 IC2801 IC1403 /1404 IC2701 IC1402 IC1405 IC1401 /1406 IC2702 IC3801 IC3802 IC2803/IC2812 IC4501 IC2704 IC2705 IC2707 I2C bus IC2802 B+3V3 B+2V5 B+12VMTR IC2703 IC26/27/ 28/29 IC9004...
Page 62 EIP-5000/5000L [2] OVERALL WIRING DIAGRAM Overall wirin n g diag Back IR CN5602 CN7502 CN8002 CN7202 PC BD FAN 7 CN7201 Keypad bd Outlet FAN4 CN7402 Direct Power Off BD JPS1 CN7407 Outlet FAN6 CN7403 Lamp 1 Cover CN2801 Switch Lamp 2 Cover Switch...
Page 63: Overall Wiring Diagram
EIP-5000/5000L Overall wiring diagram CN8002 CN3001 DVI IN CN2802 Terminal BD CN7401 CN2601 CN3601 6 PC BD CN2601 hermal ensor CN7205 CN7204 CN8001 Blower FAN 9 S/W Down Index BD CN9002 Load CN9003 P1101 (Composer) CN1000 Formatter BD 5 – 4...
Page 64: Main Unit
EIP-5000/5000L CHAPTER 6. EIP-5000/5000L U/D PRINTED WIRING BOARD Service Manual [1] MAIN Unit MAIN Unit (Side-A) 6 – 1...
Page 65 EIP-5000/5000L 6 – 2...
Page 66 EIP-5000/5000L MAIN Unit (Side-B) 6 – 3...
Page 67 EIP-5000/5000L 6 – 4...
Page 68: Formatter Unit
EIP-5000/5000L [2] FORMATTER Unit FORMATTER Unit (Side-A) 6 – 5...
Page 69 EIP-5000/5000L FORMATTER Unit (Side-B) 6 – 6...
Page 70: Power Unit
EIP-5000/5000L [3] POWER Unit POWER Unit (Side-A) 6 – 7...
Page 71 EIP-5000/5000L POWER Unit (Side-B) 6 – 8...
Page 72: Filter/P.f.c Control/Lvps Control Unit
EIP-5000/5000L [4] FILTER/P.F.C CONTROL/LVPS CONTROL Unit FILTER Unit (Side-A) P.F.C CONTROL Unit (Side-A) LVPS CONTROL Unit (Side-A) 6 – 9...
Page 73 EIP-5000/5000L FILTER Unit (Side-B) P.F.C CONTROL Unit (Side-B) LVPS CONTROL Unit (Side-B) 6 – 10...
Page 74: Pc I/F Unit
EIP-5000/5000L [5] PC I/F Unit PC I/F Unit (Side-A) 6 – 11...
Page 75 EIP-5000/5000L PC I/F Unit (Side-B) 6 – 12...
Page 76: Direct Off Unit
EIP-5000/5000L [6] DIRECT OFF Unit DIRECT OFF Unit (Side-A) DIRECT OFF Unit (Side-B) 6 – 13...
Page 77: Audio Unit
EIP-5000/5000L [7] AUDIO Unit AUDIO Unit (Side-A) AUDIO Unit (Side-B) 6 – 14...
Page 78: Keypad Unit
EIP-5000/5000L [8] KEYPAD Unit KEYPAD Unit (Side-A) 6 – 15...
Page 79 EIP-5000/5000L KEYPAD Unit (Side-B) 6 – 16...
Page 80: Terminal Unit
EIP-5000/5000L [9] TERMINAL Unit TERMINAL Unit (Side-A) TERMINAL Unit (Side-B) 6 – 17...
Page 81: Ir (Front)/Ir (Rear)/Lamp1 Cover/Lamp2 Cover Unit/Index Unit
EIP-5000/5000L [10] IR (FRONT)/IR (REAR)/LAMP1 COVER/LAMP2 COVER Unit/INDEX Unit IR (FRONT) Unit (Side-A) IR (FRONT) Unit (Side-B) IR (REAR) Unit (Side-A) IR (REAR) Unit (Side-B) LAMP1 COVER Unit (Side-A) LAMP1 COVER Unit (Side-B) LAMP2 COVER Unit (Side-A) LAMP2 COVER Unit (Side-B) INDEX Unit (Side-A) INDEX Unit (Side-B) 6 –...
Page 82: Chapter 7. Waveforms
EIP-5000/5000L CHAPTER 7. EIP-5000/5000L U/D WAVEFORMS Service Manual [1] WAVEFORMS 1 CN2703 4-pin 2 CN2703 1-pin 3 CN3001 23-pin 4 CN3001 21-pin (MAIN PWB) (MAIN PWB) (TERMINAL PWB) (TERMINAL PWB) (CWCTR) (CWY1) (VIDEOI) (S-CI) H:200µ sec/div H:200µ sec/div H:20µ sec/div H:20µ...
Page 83: Description Of Schematic Diagram
EIP-5000/5000L CHAPTER 8. EIP-5000/5000L U/D SCHEMATIC DIAGRAM Service Manual [1] DESCRIPTION OF SCHEMATIC DIA- GRAM 1. VOLTAGE MEASUREMENT CONDITION: 1. Voltages at test points are measured at the supply voltage of AC 100V/CROSS 10V-240. Signals are fed by a color bar signal gener- ator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.
Page 84 EIP-5000/5000L — MEMO — 8 – 80...
Page 85 To have your order filled promptly and correctly, please furnish the following informations. 1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION Contact your nearest EIKI Parts Distributor. Note: The parts mounted on the PWB are listed in alphabetical order. CONTENTS PRINTED WIRING BOARD [15] 9NK5600204258 (KEYPAD Unit)
Page 86 EIP-5000/5000L PARTS CODE DESCRIPTION [1] PRINTED WIRING BOARD ASSEMBLIES MAIN Unit 9NK5600600363 FORMATTER Unit 9NK5600600498 POWER Unit 9NK5600204367 FILTER Unit 9NK5600204350 PC I/F Unit 9NK5600600362 9NK5600600400 DIRECT OFF Unit LVPS CONTROL Unit 9NK5600204234 P.F.C CONTROL Unit 9NK5600204245 AUDIO Unit 9NK5600204255 TERMINAL Unit 9NK5600204319 INDEX Unit...
Page 87 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) C2715 Capacitor 1000p 50V Ceramic 9NK1511445000 C2716 Capacitor 0.1 50V Ceramic 9NK1517658000 C2717 Capacitor 1000p 50V Ceramic 9NK1511445000 C2718 Capacitor 0.22 16V Ceramic 9NK1543659000 C2719 Capacitor 1000p 50V Ceramic 9NK1511445000 C2720 9NK1512451000 Capacitor 5600p 50V Ceramic C2722 Capacitor 0.15 16V Ceramic...
Page 88 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) C3636 Capacitor 1 16V Ceramic 9NK1547667100 C3637 Capacitor 0.1 50V Ceramic 9NK1517658000 C3638 Capacitor 0.1 50V Ceramic 9NK1517658000 C3639 Capacitor 0.1 50V Ceramic 9NK1517658000 C3801 Capacitor 0.1 50V Ceramic 9NK1517658000 C3802 9NK1517658000 Capacitor 0.1 50V Ceramic C3803 Capacitor 1 16V Ceramic...
Page 89 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) C7411 Capacitor 0.1 50V Ceramic 9NK1517658000 C7412 Capacitor 10 25V Electrolytic 9NKF141001233 C7414 Capacitor 100 16V Electrolytic 9NKF121011333 C7415 Capacitor 100 16V Electrolytic 9NKF121011333 C7417 Capacitor 100 16V Electrolytic 9NKF121011333 C7418 9NKF121011333 Capacitor 100 16V Electrolytic C7420 Capacitor 100p 50V Ceramic...
Page 90 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) D2701 Diode DAN202K 9NKK520800036 D2702 Diode BAT54SW 9NKi530060007 D2703 Diode BAT54SW 9NKi530060007 D2704 Diode DAN202K 9NKK520800036 D2705 Diode BAT54SW 9NKi530060007 D2706 9NKi530060007 Diode BAT54SW D2707 Diode DAN202K 9NKK520800036 D2708 Diode RGL34J 9NKH810360031 D2709 Diode RGL34J 9NKH810360031...
Page 91 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) FB7404 Ferrite Bead 9NK2921113712 FB7409 Ferrite Bead 9NK2921113712 FB7410 Ferrite Bead 9NK2921113712 FB7411 Ferrite Bead 9NK2921113712 FB7412 Ferrite Bead 9NK2921113712 FB7413 9NK2921113712 Ferrite Bead FB7414 Ferrite Bead 9NK2921113712 FB7415 Ferrite Bead 9NK2921113712 FB7416 Ferrite Bead 9NK2921113712...
Page 92 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) Q2602 Transistor DTC144EUA 9NKM532500236 Q2603 Transistor DTC144EUA 9NKM532500236 Q2604 Transistor DTC144EUA 9NKM532500236 Q2605 Transistor DTC144EUA 9NKM532500236 Q2606 Transistor DTC144EUA 9NKM532500236 Q2607 9NKM532500236 Transistor DTC144EUA Q2608 Transistor DTC144EUA 9NKM532500236 Q2609 Transistor DTC144EUA 9NKM532500236 Q2610 Transistor DTC144EUA 9NKM532500236...
Page 93 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) R2701 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2702 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2703 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2704 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2705 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2706 9NK0343101300...
Page 94 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) R2836 Resistor 0 1/10W Metal Oxide 9NK0343000300 R2837 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2838 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2839 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2840 Resistor 100 1/10W Metal Oxide 9NK0343101300 R2841 9NK0343101300...
Page 95 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) R3537 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R3538 Resistor 10k 1/16W Chip Array 9NK0619900705 R3539 Resistor 0 1/10W Metal Oxide 9NK0343000300 R3541 Resistor 5.6k 1/10W Metal Oxide 9NK0343562300 R3542 Resistor 5.6k 1/10W Metal Oxide 9NK0343562300 R3544 9NK0343470300...
Page 96 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) R3707 Resistor 47 1/10W Metal Oxide 9NK0343470300 R3708 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R3709 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R3710 Resistor 1k 1/10W Metal Oxide 9NK0343102300 R3711 Resistor 1k 1/10W Metal Oxide 9NK0343102300 R3712 9NK0343102300...
Page 97 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) R7007 Resistor 1k 1/10W Metal Oxide 9NK0343102300 R7008 Resistor 1k 1/10W Metal Oxide 9NK0343102300 R7012 Resistor 1 1/4W Metal Oxide 9NK0313108000 R7013 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R7014 Resistor 1 1/4W Metal Oxide 9NK0313108000 R7015 9NK0341059300...
Page 98 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) R7269 Resistor 0 1/10W Metal Oxide 9NK0343000300 R7270 Resistor 0 1/10W Metal Oxide 9NK0343000300 R7274 Resistor 1k 1/10W Metal Oxide 9NK0343102300 R7276 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R7277 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R7278 9NK0341059300...
Page 99 EIP-5000/5000L PARTS CODE DESCRIPTION [2] 9NK5600600363 (MAIN Unit) R7456 Resistor 0 1/10W Metal Oxide 9NK0343000300 R7458 Resistor 4.7k 1/10W Metal Oxide 9NK0343472300 R7459 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R7460 Resistor 27k 1/10W Metal Oxide 9NK0341069300 R7462 Resistor 510 1/10W Metal Oxide 9NK0343511300 R7463 9NK0343472300...
Page 100 EIP-5000/5000L PARTS CODE DESCRIPTION [3] 9NK5600600498 (FORMATTER Unit) C9319 Capacitor 10 25V Electrolytic 9NKF141001233 C9320 Capacitor 3.3 50V Ceramic 9NK1513488400 C9321 Capacitor 0.22 25V Ceramic 9NK1552459100 C9322 Capacitor 4.7 50V Electrolytic 9NKF164781208 C9503 Capacitor 0.1 50V Ceramic 9NK1517658000 C9505 9NK1517658000 Capacitor 0.1 50V Ceramic C9510 Capacitor 0.1 50V Ceramic...
Page 101 EIP-5000/5000L PARTS CODE DESCRIPTION [3] 9NK5600600498 (FORMATTER Unit) R9101 Resistor 0 1/10W Metal Oxide 9NK0343000300 R9102 Resistor 0 1/10W Metal Oxide 9NK0343000300 R9106 Resistor 1k 1/10W Metal Oxide 9NK0343102300 R9116 Resistor 0 1/10W Metal Oxide 9NK0343000300 R9131 Resistor 180k 1/10W Metal Oxide 9NK0343184300 R9132 9NK0343472300...
Page 102 EIP-5000/5000L PARTS CODE DESCRIPTION [4] 9NK5600204367 (POWER Unit) BD101 9NKG101120023 2KBP08M C101 Capacitor 22 450V Electrolytic 9NKA422201003 C102 Capacitor 2200p 1kV Ceramic 9NK1572446200 C103 Capacitor 47 35V Electrolytic 9NKA154701103 C104 Capacitor 1 50V Ceramic 9NK1512467200 C105 Capacitor 4.7 25V Electrolytic 9NKA144781103 C107 Capacitor 330p 50V Ceramic...
Page 103 EIP-5000/5000L PARTS CODE DESCRIPTION [4] 9NK5600204367 (POWER Unit) D231 Diode ES3D 9NKH791570023 D232 Diode UGF10DCT 9NKH013070631 D233 Diode MBRF2560CT 9NKi003870123 D234 Diode MBRF2560CT 9NKi003870123 D235 Diode 1N4148W 9NKK850750023 F151 Fuse 4A 250V 9NK0805340702 HS101 Heat Sink for Q151, D152, D153 9NK3343203702 HS102 Heat Sink for CR151, D154...
Page 104 EIP-5000/5000L PARTS CODE DESCRIPTION [4] 9NK5600204367 (POWER Unit) R163A 9NK0401420002 Resistor 549k 1/4W Metal Oxide R163B Resistor 549k 1/4W Metal Oxide 9NK0401420002 R163C Resistor 549k 1/4W Metal Oxide 9NK0401420002 R164A Resistor 133k 1/4W Metal Oxide 9NK0401192002 R164B Resistor 133k 1/4W Metal Oxide 9NK0401192002 R164C Resistor 137k 1/4W Metal Oxide...
Page 105 EIP-5000/5000L PARTS CODE DESCRIPTION [5] 9NK5600204350 (FILTER Unit) C301 Capacitor 10 25V 9NKA141001403 CN301 Connector 5Pin 9NK3070842034 CN302 Connector 3Pin 9NK3671101100 CN303 Connector 5Pin 9NK3070953231 CN304 Plug 2Pin 9NK3071121000 CX301 1 275VAC 9NK1604317239 CX302 1 275VAC 9NK1604317239 CX303 9NK1604313250 0.22 275VAC CY301 1000p 250VAC 9NK1101345027...
Page 106 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) C8063 Capacitor 220p 50V Ceramic 9NK001-42138 C8065 Capacitor 0.1 25V Ceramic 9NK001-42157 C8066 Capacitor 0.1 25V Ceramic 9NK001-42157 C8067 Capacitor 0.1 25V Ceramic 9NK001-42157 C8068 Capacitor 330p 50V Ceramic 9NK001-42123 C8069 9NK001-42157 Capacitor 0.1 25V Ceramic C8070...
Page 107 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) C8159 Capacitor 0.1 25V Ceramic 9NK001-42157 C8160 Capacitor 0.047 25V Ceramic 9NK001-42161 C8161 Capacitor 0.047 25V Ceramic 9NK001-42161 C8162 Capacitor 0.047 25V Ceramic 9NK001-42161 C8163 Capacitor 1000p 25V Ceramic 9NK001-42163 C8164 9NK001-42161 Capacitor 0.047 25V Ceramic C8165...
Page 108 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) C8247 Capacitor 0.1 25V Ceramic 9NK001-42157 C8248 Capacitor 0.1 25V Ceramic 9NK001-42157 C8249 Capacitor 1 10V Ceramic 9NK001-42156 C8250 Capacitor 0.1 25V Ceramic 9NK001-42157 C8251 Capacitor 0.1 25V Ceramic 9NK001-42157 C8252 9NK001-42157 Capacitor 0.1 25V Ceramic C8253...
Page 109 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) C8338 Capacitor 0.1 25V Ceramic 9NK001-42157 C8339 Capacitor 0.1 25V Ceramic 9NK001-42157 C8340 Capacitor 0.1 25V Ceramic 9NK001-42157 C8342 Capacitor 0.1 25V Ceramic 9NK001-42157 C8343 Capacitor 0.1 25V Ceramic 9NK001-42157 C8345 9NK001-42156 Capacitor 1 10V Ceramic C8346...
Page 110 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) IC8019 IC Regulator, PQ033DZ01Z 9NK001-15165 IC8020 IC Panel Link Receiver, Sii169 9NK001-15168 IC8021 IC CMOS, BU4053B 9NK001-12125 IC8022 IC EEPROM, 24LC02B 9NK2640326500 IC8023 IC EEPROM, 24LC01B 9NK2641940100 IC8024 9NK001-15152 IC Potentiometer, BU9831F IC8025 IC CVIC2, MB87M1370TB RH-iXA091WJZZQ...
Page 111 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) R8028 Resistor 0 1/16W Metal Oxide 9NK001-50441 R8029 Resistor 100 1/16W Metal Oxide 9NK001-50407 R8030 Resistor 100 1/16W Metal Oxide 9NK001-50407 R8031 Resistor 22 1/16W Array 9NK001-51065 R8034 Resistor 10k 1/16W Metal Oxide 9NK001-50430 R8035 9NK001-50430...
Page 112 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) R8143 Resistor 22 1/16W Metal Oxide 9NK001-50416 R8144 Resistor 6.8 1/16W Metal Oxide 9NK001-50417 R8145 Resistor 22 1/16W Metal Oxide 9NK001-50416 R8146 Resistor 6.8 1/16W Metal Oxide 9NK001-50417 R8147 Resistor 22 1/16W Metal Oxide 9NK001-50416 R8148 9NK001-50443...
Page 113 EIP-5000/5000L PARTS CODE DESCRIPTION [6] 9NK5600600362 (PC I/F Unit) R8247 Resistor 47 1/16W Array 9NK001-51063 R8248 Resistor 0 1/16W Metal Oxide 9NK001-50441 R8249 Resistor 47 1/16W Array 9NK001-51063 R8250 Resistor 47 1/16W Array 9NK001-51063 R8251 Resistor 47 1/16W Array 9NK001-51063 R8252 9NK001-51063 Resistor 47 1/16W Array...
Page 114 EIP-5000/5000L PARTS CODE DESCRIPTION [8] 9NK5600204234 (LVPS CONTROL Unit) C251 Capacitor 1000P 50V Ceramic 9NK1512445100 C252 Capacitor 0.1 50V Ceramic 9NK1512458100 C254 Capacitor 10 10V Ceramic 9NK15A7691100 C255 Capacitor 0.1 50V Ceramic 9NK1512458100 C256 Capacitor 33p 50V Ceramic 9NK1511518100 C257 9NK1512451100 Capacitor 5600p 50V Ceramic C259...
Page 115 EIP-5000/5000L PARTS CODE DESCRIPTION [9] 9NK5600204245 (P.F.C CONTROL Unit) D325 Diode BAS32L/D 9NKK810750207 D326 Diode BAS32L/D 9NKK810750207 D327 Diode BAS32L/D 9NKK810750207 D328 Diode BAS32L/D 9NKK810750207 D329 Diode BAS32L/D 9NKK810750207 D331 9NKK810750207 Diode BAS32L/D D332 Diode BAS32L/D 9NKK810750207 D333 Diode BAS32L/D 9NKK810750207 D334 Diode BAS32L/D...
Page 116 EIP-5000/5000L PARTS CODE DESCRIPTION [10] 9NK5600204255 (AUDIO Unit) R1503 Resistor 820 1/10W Metal Oxide 9NK0343821300 R1504 Resistor 820 1/10W Metal Oxide 9NK0343821300 R1505 Resistor 0 1W Metal Oxide 9NK0333000500 R1506 Resistor 0 1W Metal Oxide 9NK0333000500 R1507 Resistor 3.9k 1/10W Metal Oxide 9NK0343392300 R1508 9NK0341065300...
Page 117 EIP-5000/5000L PARTS CODE DESCRIPTION [11] 9NK5600204319 (TERMINAL Unit) C3028 Capacitor 0.1 50V Ceramic 9NK1517658000 C3029 Capacitor 100 16V Electrolytic 9NKF121011333 C3030 Capacitor 47 6.3V Electrolytic 9NKE024702233 C3031 Capacitor 0.01 50V Ceramic 9NK1512454000 C3032 Capacitor 47 6.3V Electrolytic 9NKE024702233 C3033 9NKF122201233 Capacitor 22 16V Electrolytic C3034 Capacitor 0.1 50V Ceramic...
Page 118 EIP-5000/5000L PARTS CODE DESCRIPTION [11] 9NK5600204319 (TERMINAL Unit) FB3013 Ferrite Bead 9NK2924100508 FB3014 Ferrite Bead 9NK2924100508 FB3015 Ferrite Bead 9NK2924100508 FB3016 Ferrite Bead 9NK2924100508 FB3017 Ferrite Bead 9NK2924100508 FB5501 9NK2921174812 Ferrite Bead FB5502 Ferrite Bead 9NK2921174812 FL401 FILTER Unit 9NK2909913606 FL402 FILTER Unit 9NK2909913306...
Page 119 EIP-5000/5000L PARTS CODE DESCRIPTION [11] 9NK5600204319 (TERMINAL Unit) R419 Resistor 0 1/10W Metal Oxide 9NK0343000300 R420 Resistor 1.8k 1/10W Metal Oxide 9NK0343182300 R421 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R422 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R423 Resistor 15k 1/10W Metal Oxide 9NK0341062300 R424 9NK0343000300...
Page 120 EIP-5000/5000L PARTS CODE DESCRIPTION [11] 9NK5600204319 (TERMINAL Unit) R3014 Resistor 10k 1/10W Metal Oxide 9NK0341059300 R3015 Resistor 100 1/10W Metal Oxide 9NK0343101300 R3016 Resistor 100 1/10W Metal Oxide 9NK0343101300 R3017 Resistor 1k 1/10W Metal Oxide 9NK0343102300 R3018 Resistor 3.3k 1/10W Metal Oxide 9NK0341048300 R3019 9NK0343101300...
Page 121 EIP-5000/5000L PARTS CODE DESCRIPTION [14] 9NK5600204260 (IR (Back) Unit) C5702 Capacitor 22 16V Electrolytic 9NKF122201208 C5705 Capacitor 0.1 50V Ceramic 9NK1517658000 CN5702 Connector 3Pin 9NK3071323934 D2206 Diode EV18N 9NK0920990416 L5702 Inductor 22µH 9NK2923050812 RMC5702 9NK2320600528 Infrared Remote Control Receiver [15] 9NK5600204258 (KEYPAD Unit) D2201 LED Red/Yellow-Green 9NK2300663706...
Page 122 EIP-5000/5000L [18] CABINET AND MECHANICAL PARTS (Details on page 42)-1/4 194-1 201 200 194-5 194-4 194-3 194-2 194-4...
Page 123 EIP-5000/5000L [19] CABINET AND MECHANICAL PARTS (Details on page 42)-2/4 204 203...
Page 124 EIP-5000/5000L [20] CABINET AND MECHANICAL PARTS (Details on page 42)-3/4 83-5 83-6 83-4 83-3 83-5 83-7 83-1 83-4 83-2...
Page 125 EIP-5000/5000L [21] CABINET AND MECHANICAL PARTS (Details on page 42)-4/4 102-6-1 102-6-2 102-6 102-4 102-7 102-8 102-5 102-2 102-3 102-1...
Page 126 EIP-5000/5000L [22] CABINET AND MECHANICAL PARTS 83-5 83-6 83-4 83-3 102-6-1 102-6-2 83-5 83-7 83-1 83-4 102-6 102-4 102-7 102-8 83-2 102-5 102-2 102-3 102-1 194-1 194-5 194-4 194-3 194-2 194-4...
Page 127 9NK3109097200 Washer E-Ring Lamp Cover 9NK3110260500 9NK3110260500 Washer E-Ring Handle Pin x2 9NK3110366300 Washer PLAIN ADJ x2 9NK3264527500 Label ID ( for EIP-5000) Label ID ( for EIP-5000L) 9NK3264527800 Label Warning 9NK3262017700 Label Fusaguna 9NK3202240300 Lamp Label 9NK3205127000 Snap Bushing...
Page 128 EIP-5000/5000L PARTS CODE DESCRIPTION [22] CABINET AND MECHANICAL PARTS 83-5 Teflon x4 Not Available 83-6 Top Cabinet Not Available 83-7 Wire Holder Not Available Cover Blower R Ass'y 9NK3797405200 Cover Blower L Ass'y 9NK3797405300 9NK3390802001 Handle Lens Hood 9NK3390902600 Cover Filter Unit 9NK3391202501 Lamp Cover 9NK3391306000...
Page 129 EIP-5000/5000L PARTS CODE DESCRIPTION [22] CABINET AND MECHANICAL PARTS Wire With Housing 3Pin 9NK3670336702 Wire With Housing 6Pin 9NK3670627002 Wire With Housing 7Pin 9NK3670707702 Wire With Housing 4Pin 9NK3674024402 Wire With Housing 4Pin 9NK3674032400 9NK3679031304 Wire With Housing 10Pin Wire With Housing 12Pin 9NK3679031404 Speaker Ass'y L 9NK3790196401...
Page 130 EIP-5000/5000L [23] OPTICAL MECHANISM PARTS 174-10 174-33 174-19 174-18 174-20 174-10 174-21 174-17 174-13 174-16 174-27 174-31 174-2 174-15 174-34 174-35 174-26 174-14 174-31 174-3 174-12 174-24 174-25 174-30 174-23 174-5 174-11 174-4 174-1 174-10 174-9 174-8 174-32 174-28 174-25 174-6 174-7 174-29...
Page 131 EIP-5000/5000L PARTS CODE DESCRIPTION [23] OPTICAL MECHANISM PARTS Optical Mecha 9NK3797669200 174-1 DMD Socket 166Pin 9NK3020060329 174-2 Color Wheel 9NK3250701700 174-3 Heat Sink 9NK3341531000 174-4 Conductor Stand 9NK3450207600 174-5 DMD Stud Ass'y 9NK5811100074 174-6 DMD Plate 9NK3455091601 174-7 DMD Mount 9NK3455092002 174-8 DMD 0.7"...
Page 132 CD for manual 9NK3534026000 Operation manual (English) 9NK5010061200 Set up caution sheet 9NK5012053100 System Lock caution sheet 9NK5012052700 Quick guide 9NK5010060700 Cap for the standard zoom lens (for EIP-5000) 9NK3797200401 Lens Attachment Part Cover (for EIP-5000L) 9NK3240992900 9NK5012053600 WEEE Caution Sheet...
Page 133 EIP-5000/5000L [25] PACKING PARTS (NOT REPLACEMENT ITEM) PARTS CODE DESCRIPTION [25] PACKING PARTS (NOT REPLACEMENT ITEM) Packing Case (for EIP-5000) 9NK3513526700 Packing Case (for EIP-5000L) 9NK3513526600 Accessories Case 9NK3797410900 Buffer Material (Top) 9NK3500142400 Buffer Material (Bottom) 9NK3500142501 Polyethylene Bag 9NK3500957300...
Page 134 EIP-5000/5000L...

This manual is also suitable for:

Eip-5000

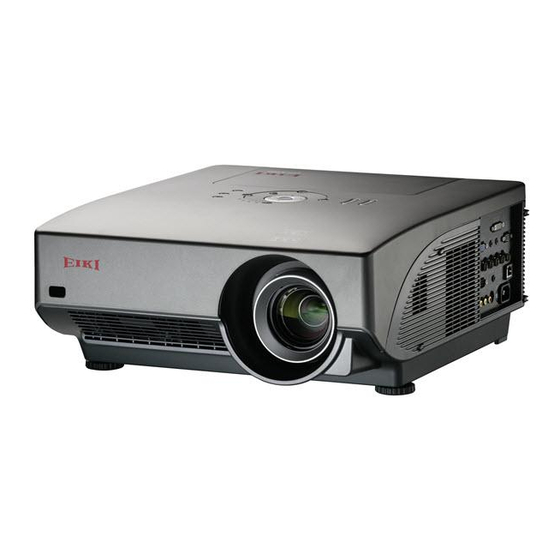

Eiki EIP-5000L Service Manual
