U
SER

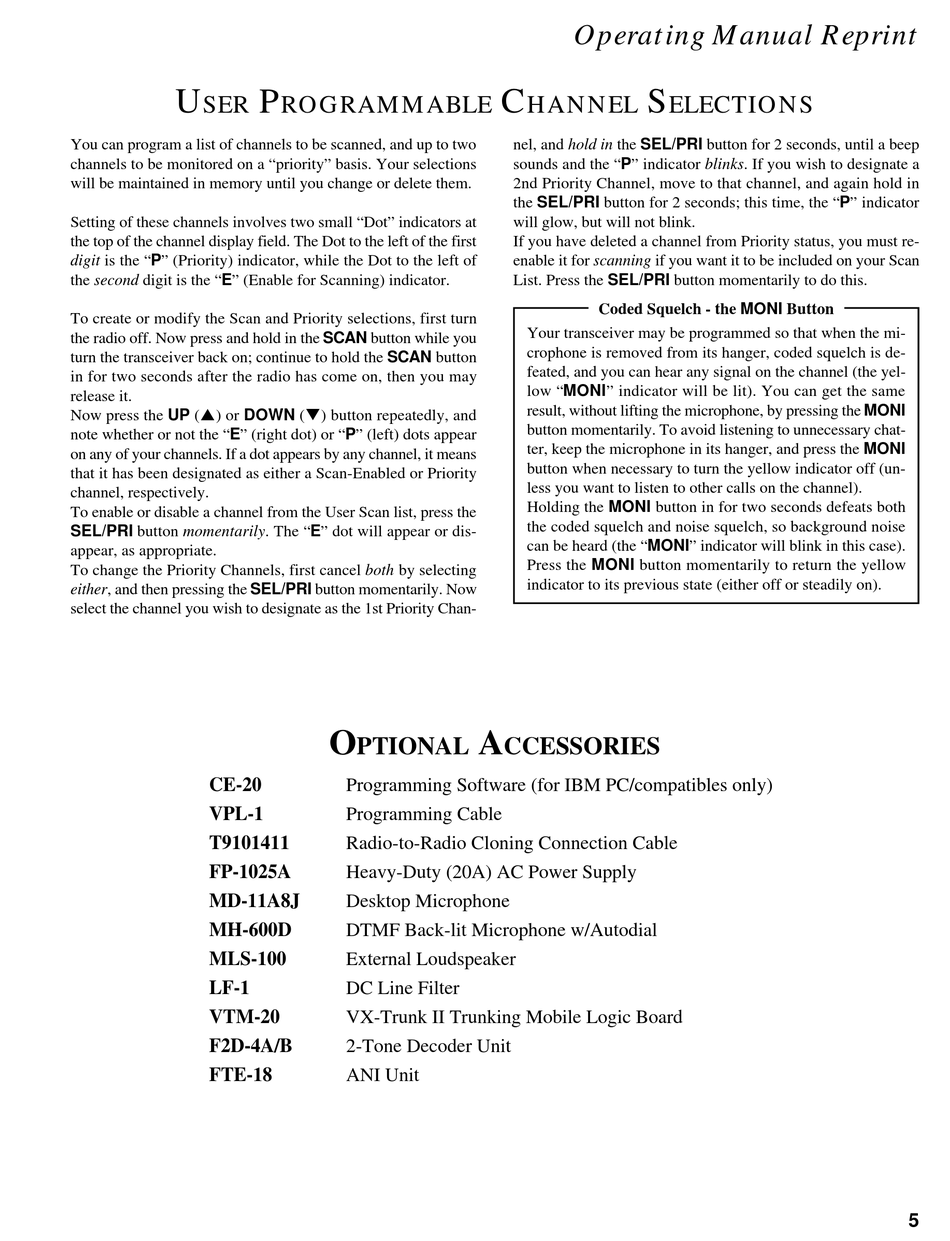

You can program a list of channels to be scanned, and up to two
channels to be monitored on a "priority" basis. Your selections
will be maintained in memory until you change or delete them.
Setting of these channels involves two small "Dot" indicators at
the top of the channel display field. The Dot to the left of the first
digit is the "P" (Priority) indicator, while the Dot to the left of
the second digit is the "E" (Enable for Scanning) indicator.
To create or modify the Scan and Priority selections, first turn
the radio off. Now press and hold in the SCAN button while you
turn the transceiver back on; continue to hold the SCAN button
in for two seconds after the radio has come on, then you may
release it.
Now press the UP (p) or DOWN (q) button repeatedly, and
note whether or not the "E" (right dot) or "P" (left) dots appear
on any of your channels. If a dot appears by any channel, it means
that it has been designated as either a Scan-Enabled or Priority
channel, respectively.
To enable or disable a channel from the User Scan list, press the
SEL/PRI button momentarily. The "E" dot will appear or dis-
appear, as appropriate.
To change the Priority Channels, first cancel both by selecting
either, and then pressing the SEL/PRI button momentarily. Now
select the channel you wish to designate as the 1st Priority Chan-
CE-20
VPL-1
T9101411
FP-1025A
MD-11A8J
MH-600D
MLS-100
LF-1
VTM-20
F2D-4A/B
FTE-18
P
ROGRAMMABLE
O
PTIONAL
Programming Software (for IBM PC/compatibles only)
Programming Cable
Radio-to-Radio Cloning Connection Cable
Heavy-Duty (20A) AC Power Supply
Desktop Microphone
DTMF Back-lit Microphone w/Autodial
External Loudspeaker
DC Line Filter
VX-Trunk II Trunking Mobile Logic Board
2-Tone Decoder Unit
ANI Unit
Operating Manual Reprint
C
S
HANNEL
nel, and hold in the SEL/PRI button for 2 seconds, until a beep
sounds and the "P" indicator blinks. If you wish to designate a
2nd Priority Channel, move to that channel, and again hold in
the SEL/PRI button for 2 seconds; this time, the "P" indicator
will glow, but will not blink.
If you have deleted a channel from Priority status, you must re-
enable it for scanning if you want it to be included on your Scan
List. Press the SEL/PRI button momentarily to do this.
Coded Squelch - the MONI Button
Your transceiver may be programmed so that when the mi-
crophone is removed from its hanger, coded squelch is de-
feated, and you can hear any signal on the channel (the yel-
low "MONI" indicator will be lit). You can get the same
result, without lifting the microphone, by pressing the MONI
button momentarily. To avoid listening to unnecessary chat-
ter, keep the microphone in its hanger, and press the MONI
button when necessary to turn the yellow indicator off (un-
less you want to listen to other calls on the channel).
Holding the MONI button in for two seconds defeats both
the coded squelch and noise squelch, so background noise
can be heard (the "MONI" indicator will blink in this case).
Press the MONI button momentarily to return the yellow
indicator to its previous state (either off or steadily on).
A
CCESSORIES
ELECTIONS
5
