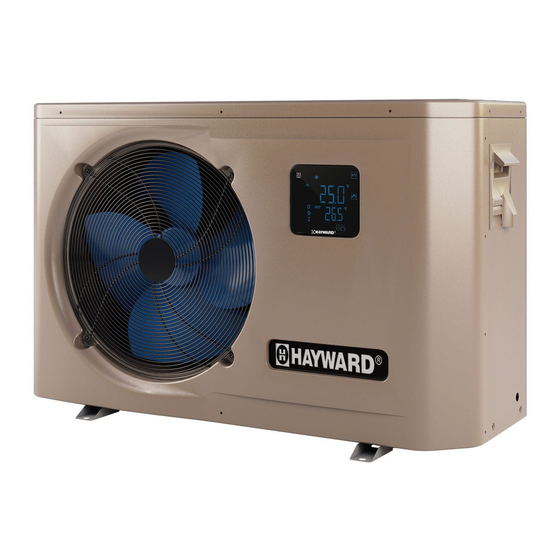

Hayward EnergyLine pro Installation Instructions Manual

Swimming pool heat pump unit
Hide thumbs Also See for EnergyLine pro:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
E
L
NERGY
INE PRO
SWIMMING POOL HEAT PUMP UNIT
Installation & Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EnergyLine pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hayward EnergyLine pro

Summary of Contents for Hayward EnergyLine pro

  • Page 1 NERGY INE PRO SWIMMING POOL HEAT PUMP UNIT Installation & Instruction Manual...

  • Page 2: Table Of Contents

    CONTENTS 1. Preface 2. Specifications 2.1 Technical data for the swimming pool heat pump unit 2.2 Operating range 2.3 Dimensions 3. Installation and connection 3.1 Functional diagram 3.2 Heat pump unit 3.3 Hydraulic connection 3.4 Electrical connection 3.5 Initial start-up 3.6 Water flow setting 4.

  • Page 3: Preface

    1. PREFACE We thank you for purchasing this Hayward swimming pool heat pump unit. This product was designed according to strict manufacturing standards to satisfy the required quality levels. This manual includes all of the necessary information concerning installation, debugging and maintenance. Please attentively read this manual before opening the unit or before carrying out any maintenance operations on it.

  • Page 4: Specifications

    2. SPECIFICATIONS 2.1 Technical data for the swimming pool heat pump unit...

  • Page 5: Operating Range

    2. SPECIFICATIONS (continued) 2.2 Operating range Use the swimming pool heat pump unit within the following ranges of temperature and humidity to ensure safe and efficient operation. Heating mode Cooling mode Outside temperature +2°C ~ +35°C +7°C ~ +43°C Water temperature +12°C ~ +40°C +8°C ~ +40°C Relative humidity...

  • Page 6: Dimensions

    2. SPECIFICATIONS (continued) 2.3 Dimensions Models: ENP1M/ENP2M Unit: mm Water inlet Water outlet Drainage Frontal view 1025 Overhead view Models: ENP3M/ENP4M/ENP5M Unit: mm ENP4T/ENP5T/ENP6M/ENP6T Water inlet Water outlet Drainage 1140...

  • Page 7: Installation And Connection

    3. INSTALLATION AND CONNECTION 3.1 Functional Diagram Filter Water Inlet valve By-pass Pump valve filtration Water outlet Water outlet Chlorinator cell valve Pool (or other treatment) Note: The swimming pool heat pump unit is sold without any treatment or filtration equipment. The components presented in the diagram are spare parts to be supplied by the installer.

  • Page 8: Heat Pump Unit

    3. INSTALLATION AND CONNECTION (continued) It is advised to install the unit on a dissociated cement block or a mounting bracket designed for this use and to set up the unit on the supplied rubber bushing (fastenings and washers not supplied). The maximum installation distance between the unit and the swimming pool is 15 metres.

  • Page 9: Electrical Connection

    3. INSTALLATION AND CONNECTION (continued) 3.4 Electrical connection Electrical installation and wiring for this equipment must be in conformity with local installation standards. NF C15-100 BS7671:1992 DIN VDE 0100-702 EVHS-HD 384-7-702 ÖVE 8001-4-702 MSZ 2364-702/1994/MSZ 10-553 1/1990 UNE 20460-7-702 1993, MSA HD 384-7-702.S2 RECBT ITC-BT-31 2002 Wiring Rules + IS HD 384-7-702...

  • Page 10: Initial Start-Up

    3. INSTALLATION AND CONNECTION (continued) The electrical power supply must have, when appropriate, a fuse protection device like a feed motor (aM) or D curve circuit breaker as well as a differential circuit breaker 30mA (see following table). Models ENP1M ENP2M ENP3M ENP4M...
  • Page 11 3. INSTALLATION AND CONNECTION (continued) 8) Set the water flow using the by-pass valve (see § 3.6 and 2.1), as provided for by each model, to obtain an Entry/Exit temperature of 2°C. 9) After running for several minutes, verify that the air exiting the unit is cool (between 5 and 10°).

  • Page 12: Water Flow Setting

    3. INSTALLATION AND CONNECTION (continued) 3.6 Water flow setting With the water entry and exit valves being open, adjust the by-pass valve in order to obtain a difference of 2°C between the inflow and outflow temperature (see principle diagram § 3.1). You can verify the switch by seeing the entry/ exit temperatures directly on the control panel.

  • Page 13: User Interface

    4. USER INTERFACE 4.1 General presentation The heat pump is equipped with a digital control panel with a touch screen, electronically connected and pre-set at the factory in heating mode. Symbol Cooling Mode Symbol Heating Mode Automatic mode Clock and timer settings MO D E Selection and settings button S E T...
  • Page 14 4. USER INTERFACE (continued) OFF Mode When the heating pump is in sleep mode (OFF Mode) “OFF” is displayed on the command screen. ON Mode When the heating pump is running or regulating (ON Mode), the inlet and outlet water temperatures are displayed on the command screen.

  • Page 15: Clock Function/Settings

    4. USER INTERFACE (continued) 4.2 Clock settings Press 2 times on , the blinking time display then set the time with the arrows then press one more time to set the minutes with the arrows . Press to validate. Note: The settings will be automatically saved if no button is pressed after 5 seconds, if not press to validate.

  • Page 16: Cooling

    4. USER INTERFACE (continued) Turn off the Timer (Timer ON and OFF) / Off and On 1) Press 2 seconds, Timer “ON”. 2) Press to delete the programme. 3) Press 2 seconds timer “ON” blinks then press 2 seconds, Timer “OFF” blinks.

  • Page 17: Setting And Visualisation For The Set Point

    4. USER INTERFACE (continued) 4.5 Settings and visualisation from the set point (desired water temperature) In Mode “OFF” and Mode “ON” Press the buttons to define the desired set point. The settings are made with a precision of 0.5 °C. It is recommended to never surpass 30°C to avoid alteration of the liners.

  • Page 18: Maintenance And Winterising

    5. MAINTENANCE AND WINTERISING 5.1 Maintenance These maintenance operations must be carried out once per year in order to guarantee the longevity and the good working condition of the heat pump. • Clean the coil with the help of a soft brush or jet of air or water (Warning, never use a high pressure cleaner).

  • Page 19: Appendix

    6. APPENDIX 6.1 Electrical diagrams ENP1M Power supply 230V~ / 50Hz 230V~ / 50Hz Enslavement filtration pump, output 230V~, max 20A REMARKS: 8. IT: WATER INLET TEMPERATURE SENSOR 1. AT: AIR TEMPERATURE SENSOR 9. LP: LOW PRESSURE SWITCH 2. COMP: COMPRESSOR 10.
  • Page 20 6. APPENDIX (continued) ENP2M COMP E E V RED BLU G N D O U T 3 O U T 1 O U T 2 G N D O U T 4 P C 1 0 0 0 G N D O U T 5 Power supply 230V~ / 50Hz...
  • Page 21 6. APPENDIX (continued) ENP3M COMP K M 1 E E V K M 1 G N D RED BLU O U T 3 O U T 1 O U T 2 G N D O U T 4 P C 1 0 0 0 G N D O U T 5 Power supply...
  • Page 22 6. APPENDIX (continued) ENP4M COMP K M 1 K M 1 E E V K M 1 G N D O U T 3 O U T 1 O U T 2 G N D O U T 4 P C 1 0 0 0 G N D O U T 5 Power supply...
  • Page 23 6. APPENDIX (continued) ENP5M COMP K M 1 K M 1 E E V K M 1 RED BLU G N D O U T 3 O U T 1 O U T 2 G N D O U T 4 P C 1 0 0 0 G N D O U T 5...

  • Page 24: Heating Priority Wiring

    6. APPENDIX (continued) ENP6M KM-6 Soft start COMP-R START COMP-R COMP OUT3 OUT1 OUT2 C2(35uF) OUT4 C1(60uF) OUT5 FILTER AC-N (161~193uF) RED BLU Controller Power supply TO POWER SUPPLY Output 230V~ TO PUMP 230V~ / 50Hz 220-240V~/50Hz Enslavement filtration pump 20A max REMARKS: 8.
  • Page 25 6. APPENDIX (continued) ENP4T/5T R S T N Power supply TO POWER SUPPLY 380V~ / 50Hz 380-415V/3N~/50Hz L1(A) L2(B) L3(C) COMP1 OUT3 OUT1 OUT2 OUT4 Output 230V~ TO PUMP OUT5 Enslavement filtration pump 20A max AC-N Controller REMARKS: 8. KM1: POWER CONTACTOR 1.
  • Page 26 6. APPENDIX (continued) ENP6T R S T N Power supply TO POWER SUPPLY 380V~ / 50Hz 380-415V/3N~/50Hz L1(A) L2(B) L3(C) COMP1 OUT3 OUT1 OUT2 OUT4 Output 230V~ TO PUMP OUT5 Enslavement filtration pump 20A max AC-N Controller REMARKS: 8. IT: WATER INLET TEMPERATURE SENSOR 9.
  • Page 28 6. APPENDIX (continued) 6.2 Heating priority wiring 230V˜ N 50 HZ Ph 1L1 3L2 5L3 13N0 A1 1 15 min / 2 H 2T1 4T2 14N0 Power supply 230V~ / 50Hz Output 230V~ Monophasic pump Enslavement filtration pump 20A max Outside of the filtration range, it is necessary to start a check of the water temperature by regularly starting the filtration pump (15...
  • Page 29 6. APPENDIX (continued) 6.3 Heating priority wiring for three phases pump 380V˜ 50 HZ 1L1 3L2 5L3 13N0 A1 1 15 min / 2 H 2T1 4T2 14N0 = = = = Power supply 380V~ / 50Hz Three phases Output 230V~ pump Enslavement filtration pump 20A max...

  • Page 30: Exploded View And Spare Parts

    6. APPENDIX (continued) 6.3 Exploded view and spare parts ENP1M...
  • Page 31 6. APPENDIX (continued) ENP1M Mark Ref. Description Mark Ref. Description Compressor capacitor HWX321221008 Fan protection grille HWX20003501 (3µF) Coil temperature HWX320822002 Front panel HWX20003242 sensor HWX35002701 Fan blade HWX200036005 Flow switch HWX34043301 Fan motor HWX321221078 Electrical box cover HWX320821069 Protection panel HWX20013605 High pressure switch HWX321221108...
  • Page 32 6. APPENDIX (continued) ENP2M...
  • Page 33 6. APPENDIX (continued) ENP2M Mark Ref. Description Mark Ref. Description Compressor capacitor HWX321221008 Fan protection grille HWX20003501 (3µF) Coil temperature HWX320822002 Front panel HWX20003242 sensor HWX35002701 Fan blade HWX200036005 Flow switch HWX34043301 Fan motor HWX321221078 Electrical box cover HWX320821069 Protection panel HWX20013605 High pressure switch HWX321221108...
  • Page 34 6. APPENDIX (continued) ENP3M...
  • Page 35 6. APPENDIX (continued) ENP3M Mark Ref. Description Mark Ref. Description HWX340621049 Fan protection grille HWX20003603 Low pressure switch HWX20002705 Fan blade HWX20003242 Air temperature sensor HWX20013328 Fan motor HWX351212001 Fin coil HWX320922015 Front panel HWX320921021 Electrical box cover HWX320921025 Support panel HWX320822008 Protection cover HWX320921092 Fan motor bracket...

  • Page 36: Troubleshooting Guide

    6. APPENDIX (continued) ENP4M...
  • Page 37 6. APPENDIX (continued) ENP4M Mark Ref. Description Mark Ref. Description HWX950531152 LCD controller HWX200036005 Flow switch HWX320921092 Fan motor bracket HWX20013605 High pressure switch HWX340621049 Fan protection grille HWX20003603 Low pressure switch HWX20002705 Fan blade HWX20011491 4 ways valve HWX320922015 Front panel HWX351212001 Fin coil HWX20013328...
  • Page 38 6. APPENDIX (continued) ENP5M...
  • Page 39 6. APPENDIX (continued) ENP5M Mark Ref. Description Mark Ref. Description HWX950531152 LCD controller HWX200036005 Flow switch HWX320921092 Fan motor bracket HWX20013605 High pressure switch HWX340621049 Fan protection grille HWX20003603 Low pressure switch HWX20002705 Fan blade HWX20011491 4 ways valve HWX320922015 Front panel HWX351212001 Fin coil HWX20013328...
  • Page 40 6. APPENDIX (continued) ENP4T...
  • Page 41 6. APPENDIX (continued) ENP4T Mark Ref. Description Mark Ref. Description HWX200022068 Protection cover HWX950531145 PCB Board HWX950531152 LCD Controller HWX200036005 Flow switch HWX340621049 Fan protection grille HWX20003242 Water inlet Sensor Teminal block 3 HWX20003933 HWX20003242 Water outlet sensor connections HWX320922015 Front panel HWX320921021 Electrical box HWX20013328 Fan motor HWX320822008 Protection cover...
  • Page 42 6. APPENDIX (continued) ENP5T...
  • Page 43 6. APPENDIX (continued) ENP5T Mark Ref. Description Mark Ref. Description HWX200022068 Protection cover HWX950531145 PCB Board HWX950531152 LCD Controller HWX200036005 Flow switch HWX340621049 Fan protection grille HWX20003242 Water inlet Sensor Teminal block 3 HWX20003933 HWX20003242 Water outlet sensor connections HWX320922015 Front panel HWX320921021 Electrical box HWX20013328 Fan motor HWX320822008 Protection cover...
  • Page 44 6. APPENDIX (continued) ENP6M...
  • Page 45 6. APPENDIX (continued) ENP6M Mark Ref. Description Mark Ref. Description Teminal block 3 HWX200022068 Protection cover HWX20003920 connections Coil Temperature HWX950531152 LCD Controller HWX20003242 sensor HWX340621049 Fan protection grille HWX20003151 Smart Starter HWX20003242 Ambient sensor HWX950531145 PCB Board HWX320922015 Front panel HWX200036005 Flow switch Compressor HWX20003510...
  • Page 46 6. APPENDIX (continued) ENP6T...
  • Page 47 6. APPENDIX (continued) ENP6T Mark Ref. Description Mark Ref. Description Teminal block 5 HWX200022068 Protection cover HWX20003902 connections Tri Coil Temperature HWX950531152 LCD Controller HWX20003242 sensor HWX340621049 Fan protection grille HWX950531145 PCB Board HWX20003242 Ambient sensor HWX200036005 Flow switch HWX320922015 Front panel HWX20003242 Water inlet Sensor HWX200036023 Phase controller HWX20003242 Water outlet sensor...
  • Page 48 6. APPENDIX (continued) 6.4 Troubleshooting guide Certain operations must be carried out by an authorized technician. Problem Error codes Description Solution The sensor is open or presents Water inlet sensor defect. Verify or replace the sensor. a short-circuit. The sensor is open or presents Water outlet sensor defect.

  • Page 49: Warranty

    6. APPENDIX (continued) 6.5 Warranty...
  • Page 50 HAYWARD POOL EUROPE Parc Industriel de la Plaine de l’Ain Allée des Chênes 01150 Saint-Vulbas France http://www.hayward.fr...

This manual is also suitable for:

Energyline pro enp1mEnergyline pro enp2mEnergyline pro enp3mEnergyline pro enp4mEnergyline pro enp5mEnergyline pro enp6m ... Show all
