1 . 1 . 5 V i g o r 3 1 2 0
1 . 1 . 5 V i g o r 3 1 2 0

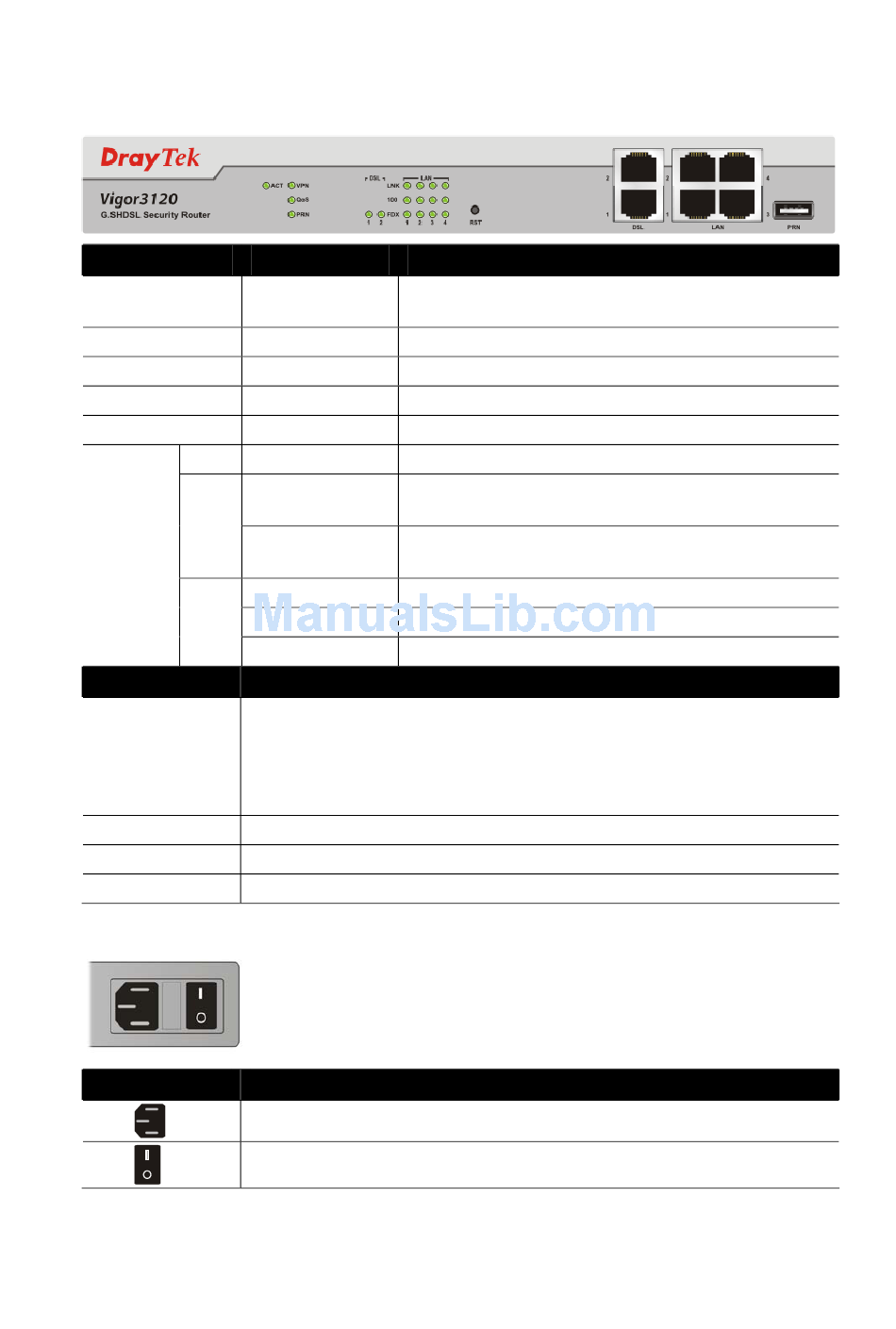

F r o n t P a n e l
F r o n t P a n e l
LED
ACT
(Activity)
VPN
QoS
PRN
DSL
LNK
100
LAN
(1, 2, 3, 4)
FDX
Interface
RST
(Factory Reset)
DSL(1/2)
LAN (1-4)
PRN
R e a r P a n e l
R e a r P a n e l
Interface
Status Explanation
Blinking The router is powered on and running properly.
On The VPN tunnel is launched.
On The QoS function is active.
On The USB interface printer is ready.
On The G.SHDSL line is connected.
Blinking It means that Ethernet packets are transmitting.
On It means that a normal 100Mbps connection is
through its corresponding port.
Off It means that a normal 10Mbps connection is
through its corresponding port.
On It means a full duplex connection.
Off It means a half duplex connection.
Blinking It means that a packet collision happens.
Description
Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and
keep for more than 5 seconds. When you see the ACT LED begins to
blink rapidly than usual, release the button. Then the router will restart
with the factory default configuration.
Connecter for remote networked devices.
Connecter for local networked devices.
USB interface for printer.
Description
Connecter for a power cord with 100-240 VAC (inlet).
Power Switch. "1" is ON; "0" is OFF.
6
