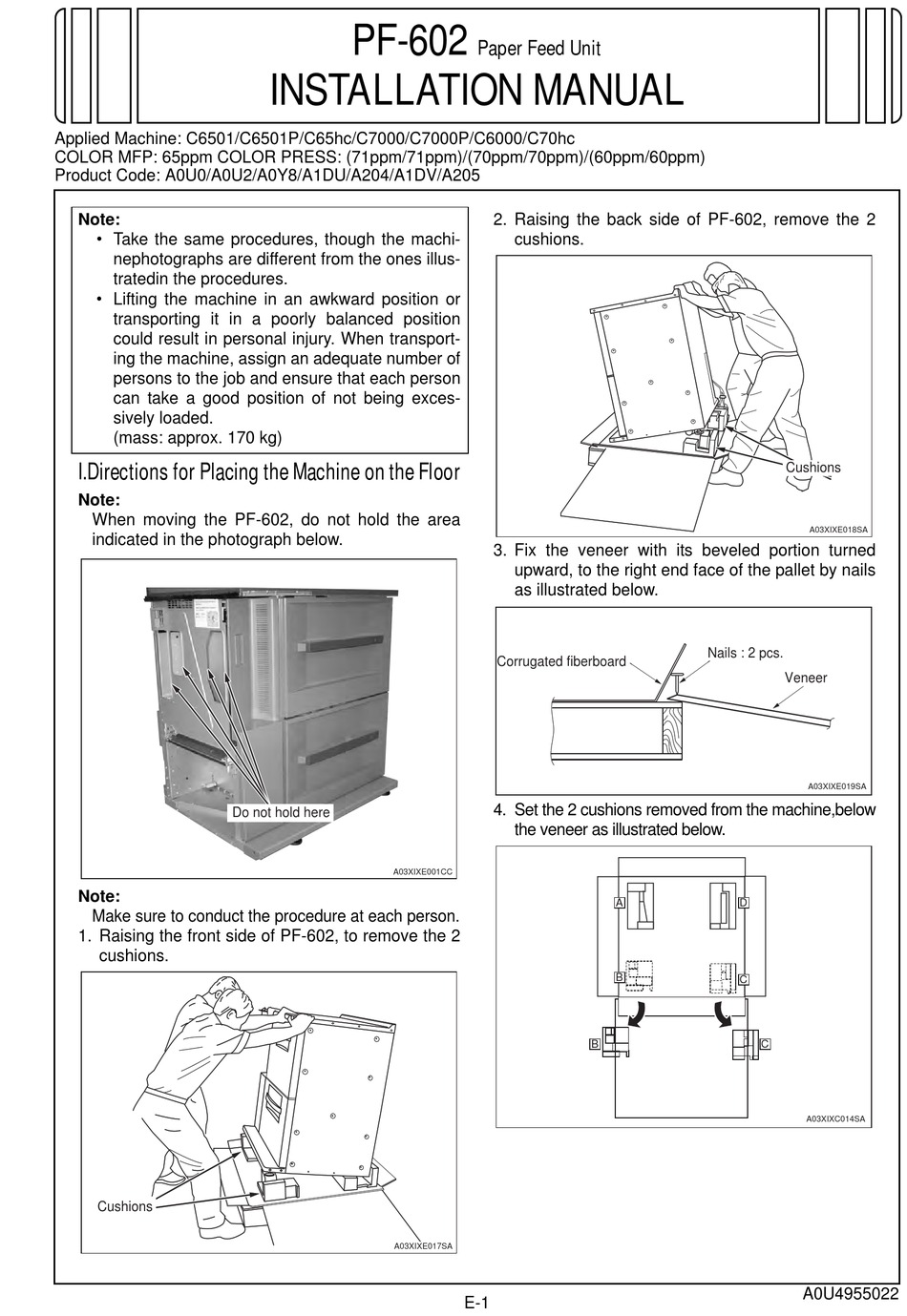

Develop PF-602 Installation Manual

Applied Machine: C6501/C6501P/C65hc/C7000/C7000P/C6000/C70hc
COLOR MFP: 65ppm COLOR PRESS: (71ppm/71ppm)/(70ppm/70ppm)/(60ppm/60ppm)
Product Code: A0U0/A0U2/A0Y8/A1DU/A204/A1DV/A205
Note:
• Take the same procedures, though the machi-
nephotographs are different from the ones illus-
tratedin the procedures.
• Lifting the machine in an awkward position or
transporting it in a poorly balanced position
could result in personal injury. When transport-
ing the machine, assign an adequate number of
persons to the job and ensure that each person
can take a good position of not being exces-
sively loaded.
(mass: approx. 170 kg)
I.Directions for Placing the Machine on the Floor
Note:
When moving the PF-602, do not hold the area
indicated in the photograph below.
Note:
Make sure to conduct the procedure at each person.
1. Raising the front side of PF-602, to remove the 2
cushions.
Cushions
PF-602
INSTALLATION MANUAL
Do not hold here
A03XIXE001CC 00AAIXE000SA A03XIXJ001CB A03XIXJ001CB
A03XIXE017SA
Paper Feed Unit
2. Raising the back side of PF-602, remove the 2
cushions.
3. Fix the veneer with its beveled portion turned
upward, to the right end face of the pallet by nails
as illustrated below.
Corrugated fiberboard
4. Set the 2 cushions removed from the machine,below
the veneer as illustrated below.
A
B
B
E-1
Cushions
A03XIXE018SA
Nails : 2 pcs.
Veneer
A03XIXE019SA
D
C
C
A03XIXC014SA
A0U4955022
