SD-509
INSTALLATION MANUAL
Caution:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, assign an adequate number of persons
to the job and ensure that each person can take a
good position of not being excessively loaded.
(mass: approx. 24 kg (52-15/16))

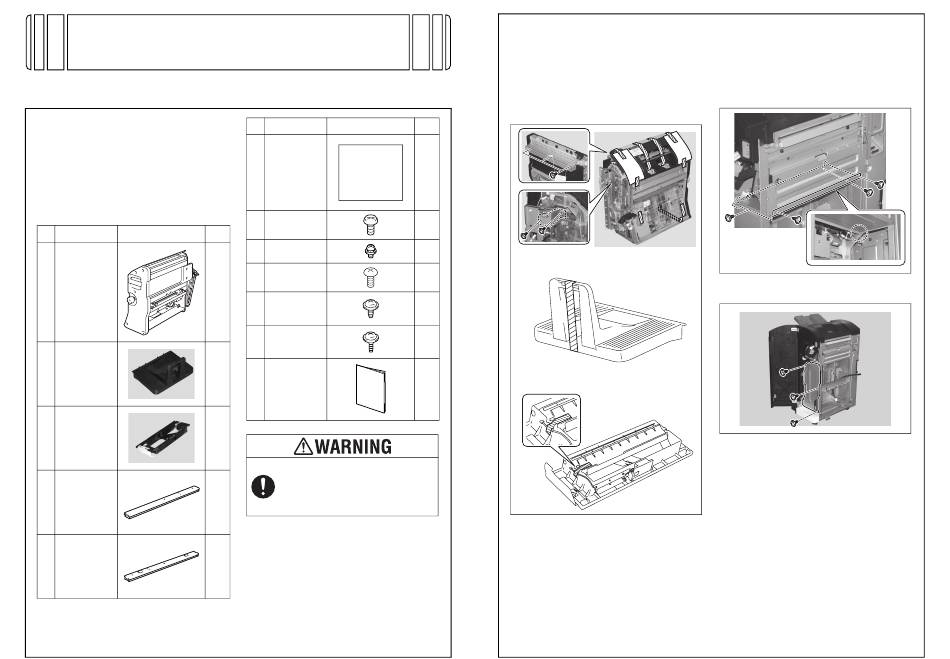

I. Accessory parts
No.
Name
Shape
Q'ty
1. Saddle unit
1
A10DIXC001DA
2. Exit tray
1
A10DIXC002DA
3. Exit tray cover
1
A10DIXC003DA
4. Rail (Right)
without hook
1
A10DIXC005DA
5. Rail (Left)
with hooks
1
A11RIXC005DA
Saddle Stitcher
Applied Machine: FS-527
No.
Name
Shape
Q'ty
6. Label
7. Screw A
(4 × 4 mm)
9654
8. Screw B
(3 × 6 mm)
4040IXC046DA
9. Screw C
(4 × 9 mm)
A092IXC012DA
10. Screw D
(3 × 8 mm)
9735
11. Screw E
(3 × 8 mm)
9738
12. Installation
manual
4980IXC019DA
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
Note:
This manual provides the illustrations of the acces-
sory parts and machine that may be slightly different
in shape from yours. In that case, instead of the
illustrations, use the appearance of your machine to
follow the installation procedure. This does not
cause any significant change or problem with the
procedure.
A10D-9550-03
II. Installation procedures
Note:
When mounting the saddle stitcher, mount it
before mounting the finisher to the machine.
1. Turn off the machine and unplug the power cord
from the power outlet.
2. Remove the saddle unit and all other accessories
from the shipping carton and remove the protec-
tive tapes and protective materials.
1
6
1
1
3
1
1
set
E-1
3. If the finisher is mounted on the machine, remove
the finisher.
Note:
For the finisher removal procedure, see installa-
tion manual for finisher.
4. Open the front door of the finisher.
5. Remove the plate from the finisher as shown
below (four screws).
A10DIXC006DA
6. Remove the front cover of the finisher (three
screws).
A10DIXC007DA
A10DIXC008DB
A10DIXC009DB
A10DIXC010DB
