Develop PC-208 Installation Manual

PC-208
INSTALLATION MANUAL
Applied Machines: 423/363/283/223
MFP: 42 ppm/36 ppm/28 ppm/22 ppm
Product Code: A1UD/A1UE/A1UF/A1UG
Caution:
Lifting the machine in an awkward position or
transporting it in a poorly balanced position could
result in personal injury. When transporting the
machine, assign an adequate number of persons
to the job and ensure that each person can take a
good position of not being excessively loaded.
(mass: approx. 33 kg (72-3/4 lb))

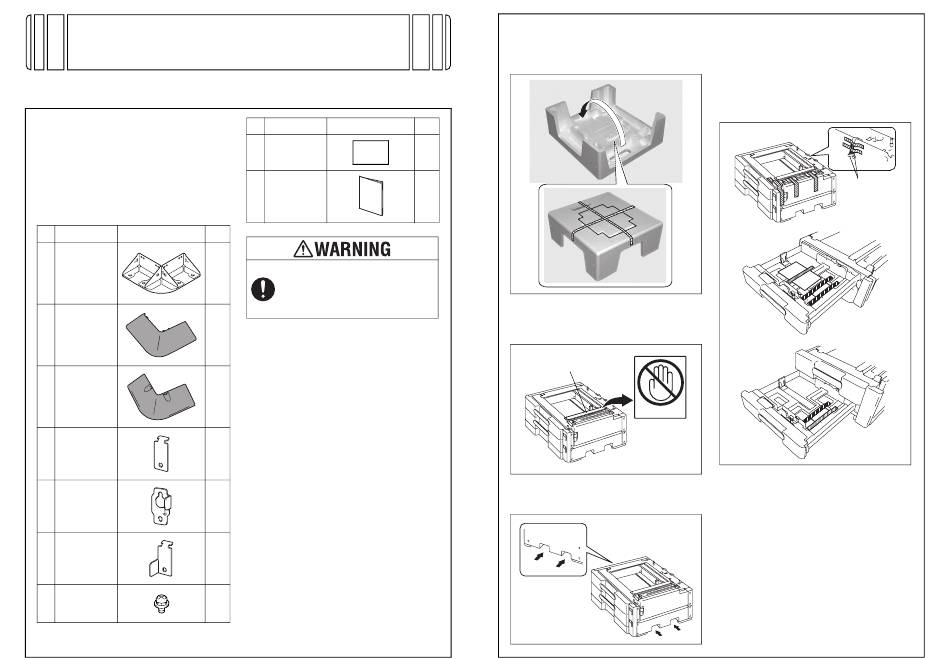

I. Accessory parts
No. Name Shape
1. Fixing leg
A1V4IXC068DA
2. Fixing leg
cover A
4348U099MB
3. Fixing leg
cover B
A1V4IXC001DA
4. Fixing
bracket A
4658U021AA
5. Fixing
bracket B
A1V4IXC002DA
6. Fixing
bracket C
A1V4IXC003DA
7. Screw
(4 × 8 mm)
4038IXC033DA
Paper Feed Cabinet
No. Name Shape
8. Paper size
label
9. Installation
manual
4980IXC019MA
Q'ty
After unpacking, be sure to get rid of the
3
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.
3
Note:
This manual provides the illustrations of the acces-
sory parts and machine that may be slightly differ-
ent in shape from yours. In that case, instead of
the illustrations, use the appearance of your
machine to follow the installation procedure. This
does not cause any significant change or problem
1
with the procedure.
2
1
1
19
Note:
• The three supplied fixing legs are being packed
under the cushioning material. Turn the cush-
ioning material upside down to remove the fix-
ing legs.
Q'ty
1
set
1
set
• When removing the paper feed cabinet from its
shipping carton, do not hold the reinforcement
bracket (as a personal injury or a deformed
frame could result).
Reinforcement bracket
• When removing the paper feed cabinet from the
carton or carrying it, be sure to hold it by the
locations shown in the illustration.
A1V4-9582-00
E-1
II. Installation procedures
1. Turn off the machine and unplug the power cord
from the power outlet.
2. Remove the protective tape from the paper feed
cabinet.
Note:
Do not peel the tape that fixes the paper feed cab-
inet hookup harness in position until the machine
is attached to the paper feed cabinet.
Hookup
harness
A1V4IXC079DA
A1V4IXC004DA
A1V4IXC005DA
A1V4IXE061DA
A1V4IXC007DA
A1V4IXC008DA
