FRESH AIR
FROM OUTSIDE
STALE AIR
TO OUTSIDE

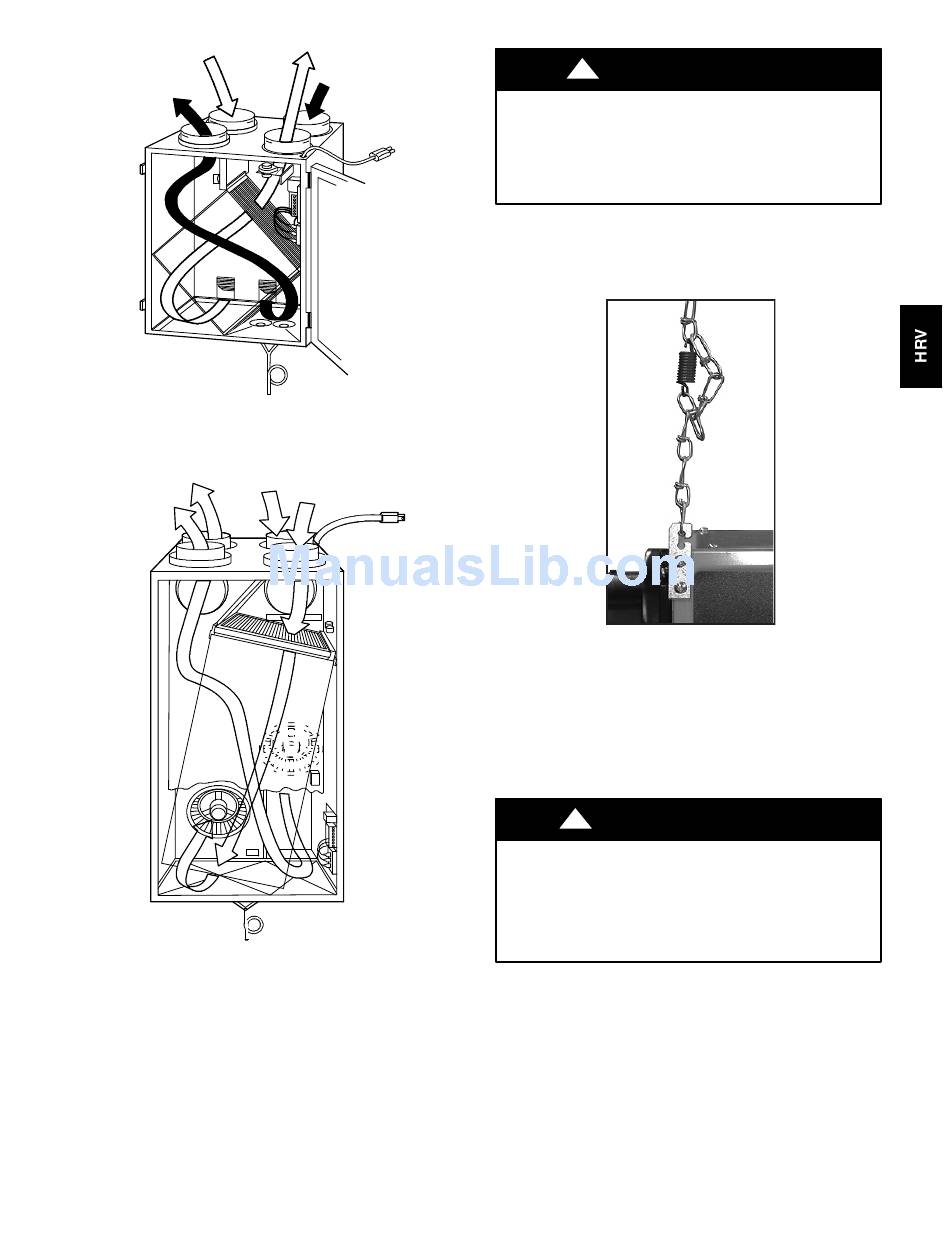

Fig. 6 - - HRVBBSVU Airflow During Air Exchange
FRESH AIR
TO BUILDING
STALE AIR
TO OUTSIDE
Fig. 7 - - HRVBBLVU Airflow During Air Exchange
Select Location
The HRV should be located in a conditioned space and in close
proximity to a fused power source. It should be easily accessible
for routine maintenance.
If HRV is installed independent of a forced- -air system, unit should
be located near the center of the air distribution system. If HRV is
installed in conjunction with a forced- -air system, unit should be
located next to (or close to) the indoor equipment.
FRESH AIR
TO BUILDING
STALE AIR
FROM BUILDING
A92382
STALE AIR
FROM BUILDING
FRESH AIR
FROM OUTSIDE
A92384

UNIT INSTALLATION

CAUTION
!
UNIT DAMAGE HAZARD
Failure to follow this caution may result in equipment
damage or improper operation.
Do not install HRV in a corrosive or contaminated
atmosphere.
Mount Unit
The HRV can be suspended from floor joists using chains and 4
springs. Attach metal hanging bracket to all 4 sides of cabinet (see
Fig. 8). Unit should always be installed as level as possible.
Fig. 8 - - Chain Spring Installation
Independent System Application
In the absence of a forced- -air system and a typical duct system
layout, the HRV can be applied as an independent or stand alone
unit. To ensure comfort, this type of application involves running
both fresh- -air and return- -air registers (or stale- -air pickup registers)
throughout the home.
WARNING
!
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal injury
or death.
Do not install return- -air registers (or stale- -air pickup
registers) in same room as gas furnace or water heater.
Fresh- -air registers are normally located in bedrooms, dining room,
living room, and basement. It is recommended that registers be
placed 6 to 12 in. (152 to 305 mm) from the ceiling on an interior
wall and airflow directed toward ceiling. If registers are floor
installed, airflow should be directed toward the wall.
Return- -air (or stale- -air pickup registers) are normally located to
draw from kitchen, bathroom, basement, or other rooms where
stale- -air can exist.
Proper size and type of registers must be used to minimize pressure
drop. The velocity of airflow through register should not be above
400 ft/minute.
3
