PERFECT AIRt AIR PURIFIER FOR FAN COILS
SIZES 1620, 2020, AND 2420
NOTE: Read the entire instruction manual before starting the
install.

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HOW IT WORKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAFETY CONSIDERATIONS
APPLICATION CONSIDERATIONS
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
START- -UP AND OPERATION
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPECIFICATIONS AND DIMENSIONS
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INTRODUCTION

Congratulations for selecting the Perfect Airt Air Purifier for
your home comfort system! The Perfect Airt Air Purifier is
proven to remove and kill airborne germs and allergens, including
viruses, bacteria, and mold spores. The Perfect Airt Air Purifier
is a cornerstone of Bryant's Healthy Home Solutions for
providing healthier, cleaner air in your home.

HOW IT WORKS

The Perfect Airt Air Purifier provides extremely high filtration
performance while killing captured contaminants, including
viruses, bacteria, and mold spores. The Perfect Airt Air Purifier
treats the entire air- -stream through a state of the art, three- -stage
process, exclusive to Bryant.
In stage one, the particles are electrically charged by a
precision- -point ionization array as they enter the Perfect Airt
Air Purifier.
In stage two, the charged particles are electrically attracted to the
air purification cartridge, which is located within an electric field.
In stage three, captured particles are killed by electrical current
flow and ion bombardment.
The Perfect Airt Air Purifier is CSA certified for shock and
electrical fire hazard only.
La Perfect Airt Air Purifier certification CSA vise uniquement
les risques de choc electrique et.
Installation Instructions
PAGE
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
7 - - 8
. . . . . . . . . . . . . . . . .
1
1
1
2
3- -6
7
9
10
11

SAFETY CONSIDERATIONS

Improper installation,
maintenance, or use can cause explosion, fire, electrical shock or
other conditions which may cause personal injury or property
damage. Consult a qualified installer, service agency, or your
distributor or branch for information or assistance. The qualified
installer or agency must use factory authorized kits or accessories
when modifying this product. Refer to the individual instructions
packaged with the kits or accessories when installing.
Follow all safety codes. Wear safety glasses and work gloves.
Have a fire extinguisher available.
thoroughly and follow all warning or cautions attached to the
unit. Consult local building codes and National Electrical Code
(NEC) for special requirements.
It is important to recognize safety information.
safety- -alert symbol
and in instructions or manuals, be alert to the potential for
personal injury. Understand the signal words DANGER,
WARNING, and CAUTION. These words are used with the
safety- -alert symbol.
hazards which will result in severe personal injury or death.
WARNING signifies hazards which could result in personal
injury or death. CAUTION is used to identify unsafe practices
which may result in personal injury or product and property
damage. NOTE is used to highlight suggestions which will result
in enhanced installation, reliability, or operation.

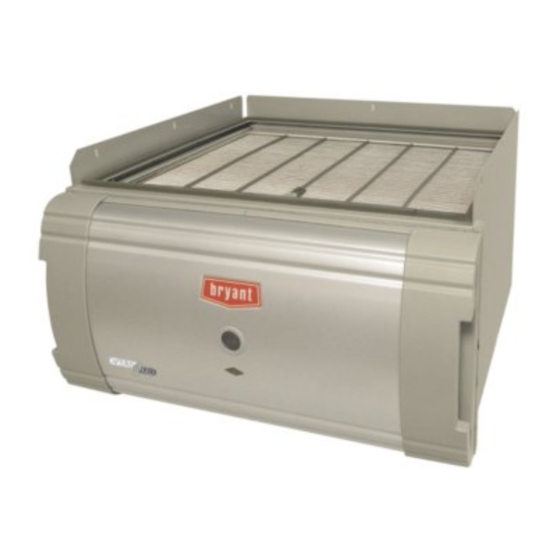

Fig. 1 --- GAPAB Unit
adjustment, alteration,
Read these instructions
. When you see this symbol on the unit
DANGER identifies the most serious
A06367
service,
This is the
