Energy/heat recovery ventilator

Advertisement

ERVBBSVA1100, ERVBBSHA1100
HRVBBSVA1100, HRVBBSHA1100
ENERGY/HEAT RECOVERY VENTILATOR
NOTE: Read the entire instruction manual before starting the
installation.

TABLE OF CONTENTS

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1. Fresh air to building port
2. Exhaust air from building port
3. Fresh air from outside port
4. Exhaust air to outside port

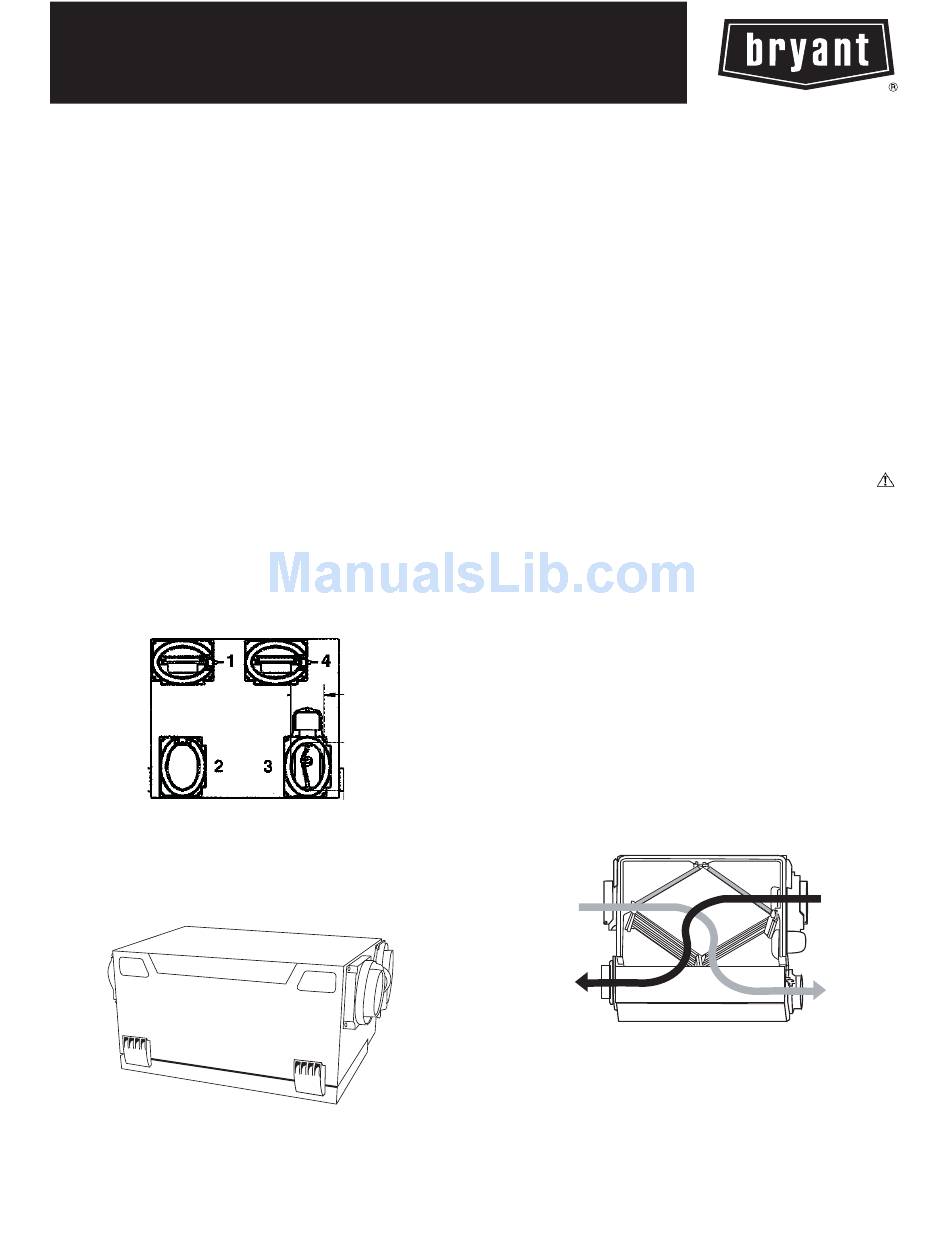

Fig. 1 - - ERV/HRV Unit (Top Port)
Fig. 2 - - ERV/HRV Unit (Side Port)
Installation Instructions
PAGE
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
A08103
A05330

SAFETY CONSIDERATIONS

Installation and servicing of this equipment can be hazardous due
to mechanical and electrical components. Only trained and
qualified personnel should install, repair, or service this equipment.
Untrained personnel can perform basic maintenance functions such
1
as cleaning and replacing air filters. All other operations must be
1
performed by trained service personnel. When working on this
equipment, observe precautions in the literature, on tags, and on
2
labels attached to or shipped with the unit and other safety
2
precautions that may apply.
2
Follow all safety codes. Installation must be in compliance with
local and national building codes. Wear safety glasses, protective
4
clothing, and work gloves. Have fire extinguisher available. Read
these instructions thoroughly and follow all warnings or cautions
5
included in literature and attached to the unit.
6
Recognize safety information. This is the safety- -alert symbol
6
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury.
7
Understand these signal words; DANGER, WARNING, and
8
CAUTION. These words are used with the safety- -alert symbol.
8
DANGER identifies the most serious hazards which will result in
8
severe personal injury or death. WARNING signifies hazards
which could result in personal injury or death. CAUTION is used
9
to identify unsafe practices which may result in minor personal
injury or product and property damage. NOTE is used to highlight
suggestions which will result in enhanced installation, reliability, or
operation.

INTRODUCTION

The Energy/Heat Recovery Ventilator (ERV/HRV) is used to
exchange indoor stale air with outside fresh air. The unit is
equipped with a special energy/heat recovery core which transfers
both sensible and/or latent heat between the fresh incoming air and
stale exhaust air. The cross- -flow design core allows entering and
leaving air streams to transfer heat and/or latent energy without
mixing (See Fig. 3).
STALE AIR
FROM BUILDING
FRESH AIR
TO BUILDING
Fig. 3 - - ERV/HRV Airflow During Air Exchange
(Bottom view with access door removed)
.
FRESH AIR
FROM OUTSIDE
STALE AIR
TO OUTSIDE
A07460

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERVBBSVA1100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bryant ERVBBSVA1100

  • Page 1: Table Of Contents

    ERVBBSVA1100, ERVBBSHA1100 HRVBBSVA1100, HRVBBSHA1100 ENERGY/HEAT RECOVERY VENTILATOR Installation Instructions SAFETY CONSIDERATIONS NOTE: Read the entire instruction manual before starting the installation. Installation and servicing of this equipment can be hazardous due TABLE OF CONTENTS to mechanical and electrical components. Only trained and qualified personnel should install, repair, or service this equipment.
  • Page 2: Installation Considerations

    The model operates at 2 airflows, 50 CFM in low speed and 100 ERV ports on side (bottom view) CFM in high speed. This unit comes in two configurations, vertical or horizontal. Special attention should be given to duct application, balancing the ERV/HRV, and locating unit for easy access and routine maintenance.
  • Page 3 WARNING CARBON MONOXIDE POISONING HAZARD Failure to follow this warning could result in personal injury or death. Do not install return- -air registers (or stale- -air pickup registers) in same room as gas furnace or water heater. Return- -air (or stale- -air pickup registers) are normally located to draw from kitchen, bathroom, basement, or other rooms where stale- -air can exist.
  • Page 4: Wall Control

    Connect Ducts to ERV/HRV 1. Punch out holes in foam insulation and door, then insert sleeved grommets into bottom of unit using the gasket CAUTION washer and nut. (See Fig. 9.) 2. Cut two sections of plastic tubing, about 12” / 305mm long and attach them to each drain.
  • Page 5: Operating The Erv/Hrv With The Evolution Control

    thermostat and follow same guidelines as installing a thermostat NOTE: OneTouch Intermittent mode exchanges air on low speed (locate approximately 5 ft (1.5m) above floor, mount on an inside for 20 minutes per hour. partitioning wall, etc.) Latent Control Wiring NOTE: For Latent Controls used with ERV;s, to ensure highest Remove top cover assembly from wall control and pass thermostat degree...
  • Page 6: Electrical Connections

    ACCESSORIES DEHUM - - will only turn on if humidity is 3% over setpoint. The speed is determined by indoor humidity and outdoor 20 Minute Timer temperature. A push button timer can be used to override the wall control and Cooling: put the ERV/HRV into high speed for 20 minutes.
  • Page 7: Balancing Erv/Hrv

    BALANCING ERV/HRV Before proceeding with balancing, all windows, doors, and fireplace flues should be tightly closed. No exhaust systems such as Balancing intake and exhaust airflow is very important for proper range top exhausts, dryer exhaust, fume hoods, bath or roof fans system operation and optimum performance when applying an should be in operation.
  • Page 8: Ventilation Evaluation

    VENTILATION EVALUATION between Red and Gray wires on Molex plug (pins 1 and 4) and blower motor runs in low- -speed operation. CAUTION CARE AND MAINTENANCE Door UNIT DAMAGE HAZARD ERV/HRV door can be removed by unlatching brief case style Failure to follow this caution may result in reduced unit latches, then slide door to the right and remove it from hinges.
  • Page 9: Troubleshooting

    TROUBLESHOOTING NOTE: The core should only be serviced when outdoor temperature is 60°F to 75°F (16°C to 24°C) and it is dry. NOTE: Reference Table 5 Troubleshooting Chart CAUTION This can be a quick guide in resolving unit problems. It is also recommended to review and understand Wall Control Board Operation and Care and Maintenance sections before continuing.
  • Page 10 If the integrated control LED of the unit is flashing, this means the unit sensors detected a problem. See the table below to know where on the unit the problem occurs. Table 5 – Troubleshooting LED flashes GREEN. Thermistor error. Reference Table 6 for proper temperature vs.
  • Page 11 Table 6 – Temperature / Ohm Relationship Table 7 – Defrost Cycle Temp. (°F / °C) Resistance (Ohms) HRV DEFROST CYCLES Operation time (min.) --- 9 / --- 23 78330 Outside Temp Defrosting between each --- 8 / --- 22 74610 °F / °C (minutes)
  • Page 12 CONNECTION DIAGRAM Line voltage factory wiring Class 2 low voltage factory wiring Class 2 low voltage field wiring 1. For continued fire protection, use specified UL COLOR CODE DAMPER ELECTRONIC listed/CSA Certified line fuse. ASSEMBLY B LK BLACK 2. If any of the original wire, as supplied, must be B L U BLUE replaced, use the same equivalent wire.
  • Page 13 A07417 Fig. 18 - - ERV / HRV Wiring Diagram Catalog No. IIERVHRV ---64---2 E2008 Bryant Heating & Cooling Systems D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 02/08 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
