Step 5.—Condensate Drain
To connect condensate drain, proceed as follows:
1. Insert sleeved grommets into bottom of unit using the
gasket washer and nut (See Fig. 10).
2. Cut two sections of plastic tubing, about 12" long and
attach them to each drain.
3. Join the two short sections of plastic tubing to the "T"
connector and the main tube as shown.
4. Make a loop in the tubing below the "T" connector to
create a trap to prevent sewer gases from entering the
ventilation system (See Fig. 10).
5. Connect unit drain to building's main drain. Provide
slight slope from unit for run ---off.
Step 6.—Locate and Install Exterior Hoods
IMPORTANT: To prevent condensation problems, insulated
flexible ducts are required on both fresh ---air inlet and
exhaust---air outlet ducts connecting between HRV and
exterior wall.
Fresh ---air intake and stale ---air exhaust must be separated
by at least 6 ft. Fresh ---air intake must be positioned at
least 10 ft. from nearest dryer vent, furnace exhaust,
driveway, gas meter, or oil fill pipe. Fresh ---air intake must
be positioned as far as possible from garbage containers
and potential chemical fumes. When possible, it is advised
to locate the intake and exhaust hoods on same side of
house or building. The intake and exhaust hoods should
never be located on interior corners or in dead air pockets
(See Fig. 8). Both intake and exhaust hoods must be 18 in.
from ground and at least 12 in. above anticipated snow
level.
After selecting proper hood locations, make appropriate
size hole through exterior wall, pass flexible duct through
hole and insert hood tube into duct. Tape duct vapor barrier
tightly around hood tube and insert assembly back into wall
and fasten securely.
FLEXIBLE
DUCT
FRESH-AIR
SUPPLY
DUCTS CONNECTING TO
RETURN-AIR DUCT SYSTEM

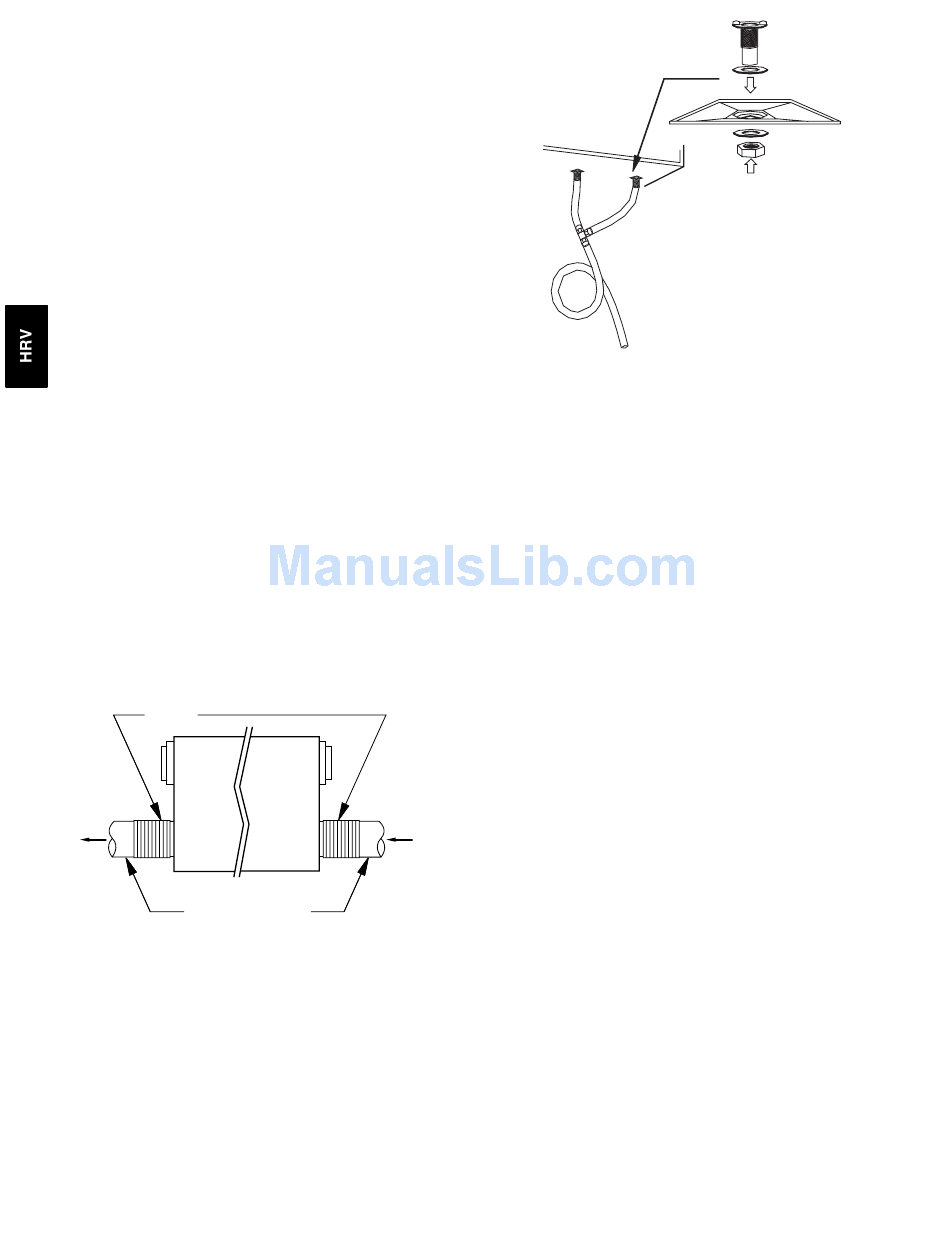

Fig. 9 --- Flexible Duct Fit ---Up
Fig. 10 --- Condensate Drain With Loop Trap
1. Location
The HRV wall controls are unique to HRV and must be
installed for proper unit operation.
Four wall control options are available:
1. Basic Control
2. OneTouch Control
3. Standard Control
4. Automatic Control
2. Basic Control Operation
The basic control contains a 3 position slide switch which is
used to manually select OFF, LOW, and HIGH speed
blower operation. The unit operates continuously when
LOW or HIGH is selected (See Table 1).
3. OneTouch Control Operation
Press "Push" until the desired ventilation operation is
selected.
Intermittent. The power indicator light indicates which mode
has been selected.
1. HIGH: This mode is recommended for the removal of
STALE-AIR
RETURN excess pollutants and humidity. The ventilator will
operate at its maximum speed continuously. The
power indicator light will be lit red when this mode is
selected.
2. LOW: This mode is recommended for normal daily
operation. The ventilator will operate at minimum
speed continuously. The power indicator light will be lit
A98382
yellow when this mode is selected.
3. INTERMITTENT: This mode is recommended when
the inside air is too dry in the heating season or too
humid in the cooling season. The ventilator will operate
at its minimum speed for 20 minutes per hour and be
off for 40 minutes per hour. The power indicator light
will be lit green when this mode is selected.
4. OFF: To turn the ventilator off, press "Push" until the
power indicator light is turned off.
4. Standard Control Operation
The standard wall control has 3 basic modes of operation,
OFF, LOW, and INTERMITTENT. Be sure that all modes of
5

WALL CONTROL

There are three selections:
A99268
High, Low,
