User, Installation and Servicing Instructions
Silverlink 600 Gas Griddles
GS4 and GS7
IS212 ECN3592

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silverlink 600 GS4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lincat Silverlink 600 GS4

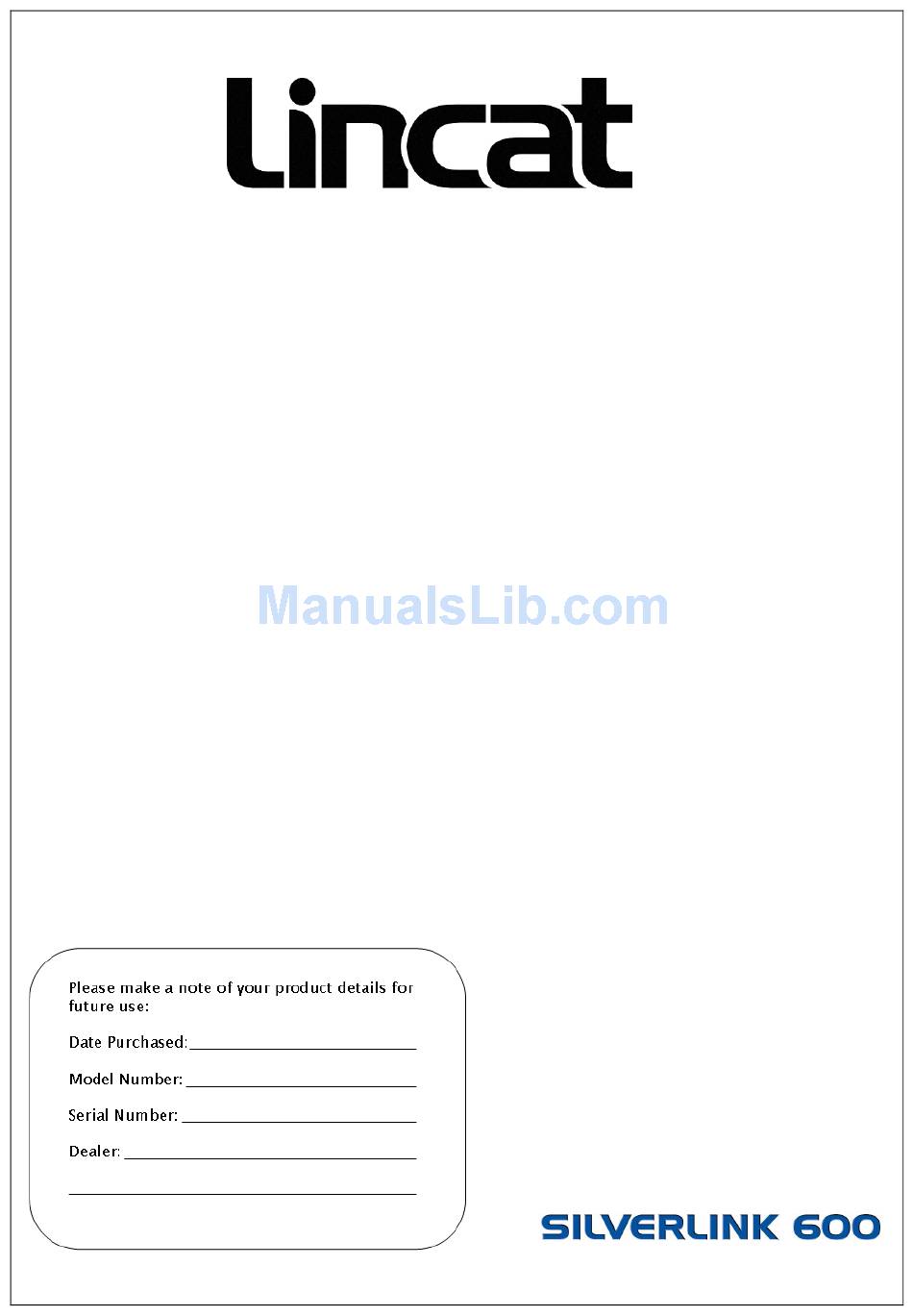

  • Page 1 User, Installation and Servicing Instructions Silverlink 600 Gas Griddles GS4 and GS7 IS212 ECN3592...
  • Page 2 INSTALLATION AND SERVICING INSTRUCTIONS Please read the following carefully before commencing work on this unit. WARNINGS AND PRECAUTIONS This appliance must be installed by a competent installation engineer in accordance with the installation instructions, and should conform to the following requirements: ...
  • Page 3 TECHNICAL DATA GS4 Units Dimensions 415 x 450 x 600 Weight 33kg ½” BSP Inlet connection Natural Gas (G20). Supply Pressure  20mbar Heat Input (Gross). 5.4 kW Burner Pressure 16 mbar Injector size 1.25mm (Stamp code: 210) Gas Rate 0.51 m Low rate setting 0.09m...
  • Page 4: Table Of Contents

    CONTENTS  FOREWORD 1. INSTALLATION INSTRUCTIONS 1.1. Ventilation 1.2. Installation Position 1.3. Installation Commissioning 1.4. Gas Supply and Connection 1.5. Pressure Setting 1.6. Heat Input 2. OPERATING INSTRUCTIONS 2.1. Lighting of Appliance 2.2. Shut Down of Appliance 2.3. Preparation for Use 2.4.
  • Page 5 FOREWORD Thank you for buying this Lincat product, which we hope, will give you years of trouble free service. To ensure you receive the maximum benefit from your new Griddle please take the time to read these instructions carefully, following any directions given.
  • Page 6: Installation Instructions

    All operators must know how to light, safely operate and shutdown the appliance. Although all Lincat griddles are functionally checked during manufacture, commissioning should include an operational check of all controls.
  • Page 7: Pressure Setting

    PRESSURE SETTING Pressure setting can be carried out by the removal of the facia panel. This procedure is to expose the test nipple. With all burners lit and set to maximum, ensure that the supply pressure for Natural gas appliances is 20mbar and the burner pressure is adjusted to 16mbar.
  • Page 8: Operating Instructions

    Rinse to ensure that all traces of detergent have been removed. Once clean and dry, the plate can be protected with a light coat of cooking oil. For heavy, stubborn deposits a de-greasing agent such as, ‘CARBON-OFF’ is available from Lincat upon request. 2.4.2 Chromed Plate Food debris should be removed regularly during use.
  • Page 9: Servicing

    Remove the fat drawer, control knobs and fascia panel.  Remove the rear panel.  Slide the hob top / griddle plate backwards and lift off. This assembly is very heavy and Lincat advises this is a two-person job.  Loosen the thermocouple-retaining nut at the valve.
  • Page 10: Spares List

     Lift the burner clear of the assembly.  Refitting is the reverse of the above. SPARES LIST The following components are listed with the Lincat reference number followed by a brief description. VA11 Multi function valve. * TC34 Thermocouple.
  • Page 11: Troubleshooting

    TROUBLESHOOTING Burner/s will not light Or stay lit  Check gas supply  check injector for blockages  Check thermocouple connections  tighten connections  Check thermocouple voltage  minimum 5mv replace thermocouple  Check thermocouple location  Distance from burner ports to thermocouple tip 3mm ...
  • Page 12: Service Information

    Incorrect installation, maintenance, modification or unauthorised service work. GUARANTEE STATEMENT Lincat Ltd guarantees its equipment to be free from defects in materials and workmanship for a period of 1 (one) year commencing from the date of purchase from the dealer, by the original owner.

This manual is also suitable for:

Silverlink 600 gs7
