If you are missing parts, instructions or have questions, DO NOT take this unit back to the
STOP!
store. Call 1-800-SOLO-INC. Solo will send the missing parts/information to you promptly.
WARNING!!! THIS PRODUCT IS DESIGNED TO SPRAY CHEMICALS THAT MAY BE HARMFUL AND
COULD CAUSE SERIOUS PERSONAL INJURY IF INHALED OR BROUGHT INTO CONTACT WITH
THE USER. FAILURE TO READ AND FOLLOW OPERATOR'S MANUAL / INSTRUCTIONS BEFORE
USE AND/OR MISUSE OF THIS PRODUCT COULD RESULT IN EXPLOSIVE FAILURE WITH MAJOR
INJURIES.
•
ALWAYS water test sprayer before each use.
•
ALWAYS wear long sleeve shirts, long pants, goggles, gloves and durable shoes.
•
ALWAYS READ AND FOLLOW label instructions for the chemicals to be applied.
•
AFTER USE release pressure and clean the sprayer.
•
ALWAYS RELEASE pressure in sprayer before servicing.
•
DO NOT alter the sprayer or any components.
•
DO NOT spray flammable, caustic (i.e. acids, chlorines and bleach), corrosive, heated or self-heating solu-
tions with this sprayer.
•
DO NOT store liquids in the sprayer.
•
NEVER fill tank above the "MAX FILL LINE" on the tank.

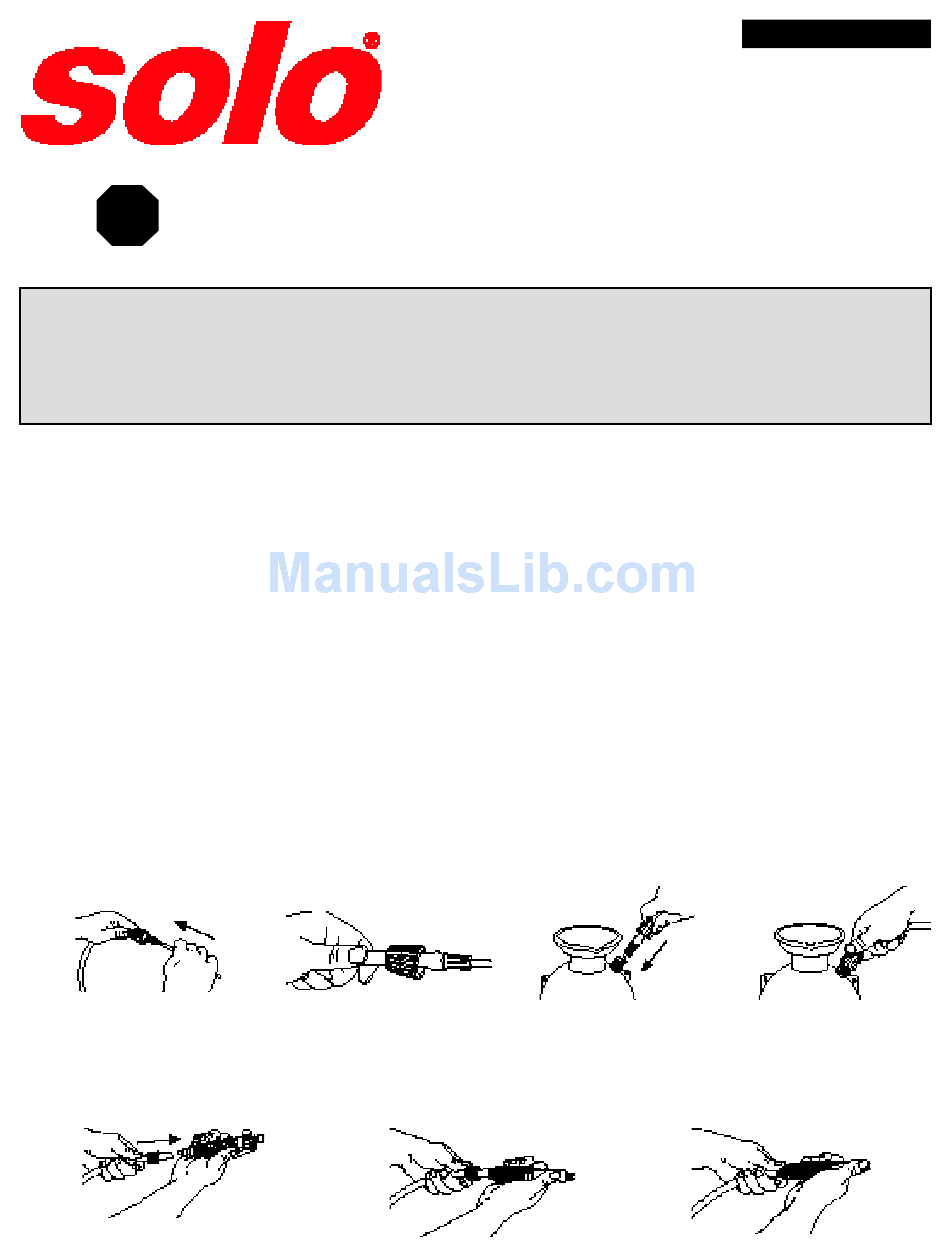

A. HOSE TO TANK ASSEMBLY

.
Insert the pink siphon tube approximately ½" into the pink hose insert; otherwise sprayer will spray only air.
2.
Lubricate the black o-ring on the pink hose insert and then push (2a) into the threaded tank nipple until fully
seated.
.
Screw hose nut onto threaded tank nipple. Firmly hand tighten.
1

B. FLOW CONTROL TO HOSE

.
Remove the flow control hose nut from the flow control and slide over the hose.
2.
Push the hose over the pointed end of the flow control until it touches the threads.
.
Screw the flow control hose nut onto the flow control. Firmly hand tighten.
1
Operator's Manual &
Spare Parts List
SLC-1G, SLC-2G, SLC-3G

ASSEMBLY INSTRUCTIONS

2
2
2a

USSLC0809 (08-09)
3
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLC-1G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Solo SLC-1G

Summary of Contents for Solo SLC-1G

  • Page 1: Assembly Instructions

    If you are missing parts, instructions or have questions, DO NOT take this unit back to the STOP! store. Call 1-800-SOLO-INC. Solo will send the missing parts/information to you promptly. WARNING!!! THIS PRODUCT IS DESIGNED TO SPRAY CHEMICALS THAT MAY BE HARMFUL AND COULD CAUSE SERIOUS PERSONAL INJURY IF INHALED OR BROUGHT INTO CONTACT WITH THE USER.

  • Page 2: Operating Instructions

    C. WAND TO FLOW CONTROL Push the wand into the flow control until it stops. Slide the o-ring down until it touches the flow control. Screw the wand nut onto the flow control. Firmly hand tighten. TO ENSURE CORRECT ASSEMBLY, TEST SPRAYER WITH WATER BEFORE USING. OPERATING INSTRUCTIONS A.

  • Page 3: Troubleshooting

    E. CLEANING Do not store chemicals in the tank. If the chemical is stored in the tank, it can clog the system as it dries and destroy the seals and other components. To prolong its life, clean the sprayer after each use. After using water-based products, rinse thoroughly with soapy water, then clean water, being sure to flush out the hose and flow control.
  • Page 4 PROBLEM: Bad spray pattern or low spray volume. CAUSE: (1) Nozzle is clogged or (2) low pressure in sprayer. SOLUTION: (1) Remove nozzle and clean; remove wand and clean. If wand cannot be unclogged, replace it or (2) repressurize the tank. PROBLEM: Nozzle leaks when flow control is closed.

This manual is also suitable for:

Slc-2gSlc-3g
