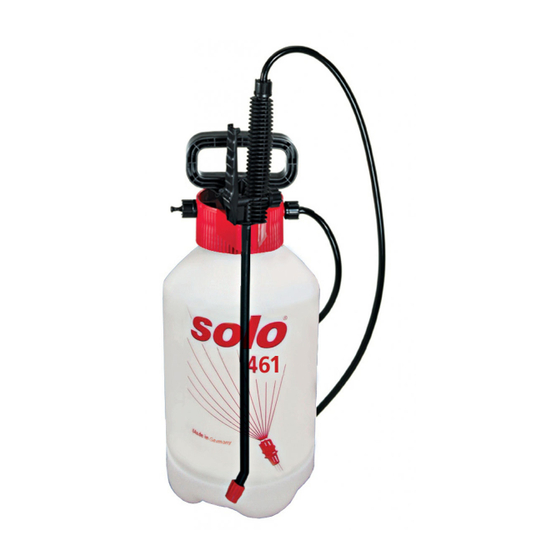

Solo 461 Instruction Manual
Hide thumbs
Also See for 461:
- Instruction manual (24 pages) ,
- Original instructions manual (10 pages) ,
- Instructions (2 pages)
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Solo 461
Summary of Contents for Solo 461
- Page 1 461 / 462 / 463 Instruction manual Pressure sprayer Translation of the original instructions Important! Read this instruction manual carefully before first operation and strictly observe the safety regulations! 9 461 108 ENGLISH 02/2014...
- Page 2 Wear the prescribed protective clothing. Your authorised SOLO dealer will be glad to assist you with any questions. Wear protective gloves. EC declaration of conformity...
-
Page 3: Table Of Contents
Table of contents 1 Safety regulations ............................. 4 1.1 Correct use / areas of application ...................... 4 1.2 General safety instructions ........................ 4 1.3 Safe handling of spraying agents ...................... 5 1.4 Work clothing / personal protection equipment (PPE) ............... 5 1.5 ... -
Page 4: Safety Regulations
Always use genuine It is also important to follow any relevant health and SOLO replacement parts, as these are the only safety regulations that apply to your place of work. parts that have been manufactured with the... -
Page 5: Safe Handling Of Spraying Agents
1 Safety regulations He also has access to the necessary spare parts Clean the spraying agent tank and all other lists, from which the required part numbers can spraying agent carrying parts whenever the be taken, and he will also be kept up to date spraying agent is changed. -
Page 6: Transportation Of The Device
(Fig. 3) and have it checked All repairs must only be performed using by a specialist workshop. genuine SOLO replacement parts. Before pulling on the pressure relief valve (4), The device must not be altered in any way, as the device must always be in an upright position. -
Page 7: Preparing The Device For Use
2.4 Trial run Installation of the nozzle attachment At first start-up, at the start of the spraying season (only for models 461 and 462): and in frequent use at least once a month, perform Firmly screw the nozzle attachment (Fig. 2, a trial run according to section 5.1 to check the... -
Page 8: Using The Pressure Sprayer
(maximum fill volume). unintended release of agent to other areas is Maximum fill volume: Model 461: 5.0 l [1.32 gal] minimized and the drift to the surrounding areas Model 462: 7.0 l [1.85 gal] is prevented. -
Page 9: Transport Of The Pressure Sprayer
4 Using the pressure sprayer / 5 Maintenance, cleaning and storage Hold the spray tube at the shut-off valve in your dilute this leftover amount with two litres [68 oz] of hand. clean water and spray it on the treated area. Start the spraying process by pressing the shut-off When you finish working, prepare the device for valve (5). -
Page 10: Changing The Spray Nozzle And The Filter Element
Place the empty and depressurized device nozzle and/or the filter element by genuine SOLO securely on level ground. replacement parts. Unscrew the pump couterclockwise from the Changing the spray nozzle and the filter element: spraying agent tank (Fig. -
Page 11: Taking The Sprayer Out Of Service And Putting It Into Storage
(Fig. 3) and have it checked by a specialist workshop. Before pulling on the pressure relief valve (4), the device must always be in an upright position. Attention: Keep the device away from your face! If you have any questions please refer to your authorised SOLO dealer. ENGLISH 11... -
Page 12: Specification And Special Accessories
6 Specification and special accessories / 7 Wearing parts / 8 Warranty 6 Specification and special accessories Model Spraying agent tank: Nominal volume ("Total Vol." ), approx. 8.3 l [2.19 gal] 9.5 l [2.51 gal] 12.5 l [3.30 gal] Max. fill volume ("max. Vol." ), approx. -
Page 13: Standard Delivery
Threaded collar Spray tube with assembled nozzle attachment (only for model 463) Spray tube and nozzle attachment including O-ring (10x2 mm) (only for models 461 and 462) Carrying strap Alternative nozzle with associated seal ring ... - Page 14 Made in Germany SOLO Kleinmotoren GmbH SOLO Kleinmotoren GmbH Postfach 60 01 52 PO Box 60 01 52 71050 Sindelfingen 71050 Sindelfingen DEUTSCHLAND GERMANY Tel.: +49 7031 301-0 Tel.: +49 7031 301-0 Fax: +49 7031 301-130 Fax: +49 7031 301-149 info@solo-germany.com...
