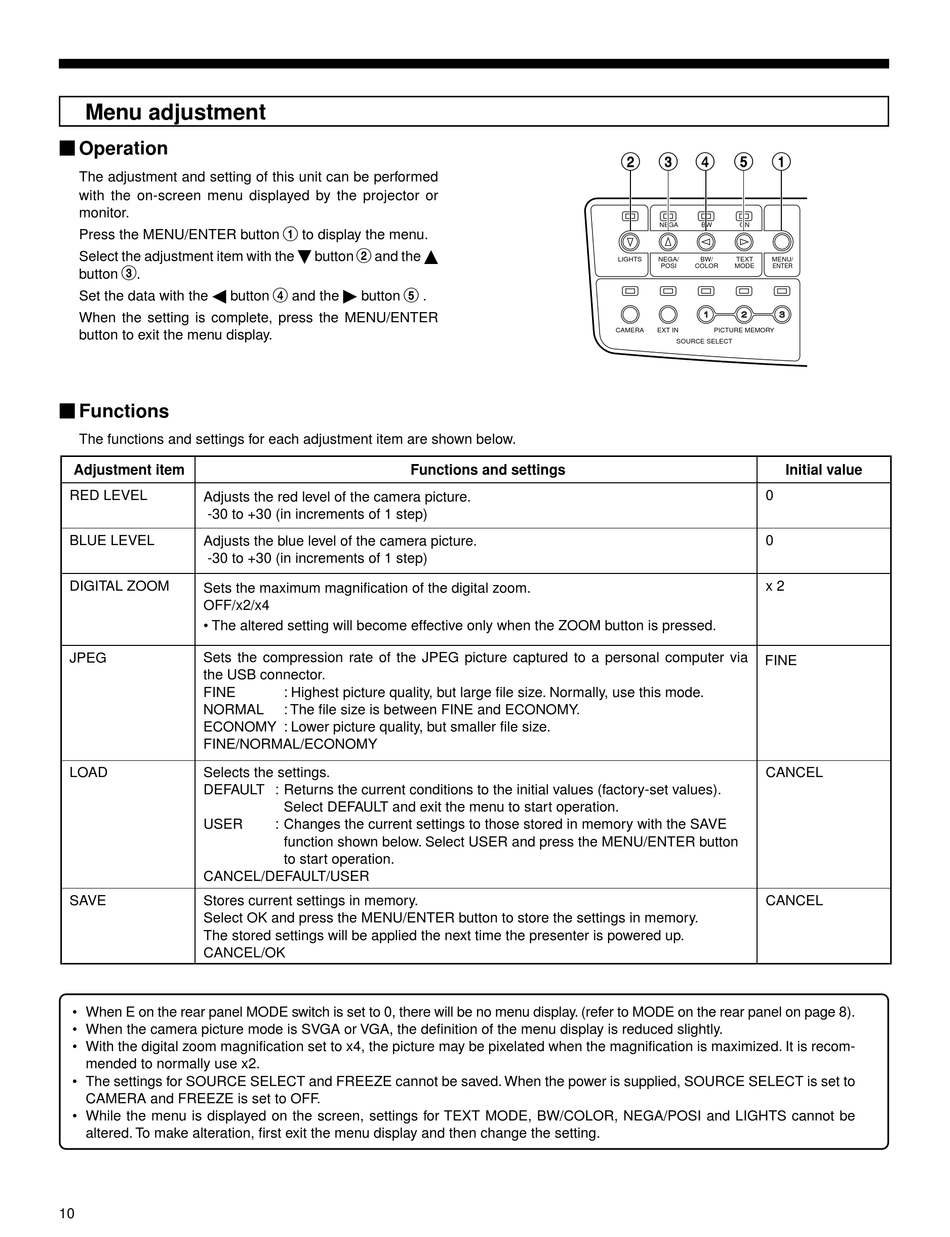

Menu adjustment
Operation
The adjustment and setting of this unit can be performed
with the on-screen menu displayed by the projector or
monitor.
Press the MENU/ENTER button
Select the adjustment item with the
3
button
.
Set the data with the
button
When the setting is complete, press the MENU/ENTER
button to exit the menu display.
Functions
The functions and settings for each adjustment item are shown below.
Adjustment item
RED LEVEL
Adjusts the red level of the camera picture.
-30 to +30 (in increments of 1 step)
BLUE LEVEL
Adjusts the blue level of the camera picture.
-30 to +30 (in increments of 1 step)
DIGITAL ZOOM
Sets the maximum magnification of the digital zoom.
OFF/x2/x4
• The altered setting will become effective only when the ZOOM button is pressed.
Sets the compression rate of the JPEG picture captured to a personal computer via
JPEG
the USB connector.
FINE
NORMAL
ECONOMY : Lower picture quality, but smaller file size.
FINE/NORMAL/ECONOMY
LOAD
Selects the settings.
DEFAULT : Returns the current conditions to the initial values (factory-set values).
USER
CANCEL/DEFAULT/USER
SAVE
Stores current settings in memory.
Select OK and press the MENU/ENTER button to store the settings in memory.
The stored settings will be applied the next time the presenter is powered up.
CANCEL/OK
• When E on the rear panel MODE switch is set to 0, there will be no menu display. (refer to MODE on the rear panel on page 8).
• When the camera picture mode is SVGA or VGA, the definition of the menu display is reduced slightly.
• With the digital zoom magnification set to x4, the picture may be pixelated when the magnification is maximized. It is recom-
mended to normally use x2.
• The settings for SOURCE SELECT and FREEZE cannot be saved. When the power is supplied, SOURCE SELECT is set to
CAMERA and FREEZE is set to OFF.
• While the menu is displayed on the screen, settings for TEXT MODE, BW/COLOR, NEGA/POSI and LIGHTS cannot be
altered. To make alteration, first exit the menu display and then change the setting.
10
1
to display the menu.
2
button
and the
4
5
and the
button
.
Functions and settings
: Highest picture quality, but large file size. Normally, use this mode.
: The file size is between FINE and ECONOMY.
Select DEFAULT and exit the menu to start operation.
: Changes the current settings to those stored in memory with the SAVE
function shown below. Select USER and press the MENU/ENTER button
to start operation.
2 3 4 5 1
NEGA
BW
ON
LIGHTS
NEGA/
BW/
TEXT
MENU/
POSI
COLOR
MODE
ENTER
CAMERA
EXT IN
PICTURE MEMORY
SOURCE SELECT
Initial value
0
0
x 2
FINE
CANCEL
CANCEL
