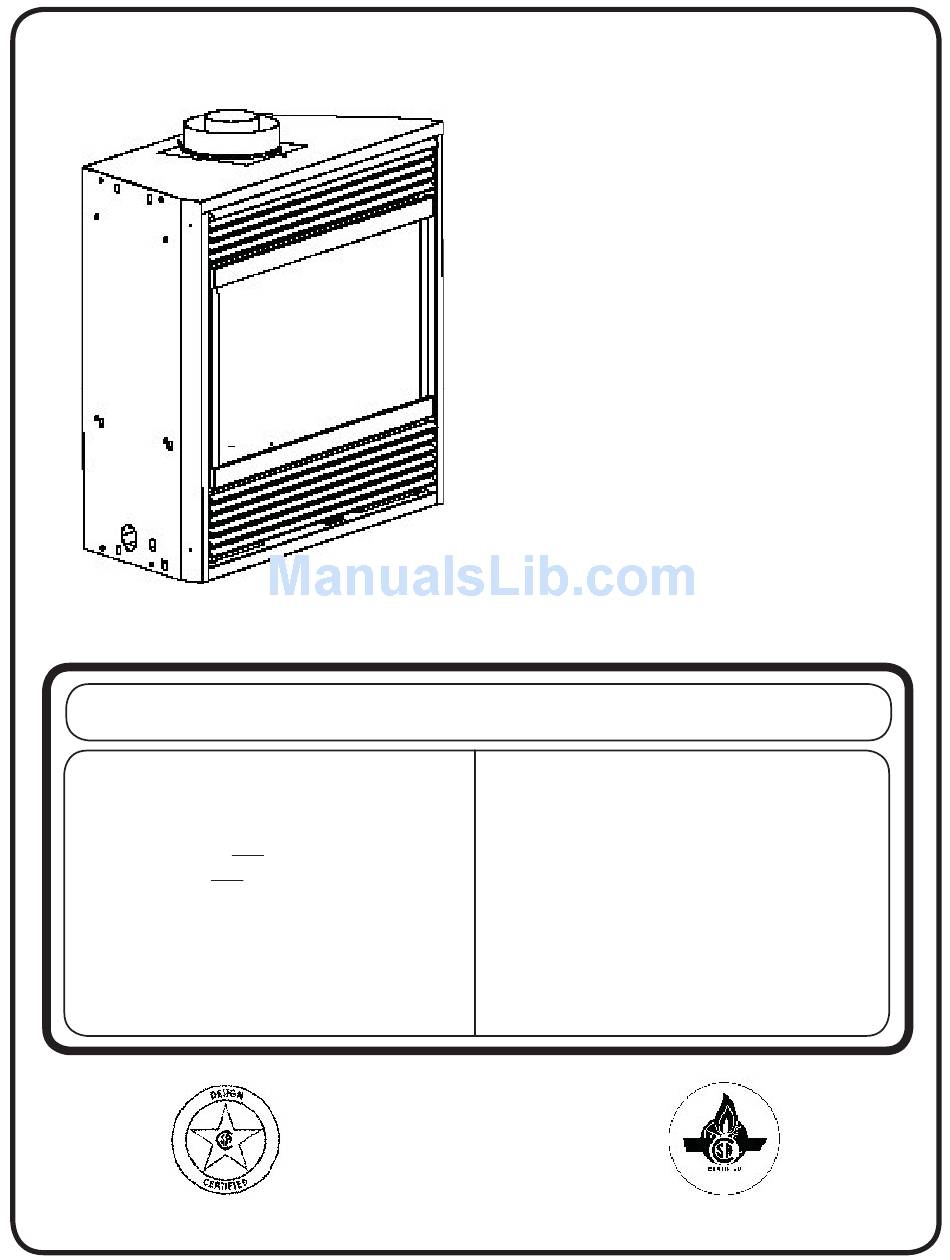

I
NSTALLATION
WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electric switch
* Do not use any phone in your building.
* Immediately call your gas supplier from
your neighbours phone. Follow the gas
suppliers instructions.
* If you cannot reach your gas supplier
call the fire department
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
I
NSTRUCTIONS
Top Vent
Direct Vent Models
DBT33
DBT36
DBT39
& H
OMEOWNER
FOR YOUR SAFETY
DO NOT STORE
OR USE GASOLINE OR OTHER
FLAMMABLE VAPOURS AND/OR
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE.
Installation and service must be performed
by a qualified installer, service agency or
your gas supplier.
'
M
S
ANUAL
10002789
08/00 Rev. 0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Majestic DBT33
Summary of Contents for Majestic DBT33
- Page 1 Top Vent Direct Vent Models DBT33 DBT36 DBT39 & H NSTALLATION NSTRUCTIONS OMEOWNER ANUAL WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
-
Page 2: Table Of Contents
Troubleshooting Guide ......................24 Replacement Parts Part Number List........................26 Parts Pictorial ..........................28 Optional Accessories EB-1 Electrical Junction Box ....................29 Fan Kits.............................29 Ceramic Refractory Lining .......................31 Window Screen Kit........................31 Decorative Bay Window ......................32 Remote Control Units .......................32 Warranty Imformation....................Back Cover DBT33/DBT36/DBT39 10002789/0... -
Page 3: Appliance Installation Instructions Important Curing/Burning Instructions
** When you install your fireplace in a Room divider (D) or flat on the wall in a corner (E), a minimum distance of 6" (153 mm) clearance must be maintained from the perpendicular wall and the front of the appliance. See (Y) in Fig. 1. 10002789/0 DBT33/DBT36/DBT39... -
Page 4: Fireplace Dimensions
PPLIANCE IMENSIONS Appliance Dimensions Ref. DBT33 DBT36 DBT39 838 mm (33") 914 mm (36") 991 mm (39") 733 mm (28.87") 870 mm (34.25") 870 mm (34.25") 416 mm (16.37") 533 mm (21") 533 mm (21") 787 mm (31") 838 mm (33") 914 mm (36") -
Page 5: Clearance To Combustibles
Screw through the slotted holes in the drywall strip and into the pre-drilled holes in the fireplace side. Measure from the face of the fireplace to the face of the drywall strip to confirm the final depth. Fig. 2 10002789/0 DBT33/DBT36/DBT39... -
Page 6: Final Finishing
DBT33 / DBT36 / DBT39 CERTIFIED TO ANSI Z21.88b-1999 / CSA Z2.33b-M99 Vented Gas Fireplace Heaters PECIFICATIONS Max. Min. Input Input Model Fuel Gas Control BTU/h BTU/h DBT33RN Nat. Millivolt 15,000 10,500 Fig. 3 DBT33RP Prop. Millivolt 15,000 11,250 DBT36RN Nat. -
Page 7: Gas Line Installation
1/2 p.s.i.. Isolate or disconnect this and any other gas appliance control from the gas line when pressure testing. Fig. 7 Do not wire the remote ON/OFF wall switch for the gas fireplace to the 120 volt power supply. 10002789/0 DBT33/DBT36/DBT39... -
Page 8: Converting The Appliance Between Gas Types
Insert the new colour coded conversion screw. Do not over-tighten the screw, it must be finger tight. The DBT33 is convertible between Natural Gas an LP gas d) Refit the regulator cap. (and vice-versa) with the use of a conversion kit purchased e) Mount the conversion label supplied with the conver- seperately, see your dealer for the correct part number. -
Page 9: Venting Installation Instructions General Venting Information - Terminal Location
2 sides beneath the floor * as specified in CAN/CGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. Installations follow the current National Fuel Gas Code, ANSI Z223.1. Note: Local codes or regulations may require different clearances. 10002789/0 DBT33/DBT36/DBT39... - Page 10 Fig. 11 Fig. 12 Fig. 13 Fig. 15 Fig. 14 DBT33/DBT36/DBT39 -10- 10002789/0...
-
Page 11: Connecting Direct Vent Components
8-1/2' (2.6 m). Fig. 16 Twist Lock Pipes When using CFM Majestic Inc. Twist Lock pipe it is not necessary to use sealant on the joints. The only areas of the venting system that need to be sealed with high temperature silicone sealant are the collars on the fireplace and termination, and the sliding joint of any tele-... -
Page 12: Vertical Sidewall Applications
Elbow 4 90º Fig. 18 Total angular variation 270º • If a 90º elbow is fitted directly onto the fireplace flange the maximum horizontal vent run before the termination is 36" (914 mm). Fig. 19 Fig. 21 DBT33/DBT36/DBT39 -12- 10002789/0... -
Page 13: Vertical Sidewall Installations
Zero clearance sleeve is only required for combustible walls. Fig. 23 STEP 3 Place fireplace into position. (Fig. 24). Measure the vertical height (X) required from the base of the flue collars to the Fig. 25 centre of the wall opening. 10002789/0 -13- DBT33/DBT36/DBT39... -
Page 14: Below Grade Installations
Apply high temperature sealant caulking (supplied) around the 4" and 7" snorkel collars. Slide the snorkel into the vent pipes and secure to the wall. Level the soil so as to maintain a 4" clearance below snorkel. (Fig. 28) DBT33/DBT36/DBT39 -14- 10002789/0... -
Page 15: Vertical Through-The-Roof Applications
A minimum of an 8' vertical rise. Fig. 29 • Two sets of 45º elbow offsets within these vertical instal- lations. From 0 to a maximum of 8' of vent pipe can be used between elbows. (Fig. 31) 10002789/0 -15- DBT33/DBT36/DBT39... - Page 16 ESTRICTOR LATE (DBT33 ONLY When installing the DBT33 with a Vertical Through-The-Roof configured flue system the restrictor plate, (#10002495) sup- Refit the baffle assembly to the firebox, replacing the three plied with the appliance MUST BE FITTED TO THE (3) screws and four (4) nuts.
-
Page 17: Vertical Through-The-Roof Installations
Install appropriate pipe sections until the venting is above above ceiling level a 7DVAIS (Attic Insulation the flashing. (See Fig. 37). Shield) must be installed. The enlarged ends of the vent section always face downward, Fig. 37. Fig. 36 10002789/0 -17- DBT33/DBT36/DBT39... -
Page 18: Venting Components - Crimped End Venting
4 per box Model 7DVP12" 4 per box Model 7DVP24" 4 per box Model 7DVP36" Model 7DVP48" Firestop Spacer Model 7DVFS Attic Insulation Shield Model 7DVAIS Vertical/Horizontal Combination Offset Support Model 7DVCS 7DVSS Siding Shield (to protect siding) DBT33/DBT36/DBT39 -18- 10002789/0... -
Page 19: Venting Components - Twist Lock Venting
Pipe sections for vertical or horizontal venting Model 7TDVP8" Model 7TDVP12" Model 7TDVP24" Model 7TDVP36" Model 7TDVP48" Firestop Spacer Model 7DVFS Attic Insulation Shield Model 7DVAIS Vertical/Horizontal Combination Offset Support Model 7DVCS 7DVSS Siding Shield (to protect siding) 10002789/0 -19- DBT33/DBT36/DBT39... -
Page 20: Operating Instructions
LASS RAME EMOVAL Turn the fireplace OFF (including the pilot). Only glass approved by CFM Majestic Inc. If the unit has been operating allow time for the compo- should be used on this fireplace. nents to cool. Remove the top louvre assembly. -
Page 21: Installation Of Logs & Lava Rock
Remove the logs from their packaging. The logs are fragile and should be handled with care. Keep the packaging material out of the reach of DBT33 children and dispose of the material in a safe Fig. 41 manner Place the rear log (see chart for identification number) in the rear support channel. -
Page 22: Flame & Temperature Adjustment
RN/RP & EN/EP Models For units equipped with ‘HI/LO’ valves the flame adjustment is accomplished by rotating the ‘HI/LO’ adjustment knob located near the centre of the gas control valve, Fig. 44 & 45 DBT33 Fig. 47 Fig. 44 Fig. 45 DBT36 Fig. -
Page 23: Lighting Instructions
4. Push in gas control knob slightly and turn clock- Turn off all electric power to the fireplace if wise to "OFF". Do not force. service is to be performed. 5. Close control access panel. 10002789/0 -23- DBT33/DBT36/DBT39... -
Page 24: Troubleshooting Guide
TROUBLE SHOOTING THE GAS CONTROL SYSTEM HONEYWELL MILLIVOLT VALVE DBT33/DBT36/DBT39 -24- 10002789/0... - Page 25 Clean and/or adjust pilot flame for maximum flame problem. or blowing (high) causing the impingement on thermopile and thermocouple. pilot safety to drop out. B. Possible blockage of the vent Check the vent terminal for blockage (recycling the flue gases) terminal. 10002789/0 -25- DBT33/DBT36/DBT39...
-
Page 26: Replacement Parts
EPLACEMENT ARTS Items marked ‘*’ are not shown in the following parts pictorial page. Ref. Description DBT33 DBT36 DBT39 Log Set (complete) 10000470 10000023 10000024 Log - Front left Log - Front right Log - rear Log - Top left... - Page 27 Ref. Description DBT33 DBT36 DBT39 Knob, fan speed control, (FK24 option) 51882 51882 51882 Fan assembly, with bracket (FK12 option) ZA1110 ZA1110 ZA1110 Window frame assembly 10001803 10001425 54363 Window glass (with gasket) 10002822 10001781 10002821 Gasket (window glass) 57317...
-
Page 28: Parts Pictorial
ARTS ICTORIAL DBT33/DBT36/DBT39 -28- 10002789/0... -
Page 29: Electrical Junction Box
fireplace Install the thermal sensor under the bottom of the firebox, locating it over the two 10 mm studs and secure it with nuts. 10002789/0 -29- DBT33/DBT36/DBT39... - Page 30 No further securing is required. Power to the fan can be supplied by plugging the supplied lead into a conveniently located wall socket or by using a hard-wired EB1 connector box. DBT33/DBT36/DBT39 -30- 10002789/0...
-
Page 31: Ceramic Refractory Lining
ERAMIC EFRACTORY Ceramic refractory panels are available in kit form for the DBT series appliances. Appliance Model Kit Name DBT33 33BDVTCR DBT36 36BDVCR DBT39 39BDVCR Take care when handling the refractory panels as they are fragile until held in place and sup- Fig. -
Page 32: Decorative Bay Window
ECORATIVE INDOWS Bay window kits are available for the DBT33, DBT36 & DBT39 model appliances. When fitting the Bay Window Kits the original front frame/glass assembly MUST remain in place. The Bay Window kit is fitted over the existing front glass. - Page 33 10002789/0 -33- DBT33/DBT36/DBT39...
- Page 34 LIMITED WARRANTY & EXTENDED LIFE TIME PROTECTION For Gas Appliance Products* CFM Majestic, Inc. DBT33/DBT36/DBT39 -34- 10002789/0...
