Belkin N1 MIMO Wireless User Manual

Belkin N1 MIMO Wireless User Manual

N1 mimo wireless adsl2+ modem router
Hide thumbs Also See for N1 MIMO Wireless:
Table of Contents

Advertisement

Quick Links

Download this manual

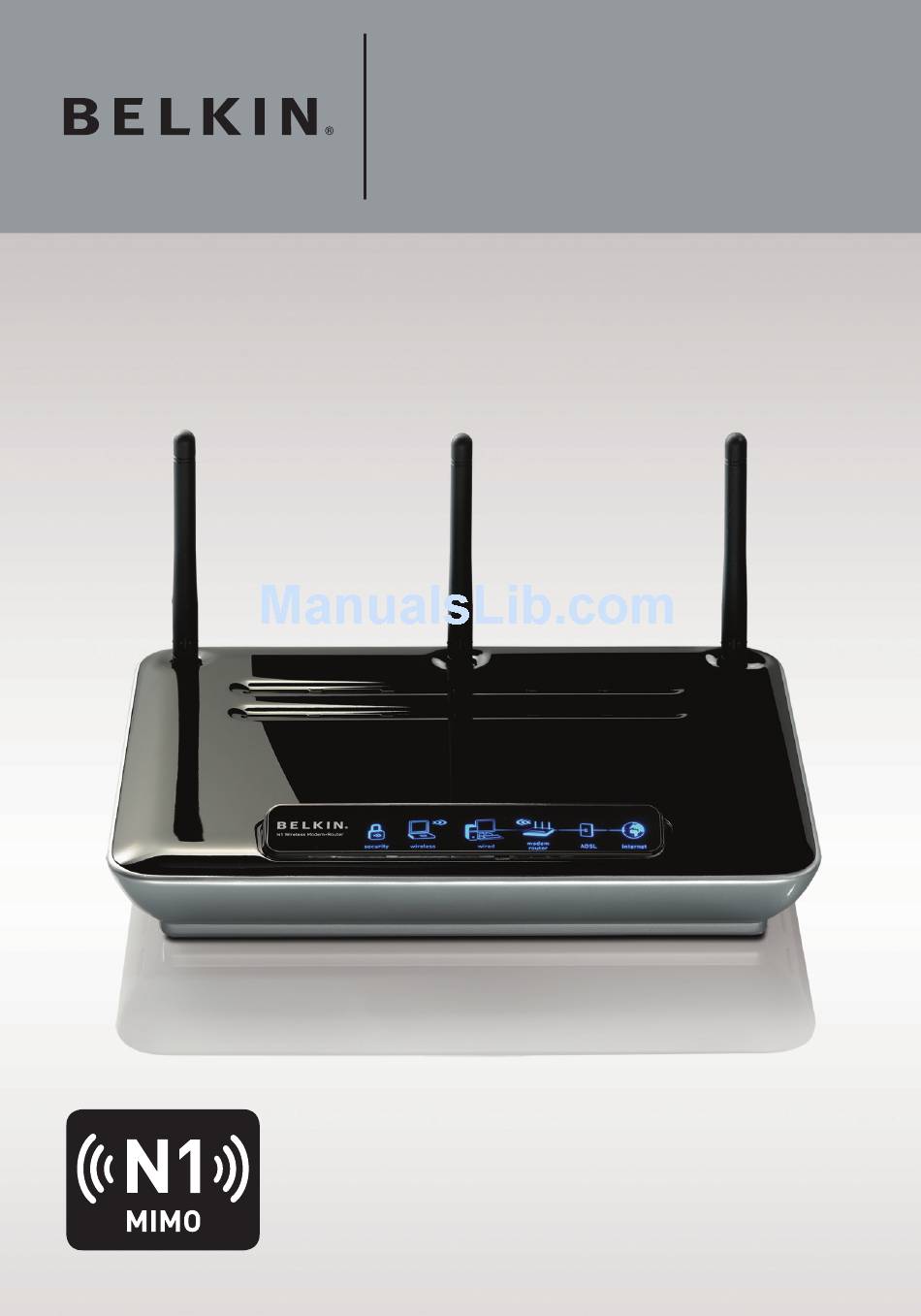

N1 MIMO Wireless
ADSL2+ Modem Router

User Manual

F5D8631-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N1 MIMO Wireless and is the answer not in the manual?

Questions and answers

Related Manuals for Belkin N1 MIMO Wireless

Summary of Contents for Belkin N1 MIMO Wireless

  • Page 1: User Manual

    N1 MIMO Wireless ADSL2+ Modem Router User Manual F5D8631-4...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction ..............1. Advantages.of.a.Wireless.Network........1. Placement.of.your.N1.Wireless.Modem.Router....3 2. Product Overview ............7. Product.Features............. 7 3. Knowing your Modem Router ........10. Package.Contents............10. System.Requirements.............10. Setup.Assistant.Software.System.Requirements....10 4. Connecting and Configuring your Modem Router..14 5. Alternate Setup Method ..........23 6. Using the Web-Based Advanced User Interface....35. Changing.LAN.Settings...........36.

  • Page 3: Introduction

    •.Share.documents,.music,.video,.and.digital.pictures •.Store,.retrieve,.and.copy.files.from.one.computer.to.another •.Simultaneously.play.games.online,.check.Internet.email,.and.chat. Advantages of a Wireless Network Here.are.some.of.the.advantages.of.setting.up.a.Belkin.Wireless.Network: •.. M obility –.you’ll.no.longer.need.a.dedicated.“computer.room”—now. you.can.work.on.a.networked.laptop.or.desktop.computer.anywhere. within.your.wireless.range •.. E asy installation –.Belkin’s.Easy.Installation.Wizard.makes.setup.simple •.. F lexibility –.set.up.and.access.printers,.computers,.and.other. networking.devices.from.anywhere.in.your.home •.. E asy expansion –.the.wide.range.of.Belkin.networking.products.let.you. expand.your.network.to.include.devices.such.as.printers.and.gaming. consoles •.. N o cabling required –.you.can.spare.the.expense.and.hassle.of. retrofitting.Ethernet.cabling.throughout.the.home.or.office •.. W idespread industry acceptance –.choose.from.a.wide.range.of.
  • Page 4 Introduction Revolutionary N1 Wireless Technology with MIMO (N1 MIMO) Your.Belkin.N1.Wireless.Modem.Router.uses.a.new.smart-antenna. technology.called.Multiple.Input.Multiple.Output.(MIMO)..N1.MIMO. complies.with.the.IEEE.draft.802.11n.specification..It.increases. speed,.range,.reliability,.and.spectral.efficiency.for.wireless. networking.systems. The.element.that.makes.Belkin’s.N1.MIMO.technology.different. from.a.conventional.radio.is.the.use.of.multiple.antennas.and.two. simultaneous.data.streams.to.deliver.wireless.transfers.around.your. home.or.office..A.conventional.radio.uses.one.antenna.to.transmit. a.data.stream..Belkin’s.N1.MIMO,.on.the.other.hand,.uses.three. antennas..This.design.helps.combat.distortion.and.interference.. Belkin’s.N1.MIMO.is.multidimensional..It.builds.on.one-dimensional. smart-antenna.technology.by.simultaneously.transmitting.two.data. streams.through.the.same.channel,.which.increases. . wireless.capacity.. Another.element.that.enhances.Belkin’s.N1.MIMO.is.the.use.of. aggregation.as.specified.in.the.draft.802.11n.specification.. . By.shortening.the.space.between.packets.and.combining.multiple. smaller.packets.into.one.larger.packet,.Belkin’s.N1.MIMO.can. transmit.more.data.through.available.bandwidth.. Think.of.conventional.radio.transmission.as.a.two-lane.highway..The. speed.limit.governs.the.maximum.allowable.flow.of.traffic.through. that.lane..Compared.with.conventional.radios,.one-dimensional.smart. antenna.systems.help.move.traffic.through.that.lane.faster.and.more. reliably—analogous.to.a.four-lane.road.on.which.traffic.consistently. moves.at.a.rate.closer.to.the.speed.limit..Belkin’s.N1.MIMO.helps. traffic.move.at.the.speed.limit.and.opens.more.lanes—to.become.the. superhighway.in.this.example..The.rate.of.traffic.flow.is.multiplied.by. the.number.of.lanes.that.are.opened.

  • Page 5: Placement.of.your.n1.Wireless.modem.router

    Introduction Introduction Placement of your N1 MIMO Wireless Modem Router Important Factors for Placement and Setup Your.wireless.connection.will.be.stronger.the.closer.your.computer.is.to. your.Modem.Router..Typical.indoor.operating.range.for.wireless.devices. is.between.100.and.200.feet. In.the.same.way,.your.wireless.connection.and.performance.will.degrade. somewhat.as.the.distance.between.your.Modem.Router.and.connected. devices.increases..This.may.or.may.not.be.noticeable.to.you..As.you. move.further.from.your.Modem.Router,.connection.speed.may.decrease.. Factors.that.can.weaken.signals.simply.by.getting.in.the.way.of.your. network’s.radio.waves.are.metal.appliances.or.obstructions,.and.walls. If.you.have.concerns.about.your.network’s.performance.that.might.be. related.to.range.or.obstruction.factors,.try.moving.the.computer.to.a. position.between.five.and.10.feet.from.the.Modem.Router.in.order.to. see.if.distance.is.the.problem..If.difficulties.persist.even.at.close.range,. please.contact.Belkin.Technical.Support. Note:.While.some.of.the.items.listed.below.can.affect.network. performance,.they.will.not.prohibit.your.wireless.network.from. functioning;.if.you.are.concerned.that.your.network.is.not.operating.at. its.maximum.effectiveness,.this.checklist.may.help. Modem Router Placement . . P lace.your.Modem.Router,.the.central.connection.point.of.your.network,.
  • Page 6 Introduction 2. Avoid Obstacles and Interference . A void.placing.your.Modem.Router.near.devices.that.may.emit.radio. “noise,”.such.as.microwave.ovens..Dense.objects.that.can.inhibit. wireless.communication.include: •.Refrigerators •.Washers.and/or.dryers •.Metal.cabinets •.Large.aquariums •.Metallic-based,.UV-tinted.windows . I f.your.wireless.signal.seems.weak.in.some.spots,.make.sure.that. objects.such.as.these.are.not.blocking.the.signal’s.path.(between. your.computers.and.Modem.Router). Cordless Phones . I f.the.performance.of.your.wireless.network.is.impaired.after. attending.to.the.above.issues,.and.you.have.a.cordless.phone: •.. T ry.moving.cordless.phones.away.from.your.Modem.Router.and. your.wireless-enabled.computers. •.. U nplug.and.remove.the.battery.from.any.cordless.phone.that. operates.on.the.2.4GHz.band.(check.manufacturer’s.information).. If.this.fixes.the.problem,.your.phone.may.be.interfering. •.. I f.your.phone.supports.channel.selection,.change.the.channel.on. the.phone.to.the.farthest.channel.from.your.wireless.network.. . For.example,.change.the.phone.to.channel.1.and.move.your.
  • Page 7 Introduction Introduction . . •.. E xperiment.with.more.than.one.of.the.available.channels,.in.order.to. find.the.clearest.connection.and.avoid.interference.from.neighboring. cordless.phones.or.other.wireless.devices. . . •.. F or.Belkin.wireless.networking.products,.use.the.detailed.Site.Survey. and.wireless.channel.information.included.with.your.wireless.network. card..See.your.network.card’s.user.guide.for.more.information..T hese.guidelines.should.allow.you.to.cover.the.maximum.possible.area. with.your.Modem.Router..Should.you.need.to.cover.an.even.wider.area,. we.suggest.the.Belkin.Wireless.Range.Extender/Access.Point. 5. Secure Connections, VPNs, and AOL . . S ecure.connections.typically.require.a.user.name.and.password,.and. are.used.where.security.is.important..Secure.connections.include: . . •.. V irtual.Private.Network.(VPN).connections,.often.used.to.connect. remotely.to.an.office.network .
  • Page 8 Introduction Free Tech Support You.can.find.additional.support.information.on.our.website. . www.belkin.com/anz.through.the.tech-support.area. If.you.want.to.contact.technical.support.by.phone,.please.call.the. number.you.need.from.the.list.below*.. Australia.-.1800.BELKIN New Zealand.-.0800.BELKIN...

  • Page 9: Product Overview

    Product Overview Product Features. In.minutes.you.will.be.able.to.share.your.Internet.connection.and. network.your.computers..The.following.is.a.list.of.features.that.make. your.new.Belkin.N1.Wireless.Modem.Router.an.ideal.solution.for.your. home.or.small.office.network. Works with Both PCs and Mac Computers ® The.Modem.Router.supports.a.variety.of.networking.environments. including.Mac.OS .8.x,.9.x,.X.v10.x,.Linux ,.Windows .98,.Me,.NT ® ® ® ® 2000,.and.XP,.and.others..All.that.is.needed.is.an.Internet.browser. . and.a.network.adapter.that.supports.TCP/IP.(the.standard.language.of. the.Internet). Patent-Pending Network Status Display Lit.LEDs.on.the.front.of.the.Modem.Router.indicate.which.functions.are. in.operation..You’ll.know.at-a-glance.whether.your.Modem.Router.is. connected.to.the.Internet..This.feature.eliminates.the.need.for.advanced. software.and.status-monitoring.procedures. Web-Based Advanced User Interface You.can.set.up.the.Modem.Router’s.advanced.functions.easily.through.
  • Page 10 Universal Plug and Play (UPnP) UPnP.is.a.technology.that.offers.seamless.operation.of.voice. messaging,.video.messaging,.games,.and.other.applications.that. are.UPnP-compliant. Support for VPN Pass-Through If.you.connect.to.your.office.network.from.home.using.a.VPN. connection,.your.Modem.Router.will.allow.your.VPN-equipped.computer. to.pass.through.the.Modem.Router.and.to.your.office.network. Built-In Dynamic Host Configuration Protocol (DHCP) Built-In.Dynamic.Host.Configuration.Protocol.(DHCP).on-board.makes. for.the.easiest.possible.connection.of.a.network..The.DHCP.server. will.assign.IP.addresses.to.each.computer.automatically.so.there.is.no. need.for.a.complicated.networking.setup. Setup Assistant The.Setup.Assistant,.second.generation.of.Belkin’s.renowned.Easy. Install.Wizard,.takes.the.guesswork.out.of.setting.up.your.Modem. Router..This.automatic.software.determines.your.network.settings.for. you.and.sets.up.the.Modem.Router.for.connection.to.your.Internet. Service.Provider.(ISP)..In.a.matter.of.minutes,.your.Modem.Router.will. be.up.and.running.on.the.Internet. Note:.Setup.Assistant.software.is.compatible.with.Windows.2000.and. XP..If.you.are.using.another.operating.system,.the.Modem.Router.can. be.set.up.using.the.Alternate.Setup.Method.described.in.this.User. Manual.(see.page.23).
  • Page 11 Product Overview Integrated N1 Wireless Access Point N1.MIMO.is.an.exciting.new.wireless.technology.based.on.the.draft. IEEE.802.11n.specification..It.employs.MIMO.(Multiple.Input.Multiple. Output).smart-antenna.technology.that.achieves.data.rates.of.up.to. 270Mbps.*.Actual.throughput.is.typically.lower.than.the.connected. data.rate.and.will.vary.depending.on.your.networking.environment. *NOTE:.The.standard.transmission.rate—270Mbps—is.the.physical. data.rate..Actual.data.throughput.will.be.lower. MAC Address Filtering For.added.security,.you.can.set.up.a.list.of.MAC.addresses.(unique. client.identifiers).that.are.allowed.access.to.your.network..Every. computer.has.its.own.MAC.address..Simply.enter.these.MAC. addresses.into.a.list.using.the.Web-Based.Advanced.User.Interface. and.you.can.control.access.to.your.network.

  • Page 12: Knowing Your Modem Router

    Knowing your Modem Modem Router Package Contents •.Belkin.N1.Wireless.ADSL2+.Modem.Router •.Quick.Installation.Guide •.Belkin.Setup.Assistant.Software.CD •.RJ11.Telephone.Cord •.RJ45.Ethernet.Networking.Cable. •.Power.Supply •.User.Manual.on.CD •.Network.Status.Display.Guide •.Wireless.Security.Setup.Guide. . System Requirements •.. A n.active.ADSL.service.with.a.telephone.wall.jack. . for.connecting.the.Modem.Router •.At.least.one.computer.with.an.installed.network.interface.adapter •.TCP/IP.networking.protocol.installed.on.each.computer •.. N o.other.DHCP.server.on.your.local.network.assigning.IP.addresses. to.computers.and.devices. •.Internet.browser Setup Assistant Software System Requirements •.A.PC.running.Windows .2000.or.XP ® •.Minimum.500MHz.processor.and.128MB.RAM •.Internet.browser...
  • Page 13 Knowing your Modem Router The.Modem.Router.has.been.designed.to.be.placed.on.a.desktop..All.of. the.cables.exit.from.the.rear.of.the.Modem.Router.for.better.organization. and.utility..The.Network.Status.Display.is.easily.visible.on.the.FRONT.of.the. Modem.Router.to.provide.you.with.information.about.network.activity.and. status..See.the.Network.Status.Display.Guide.for.more.detailed.information. (D/E) A. Wireless Security Wireless.security.is.off Solid.Blue Wireless.security.is.on B. Wireless-Computer Status Wireless.computer.is.not.present Solid.Blue Wireless.computer.is.connected.to. the.Modem.Router Blinking.Amber Problem.with.wireless.computer. connecting.properly.to.the.Modem.Router C. Wired-Computer Status Wired.computer.is.not.present Solid.Blue Wired.computer.is.connected.to. the.Modem.Router Blinking.Amber Problem.with.wired.computer.connecting. properly.to.the.Modem.Router...
  • Page 14 Knowing your Modem Router D. Modem Router/Power Status When.you.apply.power.to.the.Modem.Router.or.restart.it,.a.short.period. of.time.elapses.while.the.Modem.Router.boots.up..During.this.time,.the. “modem.router”.icon.blinks..When.the.Modem.Router.has.completely. booted.up,.the.“modem.router”.icon.becomes.a.solid.light,.indicating.the. Modem.Router.is.ready.for.use.. Modem.Router.is.off Blinking.Blue Modem.Router.is.booting.up Solid.Blue Modem.Router.is.on.and.ready Wireless Status Wireless.is.off Solid.Blue Wireless.is.on ADSL lineStatus This.icon.lights.in.blue.to.indicate.that.your.Modem.Router.is.connected. properly.to.the.ADSL.line..It.turns.amber.when.problem.is.detected.. Modem.Router.is.NOT.connected.to.a. functioning.ADSL.line Solid.Blue Modem.Router.is.connected.to.an.ADSL. line.and.functioning.properly Blinking.Amber Problem.with.ADSL.line G. Internet Status This.unique.icon.shows.you.when.the.Modem.Router.is.connected. to.the.Internet..When.the.light.is.off,.the.Modem.Router.is.NOT. connected.to.the.Internet..When.the.light.is.blinking.amber,.the.Modem. Router.is.attempting.to.connect.to.the.Internet..When.the.light.is.solid.
  • Page 15 Knowing your Modem Router H. Connection to ADSL line - Gray This.port.is.for.connection.to.your.ADSL.line..Connect.your.ADSL. line.to.this.port..A.RJ11.telephone.cord.is.provided.in.the.package. Connections to Wired Computers - Yellow Connect.your.wired.(non-wireless).computers.to.these.ports..These. ports.are.RJ45,.10/100.auto-negotiation,.auto-uplinking.ports.for. standard.UTP.category.5.or.6.Ethernet.cable..The.ports.are.labeled. 1.through.4,.with.onboard.LEDs.on.the.connectors.. Reset Button The.“Reset”.button.is.used.in.rare.cases.when.the.Modem.Router. may.function.improperly..Resetting.the.Modem.Router.will.restore. the.Modem.Router’s.normal.operation.while.maintaining.the. programmed.settings..You.can.also.restore.the.factory.default. settings.by.using.the.“Reset”.button..Use.the.restore.option.in. instances.where.you.may.have.forgotten.your.custom.password. Resetting the Modem Router Push.and.release.the.“Reset”.button..The.lights.on.the.Modem. Router.will.momentarily.flash..The.“Power/Ready”.light.will. begin.to.blink..When.the.“Power/Ready”.light.becomes.solid. again,.the.reset.is.complete. Restoring the Factory Defaults Press.and.hold.the.“Reset”.button.for.at.least.10.seconds,.then.

  • Page 16: Connecting And Configuring Your Modem Router

    Connecting and Configuring your Modem Router Verify the contents of your box. You should have the following: •.Belkin.N1.Wireless.ADSL2+.Modem.Router. •.RJ11.Telephone.Cord •.RJ45.Ethernet.Networking.Cable. •.Power.Supply •.Belkin.Setup.Assistant.Software.CD •.User.Manual •.Network.Status.Display.Guide •.Wireless.Security.Setup.Guide. Setup Assistant Belkin.has.provided.our.Setup.Assistant.software.to.make.installing. your.Modem.Router.a.simple.and.easy.task..You.can.use.it.to.get. your.Modem.Router.up.and.running.in.minutes..The.Setup.Assistant. requires.that.your.Windows.2000.or.XP.computer.be.connected. directly.to.your..ADSL.line.and.that.the.Internet.connection.is.active and working.at.the.time.of.installation..If.it.is.not,.you.must.use.the. “Alternate.Setup.Method”.section.of.this.User.Manual.to.configure. your.Modem.Router..Additionally,.if.you.are.using.an.operating.system. other.than.Windows.2000.or.XP,.you.must.set.up.the.Modem.Router. using.the.“Alternate.Setup.Method”.section.of.this.User.Manual. Step 1 Hardware Connections –...
  • Page 17 Connecting and Configuring your Modem Router Retrieve.the.RJ-45.cable.that.comes. with.your.Modem.Router..First. connect.it.to.any.yellow.port.labeled. “to.Wired.Computers”.on.the.back.of. your.Modem.Router..Then.connect. the.other.end.to.the.networking.port. on.the.back.of.your.computer.. Retrieve.the.RJ-11.phone.core.that. comes.with.your.Modem.Router.. Connect.it.to.the.gray.port.labeled. “to.ADSL”.on.the.back.of.your. Modem.Router..Then.connect.the. other.end.to.the.wall.jack.you.will. be.using.for.ADSL,.or.into.an.ADSL. splitter.if.you.are.using.that..Plug.your.Modem.Router’s.power. supply.into.the.black.port.labeled. “Power”.on.the.back.of.your.Modem. Router..Wait.20.seconds.for.the.Modem. Router.to.start.up..Look.at.the. display.on.the.front.of.the.Modem. Router..Make.sure.the.“Wired”.and. “Modem-Router”.icons.are.lit.up.in. blue..If.they.are.not,.recheck.your. connections...
  • Page 18 Connecting and Configuring your Modem Router Replacing an Existing Modem or Modem Router Follow.these.steps.if.you.currently.have.a. modem.or.a.modem.router.that.you.will.be. replacing.with.your.new.Modem.Router computer Unpack.your.new.Modem.Router. from.the.box.and.place.it.next.to. modem router your.old.modem..Raise.the.Modem. modem Router’s.antennas..Unplug.old. modem’s.power.cord. Locate.the.cable.that.connects.your. old.modem.to.your.computer..Unplug. that.cable.from.your.old.modem,.and. plug.it.into.any.yellow.port.labeled. “to.Wired.Computers”.on.the.back.of. your.new.Modem.Router. Locate.the.cable.that.connects.your. old.modem.to.the.ADSL.wall.jack.. Unplug.it.from.your.old.modem.and. then.connect.it.to.the.gray.port. labeled.“to.ADSL”.on.the.back.of. your.Modem.Router..Plug.your.Modem.Router’s.power. supply.into.the.black.port.labeled. “Power”.on.the.back.of.your.
  • Page 19 Connecting and Configuring your Modem Router Step 2 Set Up the Modem Router – Run the Setup Shut.down.any.programs.that.are.running.on.your.computer.at.this.time. Turn.off.any.firewall.or.Internet-connection-sharing.software.on.your. computer. Insert.the.CD.into.your.computer..The.Setup.Assistant.will. automatically.appear.on.your.computer’s.screen.within.15.seconds.. Click.on.“Go”.to.run.the.Setup.Assistant..Follow.the.instructions.there. IMPORTANT:.Run.the.Setup.Assistant.from.the.computer.that.is. directly.connected.to.the.Modem.Router.from.Step.1.–.B. Note for Windows Users:. . If.the.Setup.Assistant.does.not. start.up.automatically,.select.your. CD-ROM.drive.from.“My.Computer”. and.double-click.on.the.file.named. “SetupAssistant”.to.start.the.Setup. Assistant.
  • Page 20 Connecting and Configuring your Modem Router Select Country Select.your.country.from.the. drop-down.box..Click.“Begin”.to. continue. Confirmation Screen Verify.that.you.have.completed.all. QIG.steps.by.checking.the.box.to. the.right.of.the.arrow..Click.“Next”. to.continue. Progress Screen Setup.Assistant.will.show.you.a. progress.screen.each.time.a.step.in. the.setup.has.been.completed.. 1.1 Checking Settings The.Setup.Assistant.will.now. examine.your.computer’s.network. settings.and.gather.information. needed.to.complete.the.Modem. Router’s.connection.to.the.Internet..
  • Page 21 Connecting and Configuring your Modem Router ... V erifying Hardware Connections. The.Setup.Assistant.will.now.verify. your.hardware.connection..N aming your Wireless Network. The.Setup.Assistant.will.display.the. default.wireless.network.name.or. Service.Set.Identifier.(SSID)..This.is. the.name.of.your.wireless.network. to.which.your.computers.or.devices. with.wireless.network.adapters.will. connect..You.can.either.use.the. default.or.change.it.to.something. unique..Write.down.this.name.for. future.reference..Click.“Next”.to. continue..R equesting Internet Account Info (if needed). If.your.Internet.account.requires. a.login.and.password,.you.will.be. prompted.with.a.screen.similar.to.
  • Page 22 Connecting and Configuring your Modem Router ..Configuring the Modem Router. The.Setup.Assistant.will.now. configure.your.Modem.Router. by.sending.data.to.the.Modem. Router.and.restarting.it..Wait.for. the.on-screen.instructions. Note:.Do.not.disconnect.any. cable.or.power.off.the.Modem. Router.while.the.Modem.Router. is.rebooting..Doing.so.will.render. your.Modem.Router.inoperable. ..Checking Internet Connection. We.are.almost.done..The.Setup. Assistant.will.now.check.your. connection.to.the.Internet. Congratulations. You.have.finished.installing.your.new. Belkin.Modem.Router..You.will.see. the.Congratulations.screen.when.your. Modem.Router.can.connect.to.the. Internet..You.can.begin.surfing.by. opening.your.browser.and.going.to. any.website.
  • Page 23 Connecting and Configuring your Modem Router You.can.use.the.Setup.Assistant.to. set.up.your.other.wired.and.wireless. computers.to.connect.to.the.Internet. by.clicking.“Next”..If.you.decide.to. add.computers.to.your.Modem.Router. later,.select.“Exit.the.Assistant”.and. then.click.“Next”. Troubleshooting. If.the.Setup.Assistant.is.not.able.to. connect.to.the.Internet,.you.will.see. the.following.screen..Follow.the.on- screen.instructions.to.go.through.the. troubleshooting.steps..
  • Page 24 Connecting and Configuring your Modem Router ..Optional: Assistance Connecting Other Computers. This.optional.step.will.help.you.to. connect.additional.wired.and.wireless. computers.to.your.network..Follow.the. on-screen.instructions. Congratulations. Once.you.have.verified.that.your.other. wired.and.wireless.computers.are. properly.connected,.your.network.is.set. up.and.working..You.can.now.surf.the. Internet..Click.“Next”.to.take.you.back. to.the.main.menu.

  • Page 25: Alternate Setup Method

    Alternate Setup Method Step 1 Hardware Connections – Follow the Quick See.the.QIG.or.Step.1:.Hardware.Connections.from.the.previous.section. Step 2 Set your Computer’s Network Settings to Work with a See.the.section.in.this.User.Manual.called.“Manually.Configuring. Network.Settings”.for.directions. Step 3 Configuring the Modem Router Using the Web-Based Using.your.Internet.browser,.you.can.access.the.Modem.Router’s. . Web-Based.Advanced.User.Interface..In.your.browser,.type. “192.168.2.1”.(do.not.type.in.anything.else.such.as.“http://”.or.“www”).. Then.press.the.“Enter”.key.
  • Page 26 Alternate Setup Method Logging into the Modem Router You.will.see.the.Modem.Router’s.home.page.in.your.browser.window.. The.home.page.is.visible.to.any.user.who.wants.to.see.it..To.make. any.changes.to.the.Modem.Router’s.settings,.you.have.to.log.in.. Clicking.the.“Login”.button.or.clicking.on.any.one.of.the.links.on.the. home.page.will.take.you.to.the.login.screen..The.Modem.Router.ships. with.no.password.entered..In.the.login.screen,.leave.the.password. blank.and.click.the.“Submit”.button.to.log.in. Logging out of the Modem Router One.computer.at.a.time.can.log.into.the.Modem.Router.for.the. purposes.of.making.changes.to.the.settings.of.the.Modem.Router.. Once.a.user.has.logged.in.to.make.changes,.there.are.two.ways.that. the.computer.can.be.logged.out..Clicking.the.“Logout”.button.will. log.the.computer.out..The.second.method.is.automatic..The.login.will. time.out.after.a.specified.period.of.time..The.default.login.time-out.is. 10.minutes..This.can.be.changed.from.one.to.99.minutes..For.more. information,.see.the.section.in.this.manual.titled.“Changing.the.Login. Time-Out.Setting”. Understanding the Web-Based Advanced User Interface The.home.page.is.the.first.page.you.will.see.when.you.access.the. Advanced.User.Interface.(UI)..The.home.page.shows.you.a.quick.view. of.the.Modem.Router’s.status.and.settings..All.advanced.setup.pages. can.be.reached.from.this.page.
  • Page 27 Alternate Setup Method (3) (4) (10) (11) Quick-Navigation Links You.can.go.directly.to.any.of.the.Modem.Router’s.advanced.UI. pages.by.clicking.directly.on.these.links..The.links.are.divided.into. logical.categories.and.grouped.by.tabs.to.make.finding.a.particular. setting.easier.to.find..Clicking.on.the.purple.header.of.each.tab.will. show.you.a.short.description.of.the.tab’s.function. Home Button The.home.button.is.available.in.every.page.of.the.UI..Pressing.this. button.will.take.you.back.to.the.home.page.. Help Button The.“Help”.button.gives.you.access.to.the.Modem.Router’s.help. pages..Help.is.also.available.on.many.pages.by.clicking.“more.info”. next.to.certain.sections.of.each.page. Login/Logout Button This.button.enables.you.to.log.in.and.out.of.the.Modem.Router. with.the.press.of.one.button..When.you.are.logged.into.the.Modem. Router,.this.button.will.change.to.read.“Logout”..Logging.into. the.Modem.Router.will.take.you.to.a.separate.login.page.where. you.will.need.to.enter.a.password..When.you.are.logged.into.the. Modem.Router,.you.can.make.changes.to.the.settings..When.you. are.finished.making.changes,.you.can.log.out.of.the.Modem.Router. by.clicking.the.“Logout”.button..For.more.information.about.logging. into.the.Modem.Router,.see.the.section.called.“Logging.into.the. Modem.Router”.
  • Page 28 Alternate Setup Method Internet-Status Indicator This.indicator.is.visible.in.all.pages.of.the.Modem.Router,. indicating.the.connection.status.of.the.Modem.Router..When. the.indicator.says.“Connected”.in.blue,.the.Modem.Router. is.connected.to.the.Internet..When.the.Modem.Router.is.not. connected.to.the.Internet,.the.indicator.will.read.“No.Connection”. in.RED..The.indicator.is.automatically.updated.when.you.make. changes.to.the.settings.of.the.Modem.Router. Connect / Disconnect Buttons Use.these.buttons.to.manually.connect.or.disconnect.your.ADSL. connection.as.needed. Version Info Shows.the.firmware.version,.boot-code.version,.hardware.version,. and.serial.number.of.the.Modem.Router. LAN Settings Shows.you.the.settings.of.the.Local.Area.Network.(LAN).side. of.the.Modem.Router..Changes.can.be.made.to.the.settings.by. clicking.on.any.one.of.the.links.(IP.Address,.Subnet.Mask,.DHCP. Server).or.by.clicking.the.“LAN”.quick-navigation.link.on.the.left. side.of.the.screen. Internet Settings Shows.the.settings.of.the.Internet/WAN.side.of.the.Modem.Router. that.connects.to.the.Internet..Changes.to.any.of.these.settings.can. be.made.by.clicking.on.the.links.or.by.clicking.on.the.“Internet/ WAN”.quick-navigation.link.on.the.left.side.of.the.screen. 10. Features Shows.the.status.of.the.Modem.Router’s.NAT,.firewall,.and. wireless.features..Changes.can.be.made.to.the.settings.by.clicking. on.any.one.of.the.links.or.by.clicking.the.quick-navigation.links.on. the.left.side.of.the.screen.
  • Page 29 Alternate Setup Method Step 4 Configuring your Modem Router for Connection to your The.“Internet/WAN”.tab.is.where.you.will.set.up.your.Modem.Router. to.connect.to.your.Internet.Service.Provider.(ISP)..The.Modem.Router. is.capable.of.connecting.to.virtually.any.ISP’s.system.provided.you. have.correctly.configured.the.Modem.Router’s.settings.for.your.ISP’s. connection.type..Your.ISP.connection.settings.are.provided.to.you.by. your.ISP..To.configure.the.Modem.Router.with.the.settings.that.your.ISP. gave.you,.click.“Connection.Type”.(A).on.the.left.side.of.the.screen.. Select.the.connection.type.you.use..If.your.ISP.gave.you.DNS.settings,. clicking.“DNS”.(B).allows.you.to.enter.DNS.address.entries.for.ISPs.that. require.specific.settings..Clicking.“MAC.Address”.(C).will.let.you.clone. your.computer’s.MAC.address.or.type.in.a.specific.WAN.MAC.address,. if.required.by.your.ISP..When.you.have.finished.making.settings,.the. “Internet.Status”.indicator.will.read.“connection.OK”.if.your.Modem. Router.is.set.up.properly.
  • Page 30 Alternate Setup Method Connection Type From.the.“Connection.Type”.page,.you.can.select.one.of.these.five. connection.types.based.on.the.instruction.provided.by.your.ISP: •.PPPoE •.PPPoA. •.Dynamic.IP.(1483.Bridged). •.Static.IP.(IPoA). •.Modem.Only.(Disable.Internet.Sharing) Select.the.type.of.connection.you.use.by.clicking.the.radio.button.(1).next. to.your.connection.type.and.then.clicking.“Next”.(2).
  • Page 31 Alternate Setup Method Setting your ISP Connection Type to PPPoE or PPPoA PPPoE.(Point-to-Point.Protocol.over.Ethernet).is.the.standard.method.of. connecting.networked.devices..It.requires.a.user.name.and.password.to. access.the.network.of.your.ISP.for.connecting.to.the.Internet..PPPoA.(PPP. over.ATM).is.similar.to.PPPoE,.but.is.mostly.implemented.in.the.UK..Select. PPPoE.or.PPPoA.and.click.“Next”..Then.enter.the.information.provided.by. your.ISP,.and.click.“Apply.Changes”.to.activate.your.settings. User Name -.Enter.the.user.name..(Assigned.by.your.ISP). Password .-.Enter.your.password..(Assigned.by.your.ISP). Retype Password -.Confirm.the.password..(Assigned.by.your.ISP). VPI/VCI -.Enter.your.Virtual.Path.Identifier.(VPI).and.Virtual.Circuit. Identifier.(VCI).parameter.here..(Assigned.by.your.ISP). Note:. Australia. VPI.=.8. VCI.=.35. New.Zealand. VPI.=.0. VCI.=.100...
  • Page 32 Alternate Setup Method Encapsulation .-.Select.your.encapsulation.type.(supplied.by. your.ISP).to.specify.how.to.handle.multiple.protocols.at.the.ATM. transport.layer.. . VC-MUX:.PPPoA.Virtual.Circuit.Multiplexer.(null.encapsulation). allows.only.one.protocol.running.per.virtual.circuit.with.fewer. overheads.. LLC:.PPPoA.Logical.Link.Control.allows.multiple.protocols. running.over.one.virtual.circuit.(more.overhead). -.Enter.the.MUT.value.for.your.ISP Disconnect after of x minutes of no activity - Checking.the.box. and.enter.the.number.of.minute.that.you.want.the.modem.router. to.auto.disconnect.after.no.activity..After.this.time.has.been. exceeded,.the.connection.will.be.terminated. Use Static IP Address -.Check.this.box.and.enter.the.static.IP. address.your.ISP.assigns.for.your.line..Use.this.option.only.if. instructed.by.your.ISP. Click.“Apply.Changes”.to.save.and.activate.your.settings.. . To.go.back.to.the.original.settings.before.saving,.click.“Clear. Changes”..Or.click.any.of.the.Quick-Navigation.links.for.other. options..Your.new.settings.will.not.be.saved.unless.your.click. “Apply.Changes”.
  • Page 33 Alternate Setup Method Setting your Connection Type to Dynamic IP (1483 Bridged) This.connection.method.bridges.your.network.and.ISP’s.network. together..The.Modem.Router.will.obtain.IP.address.automatically.from. your.ISP’s.DHCP.server. VPI/VCI -.Enter.your.Virtual.Path.Identifier.(VPI).and.Virtual. Circuit.Identifier.(VCI).parameter.here..These.identifiers.are. assigned.by.your.ISP. Note:. Australia. VPI.=.8. VCI.=.35. New.Zealand. VPI.=.0. VCI.=.100 Encapsulation .-.Select.LLC.or.VC.MUX.your.ISP.uses. Click.“Apply.Changes”.to.save.and.activate.your.settings..To.go. back.to.the.original.settings.before.saving,.click.“Clear.Changes”.. Or.click.any.of.the.Quick-Navigation.links.for.other.options..Your. new.settings.will.not.be.saved.unless.your.click.“Apply.Changes”.
  • Page 34 Alternate Setup Method Setting your ISP Connection Type to Static IP (IPoA) This.connection.type.is.also.called.“Classical.IP.over.ATM”.or.“CLIP”,. which.your.ISP.provides.a.fixed.IP.for.your.Modem.Router.to.connect.to. the.Internet. WAN IP Address -.Enter.an.IP.address.assigned.by.your.ISP.for. the.Modem.Router.WAN.interface. WAN Subnet Mask -.Enter.a.subnet.mask.assigned.by.your.ISP. Default Route -.Enter.a.default.gateway.IP.address..If.the. Modem.Router.cannot.find.the.destination.address.within.its. local.network,.it.will.forward.the.packets.to.the.default.gateway. assigned.by.your.ISP. VPI/VCI -.Enter.your.Virtual.Path.Identifier.(VPI).and.Virtual.Circuit. Identifier.(VCI).parameter.here..These.identifiers.are.assigned.by. your.ISP. Note:. Australia. VPI.=.8. VCI.=.35. New.Zealand. VPI.=.0. VCI.=.100 Encapsulation -.Select.LLC.or.VC.MUX.your.ISP.uses.
  • Page 35 Alternate Setup Method Setting your Connection Type to Modem Only (Disable Internet Sharing) In.this.mode,.the.Modem.Router.simply.acts.as.a.bridge.passing.packets. across.the.DSL.port..It.requires.additional.software.to.be.installed.on.your. computers.in.order.to.access.the.Internet.. Enable Bridge Service -.Check.this.box.to.enable.bridge.service VPI/VCI -.Enter.your.Virtual.Path.Identifier.(VPI).and.Virtual. Circuit.Identifier.(VCI).parameter.here..(Assigned.by.your.ISP). Note:. Australia. VPI.=.8. VCI.=.35. New.Zealand. VPI.=.0. VCI.=.100 Click.“Apply.Changes”.to.save.and.activate.your.settings..To.go. back.to.the.original.settings.before.saving,.click.“Clear.Changes”.. Or.click.any.of.the.Quick-Navigation.links.for.other.options..Your. new.settings.will.not.be.saved.unless.your.click.“Apply.Changes”.
  • Page 36 Alternate Setup Method Setting Custom Domain Name Server (DNS) Settings A.“Domain.Name.Server”.is.a.server.located.on.the.Internet.that. translates.Universal.Resource.Locaters.(URLs).like.“www.belkin.com”.to. IP.addresses..Many.Internet.Service.Providers.(ISPs).do.not.require.you. to.enter.this.information.into.the.Modem.Router..The.“Automatic.from. ISP”.box.(1).should.be.checked.if.your.ISP.did.not.give.you.a.specific. DNS.address..If.you.are.using.a.static.IP.connection.type,.then.you.may. need.to.enter.a.specific.DNS.address.and.secondary.DNS.address.for. your.connection.to.work.properly..If.your.connection.type.is.dynamic.or. PPPoE,.it.is.likely.that.you.do.not.have.to.enter.a.DNS.address..Leave.the. “Automatic.from.ISP”.box.checked..To.enter.the.DNS.address.settings,. uncheck.the.“Automatic.from.ISP”.box.and.enter.your.DNS.entries.in.the. spaces.provided..Click.“Apply.Changes”.(2).to.save.the.settings.

  • Page 37: Using The Web-Based Advanced User Interface

    Using the Web-Based Advanced User Interface Using.your.Internet.browser,.you.can.access.the.Modem.Router’s. Web-Based.Advanced.User.Interface..In.your.browser,.type. “192.168.2.1”.(do.not.type.in.anything.else.such.as.“http://”.or. “www”).then.press.the.“Enter”.key. You.will.see.the.Modem.Router’s.home.page.in.your.browser.window. Viewing the LAN Settings Clicking.on.the.header.of.the.LAN.tab.(1).will.take.you.to.the.LAN. tab’s.header.page..A.quick.description.of.the.functions.can.be. found.here..To.view.the.settings.or.make.changes.to.any.of.the.LAN. settings,.click.on.“LAN.Settings”.(2).or.to.view.the.list.of.connected. computers,.click.on.“DHCP.client.list”.(3).

  • Page 38: Changing.lan.settings

    Using the Web-Based Advanced User Interface Changing LAN Settings All.settings.for.the.internal.LAN.setup.of.the.Modem.Router.can.be. viewed.and.changed.here. IP Address The.“IP.address”.is.the.internal.IP.address.of.the.Modem.Router.. The.default.IP.address.is.“192.168.2.1”..To.access.the.advanced. setup.interface,.type.this.IP.address.into.the.address.bar.of.your. browser..This.address.can.be.changed.if.needed..To.change. the.IP.address,.type.in.the.new.IP.address.and.click.“Apply. Changes”..The.IP.address.you.choose.should.be.a.non-routable. IP..Examples.of.a.non-routable.IP.are: 192.168.x.x.(where.x.is.anything.between.0.and.255) 10.x.x.x.(where.x.is.anything.between.0.and.255) Subnet Mask There.is.no.need.to.change.the.subnet.mask..This.is.a.unique,. advanced.feature.of.your.Belkin.Modem.Router..It.is.possible.to. change.the.subnet.mask.if.necessary;.however,.do.NOT.make. changes.to.the.subnet.mask.unless.you.have.a.specific.reason.to. do.so..The.default.setting.is.“255.255.255.0”. DHCP Server The.DHCP.server.function.makes.setting.up.a.network.very.easy. by.assigning.IP.addresses.to.each.computer.on.the.network. automatically..The.default.setting.is.“On”..The.DHCP.server. can.be.turned.OFF.if.necessary;.however,.in.order.to.do.so.you. must.manually.set.a.static.IP.address.for.each.computer.on. your.network..To.turn.off.the.DHCP.server,.select.“Off”.and.click. “Apply.Changes”.
  • Page 39 Using the Web-Based Advanced User Interface IP Pool The.range.of.IP.addresses.set.aside.for.dynamic.assignment. to.the.computers.on.your.network..The.default.is.2–100.(99. computers)..If.you.want.to.change.this.number,.you.can.do.so. by.entering.a.new.starting.and.ending.IP.address.and.clicking.on. “Apply.Changes”..The.DHCP.server.can.assign.100.IP.addresses. automatically..This.means.that.you.cannot.specify.an.IP.address. pool.larger.than.100.computers..For.example,.starting.at.50. means.you.have.to.end.at.150.or.lower.so.as.not.to.exceed.the. 100-client.limit..The.starting.IP.address.must.be.lower.in.number. than.the.ending.IP.address. Lease Time The.length.of.time.the.DHCP.server.will.reserve.the.IP.address.for. each.computer..We.recommend.that.you.leave.the.lease.time.set. to.“Forever”..The.default.setting.is.“Forever”,.meaning.that.any. time.a.computer.is.assigned.an.IP.address.by.the.DHCP.server,. the.IP.address.will.not.change.for.that.particular.computer.. Setting.lease.times.for.shorter.intervals.such.as.one.day.or.one. hour.frees.IP.addresses.after.the.specified.period.of.time..This. also.means.that.a.particular.computer’s.IP.address.may.change. over.time..If.you.have.set.any.of.the.other.advanced.features. of.the.Modem.Router.such.as.DMZ.or.client.IP.filters,.these.are. dependent.on.the.IP.address..For.this.reason,.you.will.not.want. the.IP.address.to.change. Local Domain Name The.default.setting.is.“Belkin”..You.can.set.a.local.domain.name. (network.name).for.your.network..There.is.no.need.to.change. this.setting.unless.you.have.a.specific.advanced.need.to.do. so..You.can.name.the.network.anything.you.want.such.as.“MY. NETWORK”..

  • Page 40: Viewing.the.dhcp.client.list.page

    Using the Web-Based Advanced User Interface Viewing the DHCP Client List Page You.can.view.a.list.of.the.computers.(known.as.clients),.which.are. connected.to.your.network..You.are.able.to.view.the.IP.address.(1).of.the. computer,.the.host.name.(2).(if.the.computer.has.been.assigned.one),. and.the.MAC.address.(3).of.the.computer’s.network.interface.card.(NIC).. Pressing.the.“Refresh”.(4).button.will.update.the.list..If.there.have.been. any.changes,.the.list.will.be.updated. Configuring the Wireless Network Settings The.“Wireless”.tab.lets.you.make.changes.to.the.wireless.network. settings..From.this.tab.you.can.make.changes.to.the.wireless.network. name.or.Service.Set.Identifier.(SSID),.operating.channel,.encryption. security.settings,.and.configure.the.Modem.Router.to.be.used.as.an. access.point.
  • Page 41 Using the Web-Based Advanced User Interface Changing the Wireless Network Name (SSID) To.identify.your.wireless.network,.a.name.called.the.SSID..is.used... The.SSID.is.your.network.name..The.default.network.name.of.the. Modem.Router.is.“Belkin.N1.Wireless”.followed.by.six.digits.that.are. unique.to.your.Modem.Router..Your.network.name.will.look.something. like.“Belkin_N1_Wireless_123456”..You.can.change.this.to.anything.you. choose,.or.you.can.leave.it.unchanged..Keep.in.mind,.if.you.decide. to.change.your.wireless.network.name,.and.there.are.other.wireless. networks.operating.in.your.area,.your.network.name.needs.to.be.different. from.other.wireless.networks.that.may.be.operating.in.your.area..To. change.the.SSID,.type.in.the.SSID.that.you.want.to.use.in.the.SSID. field.(1).and.click.“Apply.Changes”.(2)..The.change.is.immediate..If.you. make.a.change.to.the.SSID,.your.wireless-equipped.computers.may.also. need.to.be.reconfigured.to.connect.to.your.new.network.name..Refer.to. the.documentation.of.your.wireless.network.adapter.for.information.on. making.this.change. Note:.Please.periodically.check.for.new.Modem.Router.firmware.updates. from.the.“Utilities.>.Firmware.update”.page..Newer.firmware.can.fix. problems,.add.wireless.features,.and/or.improve.wireless.performance. (see.page.63).
  • Page 42 Using the Web-Based Advanced User Interface Changing the Wireless Channel There.are.a.number.of.operating.channels.from.which.you.can.choose— in.the.United.Kingdom.(and.most.of.Europe).and.Australia,.there.are.13.. In.other.countries,.there.are.other.channel.requirements..Your.Modem. Router.is.configured.to.operate.on.the.proper.channels.for.the.country. in.which.you.reside..The.channel.can.be.changed.if.needed..If.there.are. other.wireless.networks.operating.in.your.area,.your.network.should. be.set.to.operate.on.a.channel.that.is.different.than.the.other.wireless. networks. Using the Wireless Mode Switch This.switch.allows.you.to.set.the.Modem.Router’s.wireless.modes..There. are.several.modes. Note:.Some.modes.may.require.firmware.updates.to.be.enabled. 802.11n & 802.11g & 802.11b Setting.the.Modem.Router.to.this.mode.will.allow.N1/draft. 802.11n-,.802.11g-,.and.802.11b-compliant.devices.to.join.the. network. 802.11g only Setting.the.Modem.Router.to.this.mode.will.allow.only.802.11g- compliant.devices.to.join.the.network,.keeping.out.any.slower. 802.11b.devices. 802.11n only Setting.the.Modem.Router.to.this.mode.will.allow.only.N1/draft.
  • Page 43 Using the Web-Based Advanced User Interface Using the Bandwidth Switch This.switch.allows.you.to.set.the.Modem.Router’s.wireless.bandwidth. modes..There.are.several.modes.available: 20MHz Setting.the.Modem.Router.to.this.mode.allows.only.20MHz. operation..This.mode.is.compatible.with.N1,.draft.802.11n-,. 802.11g-,.and.802.11b-compliant.devices,.but.will.limit.N1,.draft. 802.11n-compliant.devices’.bandwidth.by.half..Reducing.bandwidth. to.20MHz-only.operation.might.solve.some.wireless.problems. 40MHz Setting.the.Modem.Router.to.this.mode.allows.it.to.switch. automatically.between.20MHz.and.40MHz.operation..This.mode. enables.40MHz.operation,.to.maximize.speed.for.N1,.draft.802.11n- compliant.devices.when.conditions.permit..When.a.legacy.802.11g. access.point.is.presented.and.occupies.an.adjacent.secondary. channel,.the.Modem.Router.automatically.reverts.to.20MHz. operation.to.maximize.compatibility..We.recommend.using.this.as. the.default.mode. Using the Broadcast SSID Feature Note:.This.advanced.feature.should.be.employed.by.advanced.users.only.. For.security,.you.can.choose.not.to.broadcast.your.network’s.SSID..Doing. so.will.keep.your.network.name.hidden.from.computers.that.are.scanning. for.the.presence.of.wireless.networks..To.turn.off.the.broadcast.of.the. SSID,.remove.the.check.mark.from.the.box.next.to.“Broadcast.SSID”,.and. then.click.“Apply.Changes”..The.change.is.immediate..Each.computer.now. needs.to.be.set.to.connect.to.your.specific.SSID;.an.SSID.of.“ANY”.will.no. longer.be.accepted..Refer.to.the.documentation.of.your.wireless.network. adapter.for.information.on.making.this.change.
  • Page 44 Using the Web-Based Advanced User Interface Protected Mode Switch Protected.mode.ensures.proper.operation.of.N1,.draft.802.11n-compliant. devices.on.your.wireless.network.when.802.11g.or.802.11b.devices. are.present.or.when.there.is.heavy.802.11g.or.802.11b.traffic.in.the. operating.environment..Use.protected.mode.if.your.network.consists.of. a.mix.of.Belkin.N1.Wireless.Cards.and.802.11g.or.802.11b.cards.on.your. network..If.you.are.in.an.environment.that.includes.little.to.no.802.11g. or.802.11b.wireless.network.traffic,.you.will.achieve.the.best.N1.wireless. performance.with.protected.mode.OFF..Conversely,.in.an.environment. with.HEAVY.802.11g.or.802.11b.traffic.or.interference,.you.will.achieve. the.best.N1.wireless.performance.with.protected.mode.ON..This.will. ensure.N1.wireless.performance.is.not.affected. WMM (Wi-Fi Multimedia) WMM.based.on.802.11e.QoS.(Quality.of.Service).prioritizes.important. data.on.your.network.such.as.multimedia.content.and.voice-over-IP. (VoIP).so.it.will.not.be.interfered.with.by.other.data.being.sent.over.the. network..This.feature.requires.other.wireless.devices,.such.as.Wi-Fi. phone.or.wireless.laptop,.to.support.WMM.for.best.results.. Changing the Wireless Security Settings Your.Modem.Router.is.equipped.with.the.latest.security.standard.called. Wi-Fi.Protected.Access.2.(WPA2)..It.also.supports.the.legacy.security. standard.called.Wired.Equivalent.Privacy.(WEP)..By.default,.wireless. security.is.disabled..To.enable.security,.you.will.need.to.determine. which.standard.you.want.to.use..To.access.the.security.settings,.click. “Security”.on.the.“Wireless”.tab. The.Modem.Router.features.WPA2,.which.is.the.second.generation.of.
  • Page 45 . F or.Windows.XP.computers.that.do.not.have.Service.Pack.2.(SP2),. a.file.from.Microsoft.called.“Windows.XP.Support.Patch.for.Wireless. Protected.Access.(KB.826942)”.is.available.for.free.download.at.http:// support.microsoft.com/?kbid=826942 . F or.Windows.XP.with.Service.Pack.2,.Microsoft.has.released.a.free. download.to.update.the.wireless.client.components.to.support.WPA2. (KB893357)..The.update.is.available.from:. . http://support.microsoft.com/default.aspx?scid=kb;en-us;893357 IMPORTANT:.You.also.need.to.ensure.that.all.your.wireless.client.cards/ adapters.support.WPA2,.and.that.you.have.downloaded.and.installed. the.latest.driver..Most.of.the.Belkin.wireless.cards.have.driver.updates. available.for.download.from.the.Belkin.support.site:. . www.belkin.com/networking.. Setting WPA/WPA2-Personal (PSK) Like.WPA.security,.WPA2.is.available.in.both.WPA2-Personal.(PSK). mode.and.WPA2-Enterprise.(RADIUS).mode..Typically,.WPA2-Personal. (PSK).is.the.mode.that.will.be.used.in.a.home.environment,.while.WPA2- Enterprise.(RADIUS).is.implemented.in.a.business.environment.where. an.external.radius.server.distributes.the.network.key.to.the.clients. automatically..This.guide.will.focus.on.WPA2-Personal.(PSK).usage.. Please.refer.to.the.User.Manual.for.more.information.about.wireless. security.and.different.types.of.wireless.security. After.you’ve.set.up.your.Modem.Router,.go.to.the.“Security”.page. under.“Wireless”.and.select.“WPA/WPA2-Personal.(PSK)”.from.the. “Security.Mode”.drop-down.menu.. For.“Authentication”,.select.“WPA-PSK”,.“WPA2-PSK”,.or.“WPA-PSK.+. WPA2-PSK”..This.setting.will.have.to.be.identical.on.the.wireless.clients.

  • Page 46: Setting.wpa.security

    Using the Web-Based Advanced User Interface For.“Encryption.Technique”,.select.“TKIP”,..“AES”,.or. “TKIP+AES”..This.setting.will.have.to.be.identical.on.the.wireless. clients.that.you.set.up.. Enter.your.pre-shared.key.(PSK)..This.can.be.from.eight.to.63. characters.and.can.be.letters,.numbers,.or.symbols..This.same. key.must.be.used.on.all.of.the.wireless.clients.that.you.set.up.. For.example,.your.PSK.might.be.something.like:.“Smith.family. network.key”..Click.“Apply.Changes”.to.finish..You.must.now.set. all.wireless.clients.to.match.these.settings. IMPORTANT:.Make.sure.your.wireless.computers.are.updated.to.work. with.WPA2.and.have.the.correct.settings.to.get.proper.connection.to.the. Modem.Router. Setting WPA Security Note:.To.use.WPA.security,.your.wireless.network.cards.must.be. equipped.with.software.that.supports.WPA..At.the.time.this.User. Manual.was.published,.a.security.patch.from.Microsoft.is.available.for. free.download..This.patch.works.only.with.Windows.XP.. Your.Modem.Router.supports.WPA-PSK.(no.server)..WPA-PSK.uses. what.is.known.as.a.pre-shared.key.as.the.security.key..A.pre-shared. key.is.basically.a.password.that.is.between.eight.and.39.characters. long..It.can.be.a.combination.of.letters,.numbers,.or.characters..Each. client.uses.the.same.key.to.access.the.network..Typically.this.is.the. mode.that.will.be.used.in.a.home.environment.
  • Page 47 Using the Web-Based Advanced User Interface Setting WPA-PSK From.the.“Security.Mode”.drop-down.menu,.select.“WPA-PSK.. (no.server)”. For.“Encryption.Technique”,.select.“TKIP”.or.“AES”..This.setting. will.have.to.be.identical.on.the.clients.that.you.set.up. Enter.your.pre-shared.key..This.can.be.from.eight.to.39.characters. and.can.be.letters,.numbers,.or.symbols..This.same.key.must.be. used.on.all.of.the.clients.that.you.set.up. Click.“Apply.Changes”.to.finish..You.must.now.set.all.clients.to. match.these.settings.

  • Page 48: Setting.wep.encryption

    Using the Web-Based Advanced User Interface Setting WEP Encryption Note to Mac users:.The.“Passphrase”.option.will.not.operate.with. Apple .AirPort ..To.configure.encryption.for.your.Mac.computer,.set.the. ® ® encryption.using.the.manual.method.described.in.the.next.section. Select.“128-bit.WEP”.or.“64-bit.WEP”.from.the.drop-down.menu. After.selecting.your.WEP.encryption.mode,.you.can.enter.your. . WEP.key.manually.by.typing.in.the.hex.WEP.key.manually,.or. you.can.type.a.passphrase.in.the.“PassPhrase”.field.and.click. “Generate”.to.create.a.WEP.key.from.the.passphrase..Click.“Apply. Changes”.to.finish..You.must.now.set.all.of.your.clients.to.match. these.settings. Encryption.in.the.Modem.Router.is.now.set..Each.of.your.computers. on.your.wireless.network.will.now.need.to.be.configured.with.the. same.passphrase..Refer.to.the.documentation.of.your.wireless. network.adapter.for.information.on.making.this.change.
  • Page 49 Using the Web-Based Advanced User Interface Using a Hexadecimal Key A.hexadecimal.key.is.a.mixture.of.numbers.and.letters.from.A–F.and. 0–9..64-bit.keys.are.10.digits.long.and.can.be.divided.into.five.two-digit. numbers..128-bit.keys.are.26.digits.long.and.can.be.divided.into.13.two- digit.numbers.. For.instance: AF 0F 4B C3 D4.=.64-bit.key C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7.=.128-bit.key In.the.boxes.below,.make.up.your.key.by.writing.in.two.characters. between.A–F.and.0–9..You.will.use.this.key.to.program.the.encryption. settings.on.your.Modem.Router.and.your.wireless.computers. Note to Mac users:.Original.Apple.AirPort.products.support.64- bit.encryption.only..Apple.AirPort.2.products.can.support.64-bit.or.

  • Page 50: Using.the.access.point.mode

    Using the Web-Based Advanced User Interface Using the Access Point Mode Note:.This.advanced.feature.should.be.employed.by.advanced.users. only..The.Modem.Router.can.be.configured.to.work.as.a.wireless. network.access.point..Using.this.mode.will.defeat.the.NAT.IP.sharing. feature.and.DHCP.server..In.AP.mode,.the.Modem.Router.will.need. to.be.configured.with.an.IP.address.that.is.in.the.same.subnet.as. the.rest.of.the.network.that.you.will.bridge.to..The.default.IP.address. is.192.168.2.254.and.subnet.mask.is.255.255.255.0..These.can.be. customized.for.your.need. Enable.the.AP.mode.my.selecting.“Enable”.in.the.“Use.as.Access. Point.only”.page..When.you.select.this.option,.you.will.be.able.to. change.the.IP.settings.. Set.your.IP.settings.to.match.your.network..Click.“Apply. Changes”. . Connect.a.cable.from.the.WAN.port.on.the.Modem.Router.to.your. existing.network. The.Modem.Router.is.now.acting.as.an.access.point..To.access.the. Modem.Router.advanced.user.interface.again,.type.the.IP.address.you. specified.into.your.browser’s.navigation.bar..You.can.set.the.encryption. settings,.MAC.address.filtering,.SSID,.and.channel.normally.

  • Page 51: Setting.mac.address.control

    Using the Web-Based Advanced User Interface Setting MAC Address Control The.MAC.address.filter.is.a.powerful.security.feature.that.allows.you.to. specify.which.computers.are.allowed.on.the.wireless.network.. Note:.This.list.applies.only.to.wireless.computers..This.list.can.be. configured.so.any.computer.attempting.to.access.the.wireless.network.that. is.not.specified.in.the.filter.list.will.be.denied.access..When.you.enable. this.feature,.you.must.enter.the.MAC.address.of.each.client.(computer).to. which.you.want.to.allow.network.access..The.“Block”.feature.lets.you.turn. on.and.off.access.to.the.network.easily.for.any.computer.without.having.to. add.and.remove.the.computer’s.MAC.address.from.the.list. Setting up an Allow Access List Select.the.“Allow”.radio.button.(1).to.begin.setting.up.a.list.of. computers.allowed.to.connect.to.the.wireless.network.. Next,.in.the.“MAC.Address”.field.that.is.blank.(3),.type.in.the.MAC. address.of.the.wireless.computer.you.want.to.be.able.to.access.the. wireless.network,.then.click.“<<Add”.(4).. . Continue.to.do.this.until.all.of.the.computers.you.want.to.add.have. been.entered. . Click.“Apply.Changes”.(5).to.finish.
  • Page 52 Using the Web-Based Advanced User Interface Setting up a Deny Access List The.“Deny.Access”.list.lets.you.specify.computers.that.you.DO.NOT. want.to.access.the.network..Any.computer.in.the.list.will.not.be.allowed. access.to.the.wireless.network..All.others.will. Select.the.“Deny”.radio.button.(1).to.begin.setting.up.a.list.of. computers.to.be.denied.access.to.the.wireless.network.. Next,.in.the.“MAC.Address”.field.that.is.blank.(3),.type.in.the. MAC.address.of.the.wireless.computer.you.want.to.deny.access. to.the.wireless.network,.then.click.“<<Add”.(4).. . Continue.to.do.this.until.all.of.the.computers.you.want.to.deny. access.to.have.been.entered.. . Click.“Apply.Changes”.(5).to.finish.

  • Page 53: Configuring.the.firewall

    Using the Web-Based Advanced User Interface Configuring the Firewall Your.Modem.Router.is.equipped.with.a.firewall.that.will.protect.your. network.from.a.wide.array.of.common.hacker.attacks.including: •.IP.Spoofing •.Land.Attack.Ping.of.Death.(PoD) •.Denial.of.Service.(DoS) •.IP.with.zero.length •.Smurf.Attack •.TCP.Null.Scan •.SYN.flood •.UDP.flooding •.Tear.Drop.Attack •.ICMP.defect •.RIP.defect •.Fragment.flooding The.firewall.also.masks.common.ports.that.are.frequently.used.to.attack. networks..These.ports.appear.to.be.“stealth”.meaning.that.for.all.intents. and.purposes,.they.do.not.exist.to.a.would-be.hacker..You.can.turn.the. firewall.function.off.if.needed;.however,.it.is.recommended.that.you.leave. the.firewall.enabled..Disabling.the.firewall.protection.will.not.leave.your. network.completely.vulnerable.to.hacker.attacks,.but.it.is.recommended. that.you.leave.the.firewall.enabled.
  • Page 54 Using the Web-Based Advanced User Interface Configuring Internal Forwarding Settings The.Virtual.Servers.function.will.allow.you.to.route.external.(Internet). calls.for.services.such.as.a.web.server.(port.80),.FTP.server.(Port.21),. or.other.applications.through.your.Modem.Router.to.your.internal. network..Since.your.internal.computers.are.protected.by.a.firewall,. computers.outside.your.network.(over.the.Internet).cannot.get.to.them. because.they.cannot.be.“seen”..A.list.of.common.applications.has.been. provided.in.case.you.need.to.configure.the.Virtual.Server.function.for. a.specific.application..If.your.application.is.not.listed,.you.will.need.to. contact.the.application.vendor.to.find.out.which.port.settings.you.need. Choosing an Application Select.your.application.from.the.drop-down.list..Click.“Add”... The.settings.will.be.transferred.to.the.next.available.space.in.the. screen..Click.“Apply.Changes”.to.save.the.setting.for.that.application.. To.remove.an.application,.select.the.number.of.the.row.that.you.want. to.remove.then.click.“Clear”. Manually Entering Settings into the Virtual Server To.manually.enter.settings,.enter.the.IP.address.in.the.space.provided. for.the.internal.(server).machine,.the.port(s).required.to.pass.(use.a. comma.between.multiple.ports),.select.the.port.type.(TCP.or.UDP),. and.click.“Apply.Changes”..You.can.only.pass.one.port.per.internal.IP. address..Opening.ports.in.your.firewall.can.pose.a.security.risk..You. can.enable.and.disable.settings.very.quickly..It.is.recommended.that. you.disable.the.settings.when.you.are.not.using.a.specific.application.
  • Page 55 Using the Web-Based Advanced User Interface Setting Client IP Filters The.Modem.Router.can.be.configured.to.restrict.access.to.. the.Internet,.e-mail,.or.other.network.services.at.specific.days.and.times.. Restriction.can.be.set.for.a.single.computer,.a.range.of.computers,.or. multiple.computers. To.restrict.Internet.access.to.a.single.computer.for.example,.enter.the. IP.address.of.the.computer.you.wish.to.restrict.access.to.in.the.IP.fields. (1)..Next,.enter.“80”.in.both.the.port.fields.(2)..Select.“Both”.(3)..Select. “Block”.(4)..You.can.also.select.“Always”.to.block.access.all.of.the.time.. Select.the.day.to.start.on.top.(5),.the.time.to.start.on.top.(6),.the.day. to.end.on.the.bottom.(7),.and.the.time.to.stop.(8).on.the.bottom..Select. “Enable”.(9)..Click.“Apply.Changes”..The.computer.at.the.IP.address. you.specified.will.now.be.blocked.from.Internet.access.at.the.times.you. specified..Note:.Be.sure.you.have.selected.the.correct.time.zone.under. “Utilities>.System.Settings>.Time.Zone”. (5) (7)

  • Page 56: Using.dynamic.dns

    Using the Web-Based Advanced User Interface Enabling the Demilitarized Zone (DMZ) The.DMZ.feature.allows.you.to.specify.one.computer.on.your.network.to. be.placed.outside.of.the.firewall..This.may.be.necessary.if.the.firewall. is.causing.problems.with.an.application.such.as.a.game.or.video. conferencing.application..Use.this.feature.on.a.temporary.basis... The.computer.in.the.DMZ.is.NOT.protected.from.hacker.attacks. To.put.a.computer.in.the.DMZ,.enter.the.last.digits.of.its.IP.address.in.the. IP.field.and.select.“Enable”..Click.“Apply.Changes”.for.the.change.to.take. effect..If.you.are.using.multiple.static.WAN.IP.addresses,.it.is.possible.to. select.which.WAN.IP.address.the.DMZ.host.will.be.directed.to..Type.in. the.WAN.IP.address.you.wish.the.DMZ.host.to.direct.to,.enter.the.last.two. digits.of.the.IP.address.of.the.DMZ.host.computer,.select.“Enable”.and. click.“Apply.Changes”.. Using Dynamic DNS The.Dynamic.DNS.service.allows.you.to.alias.a.dynamic.IP.address. to.a.static.host.name.in.any.of.the.many.domains.DynDNS.org.offers,. allowing.your.network.computers.to.be.more.easily.accessed.from.various. locations.on.the.Internet..DynDNS.org.provides.this.service,.for.up.to.five. host.names,.free.to.the.Internet.community. The.Dynamic.DNS.service.is.ideal.for.a.home.website,.file.server,.or.to. make.it.easy.to.access.your.home.PC.and.stored.files.while.you’re.at. work..Using.the.service.can.ensure.that.your.host.name.always.points.to. your.IP.address,.no.matter.how.often.your.ISP.changes.it..When.your.IP. address.changes,.your.friends.and.associates.can.always.locate.you.by. visiting.yourname.dyndns.org.instead! To.register.free.for.your.Dynamic.DNS.host.name,.please.visit. . http://www.dyndns.org.
  • Page 57 Using the Web-Based Advanced User Interface Setting up the Modem Router’s Dynamic DNS Update Client You.must.register.with.DynDNS.org’s.free.update.service.before.using. this.feature..Once.you.have.your.registration,.follow.the.directions.below. Select.DynDNS.org.from.the.“DNS.Service”.drop-down.box..(1) Enter.your.DynDNS.org.user.name.in.the.“User.Name”.field.(2). . Enter.your.DynDNS.org.password.in.the.“Password”.field.(3). . Enter.the.DynDNS.org.domain.name.you.set.up.with.DynDNS.org.in. the.“Hostname”.field.(4). . Click.“Update.Dynamic.DNS”.to.update.your.IP.address. Whenever.your.IP.address.assigned.by.your.ISP.changes,.the.Modem. Router.will.automatically.update.DynDNS.org’s.servers.with.your.new.IP. address..You.can.also.do.this.manually.by.clicking.the.“Update.Dynamic. DNS”.button.(5).

  • Page 58: Utilities

    Using the Web-Based Advanced User Interface Blocking an ICMP Ping Computer.hackers.use.what.is.known.as.“pinging”.to.find.potential. victims.on.the.Internet..By.pinging.a.specific.IP.address.and.receiving. a.response.from.the.IP.address,.a.hacker.can.determine.that.something. of.interest.might.be.there..The.Modem.Router.can.be.set.up.so.it.will. not.respond.to.an.ICMP.ping.from.the.outside..This.heightens.your. Modem.Router’s.security.level.. To.turn.off.the.ping.response,.select.“Block.ICMP.Ping”.(1).and.click. “Apply.Changes”..The.Modem.Router.will.not.respond.to.an.ICMP.ping.. Utilities The.“Utilities”.screen.lets.you.manage.different.parameters.of.the. Modem.Router.and.perform.certain.administrative.functions..
  • Page 59 Using the Web-Based Advanced User Interface Restarting the Modem Modem Router Sometimes.it.may.be.necessary.to.restart.or.reboot.the.Modem.Router.if. it.begins.working.improperly..Restarting.or.rebooting.the.Modem.Router. will.NOT.delete.any.of.your.configuration.settings. Restarting the Modem Modem Router to Restore Normal Operation Click.the.“Restart.Modem.Router”.button. The.following.message.will.appear..Click.“OK”. . The.following.message.will.appear..Restarting.the.Modem.Router. can.take.up.to.60.seconds..It.is.important.not.to.turn.off.the.power. to.the.Modem.Router.during.the.restart. . A.60-second.countdown.will.appear.on.the.screen..When.the. countdown.reaches.zero,.the.Modem.Router.will.be.restarted.. . The.Modem.Router.home.page.should.appear.automatically..If.not,. type.in.the.Modem.Router’s.address.(default.=.192.168.2.1).into.the. navigation.bar.of.your.browser.

  • Page 60: Restarting.the.modem.router..it.can.take.up.to.60.Seconds..it.is

    Using the Web-Based Advanced User Interface Restoring Factory Default Settings Using.this.option.will.restore.all.of.the.settings.in.the.Modem.Router.to. the.factory.(default).settings..It.is.recommended.that.you.back.up.your. settings.before.you.restore.all.of.the.defaults. Click.the.“Restore.Defaults”.button. The.following.message.will.appear..Click.“OK”. . The.following.message.will.appear..Restoring.the.defaults.includes. restarting.the.Modem.Router..It.can.take.up.to.60.seconds..It.is. important.not.to.turn.the.power.to.the.Modem.Router.off.during. the.restart. . A.60-second.countdown.will.appear.on.the.screen..When.the. countdown.reaches.zero,.the.Modem.Router’s.defaults.will. be.restored..The.Modem.Router.home.page.should.appear. automatically..If.it.does.not,.type.in.the.Modem.Router’s.address. (default.=.192.168.2.1).into.the.navigation.bar.of.your.browser.
  • Page 61 Using the Web-Based Advanced User Interface Saving a Current Configuration You.can.save.your.current.configuration.by.using.this.feature..Saving. your.configuration.will.allow.you.to.restore.it.later.if.your.settings.are. lost.or.changed..It.is.recommended.that.you.back.up.your.current. configuration.before.performing.a.firmware.update. Click.“Save”..A.window.called.“File.Download”.will.open..Click.“Save”.
  • Page 62 Using the Web-Based Advanced User Interface A.window.will.open.that.allows.you.to.select.the.location.where. you.want.to.save.the.configuration.file..Select.a.location..You. can.name.the.file.anything.you.want,.or.use.the.default.name. “Config”..Be.sure.to.name.the.file.so.you.can.locate.it.yourself. later..When.you.have.selected.the.location.and.name.of.the.file,. click.“Save”. . When.the.save.is.complete,.you.will.see.the.window.below.. . Click.“Close”. The.configuration.is.now.saved.
  • Page 63 Using the Web-Based Advanced User Interface Restoring a Previous Configuration This.option.will.allow.you.to.restore.a.previously.saved.configuration. Click.“Browse”..A.window.will.open.that.allows.you.to.select.the. location.of.the.configuration.file..All.configuration.files.end.with.a. “.bin”..Locate.the.configuration.file.you.want.to.restore.and.double- click.on.it.
  • Page 64 Using the Web-Based Advanced User Interface You.will.be.asked.if.you.want.to.continue..Click.“OK”. . A.reminder.window.will.appear..It.will.take.up.to.60.seconds.for. the.configuration.restoration.to.complete..Click.“OK”. . A.60-second.countdown.will.appear.on.the.screen..When.the. countdown.reaches.zero,.the.Modem.Router’s.configuration.will. be.restored..The.Modem.Router’s.home.page.should.appear. automatically..If.not,.type.in.the.Modem.Router’s.address.(default. =.192.168.2.1).into.the.navigation.bar.of.your.browser.

  • Page 65: Updating.the.firmware

    Using the Web-Based Advanced User Interface Updating the Firmware From.time.to.time,.Belkin.may.release.new.versions.of.the.Modem. Router’s.firmware..Firmware.updates.contain.feature.improvements.and. fixes.to.problems.that.may.have.existed..When.Belkin.releases.new. firmware,.you.can.download.the.firmware.from.the.Belkin.update.website. and.update.your.Modem.Router’s.firmware.to.the.latest.version. Checking for a New Version of Firmware The.“Check.Firmware”.(1).button.allows.you.to.instantly.check.for.a.new. version.of.firmware..When.you.click.the.button,.a.new.browser.window. will.appear.informing.you.that.either.no.new.firmware.is.available.or.that. there.is.a.new.version.available..If.a.new.version.is.available,.you.will. have.the.option.to.download.it.
  • Page 66 Using the Web-Based Advanced User Interface Downloading a New Version of Firmware If.you.click.the.“Check.Firmware”.button.and.a.new.version.of. firmware.is.available,.you.will.see.a.screen.similar.to.the.one.below:. To.download.the.new.version.of.firmware,.click.“Download”. A.window.will.open.that.allows.you.to.select.the.location.where.you. want.to.save.the.firmware.file..Select.a.location..You.can.name.the. file.anything.you.want,.or.use.the.default.name..Be.sure.to.locate. the.file.in.a.place.where.you.can.locate.it.yourself.later..When.you. have.selected.the.location,.click.“Save”.
  • Page 67 Using the Web-Based Advanced User Interface When.the.save.is.complete,.you.will.see.the.following.window.. . Click.“Close”. . The.download.of.the.firmware.is.complete..To.update.the.firmware,. follow.the.next.steps.in.“Updating.the.Modem.Router’s.Firmware”. Updating the Modem Router’s Firmware .. In.the.“Firmware.Update”.page,.click.“Browse”..A.window.will.open. that.allows.you.to.select.the.location.of.the.firmware.update.file.. Browse.to.the.firmware.file.you.downloaded..Select.the.file.by. double-clicking.on.the.file.name.
  • Page 68 Using the Web-Based Advanced User Interface The.“Update.Firmware”.box.will.now.display.the.location.and.name. of.the.firmware.file.you.just.selected..Click.“Update”. You.will.be.asked.if.you.are.sure.you.want.to.continue..Click.“OK”. You.will.see.one.more.message..This.message.tells.you.that.the. Modem.Router.may.not.respond.for.as.long.as.one.minute.as.the. firmware.is.loaded.into.the.Modem.Router.and.the.Modem.Router. is.rebooted..Click.“OK”. A.60-second.countdown.will.appear.on.the.screen..When.the. countdown.reaches.zero,.the.Modem.Router.firmware.update. will.be.complete..The.Modem.Router.home.page.should.appear. automatically..If.not,.type.in.the.Modem.Router’s.address.(default. =.192.168.2.1).into.the.navigation.bar.of.your.browser.
  • Page 69 Using the Web-Based Advanced User Interface Changing System Settings The.“System.Settings”.page.is.where.you.can.enter.a.new.administrator. password,.set.the.time.zone,.enable.remote.management,.and.turn.on. and.off.the.NAT.function.of.the.Modem.Router. Setting or Changing the Administrator Password The.Modem.Router.ships.with.NO.password.entered..If.you.wish.to.add.a. password.for.greater.security,.you.can.set.a.password.here..Write.down. your.password.and.keep.it.in.a.safe.place,.as.you.will.need.it.if.you.need. to.log.into.the.Modem.Router.in.the.future..It.is.also.recommended.that. you.set.a.password.if.you.plan.to.use.the.remote.management.feature.of. your.Modem.Router. Changing the Login Time-Out Setting The.login.time-out.option.allows.you.to.set.the.period.of.time.that.you. can.be.logged.into.the.Modem.Router’s.advanced.setup.interface..The. timer.starts.when.there.has.been.no.activity..For.example,.imagine.you. have.made.some.changes.in.the.advanced.setup.interface,.then.left. your.computer.alone.without.clicking.“Logout”..Assuming.the.time-out. is.set.to.10.minutes,.10.minutes.after.you.leave,.the.login.session.will. expire..You.will.have.to.log.into.the.Modem.Router.again.to.make.any. more.changes..The.login.time-out.option.is.for.security.purposes.and.the. default.is.set.to.10.minutes.. Note:.Only.one.computer.can.be.logged.into.the.Modem.Router’s. advanced.setup.interface.at.one.time..
  • Page 70 Using the Web-Based Advanced User Interface Setting the Time and Time Zone The.Modem.Router.keeps.time.by.connecting.to.a.Simple.Network. Time.Protocol.(SNTP).server..This.allows.the.Modem.Router.to. synchronize.the.system.clock.to.the.global.Internet..The.synchronized. clock.in.the.Modem.Router.is.used.to.record.the.security.log.and. control.client.filtering..Select.the.time.zone.that.you.reside.in..You. have.the.option.to.select.a.primary.and.a.backup.NTP.server.to.keep. your.Modem.Router’s.clock.synchronized..Select.your.desired.NPT. server.from.the.drop-down.box,.or.simply.keep.it.as.is.. If.you.reside.in.an.area.that.observes.daylight.saving,.then.place.a. check.mark.in.the.box.next.to.“Enable.Daylight.Saving”..The.system. clock.may.not.update.immediately..Allow.at.least.15.minutes.for.the. Modem.Router.to.contact.the.time.servers.on.the.Internet.and.get.a. response..You.cannot.set.the.clock.yourself.. Enabling Remote Management Before.you.enable.this.advanced.feature.of.your.Belkin.Modem.Router,. MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD.. Remote.management.allows.you.to.make.changes.to.your.Modem. Router’s.settings.from.anywhere.on.the.Internet..There.are.two. methods.of.remotely.managing.the.Modem.Router..The.first.is.to. allow.access.to.the.Modem.Router.from.anywhere.on.the.Internet.by. selecting.“Any.IP.address.can.remotely.manage.the.Modem.Router”.. By.typing.in.your.WAN.IP.address.from.any.computer.on.the.Internet,. you.will.be.presented.with.a.login.screen.where.you.need.to.type.in. the.password.of.your.Modem.Router..
  • Page 71 Using the Web-Based Advanced User Interface The.second.method.is.to.allow.a.specific.IP.address.only.to.remotely. manage.the.Modem.Router..This.is.more.secure,.but.less.convenient.. To.use.this.method,.enter.the.IP.address.you.know.you.will.be. accessing.the.Modem.Router.from.in.the.space.provided.and.select. “Only.this.IP.address.can.remotely.manage.the.Modem.Router”.. Before.you.enable.this.function,.it.is.STRONGLY.RECOMMENDED.that. you.set.your.administrator.password..Leaving.the.password.empty.will. potentially.open.your.Modem.Router.to.intrusion.. Advanced Feature:.The.“Remote.Access.Port”.option.allows.you.to. configure.the.desired.“Remote.Access.Port.for.Remote.Management”. feature..The.default.access.port.is.set.to.port.80.. Enabling/Disabling NAT (Network Address Translation) Note:.This.advanced.feature.should.be.employed.by.advanced.users. only..Before.enabling.this.function,.MAKE SURE YOU HAVE SET THE ADMINISTRATOR PASSWORD..Network.Address.Translation.(NAT).is. the.method.by.which.the.Modem.Router.shares.the.single.IP.address. assigned.by.your.ISP.with.the.other.computers.on.your.network.. This.function.should.only.be.used.if.your.ISP.assigns.you.multiple. IP.addresses.or.you.need.NAT.disabled.for.an.advanced.system. configuration..If.you.have.a.single.IP.address.and.you.turn.NAT.off,. the.computers.on.your.network.will.not.be.able.to.access.the.Internet.. Other.problems.may.also.occur..Turning.off.NAT.will.not.affect.your. firewall.functions..
  • Page 72 Using the Web-Based Advanced User Interface Enabling/Disabling UPnP UPnP.(Universal.Plug-and-Play).is.yet.another.advanced.feature. offered.by.your.Belkin.Modem.Router..It.is.a.technology.that.offers. seamless.operation.of.voice.messaging,.video.messaging,.games,. and.other.applications.that.are.UPnP-compliant..Some.applications. require.the.Modem.Router’s.firewall.to.be.configured.in.a.specific. way.to.operate.properly..This.usually.requires.opening.TCP.and.UDP. ports,.and.in.some.instances,.setting.trigger.ports..An.application.that. is.UPnP-compliant.has.the.ability.to.communicate.with.the.Modem. Router,.basically.“telling”.the.Modem.Router.which.way.it.needs.the. firewall.configured..The.Modem.Router.ships.with.the.UPnP.feature. disabled..If.you.are.using.any.applications.that.are.UPnP-compliant,. and.wish.to.take.advantage.of.the.UPnP.features,.you.can.enable.the. UPnP.feature..Simply.select.“Enable”.in.the.“UPnP.Enabling”.section. of.the.“Utilities”.page..Click.“Apply.Changes”.to.save.the.change.. Enabling/Disabling Auto Firmware Update This.innovation.provides.the.Modem.Router.with.the.built-in.capability. to.automatically.check.for.a.new.version.of.firmware.and.alert.you.that. the.new.firmware.is.available..When.you.log.into.the.Modem.Router’s. advanced.interface,.the.Modem.Router.will.perform.a.check.to.see.if. new.firmware.is.available..If.so,.you.will.be.notified..You.can.choose.to. download.the.new.version.or.ignore.it.

  • Page 73: Manually Configuring Network Settings

    Manually Configuring Network Settings Set.up.the.computer.that.is.connected.to.the.cable.or.DSL.modem. FIRST.using.these.steps..You.can.also.use.these.steps.to.add. computers.to.your.Modem.Router.after.the.Modem.Router.has.been. set.up.to.connect.to.the.Internet. Manually Configuring Network Settings in Mac OS up to 9.x .. Pull.down.the.Apple.menu..Select.“Control.Panels”.and.select. “TCP/IP”. You.will.see.the.TCP/IP.control.panel..Select.“Ethernet.Built-In”. or.“Ethernet”.in.the.“Connect.via:”.drop-down.menu.(1).
  • Page 74 Manually Configuring Network Settings .. Next.to.“Configure”.(2),.if.“Manually”.is.selected,.your.Modem. Router.will.need.to.be.set.up.for.a.static.IP.connection.type.. Write.the.address.information.in.the.table.below..You.will.need.to. enter.this.information.into.the.Modem.Router. If.not.already.set,.at.“Configure:”,.choose.“Using.DHCP.Server”.. This.will.tell.the.computer.to.obtain.an.IP.address.from.the. Modem.Router.. Close.the.window..If.you.made.any.changes,.the.following. window.will.appear..Click.“Save”. Restart the computer. When the computer restarts, your network settings are now configured for use with the Modem Router.
  • Page 75 Manually Configuring Network Settings Manually Configuring Network Settings Manually Configuring Network Settings in Mac OS X .. Click.on.the.“System.Preferences”.icon. Select.“Network”.(1).from.the.“System.Preferences”.menu. .. Select.“Built-in.Ethernet”.(2).next.to.“Show”.in.the.Network.menu.
  • Page 76 Manually Configuring Network Settings Select.the.“TCP/IP”.tab.(3)..Next.to.“Configure”.(4),.you.should. see.“Manually”.or.“Using.DHCP”..If.you.do.not,.check.the. PPPoE.tab.(5).to.make.sure.that.“Connect.using.PPPoE”.is. NOT.selected..If.it.is,.you.will.need.to.configure.your.Modem. Router.for.a.PPPoE.connection.type.using.your.user.name.and. password. If.“Manually”.is.selected,.your.Modem.Router.will.need.to.be.set. up.for.a.static.IP.connection.type..Write.the.address.information. in.the.table.below..You.will.need.to.enter.this.information.into. the.Modem.Router. If.not.already.selected,.select.“Using.DHCP”.next.to.“Configure”. (4),.then.click.“Apply.Now”. Your network settings are now configured for use with the Modem Router.
  • Page 77 Manually Configuring Network Settings Manually Configuring Network Settings Manually Configuring Network Settings in Windows 2000, NT, or XP Click.“Start”,.“Settings”,.then.“Control.Panel”. Double-click.on.the.“Network.and.dial-up.connections”.icon. (Windows.2000).or.the.“Network”.icon.(Windows.XP). Right-click.on.the.“Local.Area.Connection”.associated.with.your. network.adapter.and.select.“Properties”.from.the.drop-down.menu. In.the.“Local.Area.Connection.Properties”.window,.click.“Internet. Protocol.(TCP/IP)”.and.click.the.“Properties”.button..The.following. screen.will.appear: If.“Use.the.following.IP.address”.(2).is.selected,.your.Modem. Router.will.need.to.be.set.up.for.a.static.IP.connection.type..Write. the.address.information.the.table.below..You.will.need.to.enter.this. information.into.the.Modem.Router. If.not.already.selected,.select.“Obtain.an.IP.address.automatically”. (1).and.“Obtain.DNS.server.address.automatically”.(3)..Click.“OK”. Your network settings are now configured for use with the Modem Router.
  • Page 78 Manually Configuring Network Settings Manually Configuring Network Settings in Windows 98 or Me .. Right-click.on.“My.Network.Neighborhood”.and.select.“Properties”. from.the.drop-down.menu. .. Select.“TCP/IP.Settings”.for.your.installed.network.adapter.. . You.will.see.the.following.window. .. If.“Specify.an.IP.address”.is.selected,.your.Modem.Router.will. need.to.be.set.up.for.a.static.IP.connection.type..Write.the. address.information.in.the.table.below..You.will.need.to.enter.this. information.into.the.Modem.Router. .. Write.the.IP.address.and.subnet.mask.from.the.“IP.Address”.tab. .. Click.the.“Gateway”.tab ..Write.the.gateway.address. . down.in.the.chart. .. Click.the.“DNS.Configuration”.tab. ..Write.the.DNS.address(es).in. the.chart. .. If.not.already.selected,.select.“Obtain.IP.address.automatically”.on. the.IP.address.tab..Click.“OK”. Restart the computer. When the computer restarts, your network adapter(s) are now configured for use with the Modem Router.

  • Page 79: Recommended Web Browser Settings

    Recommended Web Browser Settings In.most.cases,.you.will.not.need.to.make.any.changes.to.your.web. browser’s.settings..If.you.are.having.trouble.accessing.the.Internet.or. the.advanced.web-based.user.interface,.then.change.your.browser’s. settings.to.the.recommended.settings.in.this.section. Microsoft Internet Explorer 4.0 or Higher ® .. Start.your.web.browser..Select.“Tools”.then.“Internet.Options”. .. In.the.“Internet.Options”.screen,.there.are.three.selections:.“Never. dial.a.connection”,.“Dial.whenever.a.network.connection.is.not. present”,.and.“Always.dial.my.default.connection”..If.you.can.make. a.selection,.select.“Never.dial.a.connection”..If.you.cannot.make.a. selection,.go.to.the.next.step. ..Under.the.“Internet.Options”.screen,.click.on.“Connections”.and. select.“LAN.Settings…”.
  • Page 80 Recommended Web Browser Settings .. Make.sure.there.are.no.check.marks.next.to.any.of.the.displayed. options:.“Automatically.detect.settings”,.“Use.automatic. configuration.script”,.and.“Use.a.proxy.server”..Click.“OK”.. . Then.click.“OK”.again.in.the.“Internet.Options”.page. Netscape Navigator 4.0 or Higher ® ® .. Start.Netscape..Click.on.“Edit”.then.“Preferences”. .. In.the.“Preferences”.window,.click.on.“Advanced”.then.select. “Proxies”..In.the.“Proxies”.window,.select.“Direct.connection. . to.the.Internet”.

  • Page 81: Troubleshooting

    Troubleshooting Setup Assistant CD does not automatically start. If.the.CD-ROM.does.not.start.the.Setup.Assistant.automatically,.it. could.be.that.the.computer.is.running.other.applications.that.are. interfering.with.the.CD.drive.. . If.the.Setup.Assistant.Welcome.screen.does.not.appear.within. 15-20.seconds,.open.up.your.CD-ROM.drive.by.double-clicking. on.the.“My.Computer”.icon.that.is.located.on.your.desktop. .. Next,.double-click.on.the.CD-ROM.drive.that.the.Setup.Assistant. CD.has.been.placed.in.to.start.the.installation. .. The.Setup.Assistant.should.start.within.a.few.seconds.. . If,.instead,.a.window.appears.showing.the.files.on.the.CD,. double-click.on.the.icon.labeled.“SetupAssistant”. If.the.Setup.Assistant.still.does.not.start,.reference.the.section. titled.“Manually.Configuring.Network.Settings”.(page.71.of.this. User.Manual.for.an.alternative.setup.method). Setup Assistant cannot find my Modem Router. If.the.Setup.Assistant.is.not.able.to.find.the.Modem.Router.during.the. installation.process,.please.check.the.following.items: . If.the.Setup.Assistant.is.not.able.to.find.the.Modem.Router. during.the.installation.process,.there.may.be.third-party.firewall. software.installed.on.the.computer.attempting.to.access.the. Internet..Examples.of.third-party.firewall.software.are.ZoneAlarm,. BlackICE.PC.Protection,.McAfee.Personal.Firewall,.and.Norton.
  • Page 82 Troubleshooting Unplug.power.to.the.Modem.Router.for.10.seconds,.and.then. plug.the.power.back.into.the.Modem.Router..Ensure.that. the.Modem.Router’s.“modem.router”.LED.is.on;.it.should.be. solid.BLUE..If.not,.check.to.make.sure.that.the.AC.adapter.is. connected.to.the.Modem.Router.and.plugged.into.a.wall.outlet. .. Ensure.that.you.have.a.cable.connected.between. .the.network. (Ethernet).port.on.the.back.of.the.computer.and. .one.of.the.“to. Wired.Computers”.ports.on.the.back.of.the.Modem.Router. Note:.The.computer.should.NOT.be.connected.to.the.port.labeled. “to.Modem”.on.the.back.of.the.Modem.Router. .. Try.shutting.down.and.restarting.your.computer,.then.rerunning. the.Setup.Assistant. If.the.Setup.Assistant.is.still.unable.to.find.the.Modem.Router,. reference.the.section.titled.“Manually.Configuring.Network.Settings”. for.installation.steps. Setup Assistant cannot connect my Modem Router to the Internet If.the.Setup.Assistant.is.not.able.to.connect.the.Modem.Router.to.the. Internet,.please.check.the.following.items: . Use.the.troubleshooting.suggestions.within.the.Setup.Assistant. .. If.your.ISP.requires.a.user.name.and.password,.make.sure.that. you.have.typed.in.your.user.name.and.password.correctly..Some. user.names.require.that.the.ISP’s.domain.may.be.at.the.end.of.the. name..Example:.“myname@myisp.com”..The.“@myisp.com”.part.of. the.user.name.may.need.to.be.typed.as.well.as.your.user.name. If.you.continue.to.have.no.Internet.connection,.reference.the.section.
  • Page 83 I am unable to connect to the Internet. The “modem” LED •. on my Modem Router is off, and the “internet” LED is blinking. If.you.cannot.connect.to.the.Internet,.and.the.“modem”.LED.is.off,. and.the.“internet”.LED.is.blinking,.the.problem.may.be.that.your. modem.and.Modem.Router.are.not.connected.properly. .. Make.sure.the.network.cable.between.the.modem.and.the. Modem.Router.is.connected..The.cable.should.be.connected. at.one.end.to.the.Modem.Router’s.“to.Modem”.port,.and.at.the. other.end.to.the.network.port.on.your.modem. .. Unplug.the.cable.or.DSL.modem.from.its.power.source.for. three.minutes..After.three.minutes,.plug.the.modem.back.into.its. power.source..This.may.force.the.modem.to.properly.recognize. the.Modem.Router. .. Unplug.the.power.to.your.Modem.Router,.wait.10.seconds,.and. then.reconnect.the.power..This.will.cause.the.Modem.Router.to. reattempt.communication.with.the.modem..If.the.“modem”.LED. on.the.Modem.Router.is.not.lit.after.completing.these.steps,. please.contact.Belkin.Technical.Support. .. Try.shutting.down.and.restarting.your.computer.
  • Page 84 I am unable to connect to the Internet. The “modem” LED •. on my Modem Router is on, and the “internet” LED is blinking. .. If.you.cannot.connect.to.the.Internet,.the.“modem”.LED.is.on,. and.the.“internet”.LED.is.blinking,.the.problem.may.be.that.your. connection.type.may.not.match.the.ISP’s.connection. .. If.you.have.a.“static.IP.address”.connection,.your.ISP.must. assign.you.the.IP.address,.subnet.mask,.and.gateway.address.. Please.refer.to.the.section.entitled.“Alternate.Setup.Method”.for. details.on.changing.this.setting. .. If.you.have.a.“PPPoE”.connection,.your.ISP.will.assign.you.a. user.name.and.password.and.sometimes.a.service.name..Make. sure.the.Modem.Router’s.connection.type.is.configured.to.PPPoE. and.the.settings.are.entered.properly..Please.refer.to.the.section. entitled.“Alternate.Setup.Method”.for.details.on.changing.this. setting. .. You.may.need.to.configure.your.Modem.Router.to.meet.the. specific.requirements.of.your.ISP..To.search.our.knowledge.base. for.ISP-specific.issues,.go.to:.http://web.belkin.com/support.and. type.in.“ISP”. If.you.are.still.unable.to.access.the.Internet.after.verifying.these. settings,.please.contact.Belkin.Technical.Support.
  • Page 85 I am unable to connect to the Internet. The “modem” LED •. on my Modem Router is blinking, and the “internet” LED is solid. .. If.the.“modem”.LED.is.blinking,.and.the.“internet”.LED.is.solid,. but.you.are.unable.to.access.the.Internet,.there.may.be.third- party.firewall.software.installed.on.the.computer.attempting.to. access.the.Internet..Examples.of.third-party.firewall.software.are. ZoneAlarm,.BlackICE.PC.Protection,.McAfee.Personal.Firewall,. and.Norton.Personal.Firewall. .. If.you.do.have.firewall.software.installed.on.your.computer,. please.make.sure.that.you.properly.configure.it..You.can. determine.if.the.firewall.software.is.preventing.Internet.access.by. temporarily.turning.it.off..If,.while.the.firewall.is.disabled,.Internet. access.works.properly,.you.will.need.to.change.the.firewall. settings.to.function.properly.when.it.is.turned.on. .. Please.refer.to.the.instructions.provided.by.the.publisher.of.your. firewall.software.for.instructions.on.configuring.the.firewall.to. allow.Internet.access. If.you.are.still.unable.to.access.the.Internet.after.disabling.any.firewall. software,.please.contact.Belkin.Technical.Support.
  • Page 86 Troubleshooting I can’t connect to the Internet wirelessly. If.you.are.unable.to.connect.to.the.Internet.from.a.wireless.computer,. please.check.the.following.items: . Look.at.the.lights.on.your.Modem.Router..If.you’re.using.a.Belkin. Modem.Router,.the.lights.should.be.as.follows: •.The.“modem.router”.LED.should.be.on. •.. T he.“radio.wave”.LED.above.the.“modem.router”. . LED.should.be.on. •.The.“modem”.light.should.be.on,.and.not.blinking. •.The.“internet”.LED.should.be.on,.and.not.blinking.. •.The.“Wireless”.light.should.be.on,.not.blinking. . Open.your.wireless.utility.software.by.clicking.on.the.icon.in.the. system.tray.at.the.bottom,.right-hand.corner.of.the.screen. . The.exact.window.that.opens.will.vary.depending.on.the.model.of. wireless.card.you.have;.however,.any.of.the.utilities.should.have. a.list.of.“Available.Networks”—those.wireless.networks.it.can. connect.to. Does.the.name.of.your.wireless.network.appear.in.the.results?. Yes,.my.network.name.is.listed—go.to.the.troubleshooting.solution. titled.“I.can’t.connect.to.the.Internet.wirelessly,.but.my.network.name. is.listed”. No,.my.network.name.is.not.listed—go.to.the.troubleshooting.solution. titled.“I.can’t.connect.to.the.Internet.wirelessly,.and.my.network.name. is.not.listed”.
  • Page 87 . If.the.network.has.security.(encryption).enabled,.you.will.need.to. enter.the.network.key..For.more.information.regarding.security,.see. the.section.entitled.“Changing.the.Wireless. . Security.Settings”. . Within.a.few.seconds,.the.tray.icon.in.the.lower,.left-hand.corner. of.your.screen.should.turn.green,.indication.of.a.successful. connection.to.the.network. I can’t connect to the Internet wirelessly, and my network name is not listed. If.the.correct.network.name.is.not.listed.under.“Available.Networks”.in. the.wireless.utility,.please.attempt.the.following.troubleshooting.steps: . Temporarily.move.computer,.if.possible,.five.to.10.feet.from.the. Modem.Router..Close.the.wireless.utility,.and.reopen.it..If.the. correct.network.name.now.appears.under.“Available.Networks”,. you.may.have.a.range.or.interference.problem..Please.see.the. suggestions.discussed.in.the.section.titled.“Placement.of.your.N1. Wireless.Modem.Router”.of.this.User.Manual. . Using.a.computer.that.is.connected.to.the.Modem.Router.via.a. network.cable.(as.opposed.to.wirelessly),.ensure.that.“Broadcast. SSID”.is.enabled..This.setting.is.found.on.the.Modem.Router’s. wireless.“Channel.and.SSID”.configuration.page. If.you.are.still.unable.to.access.the.Internet.after.completing.these. steps,.please.contact.Belkin.Technical.Support.
  • Page 88 Troubleshooting • My wireless network performance is inconsistent. • Data transfer is sometimes slow. • Signal strength is poor. • Difficulty establishing and/or maintaining a Virtual Private Network (VPN) connection. Wireless.technology.is.radio-based,.which.means.connectivity.and.the. throughput.performance.between.devices.decreases.when.the.distance. between.devices.increases..Other.factors.that.will.cause.signal. degradation.(metal.is.generally.the.worst.culprit).are.obstructions.such. as.walls.and.metal.appliances..Note.also.that.connection.speed.may. decrease.as.you.move.farther.away.from.the.Modem.Router. In.order.to.determine.if.wireless.issues.are.related.to.range,.we. suggest.temporarily.moving.the.computer,.if.possible,.five.to.10.feet. from.the.Modem.Router.. Changing the wireless channel—Depending.on.local.wireless.traffic. and.interference,.switching.the.wireless.channel.of.your.network.can.
  • Page 89 Troubleshooting I am having difficulty setting up Wired Equivalent Privacy (WEP) security on my Belkin Modem Router. . Log.into.your.Modem.Router. Open.your.web.browser.and.type.in.the.IP.address.of.the.Modem. Router..(The.Modem.Router’s.default.is.192.168.2.1.).Log.into.your. Modem.Router.by.clicking.on.the.“Login”.button.in.the.top.right- hand.corner.of.the.screen..You.will.be.asked.to.enter.your.password.. If.you.never.set.a.password,.leave.the.“Password”.field.blank.and. click.“Submit”. Click.the.“Wireless”.tab.on.the.left.of.your.screen..Select.the. “Encryption”.or.“Security”.tab.to.get.to.the.security.settings.page. .. Select.“128-bit.WEP”.from.the.drop-down.menu. .. After.selecting.your.WEP.encryption.mode,.you.can.type.in.your. hex.WEP.key.manually,.or.you.can.type.in.a.passphrase.in.the. “Passphrase”.field.and.click.“Generate”.to.create.a.WEP.key.from. the.passphrase..Click.“Apply.Changes”.to.finish..You.must.now.set. all.of.your.clients.to.match.these.settings..A.hex.(hexadecimal).key. is.a.mixture.of.numbers.and.letters.from.A-F.and.0-9..For.128-bit. WEP,.you.need.to.enter.26.hex.keys.. For.example:. C3 03 0F AF 4B B2 C3 D4 4B C3 D4 E7 E4.=.128-bit.key .
  • Page 90 Troubleshooting I am having difficulty setting up Wired Equivalent Privacy (WEP) security on a Belkin client card. The.client.card.must.use.the.same.key.as.the.Modem. Router..For.instance,.if.your.Modem.Router.uses.the.key. 00112233445566778899AABBCC,.then.the.client.card.must.be.set.to. the.exact.same.key. . Double-click.the.Signal.Indicator.icon.to.bring.up.the.“Wireless.. Network”.screen. The.“Advanced”.button.will.allow.you.to.view.and.configure.more. options.of.the.card..Once.the.“Advanced”.button.is.clicked,.the.Belkin.Wireless.LAN. Utility.will.appear..This.Utility.will.allow.you.to.manage.all.the. advanced.features.of.the.Belkin.Wireless.Card. . Under.the.“Wireless.Network.Properties”.tab,.select.a. network.name.from.the.“Available.Networks”.list.and.click.the. “Properties”.button. . Under.“Data.Encryption”,.select.“WEP”. .. Ensure.the.check.box.“The.key.is.provided.for.me.automatically”. at.the.bottom.is.unchecked..If.you.are.using.this.computer.to. connect.to.a.corporate.network,.please.consult.your.network.
  • Page 91 Download the latest driver at http://web.belkin.com/support for the following products: F5D7000,.F5D7001,.F5D7010,.F5D7011,.F5D7230-4,.F5D7231-4,.F5D7130 I am having difficulty setting up Wireless Protected Access (WPA) security on my Belkin Modem Router for a home network. . From.the.“Security.Mode”.drop-down.menu,.select.“WPA-PSK. (no.server)”. .. For.“Encryption.Technique”,.select.“TKIP”.or.“AES”..This.setting.will. have.to.be.identical.on.the.clients.that.you.set.up. .. Enter.your.pre-shared.key..This.can.be.from.eight.to.63.characters.
  • Page 92 Troubleshooting I am having difficulty setting up Wireless Protected Access (WPA) security on a Belkin wireless client card for a home network. Clients.must.use.the.same.key.that.the.Modem.Router.uses..For. instance,.if.the.key.is.“Smith.Family.Network.Key”.in.the.Modem. Router,.the.clients.must.also.use.that.same.key. . Double-click.the.Signal.Indicator.icon.to.bring.up.the.“Wireless. Network”.screen..The.“Advanced”.button.will.allow.you.to.view. and.configure.more.options.of.your.card. Once.the.“Advanced”.button.is.clicked,.the.Belkin.Wireless.Utility. will.appear..This.Utility.will.allow.you.to.manage.all.the.advanced. features.of.the.Belkin.Wireless.Card. .. Under.the.“Wireless.Network.Properties”.tab,.select.a. network.name.from.the.“Available.Networks”.list.and.click.the. “Properties”.button. . Under.“Network.Authentication”,.select.“WPA-PSK.(no.server). . Type.your.WPA.key.in.the.“Network.key”.box.
  • Page 93 Troubleshooting I am NOT using a Belkin client card for a home network andI am having difficulty setting up Wireless Protected Access (WPA) security. If.you.are.not.using.a.Belkin.Wireless.Desktop.or.Wireless.Notebook. Network.Card.that.is.not.equipped.with.WPA-enabled.software,.a. file.from.Microsoft.called.“Windows.XP.Support.Patch.for.Wireless. Protected.Access”.is.available.for.free.download..Download.the.patch. from.Microsoft.by.searching.the.knowledge.base.for.Windows.XP.WPA. Note: The.file.that.Microsoft.has.made.available.works.only.with. Windows.XP..Other.operating.systems.are.not.supported.at.this.time.. You.also.need.to.ensure.that.the.wireless.card’s.manufacturer.supports. WPA.and.that.you.have.downloaded.and.installed.the.latest.driver.from. their.support.site. Supported.Operating.Systems: •.Windows.XP.Professional. •.Windows.XP.Home.Edition . Under.Windows.XP,.click.“Start.>.Control.Panel.>.
  • Page 94 Troubleshooting .. Under.the.“Wireless.Networks”.tab,.click.the.“Configure”.button. and.you.will.see.the.following.screen.. . For.a.home.or.small.business.user,.select.“WPA-PSK”.under. “Network.Administration”. Note: Select.WPA.(with.radius.server).if.you.are.using.this.computer. to.connect.to.a.corporate.network.that.supports.an.authentication. server.such.as.a.radius.server..Please.consult.your.network. administrator.for.further.information. .. Select.“TKIP”.or.“AES”.under.“Date.Encryption”..This.setting.will. have.to.be.identical.to.the.Modem.Router.that.you.set.up. . Type.in.your.encryption.key.in.the.“Network.key”.box. Important: Enter.your.pre-shared.key..This.can.be.from.eight.to.63. characters.and.can.be.letters,.numbers,.or.symbols..This.same.key. must.be.used.on.all.of.the.clients.that.you.set.up. . Click.“OK”.to.apply.settings. What’s the difference between 802.11b, 802.11g, 802.11a, and draft 802.11n? Currently.there.are.four.levels.of.wireless.networking.standards,.which. transmit.data.at.very.different.maximum.speeds..Each.is.based.on. the.designation.for.certifying.network.standards..The.most.common. wireless.networking.standard,.802.11b,.transmits.information.at. 11Mbps;.802.11a.and.802.11g.work.at.54Mbps;.and.draft.802.11n. works.at.108Mbps..See.the.chart.on.the.next.page.for.more.detailed. information.
  • Page 95 Troubleshooting Wireless Comparison Chart 11Mbps.link. 5x.faster.than. 10x.faster.than. Wired.speed. rate/baseline 802.11b* 802.11b* over.the.air* Common. Common. Common. Common. household. household. household. household. devices.such.as. devices.such.as. devices.such.as. devices.such.as. cordless.phones. cordless.phones. cordless.phones. cordless.phones. and.microwave. and.microwave. and.microwave. and.microwave. ovens.may. ovens.may. ovens.may. ovens.may. interfere.with.the. interfere.with.the. interfere.with.the. interfere.with.the. unlicensed.band.
  • Page 96 Troubleshooting Free Tech Support You.can.find.additional.support.information.on.our.website. . www.belkin.com/anz.through.the.tech-support.area. If.you.want.to.contact.technical.support.by.phone,.please.call.the. number.you.need.from.the.list.below*.. Australia.-.1800.BELKIN New Zealand.-.0800.BELKIN...

  • Page 97: Information

    Information FCC.Statement DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY We,.Belkin.Corporation,.of.501.West.Walnut.Street,. Compton,.CA.90220,.declare.under.our.sole.responsibility. that.the.product, F5D8631-4 to.which.this.declaration.relates,.complies.with.Part.15.of. the.FCC.Rules..Operation.is.subject.to.the.following.two. conditions:.(1).this.device.may.not.cause.harmful.interference,. and.(2).this.device.must.accept.any.interference.received,. including.interference.that.may.cause.undesired.operation. Caution: Exposure to Radio Frequency Radiation. The.radiated.output.power.of.this.device.is.far.below.the.FCC.radio.frequency. exposure.limits..Nevertheless,.the.device.shall.be.used.in.such.a.manner.that.the. potential.for.human.contact.during.normal.operation.is.minimized. When.connecting.an.external.antenna.to.the.device,.the.antenna.shall.be.placed. in.such.a.manner.to.minimize.the.potential.for.human.contact.during.normal. operation..In.order.to.avoid.the.possibility.of.exceeding.the.FCC.radio.frequency. exposure.limits,.human.proximity.to.the.antenna.shall.not.be.less.than.20cm.(8. inches).during.normal.operation. Federal Communications Commission Notice This.equipment.has.been.tested.and.found.to.comply.with.the.limits.for.a.Class. B.digital.device,.pursuant.to.Part.15.of.the.FCC.Rules..These.limits.are.designed.
  • Page 98 Information Canada-Industry Canada (IC). The.wireless.radio.of.this.device.complies.with.RSS.139.&.RSS.210.Industry. Canada..This.Class.B.digital.apparatus.complies.with.Canadian.ICES-003. Cet.appareil.numérique.de.la.classe.B.conforme.á.la.norme.NMB-003. du.Canada. Europe-European.Union.Notice.Radio.products.with.the.CE.0560.or.CE.alert. marking.comply.with.the.R&TTE.Directive.(1995/5/EC).issued. by.the.Commission.of.the.European.Community. Compliance.with.this.directive.implies.conformity.to.the.following.European. Norms.(in.brackets.are.the.equivalent.international.standards). •.EN.60950.(IEC60950).–.Product.Safety.. •.EN.300.328.Technical.requirement.for.radio.equipment.. •.ETS.300.826.General.EMC.requirements.for.radio.equipment. To.determine.the.type.of.transmitter,.check.the.identification.label.on.your. Belkin.product. Products.with.the.CE.marking.comply.with.the.EMC.Directive.(89/336/EEC). and.the.Low.Voltage.Directive.(72/23/EEC).issued.by.the.Commission.of.the. European.Community..Compliance.with.these.directives.implies.conformity. to.the.following.European.Norms.(in.brackets.are.the.equivalent.international. standards). •.EN.55022.(CISPR.22).–.Electromagnetic.Interference. •.EN.55024.(IEC61000-4-2,3,4,5,6,8,11).–.Electromagnetic.Immunity. •.EN.61000-3-2.(IEC610000-3-2).–.Power.Line.Harmonics. •.EN.61000-3-3.(IEC610000).–.Power.Line.Flicker. •.EN.60950.(IEC60950).–.Product.Safety Products.that.contain.the.radio.transmitter.are.labeled.with.CE.0560.or.CE. alert.marking.and.may.also.carry.the.CE.logo. This.symbol.on.the.product.or.on.its.packaging.indicates.that. this.product.must.not.be.disposed.of.with.your.other.household. waste..Instead,.it.is.your.responsibility.to.dispose.of.your.waste. equipment.by.handing.it.over.to.a.designated.collection.point. for.the.recycling.of.waste.electrical.and.electronic.equipment.. The.separate.collection.and.recycling.of.your.waste.equipment. at.the.time.of.disposal.will.help.to.conserve.natural.resources.and.ensure.that. it.is.recycled.in.a.manner.that.protects.human.health.and.the.environment.. For.more.information.about.where.you.can.drop.off.your.waste.equipment.for. recycling,.please.contact.your.local.city.office,.your.household.waste.disposal.
  • Page 99 Information Belkin Corporation Limited Lifetime Product Warranty What this warranty covers. Belkin.Corporation.warrants.to.the.original.purchaser.of.this.Belkin.product. that.the.product.shall.be.free.of.defects.in.design,.assembly,.material,. or.workmanship.. What the period of coverage is.. Belkin.Corporation.warrants.the.Belkin.product.for.the.lifetime.of.the.product. What will we do to correct problems? Product Warranty. Belkin.will.repair.or.replace,.at.its.option,.any.defective.product.free.of.charge. (except.for.shipping.charges.for.the.product). What is not covered by this warranty? All.above.warranties.are.null.and.void.if.the.Belkin.product.is.not.provided.to.
  • Page 100 Information Belkin.Corporation.reserves.the.right.to.review.the.damaged.Belkin.product..All. costs.of.shipping.the.Belkin.product.to.Belkin.Corporation.for.inspection.shall. be.borne.solely.by.the.purchaser..If.Belkin.determines,.in.its.sole.discretion,.that. it.is.impractical.to.ship.the.damaged.equipment.to.Belkin.Corporation,.Belkin. may.designate,.in.its.sole.discretion,.an.equipment.repair.facility.to.inspect.and. estimate.the.cost.to.repair.such.equipment..The.cost,.if.any,.of.shipping.the. equipment.to.and.from.such.repair.facility.and.of.such.estimate.shall.be.borne. solely.by.the.purchaser..Damaged.equipment.must.remain.available.for.inspection. until.the.claim.is.finalized..Whenever.claims.are.settled,.Belkin.Corporation. reserves.the.right.to.be.subrogated.under.any.existing.insurance.policies.the. purchaser.may.have. How state law relates to the warranty. THIS.WARRANTY.CONTAINS.THE.SOLE.WARRANTY.OF.BELKIN. CORPORATION,.THERE.ARE.NO.OTHER.WARRANTIES,.EXPRESSED. OR,.EXCEPT.AS.REQUIRED.BY.LAW,.IMPLIED,.INCLUDING.THE.IMPLIED. WARRANTY.OR.CONDITION.OF.QUALITY,.MERCHANTABILITY.OR.FITNESS. FOR.A.PARTICULAR.PURPOSE,.AND.SUCH.IMPLIED.WARRANTIES,.IF.ANY,. ARE.LIMITED.IN.DURATION.TO.THE.TERM.OF.THIS.WARRANTY.. Some.states.do.not.allow.limitations.on.how.long.an.implied.warranty.lasts,.so. the.above.limitations.may.not.apply.to.you. IN.NO.EVENT.SHALL.BELKIN.CORPORATION.BE.LIABLE.FOR.INCIDENTAL,. SPECIAL,.DIRECT,.INDIRECT,.CONSEQUENTIAL.OR.MULTIPLE.DAMAGES. SUCH.AS,.BUT.NOT.LIMITED.TO,.LOST.BUSINESS.OR.PROFITS.ARISING.OUT. OF.THE.SALE.OR.USE.OF.ANY.BELKIN.PRODUCT,.EVEN.IF.ADVISED.OF.THE. POSSIBILITY.OF.SUCH.DAMAGES.. This.warranty.gives.you.specific.legal.rights,.and.you.may.also.have.other.rights,. which.may.vary.from.state.to.state..Some.states.do.not.allow.the.exclusion.or. limitation.of.incidental,.consequential,.or.other.damages,.so.the.above.limitations. may.not.apply.to.you.
  • Page 101 N1 MIMO Wireless ADSL2+ Modem Router Belkin Ltd. 4 Pioneer Avenue, Tuggerah Business Park Tuggerah NSW 2259, Australia Belkin Corporation 501 West Walnut Street Los Angeles, CA 90220, USA Belkin Ltd. Express Business Park, Shipton Way Rushden NN1 MIMO0 6GL, UK ©.2007.Belkin.Corporation..All.rights.reserved..All.trade.names.are.registered.trademarks.of.
