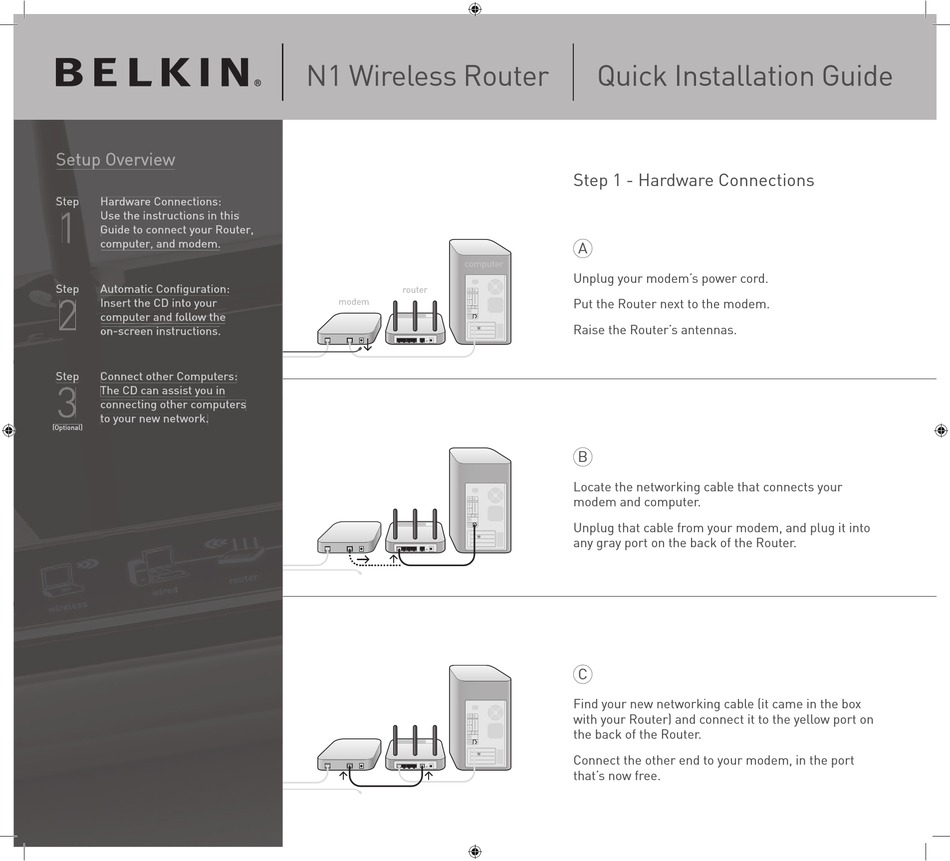

Belkin N1 Quick Installation Manual

Setup Overview Setup Overview
Step Step Hardware Connections: Hardware Connections:
1 1
Use the instructions in this Use the instructions in this
Guide to connect your Router, Guide to connect your Router,
computer, and modem. computer, and modem.
Step Step Automatic Confi guration: Automatic Confi guration:
2 2
Insert the CD into your Insert the CD into your
computer and follow the computer and follow the
on-screen instructions. on-screen instructions.
Step Step Connect other Computers: Connect other Computers:
3 3
The CD can assist you in The CD can assist you in
connecting other computers connecting other computers
to your new network. to your new network.
(Optional) (Optional)
N1 Wireless Router
��������
������
�����

Quick Installation Guide

Step 1 - Hardware Connections
A
Unplug your modem's power cord.
Put the Router next to the modem.
Raise the Router's antennas.
B
Locate the networking cable that connects your
modem and computer.
Unplug that cable from your modem, and plug it into
any gray port on the back of the Router.
C
Find your new networking cable (it came in the box
with your Router) and connect it to the yellow port on
the back of the Router.
Connect the other end to your modem, in the port
that's now free.
