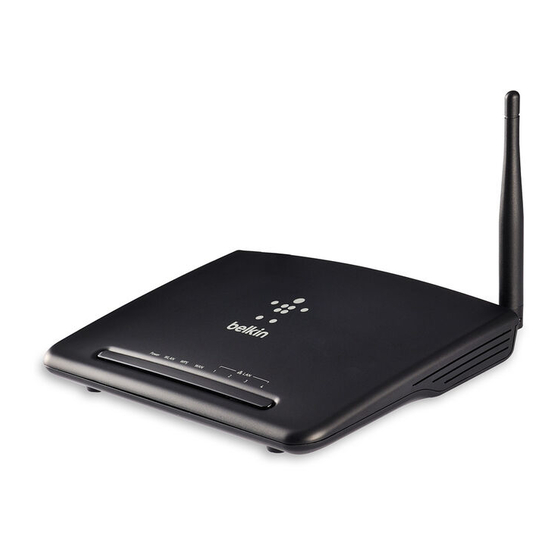

WIRELESS ROUTER
N150
User Manual
F9K1009v1 8820zb01125 Rev.B00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N150 and is the answer not in the manual?

Questions and answers

Related Manuals for Belkin N150

Summary of Contents for Belkin N150

  • Page 1 WIRELESS ROUTER N150 User Manual F9K1009v1 8820zb01125 Rev.B00...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Restoring Your Router to Factory Defaults ..... . . 24 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Backing Up Your Configuration .

  • Page 3: Getting Started

    Power supply an open location away from large metal objects and magnets such as those found in speakers. Raising the Router above Belkin CD with User Manual floor level can improve the strength of your wireless signal. Quick Installation Guide...

  • Page 4: How To Set It Up

    3. Power up your modem by plugging in its power supply. 4. Power up your Router by plugging in its power supply. Connect Your N150 Router 1. Turn off your modem by disconnecting its power supply. 2. Connect your Router to your modem using the cable.

  • Page 5: Adding Computers To Your Network

    GETTING STARTED Adding Computers to Your Network When requested, please enter the password (security key) provided on the card. Wireless devices such as computers, network printers, and gaming systems can connect to your Router with a few simple steps. Using the WPS Button Manual Setup Start WPS Push Button Connection (WPS PBC) on your computer or other Wi-Fi device that you would like to connect wirelessly to your...

  • Page 6: Manually Set Up Your Internet Connection

    GETTING STARTED Manually Set Up Your Internet Connection You can also try visiting http://192.168.2.1/. Use a browser to visit http://Router/. The Router homepage should appear. The status of your Internet connection is shown in the upper right corner of the Router homepage.
  • Page 7 GETTING STARTED If after a few moments it says “Connected”, you’re done! You can surf If not, select “Connection Type” from the menu on the left. the Internet.
  • Page 8 GETTING STARTED If a password screen appears, press “Submit”. Dynamic Connection Cable and fiber customers generally require a dynamic connection. Some DSL customers require a PPPoE connection. Let’s try dynamic first. Select “Dynamic” from the menu that appears and press “Next”.
  • Page 9 GETTING STARTED Enter the host name provided by your Internet service provider. Click If after a few minutes your Internet Status says “Connected”, you’re “Apply Changes”. done! You can surf the Internet. If these steps do not work, try restarting your modem and repeating the process .
  • Page 10 GETTING STARTED PPPoE Connection Enter the username and password supplied by your Internet provider and click “Apply Changes”. Ignore the other fields. Some DSL customers require a PPPoE connection. Select PPPoE this time and press “Next”. If after a few minutes your Internet Status says “Connected”, you’re done! You can surf the Internet.
  • Page 11 GETTING STARTED Connecting Additional Devices Windows® 7 Your computer provides a menu of available wireless networks at the right end of the task bar. (iphone, iPad, and iPod touch) Right-click on the icon that looks like signal strength bars. Open the “Settings” app and select the “Wi-Fi” menu item. Select your wireless network from the list.

  • Page 12: Getting To Know Your Router

    GETTING TO KNOW YOUR ROUTER Successful Connection: The WPS light is SOLID GREEN for 5 minutes and then goes out when the Router has made a Front Panel secure connection with the computer or other device. Failed Connection: The WPS light is BLINKING GREEN for 30s after the WPS connection fails.

  • Page 13: Back Panel

    GETTING TO KNOW YOUR ROUTER Back Panel WPS Button The WPS button on the back of your Router can be used to help establish a secure connection between your Router and other WPS- enabled Wi-Fi devices such as computers. To use the WPS feature on your Router, see “Getting Started >...

  • Page 14: Technical Details

    NAT IP Address Sharing System Requirements To save you the cost of adding IP address per computer in your house, our Belkin Router uses Network Address Translation (NAT) technology, allowing you to share Router a single IP address across your network.

  • Page 15: Using Your Router

    USING YOUR ROUTER Using the LAN IP Setup Setup steps: Open a Web browser on the computer. The “LAN Settings” page allows changing the Router’s LAN IP address as required and configuring In the address bar of the Web browser, type http://192.168.2.1. Dynamic Host Configuration Protocol (DHCP).
  • Page 16 USING YOUR ROUTER Configure the IP address and subnet mask. Click “Login” in the upper right corner of the page. The Router does not ship with a password, so just click “Submit”. IP Address: The IP address that a LAN user uses to access the Router.

  • Page 17: Configuring Your Internet Connection

    The local domain name is a user-friendly name for your Router. At the bottom of the “LAN Settings” page, you can set a local domain name. The default name is Belkin. There is no need to change this setting unless required.
  • Page 18 USING YOUR ROUTER Select “Dynamic” in the “Connection Type” Enter the host name provided by your Internet provider. page that appears. Click “Next”. Click “Apply Changes”.
  • Page 19 USING YOUR ROUTER If after a few minutes your Internet Status says Configure the parameters below. These parameters cannot be left “Connected”, you’re done! You can surf the Internet. blank. IP Address: Enter the WAN IP address provided by the ISP. The Static Connection parameter must be entered.
  • Page 20 USING YOUR ROUTER Click “Click here to enter your DNS Settings” to configure DNS information. Clear the “Automatic from ISP” check box. In the “DNS Address” and “Secondary DNS Address” fields, enter the IP addresses of the primary DNS server and the secondary server (if available).
  • Page 21 USING YOUR ROUTER Configure the parameters below. PPTP/L2TP Connection User Name and Password: Enter the user name and password provided Some ISPs require a connection using the PPTP or L2TP protocol. by the ISP. The user name and password are used to log in to the ISP Enter the account and password provided by your ISP.
  • Page 22 USING YOUR ROUTER Configure the parameters below. If you select the “Disconnect after xxx minutes of no activity” check box and specify a time interval, the system PPTP Account and PPTP Password: Enter the PPTP account and interrupts the Internet connection when there is no password provided by the ISP.
