WBH-16EAWD POWER BUGGY — ELECTRIC WIRING DIAGRAM

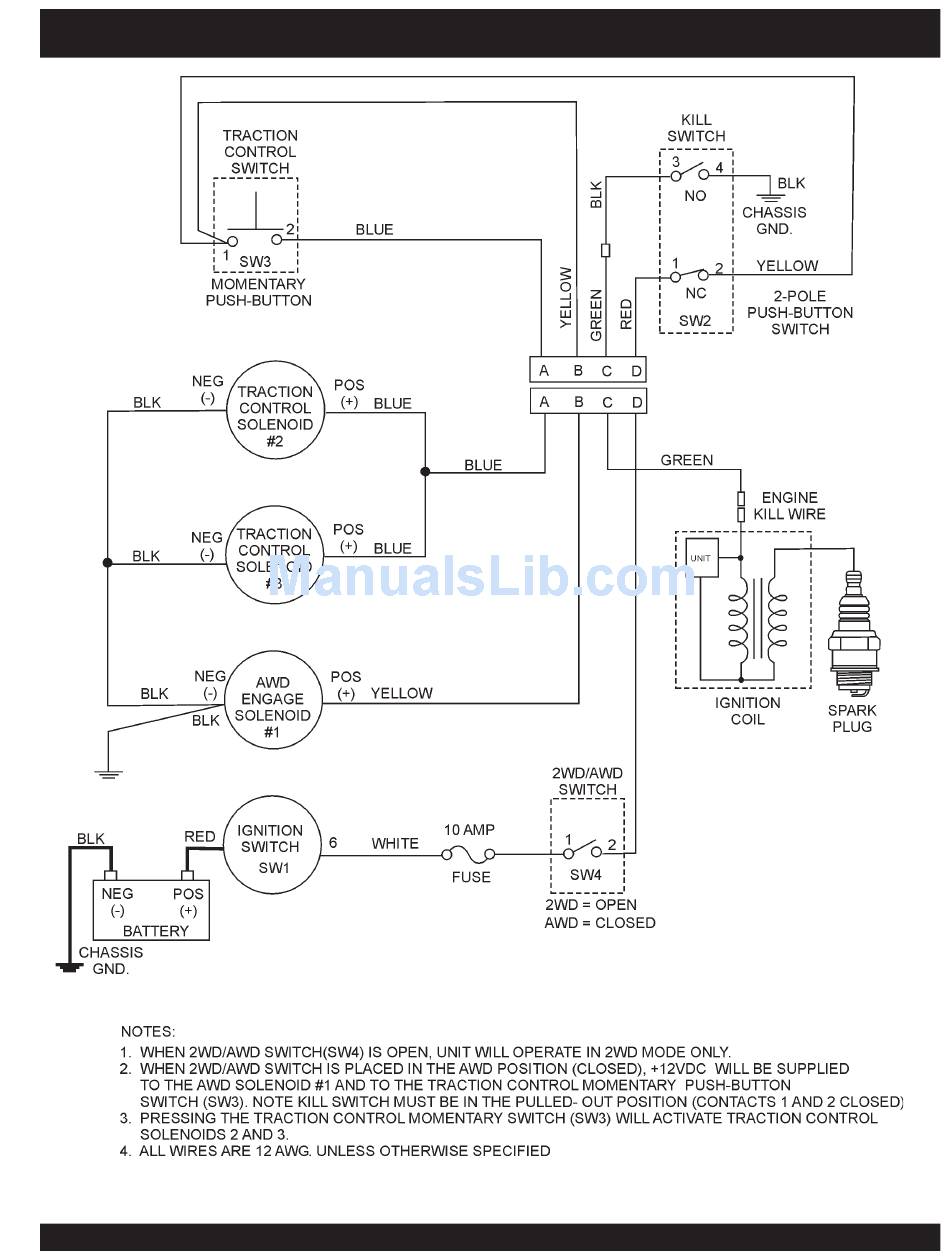

Figure 27. Electric Wiring Diagram
MQ-WHITEMAN WBH-16EAWD POWER BUGGY — PARTS & OPERATION MANUAL — REV. #5 (01/05/07) — PAGE 33
