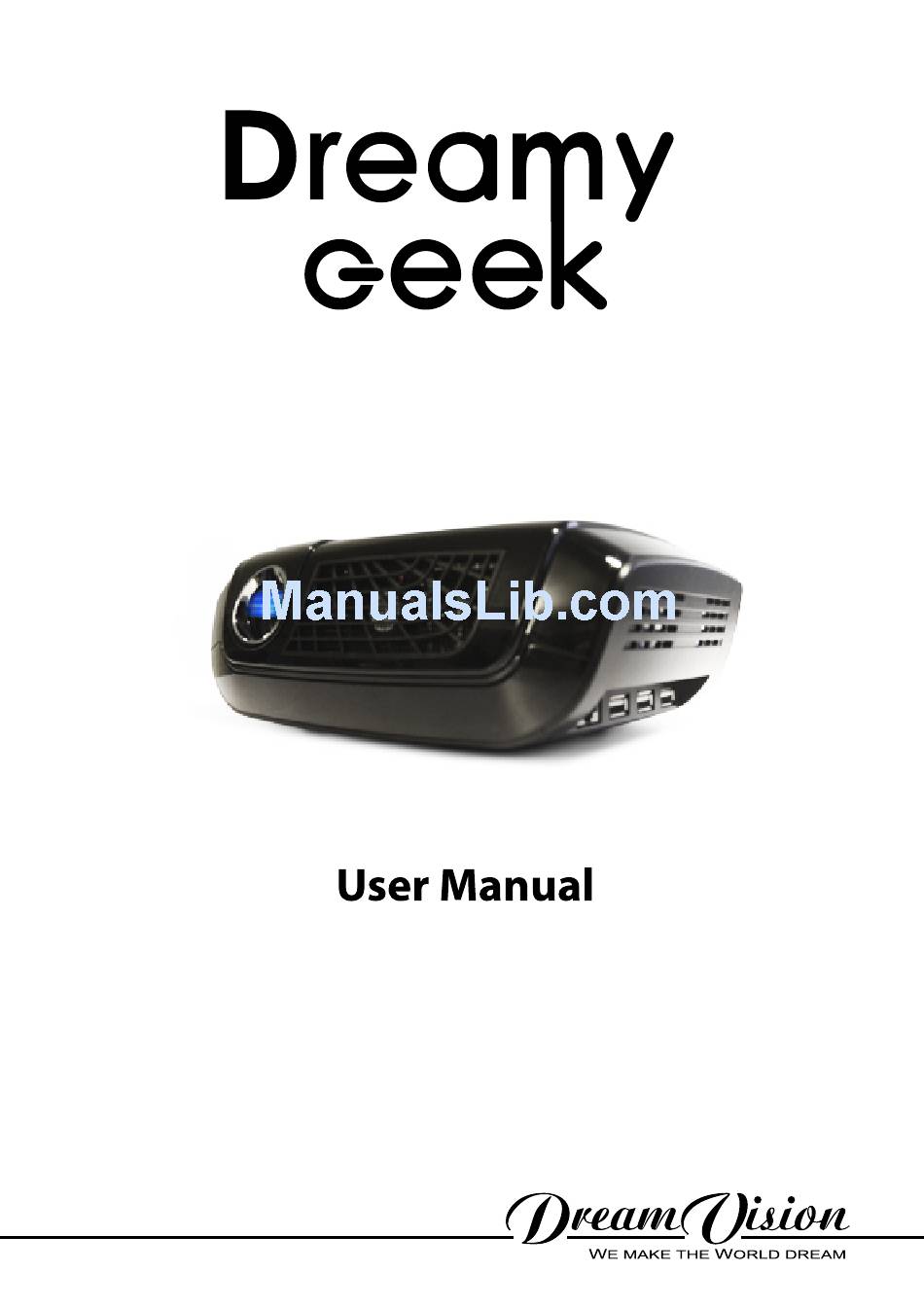

Summary of Contents for DREAMVISION Dreamy geek
- Page 2 Changes Dreamvision provides this manual ‘as is’ without warranty of any kind, either expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose. Dreamvision may make improvements and/or changes to the product(s) and/or the program(s) described in this publication at any time without notice.
-
Page 3: Table Of Contents
11.3 “Recents” Overlay ........................22 11.4 Creating a Google Account ......................22 11.5 Installing a new App ........................23 12.0 SETTINGS APP ........................12.1 Launching the Settings App ......................24 12.2 Menu Structure ..........................24 12.3 Desktop settings ...........................25 R699831 - Dreamy Geek User Manual... -
Page 4: Regional Specific Information
FCC Information (USA only) Changes or modification not approved by Dreamvision could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. -
Page 5: Important Safeguards
Use only the power cord designated by our dealer to ensure Safety and EMC. • Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult R699831 - Dreamy Geek User Manual... -
Page 6: Installation Guidelines
APKs from the Google Play market such as video games or internet & medias. Once connected to internet via the Ethernet LAN or WiFi, the Dreamy Geek is able to read and to play streamed Audio/Video files such as AVI, MP4 or MKV stored on USB keys, local servers and iOS devices. -
Page 7: Attaching The Unit
Attaching the Unit The Dreamy Geek comes with a standard centered 1/4”-20 camera fixation thread that may be used to suspend or attach this unit. Make sure during installation to allow sufficient space around the air inlets to avoid blocking them. -
Page 8: Projection Distance
InStaLLatIon guIdeLIneS 2.5 Projection Distance Projection Distance Chart The Dreamy Geek has a fixed zoom lens with a throw ratio of 1.19:1 Projection Screen Projection Screen Projection Screen Dreamy Geek Diagonal Size Base Size Height Projection Distance (Aspect Ratio 16:10) -
Page 9: Remote Control Unit (Rcu)
The remote control unit can be used by having the signal reflected off a screen, as the effect of signals reflected from the RCU differ with the type of screen used, operable distance may decrease. R699831 - Dreamy Geek User Manual... -
Page 10: Loading And Replacing Batteries
Locate and pull out the USB dongle from its slot. • Close the bottom case of the Wireless Keyboard • Plug the USB dongle into a free USB slot of the Dreamy Geek. • Press any key on the Wireless Keyboard to wake it up. 4.3 ... -
Page 11: Keyboard Keys And Functions
Press and hold simultaneously the Up, Down and Enter keys until the blue LEDs on the bottom left side of the Keyboard flash. • Then connect back the USB dongle to the Dreamy Geek USB port and wait until the blue LEDs on the Keyboard stop flashing and are lit state. The Air mouse doesn’t work If the Air mouse is not working: •... -
Page 12: General View
When in Cool Down mode, do not pull out the plug from the outlet. Also, do not block the air inlets or exhaust vents by standing the projector on its end or laying it on its side. 5.2 Front View Projection lens Air out take Front view R699831 - Dreamy Geek User Manual... -
Page 13: Rear View
Do not cut, tear or modify the power cords. Also, do not place a heavy object on, heat or stretch the power cords as this may cause damage to the cords. R699831 - Dreamy Geek User Manual... -
Page 14: Power On
Prior to connecting any device to this unit, switch the projector in standby mode. Never connect a HDMI source to this unit when the projector is in operate mode. The HDMI termination is a self-powered connection and can cause electric discharges. R699831 - Dreamy Geek User Manual... -
Page 15: Connecting A Video Source To The Projector
Understanding the Network Installation The Dreamy Geek can be connected to internet using any Ethernet plug available in your house. The Ethernet plug must be itself connected to a switch or rooter with an available internet access. Generally, the internet access is granted from a wealthy rooter connection. -
Page 16: Selecting An Audio/Video Source
Automatic or Fixed IP Address The default setting is DHCP and it lets the rooter decides which IP is assigned to the Dreamy Geek. That means that the IP address of this unit is not fixed and may change after a reboot. Therefore, the access to this unit will use the authentication name on the network. -
Page 17: Picture Profile
User, this profile can be tweaked to match user needs. Slide down to modify the additional settings: Color Temperature, Aspect Ratio, Noise Reduction. 9.3 Sound Profile From the Picture Profile menu, slide right or left to obtain the set the Sound Mode settings. R699831 - Dreamy Geek User Manual... -
Page 18: Wireless Playback With Airplay
The Dreamy Geek projector can use AirPlay communication protocol to stream wirelessly music, photo and video from an Ipad, Ipod or Iphone. 10.1 Music Playback Launch the Music application on your iDevice, when the Dreamy Geek is detected, an Airplay icon appears on the bottom right of your iDevice screen. Airplay icon... -
Page 19: Projecting Photos From The Camera Roll Of Your Idevice
Launch the Videos application. Airplay icon Press on the Airplay icon to play the movie on the Dreamy Geek. When your iDevice is connected and streaming a movie, you may use an available USB slot to keep the battery charged. -
Page 20: The Android Interface
Numerous Apps from the Apple market support Airplay such as Youtube , TV Apps, Video Games etc. 11.0 THE ANDROID INTERFACE The Dreamy Geek comes with an embedded Android 4.0 OS (operating system) and is compatible with most Apps available on the Android market. -
Page 21: All Apps" Screen
App or widget icon from the All Apps screen and place it in any empty location on any Home screen. Access the All Apps screen by clicking on the “All App” icon located on the top-right corner of the Home screen. R699831 - Dreamy Geek User Manual... -
Page 22: Recents" Overlay
Google apps and services such as regional weather forecast, video games, movie market, music download, TV replay content and much more. Creating a new Google account or adding an account • Launch the Google Play App. • Go to Setting > Accounts > “Add a Google Account”. R699831 - Dreamy Geek User Manual... -
Page 23: Installing A New App
Google Play interface, the Apps market for android systems. • Choose and install the App you want to install on your Dreamy Geek projector. • From the All apps screen, select the installed item until the positioning gridlines appear then slide the shortcut to any Home screen tab. -
Page 24: Settings App
Automatic acquisition IP On, Off IP address subnet mask default gateway First DNS Second DNS Wireless setting WiFi On, Off SSID Automatic acquisition IP On, Off IP address subnet mask default gateway first DNS second DNS R699831 - Dreamy Geek User Manual... -
Page 25: Desktop Settings
You can configure the eco function that will switch off the projector when there is no operation or after a determined timer. Choose the duration of the timer between: never, 15sec, 30sec, 1min, 2min, 5min and 10min. Font Size and Big Font Size Select how big the font will be displayed at the screen. R699831 - Dreamy Geek User Manual... -
Page 26: Application Manager
Wire Setting (LAN) It is better to use a wired connection to connect the Dreamy Geek to your LAN if you plan to stream or watch HD videos. This sub menu let you choose between automatic or manual configuration of the LAN parameters. When set to manual, fill the empty fields with the correct parameters to connect this unit to your LAN. -
Page 27: Language Setting
System update method: online or local update. System information: current operating version. Restore factory: use the reset factory to restore the Dreamy Geek settings to default. Note that all the installed APK and system settings will be lost. 12.9 Advanced Image Setting Keystone Correction Compensate for trapezoidal distortion caused by installation. -
Page 28: Maintenance
Audio L/R inputs (white and red RCA connectors). Please note that the Stereo Jack 3,5mm may be used only as an audio output. R699831 - Dreamy Geek User Manual... -
Page 29: Specifications
13.3 Specifications Overview The Dreamy Geek projection device is based on a DLP WXGA DarkChip 3 and Android 4.0 Ice-Cream Sandwich operating system Emission method Darkchip 3 DLP Display panel size 0.45” Darkchip 3 Native Resolution 1280 x 800 pixels... - Page 30 Dimensions 70 mm 70 mm 125 mm 190 mm 100 mm R699831 - Dreamy Geek User Manual...
