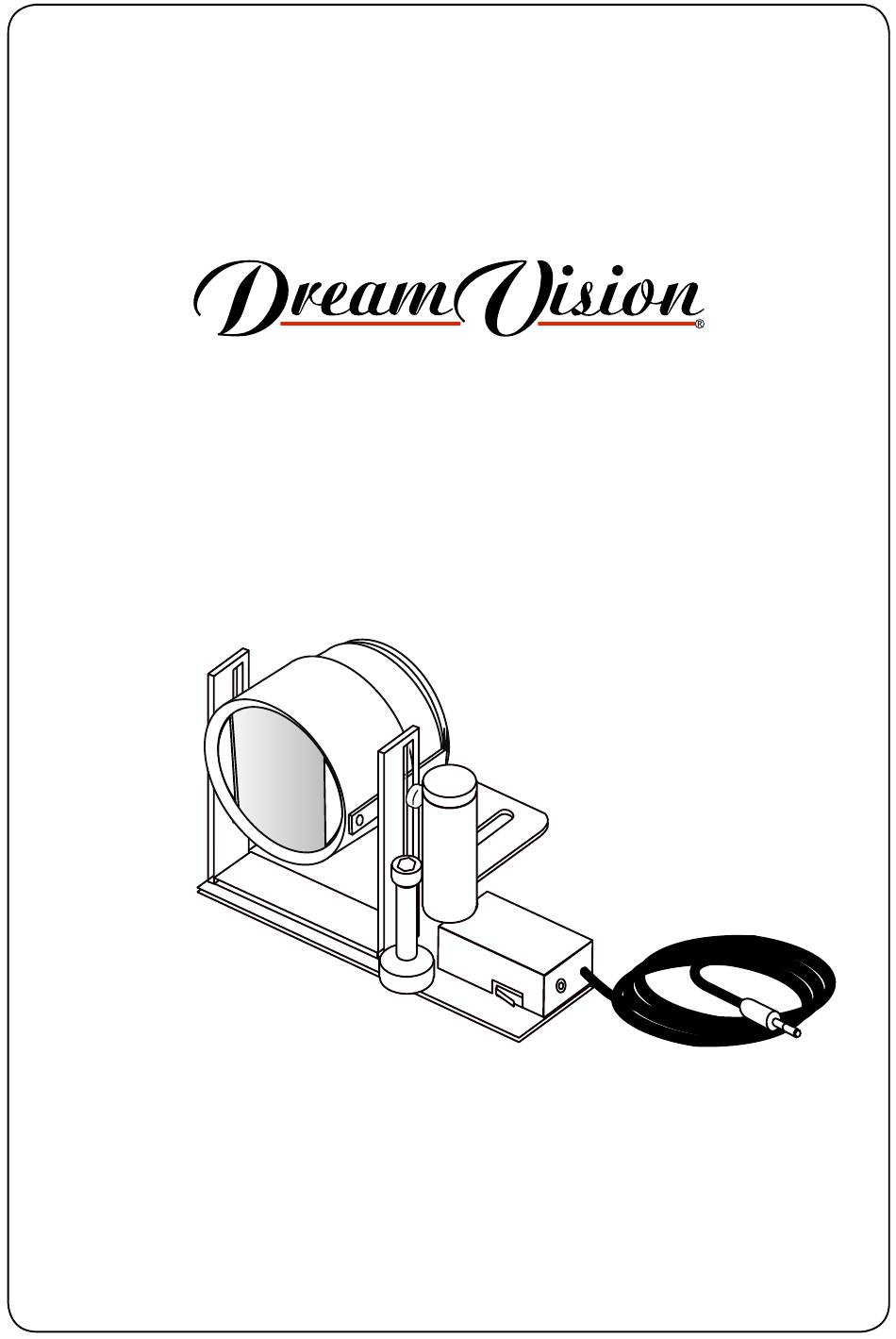

- Page 1 Theatre System Kit for INTI ASSEMBLY AND CALIBRATION www.dreamvision.net Ref: T9006000 Rev: 03 Part. No.: R699802...
- Page 2 If the purchaser or third party caries out modifications or repairs on goods delivered by DreamVision, or if the goods are handle incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will...
-
Page 3: Table Of Contents
ABLE OF ONTENTS INSTALLATION ......................4 The optional THEATER System Kit for Inti (Ref. T9006000)............4 Installing the THEATER System Kit for Inti..................4 Connect the 9V DC Power supply to the THEATER System Kit ............. 5 Lens alignment ........................6 Adjusting the full screen picture ...................... -
Page 4: Installation
1.0 INSTALLATION 1.0 INSTALLATION 1.1 The optional THEATER System Kit for Inti (Ref. T9006000) The Inti 3D projector centralizes the controls and automation commands of the THEATER System Kit for Inti for a unique, versatile and unexpectedly simple to operate true cinemascope experience using the THEATRE Anamorphic Lens. -
Page 5: Connect The 9V Dc Power Supply To The Theater System Kit
1.0 INSTALLATION M4x20 Assemble the ceiling plate pior to the THEATER System Kit for Inti to the projector. Anamorphic Kit Connect the 3.5mm jack connector to the 12V Trigger output of the Inti 3D projector 1.3 Connect the 9V DC Power supply to the THEATER System Kit Plug the 9V DC power supply to the THEATER System Kit. -
Page 6: Lens Alignment
2.0 L ENS ALIGNMENT 2.0 L ENS ALIGNMENT 2.1 Adjusting the full screen picture To obtain a correct 2.35 picture, you must adjust at first the 16:9 picture with the lens is NOT engaged. The 16:9 picture must fill the height of the screen as pictured below. These adjustment are made by using the Zoom and the vertical / horizontal shift of the projector. -
Page 7: Adjust The Horizontal Position
2.0 L ENS ALIGNMENT To engage the anamorphic lens, set the 12V trigger to High state. With a source connected, you can use the Anamorphic Mode feature to automatically engage/disengage the lens when needed: Browse into the projector Menu ⇒ ⇒ ⇒ ⇒ Function ⇒ ⇒ ⇒ ⇒ Trigger ⇒ ⇒ ⇒ ⇒ ON (Anamo) •... -
Page 8: Set The Tilt And Vertical Position Of The Lens
2.0 L ENS ALIGNMENT Set the tilt and vertical position of the lens Adjust the Anamorphic Lens tilt and vertical position, so that the projector light beam is centered into the Anamorphic Lens. Tighten the 2 screws (B) when completed. You may obtain a residual pincushion effect at the screen when using a throw ratio between 1.5:1 and 1.8:1 or a projection distance shorter than 5 meters. - Page 9 2.0 L ENS ALIGNMENT Focused Not focused The focus adjustment is requiered only on the horizontal x-axis. Turn the focus ring clockwise or anti-clockwise depending on the distance between the projector and the screen to obtain a clear picture. If the picture is not focused on the vertical y-axis, that means that the general focus is not correct. Set it correctly by adjusting the projector focus using the projector RCU.
-
Page 10: Projector-Side Configuration
3.0 PROJECTOR-SIDE CONFIGURATION 3.0 PROJECTOR-SIDE CONFIGURATION 3.1 Configure the projector 12V Trigger output Connect you THEATER System Kit to the 12V trigger output of the projector Anamorphic Kit The 12V Trigger output indicates when projecting in 2.35:1 format ⇒ ⇒ ⇒ ⇒ ⇒... -
Page 11: Configure The Picture Gemoetry For 16:9 Sources
3.0 PROJECTOR-SIDE CONFIGURATION 3.3 Configure the Picture Gemoetry for 16:9 Sources When selecting an input with a 16:9 aspect ratio frame, the anamorphic lens has to be disengaged to obtain a non- distorded image on the screen. 16:9 image displayed into a 2.35:1 screen Sel OFF the Anamorphic Mode function: When a 16:9 source is input, set OFF the Anamorphic Mode to disengage the anamorphic lens from the light beam: “Menu ⇒... -
Page 12: Command Format
3.0 PROJECTOR-SIDE CONFIGURATION X on/off None Flow Control None Command Format When sending a command to this unit, use the following data format: Header Unit ID Command Data 1 byte 89h 01h 2 bytes at least 1 byte Header (21h): Operating command. PC -> Projector (3Fh): Reference command. -
Page 13: Lens Control
3.0 PROJECTOR-SIDE CONFIGURATION Lens Control Header (21h) Command Data Description Lens Menu 52h 43h 37h 33h 33h 30h Lens Menu: Toggle the Lens Menu. Lens Shift Up 52h 43h 37h 33h 32h 31h Shift the picture upward using lens shift. Lens Shift Down 52h 43h 37h 33h 32h 32h... -
Page 14: Projection Distances
4.0 PROJECTION DISTANCES 4.0 PROJECTION DISTANCES Projection Screen Size Projection Screen Projection Screen THEATER System Kit for Inti Diagonal size Base size Height Projecting Distance (Aspect Ratio 2.35:1) minimum - maximum 107" (2720 mm) 98.4" (2500 mm) 41.7" (1060 mm) 4000 mm - 5180 mm 128"... - Page 15 Contact Information: TEC - DreamVision 7, rue La CAILLE, 75017 Paris - FRANCE Web: www.dreamvision.net...
- Page 16 Contact information TEC - DreamVision 7, rue La Caille, 75017 Paris, France www.dreamvision.net Part. No. R699802...
