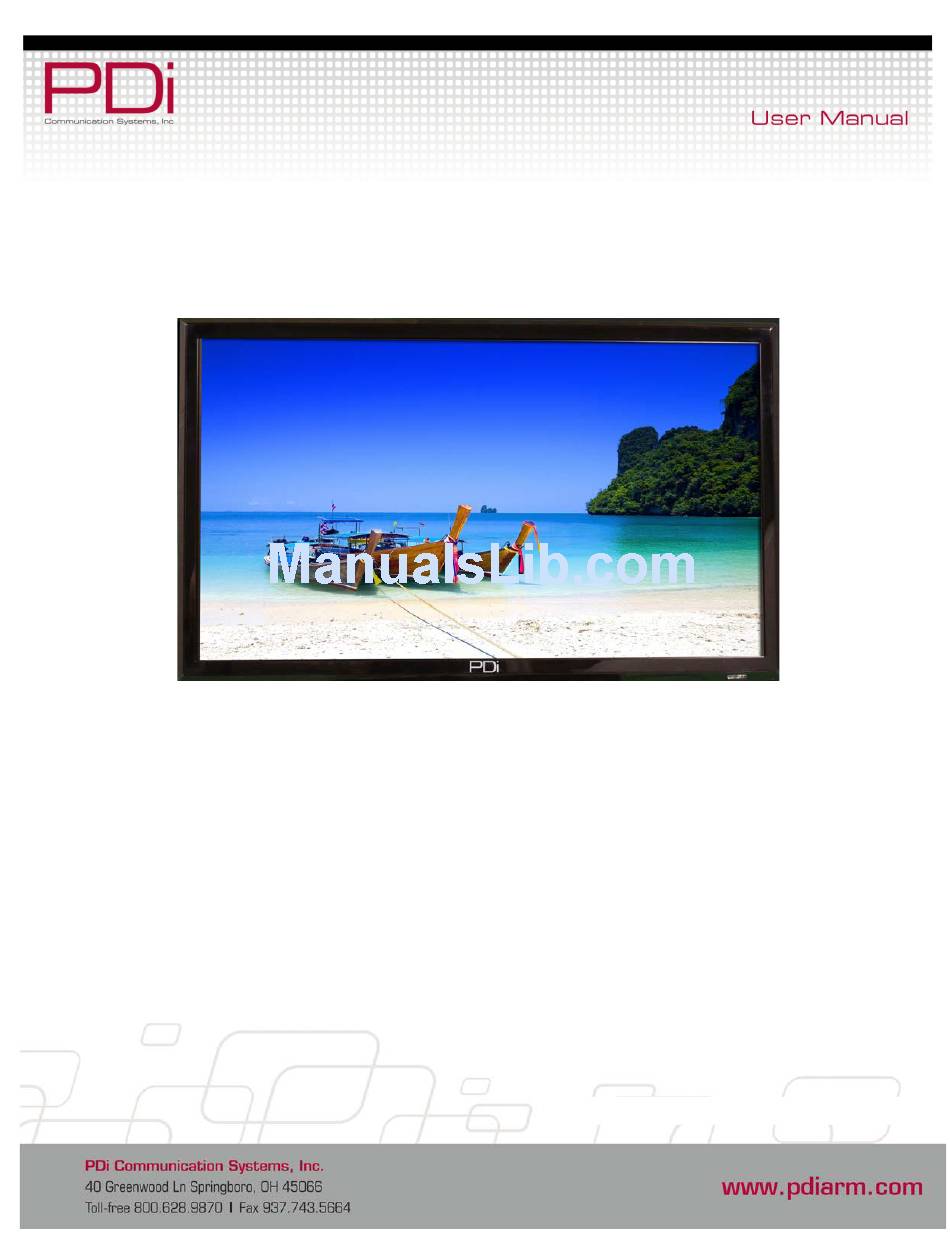

- Page 1 PDI-E24, E29, E32, E42 Modular High Definition Healthcare-grade LED Televisions Document Number: PD196-253R2...
-
Page 2: Table Of Contents
MODEL NUMBER: Document Number: PDI-E24”, E29”, E32”, E42” LED TV PD196-253R2 User Manual Your Source for Healthcare and Wellness Page 1 of 29 ™ Infotainment Table of Contents CAUTIONS AND WARNINGS ............................3 IMPORTANT SAFETY INSTRUCTIONS ........................4 SAFETY INSTRUCTIONS (FRENCH) ........................5 Mounting ..................................6... - Page 3 MODEL NUMBER: Document Number: PDI-P24”, P29”, P32”, P42” LED TV PD196-253R2 User Manual Your Source for Healthcare and Wellness Page 2 of 29 ™ Infotainment Wireless ................................22 Analog Pillow Speaker ............................. 22 UR3-SR3 Remote ............................22 OSD Language (On Screen Display) ........................22 Sources ................................
-
Page 4: Cautions And Warnings
Class B digital device, pursuant to part 15 trademark of PDi Communication Systems, Inc. All rights of the FCC Rules. These limits are designed to provide reserved. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 5: Important Safety Instructions
This will prevent damage to the where they exit from the product. product due to lightning and power-line surges. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 6: Safety Instructions (French)
Cela permettra d’éviter tout dommage à fiches, des prises de courant et au point de sortie l'appareil causé par la foudre et par les de l’appareil. surtensions des lignes électriques. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 7: Mounting
PDI-E24”, E29”, E32”, E42” LED TV User Manual Page 6 of 29 Mounting PDi offers a wide range of wall, floor and ceiling mounting options. Contact PDi for more information. Connections Across-Room Wiring NOTE: A jumper Cable (shown below) is NOT supplied with the TV and must be ordered separately. -
Page 8: Antenna Connections
Press this button to increase volume. • VOL ▼ Press this button to decrease volume. • POWER Press this button to turn the TV on and off. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 9: Remote Controls
18. DASH button Use to enter second part of a digital channel 19. Teletext buttons Navigates teletext displays. Teletext is not used in the USA PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... - Page 10 2 & 3 for bed B 4 & 5 for bed C 5 & 6 for bed D PD108-421 PD108-210 Basic Patient Remote Enhanced Patient Remote PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
-
Page 11: Programming
BASIC – This service level typically allows additional channels beyond those offered in the FREE level. PREMIUM – This is the highest service level with typically the most channels available for viewing. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 12: Picture
5. Press ◄ and ► to adjust the setting. 6. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 13: Sound
NOTE: If Power on Volume is set to Last and the physical power is removed, the TV will power on with a volume equal to the minimum volume setting. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 14: Internal Speaker Enabled
1. Press the SETUP button on the remote control. 2. Press ▲ or ▼ to highlight Channel Setup. 3. Press ► to enter the Channels sub-menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 15: Signal
NOTE: If there are not any channels programmed in the Service Level, “No Channels Present” will appear in the menu. 1. Enter the Channels menu. 2. Press ▲ or ▼ to highlight Add/Delete Channels. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 16: Clear Service Level
SETUP to return to the previous menu. 7. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 17: Copy Service Level
Parental Control allows you to block channels, TV shows, movies, and devices that are connected to the TV. 1. Enter the Channels menu. 2. Press ▲ or ▼ to highlight Parental Control. 3. Press ► to select it. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 18: Tv Rating
NOTE: Parental Control will automatically block any category that is rated for older audiences. For example, if you block the PG-13 category, then R, NC-17 and X will be automatically blocked also. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 19: Change Password
2. Press ◄ or ► to select Enable or Disable. 3. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 20: Power On Channel
The Features menu provides adjustable settings that customize the TV to your hospital. 1. Press the SETUP button. 2. Press ▲ or ▼ to highlight Features. 3. Press ► to enter the Features sub-menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 21: Power On Caption Mode
3. Press ◄ or ► to select Disabled or Enabled. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 22: Digital Captions
3. Press ◄ or ► to select Enabled or Disabled. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 23: Channel To Other Sources
UR3-SR3 Remote This PDi TV can accept IR codes from the UR3-SR3 universal remote. To take advantage of this feature you must enable by choosing “Support” in this menu. When enabling support, some pillow speakers will no longer operate as expected. -
Page 24: Sources
NOTE: If Power on Source is set to Last and the physical power is removed, the TV will power on with the first enabled source. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 25: System
Press ▲ to continue or ◄ to go back. 8. The TV will restart after settings are restored. 9. Remove the USB Disk from the TV. 10. Verify correct setup of the TV. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 26: Save Settings To Usb Flash Drive
7. Screen will confirm “Firmware upgrade is done”. NOTE: Cloning Main Menu only appears if “USB Media” source is disabled when using a blank USB drive. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 27: Upload Boot Code To Tv
Upload Splash Image to TV A custom graphic image can be displayed every time the TV is powered on instead of the PDi logo. Graphics such as the hospital’s logo, picture, or other information is displayable and is easily changed once the graphic has been created. -
Page 28: Operation
Operation Accessing External Video Sources PDi LED televisions come with all external video sources disabled. Only the TV tuner and USB Media sources are enabled. See the Programming section for instructions on enabling other sources such as HDMI. There are three ways to change the currently active video source. -
Page 29: Troubleshooting Tips
¼” to 6-Pin Jumper Cable PD106-416 (Remote comes with DVD module) Basic Patient Remote Control (For PD108-421 ¼” to ¼” Jumper Cable PD106-417 TV’s without DVD module) PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 30: Limited Warranty
This warranty does not cover any other equipment that may have been included with PDi’s shipment of this product. After receipt of written notice of a defect or malfunction occurring during the warranty period, PDi will repair or replace goods returned to its Springboro, Ohio location, at its discretion, free of charge to the original purchaser, the whole or any component part of any product manufactured by PDi and found by PDi to be defective.
