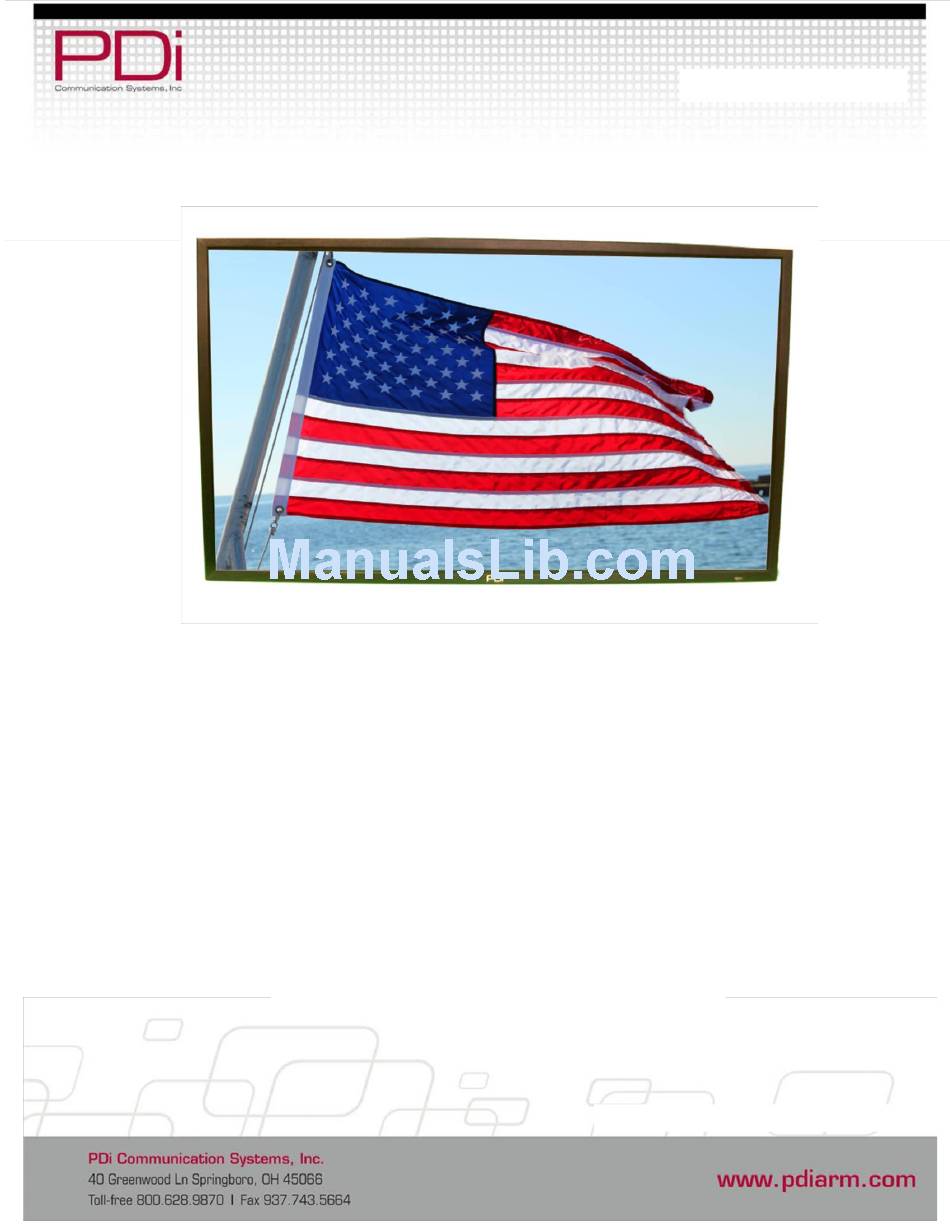

- Page 1 User Manual PDi LED Televisions PDI-A24A, A32A, A42A, A55A Document Number: PD196-389R1...
-
Page 2: Table Of Contents
MODEL NUMBER: Document Number: PDI-A24, A32, A42, A55 LED TV PD196-389R1 User Manual ™ A Leader in Patient Communication Solutions Page 1 of 34 Contents CAUTIONS AND WARNINGS ........................... 3 IMPORTANT SAFETY INSTRUCTIONS ......................4 SAFETY INSTRUCTIONS (FRENCH) ........................5 Connections .............................. - Page 3 Channel List ............................... 20 Auto Channel Aliasing ..........................20 Fill Analog Gaps with Digital Channels ...................... 21 Channel Override ............................21 Features ................................ 21 Changing Password ........................... 21 System Lock ............................... 22 Block Unrated TV ............................22 USA Parental Control ..........................22 Canadian Parental Control ........................
- Page 4 System Upgrade ............................32 System Recovery ............................33 Bluetooth function ............................ 34 Product Information ..........................35 Troubleshooting Tips ............................ 36 Limited Warranty ............................37...
-
Page 5: Cautions And Warnings
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 6: Important Safety Instructions
Refer all servicing – 11. Attachments Only to qualified service personnel. attachments/accessories specified by the manufacturer. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 7: Safety Instructions (French)
électriques. fiches, des prises de courant et au point de sortie de l’appareil. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 8: Connections
DRIVE DVD Connection (Module) The A Series television are made to accept the PDi DVD module, PD251-043-1. This mounts on the back of the television with side access. Detailed installation instructions are available with the DVD. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 9: Side-Panel Buttons
11. CH ▲▼ buttons Selects next channel. Also used to navigate programming menus. 12. ARC button Changes the aspect ratio. 13. CC button Cycles through Closed caption choices PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 10: Patient Remote Controls
1 & 2 for bed A 2 & 3 for bed B 4 & 5 for bed C 5 & 6 for bed D PD108-210 Enhanced Patient Remote PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 11: Set Up Wizard
TV from the USB drive. For import setting shown on next screen. Note: When selecting Begin Setup with Cloning you will be taken to the Import screen. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... - Page 12 5. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. Press ▲ or ▼ to s elect Time Zone and press OK. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
-
Page 13: Main Menu Screen
When the television is powered on the screen that will come up first will be the Main Menu screen. Press “one” to watch TV. To return to the Main Menu, press *, or Exit on the PD108- 210. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 14: Programming
The SETUP menu is the first menu that appears. All the other menus and all the settings can be accessed through it. This manual explains and shows how to setup the different features of the PDI-A Series LED TV. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 15: Sub Menu Overview
3. Press ▲ or ▼ to change the source to TV, DVD, HDMI1, HDMI2, Media or Android. menus disappear. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 16: Picture
3. Press ▲ or ▼to select Aspect Ratio. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 17: Color Temperature
Sets the initial volume for when the TV is turned on. Last will cause the TV to be at the same volume setting before it was turned off. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 18: Minimum Volume
1. Slide to enable 2. AVC is Automatic Volume Control to reduce a strong audio level by 3db. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 19: Internal Speaker Enable
TV to recognize all possible channels and before any channel programming can begin. NOTE: Most hospitals use the Cable signal style. 1. Enter the Channel Setup menu PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 20: Service Levels
BASIC – This service level typically allows additional channels beyond those offered in the FREE level. PREMIUM – This is the highest service level with typically the most channels available for viewing. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 21: Auto Scan
2. Press ▲ or ▼ to highlight Copy Service Level. 3. Press Ok to select it. 4. Press ▲ to set the From Service Level. Press ▼ to set the To Service Level. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 22: Clear Service Level
2. Press ▲ or ▼ to highlight Auto Channel Alias. (If the TV’s Channels menu lacks this item, the TV does not support Channel Aliasing) 3. Press OK to select it. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 23: Fill Analog Gaps With Digital Channels
Note: Factory preset Password is “1234” which will allow you to change to your desired password. Once the TV is set up you should change the password to one that is relevant to your facility. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 24: System Lock
Unlock. 6. Press OK to or Unlock. 7. Press ► to Parental Control Press “OK” Press the SETUP button to return to normal TV viewing. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 25: Canadian Parental Control
NOTE: The U or B (unblocked or blocked) will turn red when it is highlighted. Categories that are rated for older audiences will be automatically blocked. If you block TV-Y category, then TV-Y7 will be PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... - Page 26 NOTE: Parental Control will automatically block any category that is rated for older audiences. For example, if you block the PG-13 category, then R, NC-17 and X will be automatically blocked also. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
-
Page 27: Keypad Lock
None, Cable, Antenna, Satellite, BD/DVD, VCR, Game, MP3 Player, IPTV, PC, or Set Top Box. 1. From the SETUP menu, enter Features. 2. Press ▲ or ▼ to highlight Hospital Mode PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 28: Default Source
The USB drive can only be used once for cloning. It must be erased before using it to clone for the second time. *To exit cloning menu, you must remove the thumb drive. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 29: Clear Lock
2, 3, or 4 television room. See the Remote Controls section (pg. 8) for instructions to set PD108-210, PD108-421, or PD108-427 patient remote. 1. Enter the Common menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 30: Blue Screen
Slide the switch to enable or disable 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 31: Cc Settings
3. Press ◄ or ► to make selection. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 32: System Info
2. P ress ▲ or ▼ to highlight Menu Reset. 3. Press ► to will erase all the channel that is programed into the TV. 4. Proceed with the auto scan. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 33: Advance Setting
3. Press ◄ or ► to select Auto, On, or Off depending on whether or not your viewing area observes Daylight Savings Time. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 34: Common
3. Press ►for the OTA Settings. 4. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 35: System Recovery
OK when it is on Cancel to stop the process. 5. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. Fig.1 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 36: Bluetooth Function
3. Press ◄ or ► to select Connect or Disconnect. 4. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 37: Product Information
Page 35 of 39 PD196-389R1 PDI-A24, A32, A42, A55 Product Information This is a display menu that provides readout of the TV’s internal operations and version numbers. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 38: Troubleshooting Tips
Verify “USB Media” source is disabled in Sources menu Clone menu does not appear • No picture from external source Verify source is enabled in Sources menu PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 39: Limited Warranty
Springboro, Ohio location, at its discretion, the whole or any component part of any product manufactured by PDi and found by PDi to be defective. If the decision is made to replace the product, PDi will exchange the model for the same model or a model similar in form and function, new or reconditioned.
