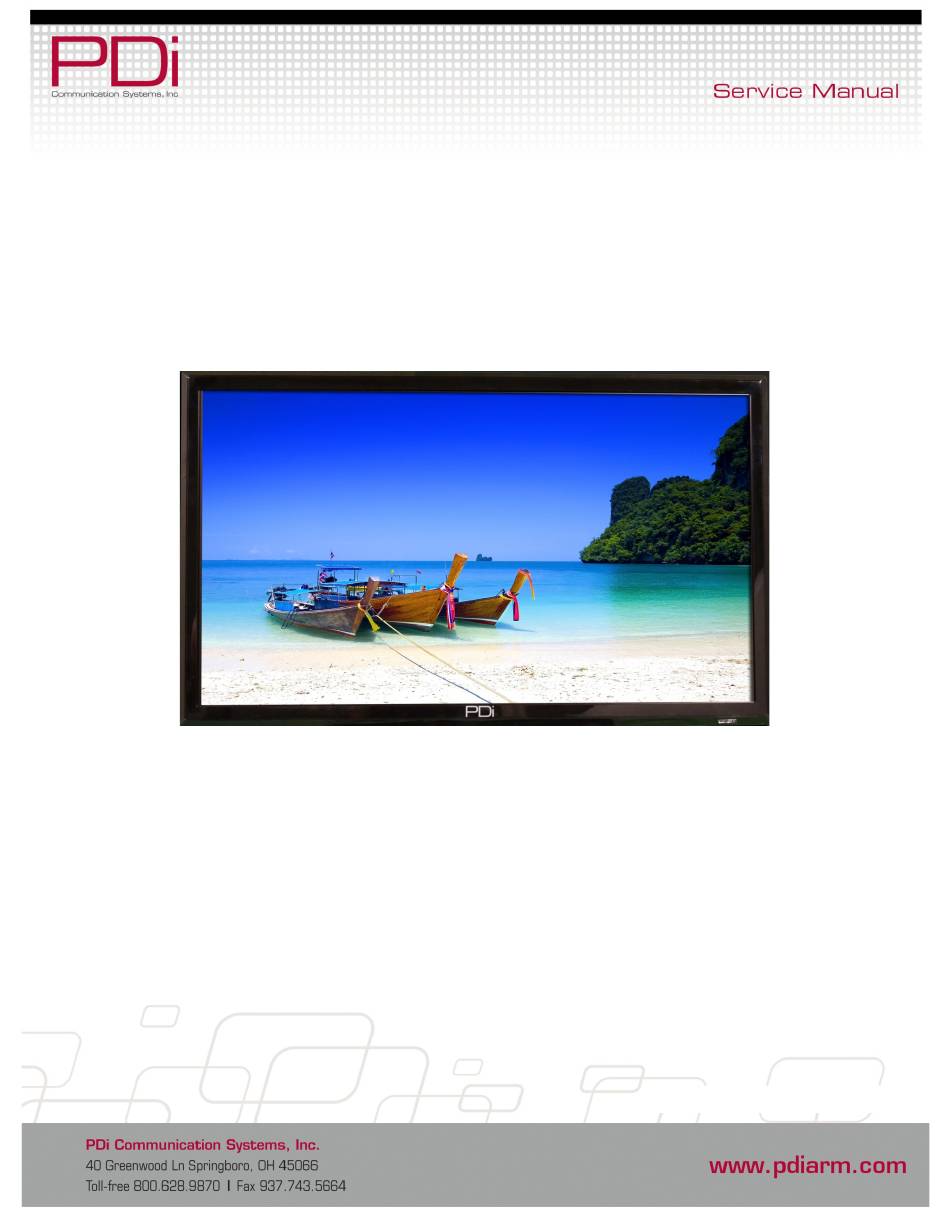

- Page 1 PDI-E42LEDA Modular High Definition Healthcare-grade LED Television Document Number: PD196-278R3...
-
Page 2: Table Of Contents
Back Cover ....................................6 Speakers ....................................7 Board Removal..................................7 Parts List ....................................8 Basic Troubleshooting Steps ..............................9 Reassembly................................... 10 Safety Checks ..................................11 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 3: Copyright, Disclaimer, And Trademarks
Copyright, Disclaimer, and Trademarks Copyright PDi Communication Systems, Inc. claims proprietary right to the material disclosed in this service manual. This manual is issued in confidence for servicing information only and may not be used to manufacture anything shown herein. -
Page 4: Regulatory Information
Consult the dealer or an experienced radio/TV technician for help. Underwriters Laboratories The model PDI-E42LEDA-NK Hospital Grade TV Receiver is a specialized television. This TV is intended for entertainment and educational purposes for use in a hospital, a nursing home, a medical-care center, or a similar health-care facility in which installation is limited to a non-hazardous area in accordance with the National Electrical Code. -
Page 5: Pdi-E42Leda-Nk Specifications
200 x 200MM VESA, 6MM Thread Weight (kgs) (with Stand) 33 lbs (15 kg) Unit Dimensions Inches (WxHxD) (cm) 38.7 x 23.0 x 2.2 (98.3 x 58.5 x 5.7) PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 6: Disinfecting And Cleaning
Verify the agent does not discolor or deteriorate the cabinet. 1. The PDI-E42LEDA-NK has been designed to withstand up to a 5% chlorine based disinfectant. Many alcohol and ammonia based disinfectants have also been tested with success. Apply the cleaner or disinfectant per its recommended instructions. -
Page 7: Speakers
5. The IR board PD128-1783 is secured with plastic tabs. 6. The TCON board PD128-1782 is secured with 4 screws. 7. The keypad board (page 7, #5) PD128-1774 is secured with 2 screws. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 8: Parts List
15. PD106-801 P101 to LED POWER CABLE 7. PD133-933 BACK CABINET 16. PD106-802 P102 to PSU 8. PD289-143 32” ASSEMBLY LCD PANEL 17. PD128-1782 TCON BOARD 9. PD180-017 RF I/O FRAME PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 9: Basic Troubleshooting Steps
Turn off nearby equipment if possible and isolate noise source • Move TV and cables to minimize or eliminate noise. • Replace main board (PD128-1756) PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 10: Reassembly
Wires are dressed in a way not to be damaged by reassembly. • All circuit boards should be mounted to the chassis with screws (DO NOT over torque). PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 11: Safety Checks
Contact Information For any questions with servicing PDi televisions contact our Service Department at: PDi Communication Systems, Inc. 40 Greenwood Ln. Springboro, OH 45066 USA 800-628-9870 PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
