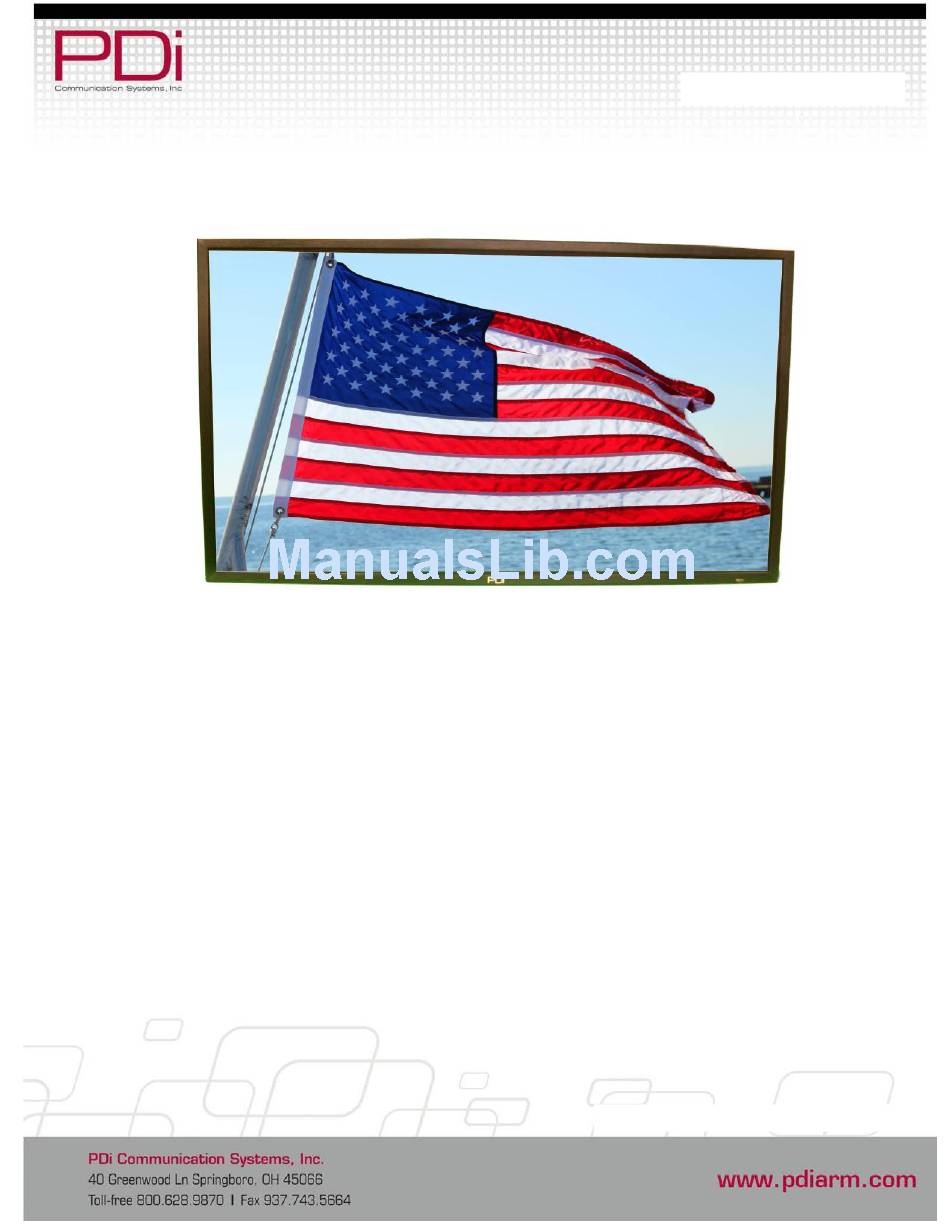

- Page 1 User Manual PDi LED Televisions PDI-E24LEDA-NK Document Number: PD196-253R6...
-
Page 2: Table Of Contents
MODEL NUMBER: Document Number: PDI-E24” LED TV PD196-253R6 User Manual ™ A Leader in Patient Communication Solutions Page 1 of 36 Table of Contents CAUTIONS AND WARNINGS............................3 IMPORTANT SAFETY INSTRUCTIONS ........................4 SAFETY INSTRUCTIONS (FRENCH) ........................5 Mounting ..................................6 Connections ................................6 Across-Room Wiring ...............................6 Pillow Speaker ................................6... - Page 3 MODEL NUMBER: Document Number: PDI-E24” LED TV PD196-253R6 ™ User Manual A Leader in Patient Communication Solutions Page 2 of 36 Channel up Power Off ............................24 Channel to Other Sources ..........................25 Power on ARC Mode............................25 Wireless ................................25 Analog Pillow Speaker ..........................
-
Page 4: Cautions And Warnings
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 5: Important Safety Instructions
– 11. Attachments Only voltage or other hazards. Refer all servicing attachments/accessories specified by the to qualified service personnel. manufacturer. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 6: Safety Instructions (French)
électriques. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 7: Mounting
PDI-E24” LED TV User Manual Page 6 of 36 Mounting PDi offers a wide range of wall, floor and ceiling mounting options. Contact PDi for more information. Connections Across-Room Wiring NOTE: A jumper Cable (shown below) is NOT supplied with the TV and must be ordered separately. -
Page 8: Antenna Connections
CH ▼ Press this button to go to the next lowest channel. • POW ER Press this button to turn the TV on and off. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 9: Remote Controls
18. DASH button Use to enter second part of a digital channel 19. Teletext buttons Navigates teletext displays. Teletext is not used in the USA PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... - Page 10 2 & 3 for bed B 4 & 5 for bed C 5 & 6 for bed D PD108-421 PD108-210 Basic Patient Remote Enhanced Patient Remote PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
-
Page 11: Programming
BASIC – This service level typically allows additional channels beyond those offered in the FREE level. PREMIUM – This is the highest service level with typically the most channels available for viewing. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 12: Picture
5. Press ◄ and ► to adjust the setting. 6. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 13: Sound
NOTE: If Power on Volume is set to Last and the physical power is removed, the TV will power on with a volume equal to the minimum volume setting. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 14: Internal Speaker Enable
1. In the Sound menu, press ▲ or ▼ to highlight Pillow Speaker Boost menu. 2. Press ◄ or ► to choose between settings. 3. Press SETUP to return to previous menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 15: Channels
None: Only the primary signal type will be scanned for digital channels Air or Cable: This signal type will be scanned for digital channels after the primary type is scanned. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 16: Channel Aliasing
The Configure Channels menu display provides a list of active channels found after an auto channel search. NOTE: Your display will appear different, since your channel lineup is likely different. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... - Page 17 Add or Remove the channel from the Premium Service Level. NOTE: A channel number without any indicated Service Level will not be viewable. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
- Page 18 All active Analog channels and all Digital Channels (both Active and Disabled) are renumbered. Remove All Aliases Removes all present aliases and restores the channels to their original numbers. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
-
Page 19: Clear Service Level
SETUP to return to the previous menu. 7. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 20: Parental Control
Language, Sex, and Violence Scenes. Mature Audience Adults only, may contain: Strong Dialog, Bad Language, Sex, and TV-MA Only Violence Scenes. The sub-rating of TV rating PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 21: Mpaa Rating
2. Enter a new password by using the number buttons on the remote. 3. Confirm the password by entering the same digits. After confirming the password, the TV will return to the Parental Control menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 22: Block Aux. Sources
3. Press ◄ or ► to select Enable or Disable. 4. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 23: Channel Memory Override
4. Press the SETUP button to return to the previous menu. To exit, press SETUP until the programming menus disappear. NOTE: When Free to Guest is selected, data ports including CCI and MTI are disabled. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 24: Features
Teletext can be displayed in addition to Captions. Teletext is not normally broadcast in the USA. Caption Text Modes should be set to Disabled for TVs operated in the USA. 1. Enter the Features menu. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 25: Digital Captions
TV will channel up to them and then turn off. When the feature is disabled, the TV will continue on to the lowest channel and not turn off. 1. Enter the Features menu. 2. Press ▲ or ▼ to highlight Channel Up Power Off. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 26: Channel To Other Sources
UR3-SR3 Remote This PDi TV can accept IR codes from the UR3-SR3 universal remote. To take advantage of this feature you must enable by choosing “Support” in this menu. W hen enabling support, some pillow speakers will no longer operate as expected. -
Page 27: Osd Language (On Screen Display)
3. Press ◄ or ► to select your desired language. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 28: Sources
3. Press ◄ or ► to change to the source that you want the TV to power on to. 4. Press SETUP to return to the previous menu. To exit, press SETUP until the programming menus disappear. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 29: Fm Radio
6. Press ▲ or ▼ to highlight Frequency, then press to ▲ or ▼ to manually change the channels. 7. Press ▲ or ▼ to highlight Add/Delete, then press to ► to add or delete channels. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 30: System
Disconnected: CCI and MTI/SmartPort are enabled but are not connected to a host. • Disabled: CCI and MTI/SmartPort ports are disabled because Pro:Idiom is set to “Free to Guest”. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 31: Reset To Factory Defaults
Allows programming and firmware updates to be sent to the TV over the coaxial antenna input. This requires special equipment. Contact PDi for more information. Security Allows menu password protection and the ability to change the password. Support Technical support contact information. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 32: Cloning
8. Wait for the Cloning Main Menu to say “setting saved to USB”, then press◄ to go back to main menu. 9. Remove the USB Disk from the TV. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 33: Restore Setting To Tv
3. Press ► to select and Upload Firmware to TV menu will Appear. 4. Press ▲ or ▼ to highlight Manual Upload Digital Firmware. Press ► to select. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 34: Upload Boot Code To Tv
Upload Splash Image to TV A custom graphic image can be displayed every time the TV is powered on instead of the PDi logo. Graphics such as the hospital’s logo, picture, or other information is displayable and is easily changed once the graphic has been created. -
Page 35: Operation
Operation Accessing External Video Sources PDi LED televisions come with all external video sources disabled. Only the TV tuner and USB Media sources are enabled. See the Programming section for instructions on enabling other sources such as HDMI. There are three ways to change the currently active video source. -
Page 36: Troubleshooting Tips
¼” to 6-Pin Jumper Cable PD106-416 (Remote comes with DVD module) Basic Patient Remote Control (For PD108-421 ¼” to ¼” Jumper Cable PD106-417 TV’s without DVD module) PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664... -
Page 37: Limited Warranty
This warranty does not cover any other equipment that may have been included with PDi’s shipment of this product. After receipt of written notice of a defect or malfunction occurring during the warranty period, PDi will repair or replace goods returned to its Springboro, Ohio location, at its discretion, free of charge to the original purchaser, the whole or any component part of any product manufactured by PDi and found by PDi to be defective.
