CONTENTS
Full Set [1] ..........................................2
Part Set [2] .........................................2
Night Set [3]........................................3
Unsetting ............................................3
Testing the system [5].........................3
Isolating zones [6]...............................4
Reprogramming codes [8]...................4
Chime facility [9] .................................5
Viewing the alarm Log [0] ...................5
System settings ..................................7
System limitations ..............................8

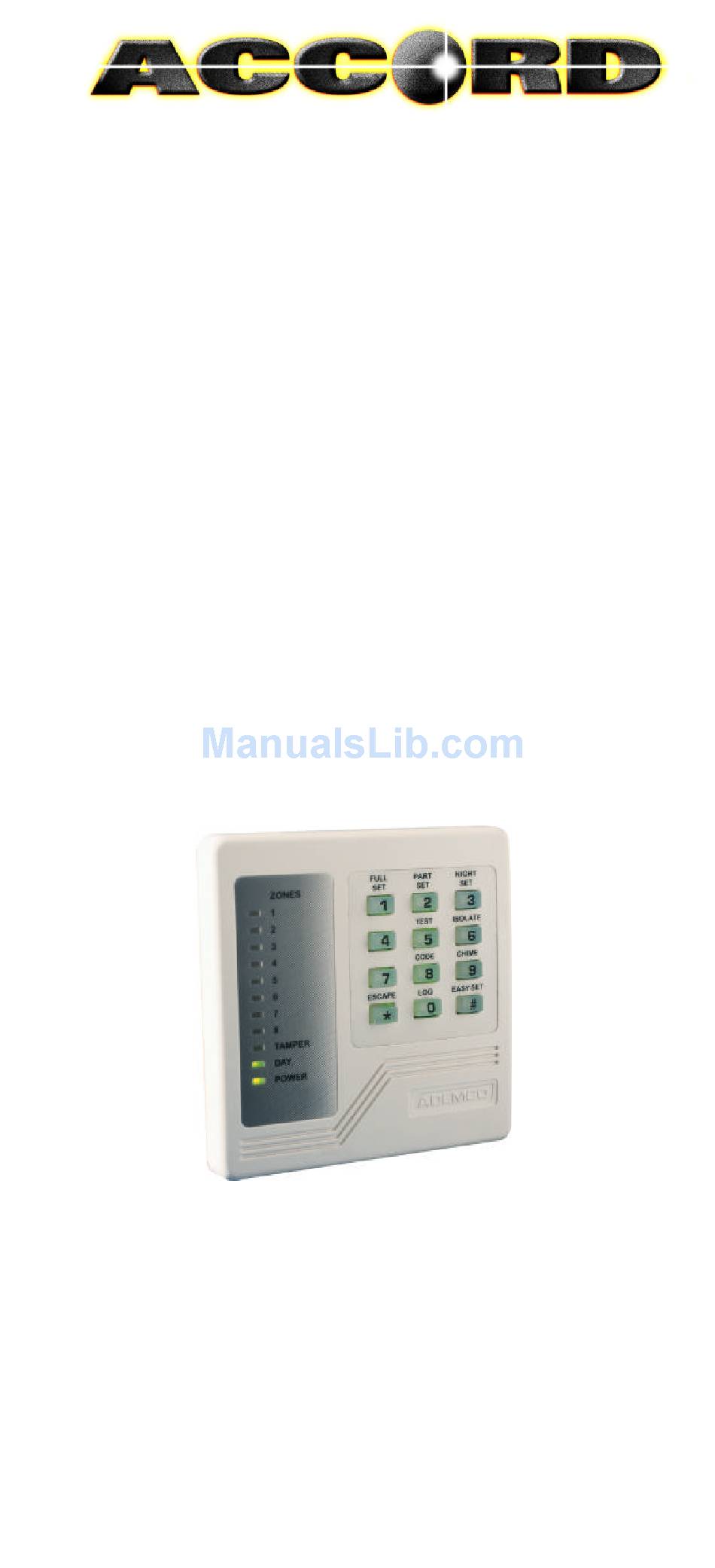

USER
INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accord and is the answer not in the manual?

Questions and answers

Summary of Contents for ADEMCO Accord

  • Page 1: Table Of Contents

    CONTENTS Full Set [1] ..........2 Part Set [2] .........2 Night Set [3]........3 Unsetting ..........3 Unsetting after or during an alarm..3 Testing the system [5]......3 Isolating zones [6].......4 Reprogramming codes [8]....4 Chime facility [9] .........5 Viewing the alarm Log [0] ....5 Indicators and what they mean ...6 System settings ........7 System limitations ......8...
  • Page 2: Full Set [1]

    FULL SET [1] FULL SET [1] All system detectors must be clear before setting. To start the Full setting of the system enter your User Code then press the 1 (Full Set) key. A constant exit tone will be heard which changes to an interupted tone as you pass and activate the detectors on the exit route.
  • Page 3: Night Set [3]

    NIGHT SET [3] NIGHT SET [3] To Night Set the alarm system enter your User Code then press the 3 (Night Set) key. This sets a sub-part of the system and leaves the rest unset, this would allow you to set downstairs areas while leaving the upstairs areas unset for instance –...
  • Page 4: Isolating Zones [6]

    Activate each zone in turn – with each zone activation the zone LED lights and the keypad emits two beeps. To exit Test Mode, enter your User Code: the keypad beeps twice and the strobe stops flashing. ZONE ISOLATION [6] ZONE ISOLATION [6] To manually isolate (by-pass) one or more zones enter your User Code, press the 6...
  • Page 5: Chime Facility [9]

    Two beeps confirm that the code has been accepted. The Master User Code is also needed to programme other User Codes into the system. For example, to programme in a new User Code: enter the Master User Code, press 8 (Code), then the user number (say 2), 5678 8 2 4321.
  • Page 6: Indicators And What They Mean

    displayed first, indicated by the zone LED and a beep. INDICATIONS AND WHAT THEY INDICATIONS AND WHAT THEY MEAN MEAN POWER – There is one power LED at the control unit and one on each keypad. If the Power LEDs are on then there are no problems with the a.c.
  • Page 7: System Settings

    ‘All LEDs On’ – This indicates a Panic Alarm from the √ + # keys. YOUR ALARM SYSTEM SETTINGS YOUR ALARM SYSTEM SETTINGS ZONE FULL PART NIGHT zones which are active in each set mode. If two zone LEDs are scrolling up and down, then the keypad lockout is in effect.
  • Page 8: System Limitations

    LOCATION LOCATION Full Set Entry time....(seconds) Full Set Exit time....….(seconds) Easyarm: Yes / No Alarm Company Day ......Alarm Company Night ......Keypad Panic enabled ( √ + #): Yes/No LIMITATIONS LIMITATIONS WARNING THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary, fire or other emergency.
  • Page 9 • Intruders may gain access through unprotected openings or have the technical sophistication to bypass an alarm sensor or • disconnect an alarm warning device. Intrusion detectors (e.g. passive infrared detectors), smoke detectors, and many other sensing devices will not work without power.
  • Page 10 service or temporarily out of service. Telephone lines are also subject to compromise by sophisticated intruders. • Even if the system responds to the emergency as intended, however, occupants may have insufficient time to protect themselves from the emergency situation. In the case of a monitored alarm system, authorities may not respond appropriately.
