QUICK START
Thank you for choosing Analog Way and the ORCHESTRA. By following these simple steps,
you should be able to setup and use your powerful remote controller within minutes. Discover the
ORCHESTRA's extensive capabilities and intuitive interface while configuring your first show, and,
in combination with OPS300, OPS200, Pulse, Pulse LE, SmartVu, SmartVu LE, Eikos, Eikos LE,
Smart MatriX*, Smart MatriX LE* & Di-VentiX II, unleash all your creativity for a new experience in
show and event management by Analog Way.
* 3Q2010
What's in the box
When unpacking your ORCHESTRA, please inspect product packaging carefully, as the removable feet and
the rackmount ruler and screws are in the packing foam of the device.
1 x ORCHESTRA remote controller
1 x Power supply cord
1 x Quick Start guide
1 x User manual
1 x Rack mount ruler and screws
2 x Adjustable feet

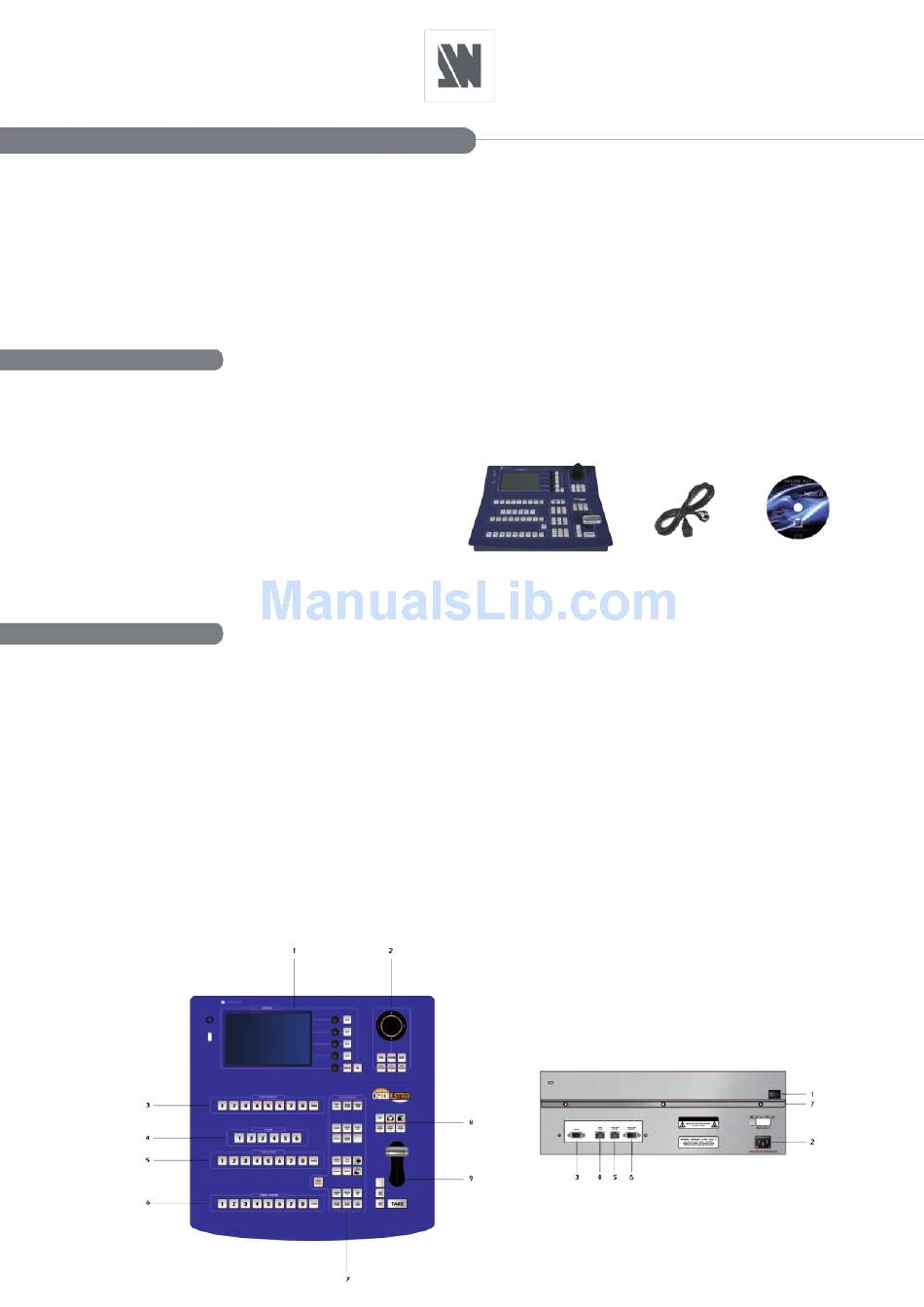

ORCHESTRA Overview

Connect the ORCHESTRA to the slave device(s) by LAN (4) at the back of the product. Connect your device
to an AC outlet (2) and switch it on (1).
The settings section of the ORCHESTRA (1) allows you to access all of the ORCHESTRA menus and
functionalities quickly and easily for swift setup and parametering of your device. The Layout section (2)
of the ORCHESTRA lets users quickly access position, size and zoom settings for any chosen layer, then
change them with the ORCHESTRA joystick. The Preset Edition section (7) of the ORCHESTRA is the true
operations center of the machine and will give users instant access to all of the functions needed to properly
manage your events and shows. The Preset Memory section (3) allows users to store and recall user defined
presets. The Screen section of the ORCHESTRA (4) allows users to select and edit screens. The Source
Main section lets you select sources from the Main output of the slave device. The Source Preview section (6)
lets you select sources from the Preview output of the slave device. The Transition section (8) gives access
to customizable layer transitions, as well as 3 handy user made transition presets. Finally, the Take allows
users to take from the Preview output of the slave device to the Main output to go live.
